T-72: Part 2



Due to the length constraints imposed by Blogger, the original T-72 article was split into two parts. This part covers the second half of the article. You can view the first half here.

TABLE OF CONTENTS, PART 2




  1. Protection
  2. Common Characteristics
  3. Weakened Zones
  4. T-72 Ural
  5. Gill Armour
  6. T-72A
  7. Kontakt-1
  8. T-72B
  9. How NERA Works
  10. Kontakt-5
  11. "Relikt" Side Skirts
  12. 4S24 Blocks

  13. Smoke Screen
  14. NBC Protection
  15. Firefighting

  16. Mobility
  17. Engines
  18. Cooling System

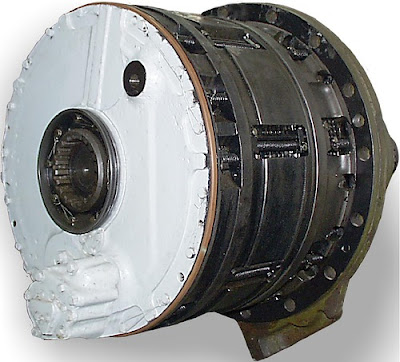

  19. Transmission
  20. Suspension
  21. Water Obstacles
  22. Fuel Tanks




PROTECTION



A good indication of a tank's true survivability is its resistance to catastrophic destruction, which can refer to the tendency for a fire to start and the likelihood of that fire spreading and consuming the entire vehicle or the possibility of the ammunition exploding or the death of too many crew members for the tank to continue fighting. The reasoning is that the resistance of a tank to a catastrophic kill (K-kill) is quite distinct from the resistance of a tank to a mobility kill (M-kill) or firepower kill (F-kill). All tracked tanks are equally vulnerable (more or less) to the loss of its tracks from enemy anti-tank fire, and all tanks are generally equally vulnerable (more or less) to the loss of its weapons or its sighting systems from enemy fire. The main difference lies in the ability of a tank to withstand direct hits on its armour and its ability to minimize the damage inflicted on the inhabitants of the tank as well as the internal equipment in case the armour fails.

In this sense, the T-72 stands on equal footing with many of its contemporaries and surpasses some of its rivals due to a combination of sturdy armour and a rational internal layout. However, many modern tanks now include separated ammunition storage - something the T-72 lacks. Regardless, the protection level of the T-72 was remarkably high for its time as a result of its combination of thick armour and low silhouette and the low placement of ammunition in the hull reduced the chances of the ammunition suffering a direct hit. The main drawback of the location of the ammunition is that any fuel or hydraulic fluid leakage will inevitably pool on the floor of the hull and a fire will reach the ammunition eventually. On paper, this danger is nullified by the automatic fire extinguishing system, but real combat experience showed that tanks that received multiple hits to the engine compartment not only disabled the powertrain of the tank, but also its electrical system. This effectively disabled the automatic fire extinguishing system so that the fire in the engine compartment would be unhindered as it spread to the fighting compartment and eventually burns out the entire tank. This would be a less likely scenario in a conventional conflict as envisioned of WWIII as compared to the experiences of the Russian ground forces in Grozny, but it may not be an uncommon one.

Adding on to that, the location of the batteries in the front of the tank as opposed to the engine compartment reduces the chances of the tank losing its electrical power if the engine compartment was hit. This gives the T-72 a better chance of surviving an internal fire as the fire extinguishing system will still have electrical power, and the smoke grenade launching system can still be used to obscure the tank from further attack. If the batteries at the front of the tank were hit by a frontal armour perforation, the tank may not necessarily lose electrical power as the generator in the engine compartment is still intact. The only problem is that the engine cannot be started electrically after it is turned off without a battery replacement, but it is still possible to start the engine with compressed air. The compressed air cylinders are refilled by an engine-driven compressor, so the tank can remain fully autonomous indefinitely without batteries if necessary, as long as it has fuel. This high level of redundancy contributes to a high level of survivability as the tank can still continue to fight after sustaining serious damage.

Besides a disinclination to internal fires, the survivability of the tank was enhanced by its low profile. Even though it was certainly not the shortest of all Cold War era main battle tanks, it was still an impressively diminutive target. The original T-72 had a height of 2.19 meters (measured up to the turret roof) and the T-72A was the same. The T-72B had a marginally taller turret along with slightly more ground clearance, combining to slightly increase the height of the tank to 2.23 meters. Overall, the tank is shorter than the T-62 and T-54/55 that preceded it, and compared to tanks like the M60A1, the T-72 can only be described as a dwarf.

Although the tanks produced in the Soviet Union are most famous for emphasizing low size and weight, the reality is that all nations were actively pursuing such reductions and the Leopard 2 and M1 Abrams were examples of West Germany and the U.S making great strides towards this objective. Even so, the T-72 was still slightly shorter than the M1 Abrams and Leopard 2 which had a height of 2.39 meters and 2.48 meters respectively (measured up to the turret roof). In terms of height and overall profile size, it is beaten only by the Strv 103 which also had the upper hand in terms of overall length. By comparison, the Strv 103 had a height of only 1.9 meters when the suspension is in the travelling condition, and having a "bullpup" configuration gave the Strv 103 a uniquely short overall vehicle length without compromising gun barrel length such that its ability to maneuver through dense forests could be better than other tanks. The difference in size can be seen in the drawing below, and the drawing below it comparing the Strv 103 with the M60A1 gives a reference point. Both drawings are taken from "Kampfpanzer: Die Entwicklungen der Nachkriegszeit" by Rolf Hilmes.




The three film stills below show drawings that superimpose the T-72 on comparable NATO tanks to illustrate the difference in the size. The scale appears to be slightly exaggerated in favour of the T-72 in these drawings; the height of the M60A1 seems to be warped as the turret is depicted is too tall and the commander's cupola is too short. Despite this, these drawings are accurate enough to gain a general impression of the difference in size. These film stills were taken from archival footage from a Czechoslovakian Army training film. Original video from the VHU channel.




However, even though the Strv 103 is shorter than the T-72, the casemate hull is still significantly wider, especially at the top part due to the large sponsons over the tracks. Overall, the area of the frontal silhouette of the Strv 103 including the tracks is 4.25 sq.m whereas the area of the frontal silhouette of the T-72 is only 4.0 sq.m, which also happens to be half of the frontal silhouette of the M60A3 (8.0 sq.m). As such, despite being slightly taller than the Strv 103, the T-72 manages to still present a comparatively smaller frontal projection if both tanks are travelling over open ground. Needless to say, this is not a trivial achievement.

In a hull-down position where the height of the turret matters more than the tank's full silhouette, the small turret of the T-72 also has an advantage. With a maximum height of just 720mm from the turret ring to the turret roof, the T-72 turret is shorter than the turrets of the T-62 and T-54 which were both 810mm tall. The difference between foreign tank turrets is even more noticeable: the Centurion Mk.10 turret had a height of 956mm, the Chieftain turret had a height of 975mm, and the M60A1 turret had a height of 970mm. A large amount of effort was spent to reduce turret heights in the West, resulting in the turret of the M1 Abrams (and all variants thereof) having a height of 900mm. The turret could have been shorter, but there was a need to have a sufficiently large internal height to accommodate a human loader and some of this height had already been sacrificed because of the short hull with a reclined driver's seat. The Leopard 2 had a conventional driver's seat and a taller hull, so the turrets of all models of the Leopard 2 (excluding the latest models with additional roof armour) had a height of just 830mm.

Additionally, the difference in the area of the silhouette of the T-72 does not merely manifest from a frontal view, but also when the turret is turned to one side. When the turret is turned to the side such as shown in the drawing below, the area of the silhouette of the turned turret (dark grey) is the same as the area of the silhouette of the turret when it is facing straight forward (light grey). On the other hand, the area of the silhouette of the turret of an M1 Abrams when it is turned (dark grey) is significantly larger than when the turret is facing straight forward (light grey). The same principle is true for turreted tanks with long bustles like the M60A1 and the Leopard 2. Drawing taken from "Kampfpanzer: Die Entwicklungen der Nachkriegszeit" by Rolf Hilmes.




The increase in the area of the silhouette of the turret has the effect of increasing the chance of receiving a hit on the turret. Additionally, this advantage is non-trivial in a defensive scenario where both tanks are hull-down, dug-in and concealed. The longer turret of an M1 Abrams or Leopard 2 will appear larger to an observer when it is turned away from his direct line of sight, thus making it easier to see. This also has the side effect of causing the movement of the turret to become more obvious, as the change in silhouette size during the rotation of the turret will be more likely to invite the attention of watchful eyes. The lack of any change in the silhouette of a T-72 turret as it rotates renders it harder to notice. Of course, these advantages may be nullified under certain circumstances, such as those facing Iraqi tankers during the first Gulf War. Many T-72M and T-72M1 tanks were dug-in and hull-down, but were easy to see due to the featureless terrain of the desert, especially from the sky. Furthermore, the dug-in tanks baked for hours directly under the hot sun, making them glow brightly in the thermal imaging sights of Coalition tanks and infantry fighting vehicles. These problems are not present in a hypothetical European battlefield due to the abundance of foliage and shade.

The use of a long turret bustle is not inherently bad, of course. Like any other technical solution, it has its own set of merits and demerits. The merits include better turret balance (because the long bustle behaves as a counterweight to the heavy gun and armour at the front of the turret), and quicker loading speed for both manually loaded tanks and tanks with autoloaders if ammunition is stowed in the bustle. This is confirmed by ergonomics studies on manual loading and by autoloader optimization studies done in the USSR. Of course, the downside to having ammunition stowed in the bustle is that the turret is statistically more likely to be hit so that ammunition stowed inside is also more likely to be hit if the turret armour is defeated, and this is quite an important consideration to make. When the turret of a tank with a long bustle is turned to the side, it becomes possible to hit the bustle from the front. For tanks without compartmentalized ammunition and blowout panels like the M60A1, the thin side armour makes it comparatively easy to perforate the bustle armour compared to the frontal armour, thus making it possible for even obsolete anti-tank weapons to defeat the tank from the frontal arc. This is mostly avoided in the M1 Abrams, but not entirely.


Offensively, the smaller overall size of the tank made it more difficult to hit when it was on the move in open terrain. Defensively, the low turret made it hard to detect and even harder to hit, and the armour protection of the turret could also be enhanced if the tank is on a reverse slope. The roof of the turret is angled at around 78-80 degrees, so when the tank is on a gentle reverse slope and the gun is laid at the maximum depression angle of -6 degrees, the angle of the turret roof becomes 84-86 degrees (critical ricochet angle for virtually all long rod APFSDS) and the projected area commander's cupola is partly hidden behind the turret cheek armour, thus minimizing the weakened zones of the turret and making the tough frontal protection of the turret even tougher.

The superior target-finding capabilities of the hypothetical enemy granted by the widespread adoption of thermal imaging technology would also be negated if the tank were hull down, as the hot engine and running gear would be concealed below ground level while the turret may not be hot enough to offer sufficient thermal contrast, especially if it were covered in camouflaging elements like special netting and foliage cloaks or even field expedient solutions like branches. The main factor that gives the surfaces of tank armour a different thermal signature from the surrounding environment is the heating of the steel by solar radiation at a different rate than soil and vegetation. The thermal signature of a properly camouflaged tank would not be different from the thermal signature of nearby bushes and branches, rendering the tank effectively invisible. Special paint has also been developed which insulates tanks from solar radiation, effectively rendering them invisible to thermal cameras without needing additional camouflaging elements, but not even modern T-72 models have been provided with such paint as of late.

To summarize, the T-72 was not just a capable offensive tool but also quite formidable when used defensively. The only drawback was the slow reverse speed which prevents the tank from quickly withdrawing from a compromised position and performing an effective tactical retreat. However, the slow reverse speed would not have been an issue when firing from a hull down position behind a reverse slope or a berm as it is quick enough for the tank to rapidly return to a turret down position.


Of course, it is not possible to remain completely unseen indefinitely. The formidable armour of the tank is the most obvious major factor in reducing the casualty rate of its crew and ensuring the success of a combat mission, but the criteria for knocking out a tank does not only depend on defeating its armour. In fact, it is not only possible to disable a tank without perforating its armour plating, but also quite common. One of the easiest ways to do so would be to simply de-track the tank, but the tank can still fight albeit from a compromised position. Another effective method of eliminating the combat capability of a tank would be to destroy its observation devices. In that case, the most important objective would be the destruction of the gunner's sights which would prevent the tank from using its weapons. The location of the gunner's sight aperture depends on the individual tank, but generally speaking, tanks with a telescopic sun sight have the sight aperture in the gun mantlet or near it, making them vulnerable to damage. For a tank like the T-54, the sight aperture is located in a slit cut into the turret armour next to the gun barrel, directly at the center of mass of the tank where most shots are expected to land. Furthermore, a hit from a solid armour-piercing shot on the well-sloped upper glacis may produce enough secondary fragmentation to damage the sights indirectly, and the detonation of an explosive shell on the upper glacis is quite likely to do so owing to the large amount of fragmentation expected. Tanks with a periscopic gun sight usually have the gun sight aperture located on the turret roof or some other part of the turret above the frontal armour facings. The T-72 belongs in this category as the aperture of its primary sight and night vision sight are both located on the turret roof, making it less likely to be damaged by explosive shells impacting the front of the turret or the upper glacis.

It is worth noting that the detonation of an explosive warhead on the front of the turret does not only put the gunner's sights in danger, but also the driver's observation devices. It is not only exposed to the rearward spray of primary fragments produced by the casing of the warhead itself, but also fragments rebounding from the surface of the turret. The driver's periscope on the T-72 has an armoured hood to protect it from behind and the periscope aperture protrudes from the frontal armour and not the hull roof which has the effect of partly obscuring it from the spray fragments coming from behind. However, the two smaller TNPA-165A periscopes embedded in the driver's hatch are not protected and would probably be destroyed. The armoured hood that extends over the driver's periscope can be seen in the photo below (credit to Azrael Raven from primeportal.net). The thickness of the armoured hood is just under 10mm. The driver's hatch itself has nearly double the thickness of the hull roof, giving the driver additional protection from the blast and fragmentation effects of munitions detonating overhead.




The driver's periscope on the T-72 has a better chance of surviving the detonation of an explosive shell on the turret compared to a Leopard 2, Chieftain, or M1 Abrams. It is also worth noting that the driver's periscope is protected from bullets ricocheting off the sloped upper glacis by steel ribs in the same way that the sights (and other optics) on the Strv 103 are protected, as you can see in the photo above. Unfortunately, they could also help to prevent ricochets of larger and more dangerous projectiles such as APDS rounds and even tank-fired HEAT rounds, which tended to have trouble fuzing properly when impacting armour at angles of more than 60 degrees. Ordinarily, the upper glacis of all T-72 models has three small ribs and one large and thick rib in front of the driver's periscope. When viewed from the direct front, the ribs will appear to be stacked on top of one another. On T-72 models that have a 16mm appliqué armour plate welded to the upper glacis, only a single large rib and a single small rib will be present on the appliqué plate. This detail often proves useful for identifying T-72 models in low quality photos, particularly photos in paper documents where the excessive contrast of the printed photo would wash out most other details.


The T-72 has proven its worth in various conflicts when placed under competent command, but the lack of media coverage on the successes does not help its case. Even though many tanks have been destroyed, often irrecoverably, many more have survived such that the tank's ability to endure severe punishment simply cannot be considered low. To list one incident in Grozny, in the year 2000, a T-72B with the tail number 611 took 3 hits from Fagot anti-tank missiles and 6 hits from RPGs during 3 days of intense fighting and remained in battle with only minor damage. Most of the hits landed on the sides of the tank, with one rocket impacting the lower rear of the hull. Other cases involving older models such as the T-72A more often ended on a sadder note, but in general, it took several hits from anti-tank grenades and missiles to reduce the combat capacity of a T-72 and at least half a dozen hits on the weakened zones (sides, rear) are usually required for the ammunition to detonate or a fire to start in the tank.

More examples come from this article by Andrei Tarasenko on tank action in Grozny containing details on multiple T-72As lost in combat. The 131 Separate Motor Rifle Brigade (OMSBR) tasked with capturing the Grozny rail station sustained many casualties during combat, losing a total of 157 men, 22 tanks, 45 infantry fighting vehicles, 37 cars and all 6 of the Tunguska anti-aircraft systems operated by the air defence division attached to the brigade. While providing supporting fire, the tanks belonging to the brigade received multiple anti-tank grenades from every direction in return for each shot fired. One T-72A with the tail number 533 sustained four or five RPG grenade impacts on the engine compartment, and the tank caught fire. It eventually exploded, but not before the crew was able to escape. Another T-72A, with the tail number 537, sustained six or seven hits from RPG grenades before suffering an ammunition explosion, killing its entire crew instantly. A third T-72A, with the tail number 531, sustained four hits from RPGs before its turret failed, and the tank was finally knocked out of action after an APFSDS round fired from 100 meters impacted the turret on the commander's side. A fire was started, but fortunately, the gunner (left hand side of the turret) was only heavily concussed because the bulky breech assembly of the cannon saved him from the spall and fragments entering the turret on the commander's side (right hand side of the turret). Both the gunner and driver were able to escape the tank before it eventually succumbed to the fire and exploded 20 minutes later. None of these tanks had reactive armour installed.

In another example, a T-72B1 from the 276 Motor Rifle Brigade with the tail number 221 was penetrated twice in combat during the battle for the Grozny hospital in January 16, 1995. After repairs, it was damaged again on January 21, 1995 during combat near the building of the Council of Ministers where it was hit with five RPG grenades. Four of the hits were sustained on the sides of the hull, one of them on right side, on the fourth roadwheel, and the other three on the left side. The fifth hit was sustained on the turret, above the gun barrel. The autoloader was damaged by the turret strike, but the tank survived and was sent for an overhaul.

More interesting examples can be found in the article "Танки Т-72 В Войнах И Локальных Конфликта" (T-72 Tank in Wars and Local Conflicts) by V. Moiseev and V. Murakhovsky and published in the "Arsenal of the Fatherland" journal, issue 4, 2013. One of them is taken from an after-action report on the death of a tank commander in a T-72 after an attack by RPG-type weapons. The tank was a T-72B1 built in December 1985 in Uralvagonzavod. After being pulled into a repair facility, the tank was inspected and eight damage points were observed. Five of the hits were recorded on the hull, and of these, three were from RPG grenades impacting the sides of the tank in the areas protected by reactive armour, one was from an RPG grenade impacting the rubber side skirt of the tank in an area unprotected by reactive armour, and one was from an RPG grenade impacting the rear of the engine compartment. The remaining three hits were recorded on the turret, one on the front, one on the side, and one on the rear. It was noted that the tank was in a marching status prior to the attack, having the cannon locked in the travel position and the 12.7mm machine gun locked facing backwards. Also, the commander's hatch was ajar or opened completely, so that the death of the commander may have been caused by the combined explosion of an anti-tank grenade and the reactive armour occurring outside the tank. Overall, the tank remained combat capable despite receiving damage in the autoloader and in the stabilizer system, as the driver and the gunner were still alive at the end of the ordeal and the gun could still be fired using the manual controls.

In general, photos of destroyed T-72 tanks cannot be said to be proof of the low survivability of the tank, but are instead often indicators of the sheer ferocity of the fight that led to its destruction.



COMMON CHARACTERISTICS: HULL


The protection qualities of the frontal armour depend greatly on the specific model, but there are many characteristics that were shared across all models. This includes the side armour, hull belly armour, hull roof armour, and others. Protection was focused on the frontal arc of the hull.

The frontal arc of the tank is not the same for the hull and the turret. Various definitions of a tank frontal arc are handily compiled in the drawing below, taken from the article "Elements of Tank Design" by Gerald A. Halbert published in the November-December 1983 issue of the ARMOR magazine. For the hull, the Soviet definition of the frontal arc places the center point of the arc at the centerline off the hull (second from left). For the turret, the center point of the frontal arc is placed at the center of the turret (fourth from left).




The Soviet definitions are used throughout this article and other Tankograd articles.

Generally speaking, the level of protection was quite formidable although some concessions were made during its development which put it slightly below the level of the T-64A. It is widely known that increasing the volume of a tank leads to an increase in armour mass without an increase in armour thickness because of the need to add armour to protect a larger surface area. This was a source of inefficiencies in the design of the T-72. When the UKBTM design bureau of the Uralvagonzavod factory designed the Object. 172 prototype using the T-64A as the foundation of their new tank, one of the modifications made was to replace the compact 5TDF opposed piston engine with the V-46 V-shaped 12-cylinder engine developed by the Chelyabinsk tractor plant (ChTZ). The V-46 engine itself was larger than the 5TDF, but the difference in dimensions was not as significant as the decision to use the conventional centrifugal fan-driven cooling system from the T-54 instead of the ejection-type cooling system of the T-64. The volume of the engine compartment had to be increased by 0.5 cubic meters to accommodate this new equipment, and in turn, the increased volume generated a larger surface area. Added together with the increased mass of the running gear, the weight of the T-72 increased considerably and none of the extra mass went towards thickening the armour. To the contrary, the side hull plating had to be thinned down to 80mm from 85mm in order to put the weight gain in check. This was partly nullified by the larger diameter roadwheels of the T-72 which could cover parts of the hull, but the wheels are made of aluminium and not particularly thick, so this was not a true remedy but merely an unintended bonus.

The hull side, hull roof, hull belly and rear armour of all T-72 models are identical, regardless of the variant. As stated earlier, the armour of the side of the hull is 80mm thick, but the plate thickness over the sides of the engine compartment is slightly less at only 70mm. The side armour of the hull is more than enough to withstand 20mm armour-piercing ammunition fired from various aircraft as well as 20mm APDS rounds from autocannons, although it is not immune from even obsolete anti-tank guns like the 76mm of a Sherman tank. This is simply one of the many harsh realities of tank design. There are several zones in the side of the hull that may not be entirely on the same level as the rest of the armour such as the one shown in the photo below. As you can see, the thickness of the steel armour at the drive sprocket and the rear shock absorber is reduced. It is thinner than the side armour of the engine compartment, and even though the shock absorber unit and the drive sprocket are backed by some amount of armour, the level of protection at these zones is not equal to the side of the engine compartment.




Note that in the first photo, the cut in the armour plate above the shock absorber is angled whereas the same cut is perfectly horizontal in the second photo. This is because of the slight offset of the roadwheels caused by the use of a torsion bar suspension. On the T-72, the roadwheels on the left side of the hull (port) are displaced slightly forward from the roadwheels on the right side (starboard). As such, the roadwheels on the right side of the hull (starboard) are slightly closer to the drive sprocket, so the shock absorber for the sixth roadwheel had to be moved closer to the drive sprocket and angled slightly to facilitate the same range of vertical travel.

The thickness of the armour at the holes for the installation points for the two shock absorbers at the front of the hull (at the first and second roadwheels) are also particularly thin, as you can see in the picture below. It is estimated to be around 20mm thick, without any slope. The shock absorber itself has a casing made from armour-grade cast steel and has a considerable bulk which adds some protection on its own, but the presence of a large hole in the armour is not helpful.




Besides these weakened zones, the mounting points for the roadwheels and track support rollers can be considered reinforced zones. The armour thickness at these zones is much greater than the parts of the hull where they are located. The mounting points for the roadwheels are especially thick as they are separate milled blocks of steel welded onto the belly plate. The thickness of steel at the mounting points for the roadwheels probably exceeds 100mm and the thickness of the steel at the mounting points (also thick blocks of milled steel welded) for the track support rollers easily exceeds 100mm.

The side armour is thickest at the top half and thins down to just 20mm at the lower quarter of the side hull profile. The upper and lower sides are not the same plate. The upper side armour is a single rolled steel plate whereas the lower side armour is actually a part of the belly armour plate. The belly plate is a large stamped piece of steel, bent into a tub shape and welded to the upper side armour. It joins with the upper side plate at an angle of 32 degrees from the vertical axis. The lower side hull armour has a height of 250mm or 270mm if the thickness of the plate itself is included. The upper side hull occupies around three quarters of the area of the side hull profile and the weaker lower side hull occupies one quarter. This thin strip of the side armour is usually not visible as it is completely concealed behind the roadwheels which add a modicum of spaced armour. The roadwheels cover a height of around 350mm of the lower part of the hull, and thus cover the entirety of the lower hull sides and also cover a part of the upper hull sides as well. The short height of the lower side hull armour makes it statistically unlikely to be hit and the additional protection provided by the roadwheels offsets the reduced thickness of the armour, so overall, it is not a flaw in the protection scheme of the tank. It is worth noting that the side armour of many other tanks are configured in a similar way, including the Leopard 2 as shown on the right next to the T-72 on the left.




The interior surface of the upper side hull armour is coated in a 50mm layer of "Podboi" anti-radiation lining, which can help absorb spall and other secondary penetrator fragments or even stop residual penetration from less energetic projectiles. This is discussed later in the "NBC Protection" section of this article.


It is without a doubt that the sides of the tank were only sufficient for a very limited period of the service life of the T-72. Being only 80mm thick, the side armour plate could offer only a fraction of the protective value of the front armour, and this was not a trifling issue. The number of hits sustained by a tank's sides were statistically significant, as shown by the analyses conducted by Dr. Manfred Held in "Warhead Hit Distribution on Main Battle Tanks in The Gulf". The charts below are from the study.




The sides would have been mostly resistant against 105mm APDS like the L28A1 round (M392 in the U.S and DM13 in West Germany) at a range of 2,000 meters within a somewhat reasonable 40-degree arc, but this arc is still relatively narrow and it limits the tank's freedom to maneuver in open spaces. At a range of 200 meters, the side armour is only capable of resisting DM13 at a side angle of 17.5 degrees, so the protected frontal arc would only be 35 degrees. The appearance of 105mm APFSDS rendered the side armour completely inadequate as protection against contemporary anti-tank firepower.

The hull roof is 30mm thick, the rear armour plate over the engine compartment is 40mm thick, and the hull belly is 20mm thick. The thickness of the "Podboi" anti-radiation lining on the hull roof is 50mm and the engine compartment lacks an anti-radiation lining. The thickness of the hull roof at the driver's station sans the standard anti-radiation lining can be visualized in the photo below. Note that the driver himself is provided with an armoured hatch of increased thickness which improves his chances of survival from overhead blast and fragmentation.




The thickness of the hull belly plate is comparable to tanks like the M60 series and is slightly thicker than the 16mm belly plate of the Centurion and Chieftain, but is soundly beaten by the arched 36mm-thick belly of the M48 which was known to have excellent mine protection. The hull belly of the T-72 is only sufficient against explosive charges with a mass of less than 10 kg detonated over the tracks and not directly under the hull. These parts of the hull are most likely constructed from the same steels used in the same locations in the T-54 and T-62: 49 S grade steel for rear armour plate and the hull roof, 43 PSM grade steel for the floor. These grades of steel were first used in the T-54 obr. 1953. The hull bottom is constructed from a single plate of rolled steel, which is then stamped into a complex shape with protruding ribs for the installation of torsion bars and a depressed section in the floor to accommodate the driver. Reinforcing nubs were pressed into the plate between every torsion bar rib to improve the stiffness of the floor. The side edges of the plate were bent upward at a 30 degree angle to join with the side hull plate, thus forming a tub shape. This was possible due to the ductility of 43 PSM steel, which is a soft annealed steel and cannot be considered equivalent to RHA. 43 PSM has a yield strength of 400 MPa and a tensile strength of 600 MPa, and a hardness of 180-250 BHN. These qualities make the steel plate easy to press and potentially more useful for mine protection because softer steels like 43 PSM have a reduced resistance to deformation but higher resistance to rupturing compared to high strength and high hardness steels. The rigidity of the belly plate is augmented by the lateral ribs for the torsion bars and the longitudinal embossed nubs on the belly plate, although the significance of these measures against mines is not entirely clear. However, it does not help that there are a multitude of structural weak points in the front part of the belly plate where a tilt rod mine will most likely detonate, namely the escape hatch and drain plugs. Given that the AZ autoloader can only withstand a hull belly deflection of 8mm, the detonation of an anti-tank mine with a payload of more than 4 kg of TNT is likely to disable the autoloader.





The armour plates used in the side hull and front hull armour of the T-72 are made from 42 SM medium hardness RHA steel with a hardness of around 340 BHN. The cast turret is made from MBL-1 casting-grade steel with a hardness of 270-290 BHN. This grade of steel was first used in the turret of the T-62. The HHS (High-Hardness Steel) used in the turret of the T-72B is BTK-1Sh, an electroslag remelted steel with a hardness of ~450 BHN. The appliqué armour plate installed on the 1983 modification of the T-72A and earlier T-72 variants is not known but it has been credited with a hardness of more than 500 BHN by credible sources.


The upper glacis is a multi-layered armour array angled at 68 degrees. Although the composition of the composite armour was changed many times over the course of the long career of the T-72, the angle of the upper glacis always remained the same. The high obliquity was an advantage against APDS ammunition, HEAT ammunition (due to fuzing issues) and early composite APFSDS rounds including Soviet models, but additional challenges arose when long rod APFSDS ammunition became commonplace in the 1980's due to the increased performance of long rod penetrators on highly oblique armour. But even so, this did not necessarily mean that the high slope of the upper glacis became a detriment - these matters are not so simple when composite armour is involved. The nuances of this design decision are discussed further later on in this article.

The armour protection of the lower glacis changed very little during the service life of the T-72. The properties of the plate are identical to the other welded plates used for the hull, like the side armour plate and the front plate of the upper glacis. The lower glacis is reported by some sources to be 80mm plate sloped at 61.5 degrees, identical to the T-64A, but it is stated to be 85mm sloped at 60 degrees according to "Kampfpanzer: Technologie Heute und Morgen" by noted German armour expert Rolf Hilmes. The difference in effective thickness between these two figures is minimal and may be explained by possible variations in discrete T-72 models, but the angle of the lower glacis is marked as 61.5 degrees in the Object 172M factory drawings, lending much more credence to the notion that it is also 80mm in thickness (identical in thickness to the T-64A). Being a traditionally weak area on most tanks, the relatively poor armour of the lower glacis is largely counteracted by its small size and low exposure to enemy fire. The low number of hits recorded on the lower parts of tank hulls have been independently verified by multiple sources, as discussed previously in this article in the section on the autoloader of the T-72. Again, it should be noted that statistics on the hit distribution on combat-damaged tanks during WWII showed that 90% of hits were recorded one meter above the ground, as reported by Sergey Gryankin on pages 12-13 in his article "T-54", published in the "Техника-молодёжи" magazine (Technology of the Youth). Moreover, Richard Ogorkiewicz writes on page 394 in "Technology of Tanks" that on average, the first 0.7 meters of a tank's height is covered by the terrain irregularities. If grass or other forms of vegetation are also present, this would mean that the lower glacis of a T-72 would almost always be obscured from direct vision and would usually be physically protected by the terrain due to its low height. Such statistics directly influenced Soviet tank designers in determining the optimal height of the lower glacis.


The vulnerability of the lower glacis can be reduced even further if the tank is in a hull defilade position behind a natural obstacle. Even if the obstacle does not provide enough resistance to stop an incoming projectile, the fact that it hides the lower part of the tank will shift the point of aim upwards, away from the lower glacis.




If natural cover is not available and a static defensive position must be created, the T-72 has a dozer blade installed on the lower glacis hull for self-entrenchment or to augment existing cover with additional concealment. It also allows the tank to be used as a tractor and a digger for general construction work when specialized vehicles are not available. The blade secured by two rotating latches which are turned with a wrench to release the dozer blade. The dozer blade has a width of 2.14 meters.




The dozer blade is suspended from the belly of the tank by four structural support rods which can be seen in the two photos above. Two of these can be seen in the photo below. When the dozer blade is unlocked and released, these support rods retract backwards into special troughs to orient the dozer blade at the proper angle for digging.




With the dozer blade, the T-72 can create a barrier in front of itself in around 15 minutes, depending on the type of ground. Due to the limited width and capacity of the dozer blade, the tank must make a few passes when digging out a suitably sized hole for itself.


In the total absence of natural cover, the presence of the upper glacis armour array will partly reduce the height of the lower glacis weakened zone. The photos below (credit to Stephen Sutton for left photo) shows the thickness of the front plate of the upper glacis array by the seam joining it to the lower glacis plate so that you can visualize the approximate reduction in the size of the weakened zone. The tank on the left is a T-72M1 (formerly Iraqi, disabled by air attack and abandoned almost fully intact) and the tank on the right is a T-72M, so both have an improved hull armour array with a 60mm front plate. The dozer blade has some overlap with the array which further minimizes gaps in the armour.




Actual measurements done on a T-72M shows that the distance between the surface of the upper glacis and the edge of the dozer blade is 290mm. Knowing that the upper glacis has a thickness of 215mm on the T-72M, the gap between the area of the lower glacis protected by the dozer blade and the area overlapping with the upper glacis is only 75mm. When viewed from the front, the height of this gap is around 37.5mm, or just one and a half inches. Needless to say, hitting this part of the lower glacis is extremely challenging. On its own, the lower glacis plate is highly vulnerable to 105mm APDS, but this vulnerability is greatly reduced by the aforementioned factors.

The dozer blade is probably made from some high hardness armour grade steel, but it is also possible that it is made from high strength structural steel with a hardness of around 200 BHN which is used for common general-purpose commercial bulldozers. However, a high hardness armour steel grade dozer blade is far more likely for a military vehicle like the T-72 because a high hardness blade can be used to shift abrasive rock and frozen soil as well as provide additional ballistic protection. Case in point - high hardness impact resistant steels like Hardox 500 are standard for bulldozer blades and loader buckets used in mines and construction sites where large quantities of rock must be shifted, and high hardness steel dozer blades are also standard for military combat engineering vehicles. The measurement on the left below (done by Jarosław Wolski) shows that the thickness of the dozer blade on an old Polish T-72M1 is 20mm. The measurement on the right, taken from the T-72.org Facebook group, shows that the dozer blade of a T-72M is also around 15-20mm thick, although it is not possible to be sure. According to the manual, the mass of the dozer blade on a T-72M is 200 kg which agrees with the measured dimensions of the dozer blade.




Due to the obscurity of this topic, it is rather difficult to ascertain if the T-72M and T-72M1 differed from their domestic counterparts in the thickness of the dozer blade. However, it seems safe to assume that if the T-72M1 had a dozer blade with a thickness of 20mm, then the T-72A would also have one of the same thickness. It is worth noting that the dozer blade is not simply laid on top of the lower glacis plate, but it is actually slightly spaced on some tank models. This is shown in the drawing below, taken from a T-80B manual. This is undoubtedly beneficial, as the dozer blade may potentially de-cap an impacting APDS round. Even if done incompletely, this reduces the performance of the bare tungsten carbide core of the APDS round when it impacts the lower glacis plate. However, this also means that the dozer blade is sloped at a more shallow angle than the lower glacis.



The overlapping section between the upper and lower glacis plates combines with the dozer blade to make the lower glacis a problematic target to defeat, although later APDS rounds with more elongated tungsten cores and with tungsten alloy tilting caps may find this part of the tank to be much less of a challenge. To put the level of protection into perspective, Rolf Hilmes credits the lower glacis of an ex-East German T-72M with 250mm RHA of protection against KE attack, which is incongruous with the combined LOS thickness of the lower glacis and dozer blade on their own (only around 208mm). This appears to be the only published figure on the armour value of the lower glacis, and it seems to imply that the dozer blade is indeed made from high hardness steel. It is worth noting that if Hilmes' figure is correct, then the weakest part of the T-72 hull is nominally more resilient than the frontal armour of a T-54 and is on the same level as the turret armour of the Chieftain tank, especially after the slope of the armour is considered.

In all likelihood, L28 APDS with a penetration of 120mm at 60 degrees at 1 km may fail to defeat the lower glacis from 1 km and beyond. It is worth noting that a Russian document mentions that the lower glacis plate of an Object 432 (T-64) can be defeated by 105mm "subcaliber shells with a muzzle velocity of 1,475 m/s" at a distance of 2,500 meters, which is the same distance limit given for the lower glacis of the T-55 and T-62 (100mm RHA at 55 degrees). The lower glacis of the Object 432 is the same as the T-72: 80mm thick sloped at 61.5 degrees, but the tank lacks a dozer blade. Of course, the L15A5 APDS round fired from the 120mm L11 with a penetration of 130mm RHA at 2 km should succeed against the lower glacis of the T-72 quite easily from any distance. HEAT rounds of a modest caliber would not face any difficulties in defeating the lower glacis armour. Against HESH, it is unlikely that the minor spacing of the dozer blade allows it to behave as spaced armour despite the sufficient thickness of the blade.

However, all of this is only true if the incoming projectile impacts the middle section of the lower glacis, as the lower part of the lower glacis has a reduced thickness. For the original T-72 Ural model, the reduction in thickness was a necessity because the torsion bars for the first pair of roadwheels are in the way, as you can see in the drawing on the left below (T-72 Ural). However, the geometry of the lower glacis was changed at an unknown time and became even thinner at the area in front of the torsion bars, as shown in the drawing on the right (T-90). Also note that the dozer blade on the T-90 is not spaced from the lower glacis plate, or has so little spacing that it is practically irrelevant.





COMMON CHARACTERISTICS: TURRET


The turret is a two-piece casting. The walls, base, the bulge for the commander's cupola and some parts of the turret roof are formed from a single casting, onto which the cast roof is welded. The side armour is curved at a considerable rearward angle to form a point at the very back of the turret, forming a teardrop shape. This was especially exaggerated in the T-72B variant due to the larger and thicker turret cheeks, which earned it the humorous "Super Dolly Parton" moniker. The rear of the turret of all T-72 variants have a distinct step joining the turret roof to the bulge at the rear of the turret. This was inherited from the turret design of the T-64A, like so many other details of the T-72 series.




As there is no discrete transition from the frontal cheek armour to the side armour owing to the complex shape of the cast turret, the turret sides are simply defined as the region of the turret directly next to the crew seats, labelled 'Д' in this drawing of a T-64B turret. As mentioned before, the side of the turret has a physical thickness of around 80mm near the base and the curvature of the turret sides provide a minor increase in line-of-sight thickness to around 88mm when viewed perpendicularly. The turret sides becomes negligibly thinner towards the roof, but the curvature of the turret enables the same line-of-sight thickness to be maintained along the entire height of the sides. The amount of vertical sloping is relatively minor as the turret is built with a heavy emphasis on horizontal shaping; the side of the turret is horizontally sloped rearward at an angle of 42 degrees, as measured tangentially to the side of the turret. The LOS thickness of the side armour is therefore 118mm when viewed perpendicularly. The rear of the turret is around 65mm thick, but varies considerably in actual protective value due to the complex shape of the casting. This part of the turret is notably tougher than the T-64 and T-80 pattern of turrets as they are completely flat and therefore have a lower effective thickness.




With a thick layer of anti-radiation lining backing it and with the storage bins (plus cargo) adding a modicum of resistance, the sides are more than enough to withstand any 20mm and 23mm shell at point-blank and any 25mm autocannon shell at the higher end of typical combat ranges (in the vicinity of 1,500 m) when hit at a perpendicular angle. This is including the 25mm M919 APFSDS shell. However, the armour is not thick enough to reliably resist 30mm, 35mm and 40mm shells. In order to do so, the shot must impact the side armour from the frontal arc of the turret and not perpendicularly to the side. The rear of the turret, however, is only sufficient against 20mm autocannons unless it is attacked at a considerable angle of incidence, although the rear armour is actually somewhat pointed due to the teardrop shape of the turret. This would certainly improve the level of protection. From a perpendicular angle of attack, the turret cheeks can still offer a respectable level of protection but the sides of the turret over the crew stations have practically no chance of resisting even a simple shoulder-fired weapon like the M72 LAW. The presence of stowage bins add some amount of uncertainty into the equation, but overall, there was no remedy for this issue until explosive reactive armour became available. On the T-72B3 obr. 2016, the sides of the turret have been completely covered with ERA blocks capable of defeating tandem warheads at the expense of valuable stowage space and the rear has been reinforced with slat armour.


The shape of the turret of the T-72A and T-72B is such that the sides will be completely unreachable by enemy fire from within the frontal 70-degree arc. This means that if the side of the turret was shot at an angle of attack of 35 degrees, the thin sides of the turret will be hidden behind the turret cheeks. If the angle of attack is increased to 45 degrees, the sides will be visible, but the angle of incidence will increase to 87 degrees - steep enough to guarantee a ricochet. When the angle of attack is increased to 55 degrees, the angle of incidence is still 77 degrees. This is steep enough that many shaped charge warheads will fail to fuse and APDS projectiles are very likely to ricochet. Even if an attacking projectile manages to dig into the armour, the LOS thickness of the thin side armour from the horizontal angle of the turret alone at such a steep angle of incidence is very formidable at 391mm. This is already enough to resist the majority of shoulder-fired HEAT weapons used by opposing armies. This is also a noticeably higher level of protection than the side turret armour of the Abrams series from the M1 to the M1A2, as that only offers an effective thickness of 380mm RHA against an 81mm shaped charge warhead from a 45-degree side angle. The difference in the level of KE protection is even greater - the homogeneous cast armour at this zone of the T-72 turret would offer between half as much to twice as much protection at 55 degrees based on the calculated thickness efficiency coefficients of the Abrams turret side armour, and the protection provided at 45 degrees is infinitely higher because the angle of incidence is simply too high (87 degrees) whereas the side of the Abrams turret would offer only around 200mm RHA in effective thickness.

In other words, the turret of the T-72 is a very, very tough nut to crack from a wide range of angles. The unique teardrop shape of the turret makes it possible to present a high thickness of armour across the frontal arc and, more importantly, accomplish this without adding excessive weight to the tank. Indeed, based on the hit distribution data from multiple conflicts during the 20th Century, the teardrop shape is mathematically ideal for conventional large scale mechanized warfare on a fundamental level. This shape could not have been implemented effectively without restricting the turret crew to two men, and in turn, a combat-effective two-man turret design could not have been implemented without an autoloader.

However, this shape does not come without drawbacks. It is extremely efficient in the distribution of armour mass because it can provide a very high level of protection in its frontal arc with comparatively little armour compared to heavier turrets, but because the vast majority of the mass is disproportionately allocated to the front, the turret also became unbalanced. It is quite the opposite for NATO tanks like the M60A1, Chieftain, Leopard 2, M1 Abrams, AMX-30, and even the Leopard 1 to some extent. For these tanks, the inclusion of a large bustle containing ammunition or other equipment was a convenient counterweight to the frontal armour, thus shifting the center of gravity closer to the geometric center of the turret ring. This not only reduces the load on the horizontal turret stabilization system when the tank is situated on non-level ground and especially so when the tank is in motion over rough terrain, but a balanced turret also generates a more stable load on the stabilizer, making it easier to implement faster and more precise turret rotation drives, and it also reduces the stress on the turret ring from firing the main gun at various gun elevation angles and at various tank orientation angles. For instance, the turret of a basic T-72A weighs 12 tons (including the weapons and a full set of standard equipment) and its center of gravity is 500mm above the level of the turret ring race ring and horizontally offset 430mm from the geometric center of the turret ring. The turret of the T-72B has even heavier frontal armour and is even more unbalanced, and the addition of explosive reactive armour on the frontal arc further exacerbates the issue.

Tanks like the T-64B and T-80B used externally-stowed auxiliary equipment as counterweights with limited success. Presently, the relatively new T-72B3 obr. 2016 modernization shifted more weight to the rear of the turret when reactive armour blocks were added to the sides of the turret over the inhabited zones and a slat armour screen was installed over the rear of the turret, but again, the effect is still limited simply due to the massive allocation of armour mass to the turret cheeks. More recently, the approach taken by Uralvagonzavod engineers with the new Proryv-3 turret of the T-90M can be seen in the retention of the teardrop shape and the addition of a segregated ammunition compartment to the bustle to act as a counterweight and to reduce the quantity of ammunition stowed openly in the fighting compartment. This solution is not perfect, but it is a suitable adaptation of the basic teardrop geometry for modern needs.

Nevertheless, the unbalanced turret of the T-72 is still lighter than the turret of tanks like the M1 Abrams or Leopard 2. The turret of a Leopard 2A4 reportedly weighs 16 tons (fully equipped), and would weigh even more if the designers had decided to provide any serious amount of protection for the sides of the turret bustle. As it stands, that is the weight of a Leopard 2A4 turret with only 80mm of flat RHA steel protecting the sides of the turret bustle (4 times less protection than the sides of the T-72 turret). In this respect, the T-72 turret design certainly has a major advantage and the decision to use a teardrop shape for the turret could be considered eminently justifiable.


The turret ring of the T-72 is a simplified form of the T-64 turret ring design with the MZ autoloader carousel mounting ring removed. The design was created based on the T-54 and T-62 turret designs which placed the ball bearing race ring of the turret ring above the level of the hull roof in a cutout in the turret armour. This made the structure vulnerable to jamming from direct hits to the lower edge of the turret where the turret ring was located as the thickness of the armour is lower. For the T-72, the hull roof around the turret ring is thinner (20mm) than the hull roof above the driver's station (30mm) to accommodate the turret ring, but even so, the ball bearing race ring is still located in a cutout in the turret armour, above the level of the hull roof. As such, only a limited thickness of turret armour is present in front of the race ring, which poses a problem if an armour piercing round impacts the joint between the turret and the hull as it is much more likely to defeat the armour and jam the turret ring or enter the tank and cause internal damage. The turret ring design is shown in the two drawings below. The drawing on the left shows the rear of the T-72 turret and the drawing on the right shows the front.




The difference between the T-64 and the T-72 turret ring designs is apparent when they are compared. The T-72 turret ring is shown on the left with the interior of turret ring facing to the right of the drawing, and the T-64 turret ring is shown on the right with the interior of the turret ring facing to the left of the drawing.




Two rubber gaskets below the ball bearing race ring seal the turret ring from water ingress. A raised collar prevents artillery splinters and bullets from slipping into the gap between the turret and the hull roof. The depression of the hull roof around the turret ring can be seen in the photo below along with the protective collar.




The merits of various turret ring protection methods are examined in the study "Некоторые Вопросы Проектирования Защиты Стыка Корпуса И Башни" by O.I Alekseev et al. It was noted that turret ring designs that required a cutout in the lower part of the turret like the T-54 turret was a liability. Conversely, the solution implemented in the M48 Patton, M60 and M103 where the turret ring was installed in a raised flange cast together with the hull was also assessed to be a non-ideal solution as it still fails to prevent the turret from being jammed by a hit to the joint between the turret and the hull. The low thickness of the flange also results in a low level of armour protection. The best solution was found on the IS-3, T-10, Chieftain, Leopard 1 and M46 Patton. These tanks had the ball bearing race ring recessed below the hull roof, and in the case of the T-10, M46 and Chieftain, the gap between the turret and the hull roof was covered by raised parts of the hull. For example, the Leopard 1 shown below clearly has the turret ring race ring placed below the hull roof (photo taken by T. Larkum). The T-72 turret ring design belongs somewhere in between the first and third categories as the ball bearing race ring is still installed in a cutout in the lower part of the turret, but the height of the race ring is reduced compared to the T-54 and T-62.




At the front of the turret, the cast steel gun mask can be considered a common feature of all T-72 variants, although this is not true in the strictest sense as the gun mask is different depending on the model of cannon mounted in the tank. The gun mask is a single solid steel casting that is bolted on the gun mounting cradle. The gun mask has a width of 390mm. It does not contact the gun barrel and does not interfere with the harmonics of the barrel, nor does it have any effect on the dynamics of the recoil stroke of the cannon. The gun mask is connected to the co-axial infrared spotlight on the right of the gun by a set of pushrods that allows the spotlight to be aimed vertically in sync with the tank's night vision sight albeit with a great deal of horizontal parallax if the spotlight is used at a different distance than the distance that it was previously calibrated for.

The gun mask has a ring of screws around the base of the barrel which are designed for securing a rubberized fabric gun mask cover. The cover is meant to prevent rain from ingressing the tank through the gap between the gun mounting cradle and the turret, but it also functions as a seal to prevent the ingress of NBC contaminants. The photo below by Thomas Voigt shows the gun mask of a T-72M with a rubber fabric cover.




The ring of screws is also used in tank models with Kontakt-1 reactive armour as the mounting point for a metal frame holding a set of three reactive armour blocks on top of the gun mask, as shown in the photo below of a T-72AV. This contraption is also found on the T-72B.




The gun mask is not meant to stop serious anti-tank weapons, but is instead simply a protective cover for the base of the gun barrel to protect the barrel and breech block from bullets and fragments and blast damage from shells impacting the turret. The gun mask is also designed with protruding edges that overlap the gap between the gun barrel and the turret in order to limit the possibility of bullets and fragments potentially jamming the gun in elevation. Due to the nature of the type of threat, the thickness of the casting is not particularly high, as shown in the photo on the left, below. Measurements on the protruding edges of the gun mantlet are shown in the two photos on the right, below. The measurements were done by Jarosław Wolski.



The thickness of the thinnest part of the base of the gun mask of the T-72M1 is around 25mm, or around an inch. Based on the photo on the left, above, the thickness of the armour wrapped around the gun barrel is around an inch as well. According to "Возможная Компоновочная Схема Танка" ("Possible Tank Layout Schemes") by S.A. Gusev, the gun mask of the T-72B is only rated to stop 12.7mm B-32 armour piercing rounds from a distance of 100 meters. However, the rounded design of the casting and the thickness of the plate makes it quite obvious that this is the minimum guaranteed level of protection, as there are many sections where the combined thickness and slope of the mask should make it more than sufficient against 12.7mm B-32 at even point blank range.

The form of the gun mask changed slightly during the evolution of the T-72. The photo on the left shows the gun mask of an early T-72 Ural. The photo in the center by Stephen Sutton shows a T-72M1, analogous to the T-72A. The photo on the right shows a T-72B. Note the presence of a large nut in the corner of the gun mask of the T-72 Ural and T-72A. The nut is mirrored on the other side. On the T-72B, there are four nuts arranged at each corner of the gun mask. These nuts are attached to bolts that join the gun mask to the gun mounting cradle.




The change in the number of nuts is related to the upgrade to the 2A46M cannon with a quick-detach barrel, although the precise reason is not known.






WEAKENED ZONES




Although the armour scheme of the tank is good, the fact that some parts of the tank have less armour protection than others cannot be ignored when evaluating the overall level of protection. The critical zones of reduced armour protection (weakened zones) are:

Lower glacis (4): The lower glacis has already been discussed, of course, so there is no need to examine it again.
Gunner's primary sight aperture (5): The gunner's primary sight aperture weakened zone is an artifact of the sloped roof of the turret. Due to its periscopic construction, the sight must extend through the roof, which creates a gap in the roof armour. When viewed from the front of the tank, this gap is a narrow area where there is practically no armour, but in fact, the weakened zone includes the turret roof directly around the gap. This is because the gap is a structural weakness that may cause the roof armour to fail when impacted by a kinetic energy penetrator.
Gun mantlet area (2): The gun mantlet area weakened zone exists due to the need for space to accommodate the co-axial machine gun and the mechanical linkages that connect the gunner's primary sight to the cannon.
Turret ring area (3): The turret ring area is simply an inherent weakness created by the joint between the turret and hull. It is practically unavoidable for turreted tank designs.
Commander's cupola (5): The commander's cupola weakened zone is, of course, the cupola itself, which extends above the turret roof and cannot be armoured as thickly as the rest of the turret for obvious reasons.
Driver's periscope area (1): The weakened zone at the driver's periscope is created by the void in the upper glacis necessitated by the installation of the driver's TNPO-168V periscope as well as the need to accommodate the driver's head. This weakened zone is particularly interesting.

The weakened zone at the driver's periscope area can be seen in the cross-sectional drawing of the T-72 Ural shown below. The slope of the upper glacis is interrupted by the periscope, and the composite armour of the upper glacis is supplemented by a thick triangular steel wedge to compensate for the reduction in line-of-sight (LOS) thickness caused by the interruption in the slope of the glacis.




The dimensions of this weakened zone is not available in literature, but it can be deduced from other sources of information. It can be seen from the drawing above that the height of the void is roughly equivalent to the height of the TNPO-168V periscope (274mm), and from the photo below, it can be seen that the width of the void is roughly equivalent to the width of the driver's hatch (530mm). From these dimensions, the area of the void is 0.145 sq.m.




Besides that, the opening and closing mechanism of the driver's hatch situated inside the upper glacis next to the hatch also creates a weakened zone as it intersects with the upper glacis armour. The difference in armour protection between the area containing the mechanism and the unaltered upper glacis armour array is more difficult to quantify due to the relatively small size of the mechanism and the fact that the mechanism is constructed from steel, so it still contributes to stopping a penetrating projectile. However, it appears that the existence of this weakened zone may not exist. It can be seen in both the drawing on the right (T-72A) and left (Obj. 432) below that the armour behind the driver's hatch mechanism either does not exist or is interrupted instead of continuing to slope up to the hull ceiling. However, the photo above shows that the slope of the armour is not interrupted and the armour thickness is not reduced.




More photos of the interior of the T-72 show that this interruption definitely does not exist. All three photos below show that the slope of the upper glacis continues to the hull ceiling. The photo on the left shows a modernized T-64B (T-64BM "Bulat"), the photo in the center shows a T-72M, and the photo on the right shows an upgraded T-72B for export. All three tanks have the same driver's hatch mechanism. Other photos and videos of the interior of the T-64A and T-72 also show that this interruption does not exist.




As such, the existence of this so-called "weakened zone" is in serious question, and there is a clue from the drawing from the T-72A manual: the drawing showing the hatch mechanism displays the upper glacis armour as an 80-105-20 configuration, even though the actual armour of the T-72A has a 60-105-50 configuration. The same drawing is also used in several other T-72 manuals that do not have this armour configuration as well as several T-80 manuals that also do not have this armour configuration. Thus, this weakened zone appears to be bogus or at least much less of an issue than it appears to be.

The dimensions of the weakened zone is not necessarily the same as the dimensions of the driver's periscope area void - the triangular wedge in the upper glacis armour in front of the driver's periscope may not only compensate for the reduced LOS thickness, but instead increase the effective armour thickness to a certain extent. As such, certain portions of the so-called "weakened zone" are not actually weak when compared to the unaltered upper glacis armour, especially for the earlier armour designs incorporating glass textolite as the interlayer material. This is because the shape of the wedge is such that the thickness of steel increases as the LOS thickness of the upper glacis decreases, thus compensating for the reduction in the thickness of glass textolite. At the apex of the triangular wedge (one third of the height of the weakened zone), the LOS thickness of steel is 390mm. This is enough to resist 105mm APDS rounds and indeed, considering that the unaltered upper glacis armour of the T-72 Ural is only equivalent to 305-335mm RHA against APFSDS (depending on the source), the driver's periscope "weakened zone" for the T-72 Ural is actually slightly stronger than the full upper glacis armour array at certain zones against KE threats, although it is undoubtedly still weaker in terms of HEAT resistance. Even so, 390mm of solid steel is still more than enough to resist the warhead of a LAW or M47 "Dragon", to list just a few. The resistance of this part of the armour is also higher than the unaltered upper glacis armour in a more nuanced sense due to its flat back surface which avoids the issue of asymmetric forces causing the premature failure of sloped armour plates. Overall, the dimensions of the weakened zone for a T-72 Ural (relative to the unaltered upper glacis) is actually only 530x135mm and the area is only 0.072 sq.m - around half of the dimensions of the driver's periscope void. To fully understand the magnitude of this figure, it is necessary to take a better look at the total area of the frontal hull:




The maximum structural height of the tank hull at the driver's station is 1 meter and the width of the hull is 2.07 meters according to the drawing above (taken from "Kampfpanzer: Die Entwicklungen der Nachkriegszeit"), and the area of the front hull is 2.08 meters according to "Возможная Компоновочная Схема Танка" ("Possible Tank Layout Schemes") by S.A. Gusev. Therefore, the void at the driver's periscope area occupies around 7.0% of the total area of the front hull and the actual weakened zone in the case of the T-72 Ural is only 3.4% of the total area. Considering that the area of the upper glacis is approximately 1.48 sq.m and the area of the lower glacis is approximately 0.6 sq.m, the driver's periscope weakened zone seems extremely small, especially when compared to the much larger lower glacis weakened zone on the front of the hull (29% of the total hull area), but again, it must be noted that the location of the driver's periscope at the center of mass of the tank makes it much more vulnerable than its relative size implies.

The size of the void does not change (0.145 sq.m), but the relative weakness of the driver's periscope area depends greatly on the specific round fired at the tank as well as the specific model of the tank. As the T-72 evolved, the different upper glacis armour designs prompted changes in the internal configuration of the armour in front of the driver's periscope area. For example, while the actual area of the weakened zone on the T-72 Ural is only 0.072 sq.m against 105mm APDS and other threats, the area of the weakened zone on the T-72B against 125mm BM-26 APFSDS is 0.12 sq.m. This area is 5.7% of the total area of the front hull. During live fire testing of the frontal hull armour of a T-72B, it was found that the driver's periscope area weakened zone could be defeated by BM-22 or BM-26 at a distance of 1.7 km at the midpoint of the zone.

Determining the size of the weakened zone on the lower glacis is somewhat more straightforward although it is still fairly complex in its own right due to the overlapping of the upper glacis composite armour with the lower glacis plate. According to "Возможная Компоновочная Схема Танка", the area of the lower glacis weakened zone that is vulnerable against 100mm BM-8 APDS is 0.33 sq.m, which is 16% of the total area of the front hull. The other 0.23 sq.m is presumably the area where the upper and lower glacis overlap.


As for the turret, the weakened zones are more numerous than the hull on account of the complex cast construction, although it is clear that the design of the turret can still be considered good. As discussed previously in Part 1 of this article in the section regarding the AZ autoloader, the turret of the T-72 is generally tougher than the front hull armour. This was necessary for the simple fact that most hits land on the turret and not the hull during tank combat, so it is more profitable to distribute a larger share of armour mass to the turret. The size of the turret was also kept to an absolute minimum in order to reduce the probability of receiving a hit, and the teardrop shape of the turret was designed such that the area of the turret projection would remain low from a variety of angles. This was accomplished by the use of an autoloader and ammunition stored in the hull (which is expected to sustain much fewer hits). The area of the turret from the front at a 0 degree angle is 1.7 sq.m, which is smaller than the frontal hull (2.08 sq.m).

The height of the T-72 turret from the turret ring level up to the top edge of the turret cheek is shown in the photo below to be 380mm. The photo is from the T-72.org Facebook group. The height of the turret in this context does not include the height of the turret ring area, so this is not the actual height as measured from the level of the hull roof.




The gap between the hull roof and the turret cheek on all T-72 tank turrets is considered the turret ring weakened zone. This gap has a height of 60mm, as shown by the photo below, taken from the T-72.org Facebook group. As the internal turret ring diameter of the tank is 2,162mm, the area of this weakened zone is 0.13 sq.m. The turret ring weakened zone occupies 7.64% of the total area of the turret.




The gun mantlet weakened zone is thinner than the turret cheeks, and beginning with the introduction of the "Kvartz" composite turret, the relative weakness of the gun mantlet area became exaggerated as it was still only homogeneous steel, thus making it comparatively more vulnerable to shaped charge attacks. The turret ring area is also just a homogeneous casting, and of a rather low thickness as well. However, it should be understood that the gun mantlet weakened zone still has a formidable thickness of steel. Referring once again to "Возможная Компоновочная Схема Танка", it is reported that live fire testing revealed that the gun mantlet area of the T-72B could be defeated by BM-22 or BM-26 at a distance of 1.65 km. It is known that the armour penetration of these two rounds at a 0 degree impact angle at 2 km is between 420mm RHA to 490mm RHA, depending on the source. Therefore, the thickness of the gun mantlet weakened zone of the T-72B must significantly higher, taking into consideration the reported distance limit of armour defeat (1.65 km instead of 2.0 km) as well as the lower efficiency of cast steel compared to RHA steel. With that in mind, the vulnerability of the gun mantlet area of the T-72B against BM-22 and BM-26 does not necessarily translate to a vulnerability to contemporary 105mm APFSDS or even 120mm APFSDS like DM13 and DM23. Indeed, this so-called "weakened zone" would still be highly resilient to 105mm DM23 and DM33, as well as 105mm M833 and 120mm DM13 and DM23.

The area of the gun mantlet zone that is vulnerable to BM-26 is 0.29 sq.m, which is 17% of the total area of the turret. The area of the turret ring vulnerable to BM-26 is 0.49 sq.m, which is 29% of the total surface area of the turret. The combined area of the turret roof and the commander's cupola that is vulnerable to BM-26 is 0.26 sq.m, which is 15% of the total surface area of the turret. All taken together, the zones of the T-72B turret that are vulnerable to BM-26 constitute 61% of the total area. Needless to say, this is highly problematic for a turret that is theoretically immune to not only BM-26 but also much more powerful rounds. Of course, this is a context-specific example and the previous T-72 models do not necessarily have the same weakness when viewed in the appropriate context. For instance, the roof of the T-72 Ural would not be vulnerable to 105mm APDS thanks to its high slope and the physical thickness of steel present at the gun mantlet zone would also be enough for 105mm APDS from certain distances. The proportion of the weakened zones would therefore be much lower.

The increase in the proportion of weakened zones throughout the evolution of the T-72 can be attributed to two interrelated factors: the appearance of long rod APFSDS and the obsolescent design of the turret itself. It should not be forgotten that the turret of the T-72 is derived from the design of the T-64A turret, which was the direct descendant of the T-64 (Obj. 432) turret that was conceptualized and developed during the late 1950's. At that time, the 105mm L7 had not yet even entered service and contemporary munitions tended to have issues against highly oblique targets. When the new turrets of the T-72A and T-72B succeeded the turret of the T-72 Ural, the increase in protection was mainly focused on the turret cheeks where the composite armour was situated and some other zones saw modest increases in the thickness of steel or minor changes in geometry. No other parts of the turret gained a composite construction. Newer turret designs such as the flatter turret of the T-80U and the welded turret of the T-90A are designed with APFSDS in mind, featuring much flatter roofs that are able to deflect long rod high-elongation APFSDS rounds more readily.

Of the total area of the silhouette of the tank from the front (4.0 sq.m), the area of the turret occupies a 42.5% share and the hull occupies a 52% share. The remaining 5.5% share is presumably occupied by the tracks.


The gun mantlet area and the turret ring area have been identified as the most critical weakened zones due to their location at the center of mass of the tank. The main reason is that the gun mantlet area and turret ring area are more likely to be hit due to the preponderance of impacts sustained on the turret compared to the hull whereas the nominally larger lower glacis weakened zone is comparatively less likely to be hit.

The influence of these weakened zones on the probability of the destruction of the tank is studied in "Влияние Ослабленных Зон На Поражение Броневой Защиты" by A.G. Komyazhenko et al. (Influence of Weakened Zones On Defeat of Armor Protection). The probabilities of armour defeat by 105mm APDS and HEAT fired from an L7 or M68 cannon at the frontal arc of the tank (± 35° for the turret, ± 22° for the hull) were calculated and the effect of increasing the armour protection of the weakened zones up to the level of the base armour were evaluated (for example, bringing the armour of the lower glacis up to the same level as the upper glacis and bringing the armour of the gun mantlet up to the same level as the turret cheeks).

By referring to Figure 2, it can be seen that the probability of defeat of the tank's armour in its original state with the inclusion of its weakened zones with APDS is around 40% at a distance of 0.5 km, falling to 29% at 1.0 km and 17% at a distance of 1.5 km. The probability of the same with HEAT is around 25% at a distance of 0.5 km, falling to 20% at 1.0 km and around 11% at 1.5 km.

It was concluded that the greatest reduction in the probability of armour defeat could be achieved with the elimination of the gun mantlet weakened zone. The reduction was 18% for APDS and 12% for HEAT. The second greatest reduction was achieved with the elimination of the turret ring area weakened zone, to the order of 15% for APDS and 12% for HEAT. The elimination of the driver's periscope weakened zone resulted in a reduction of the probability of armour defeat of 12-13% for both ammunition types. Combined, the elimination of all three weakened zones would result in an increase in armour protection of 45% for APDS and 37% for HEAT.




URAL



The T-72 Ural, or Object. 172M, was the original T-72 and is the least technologically gifted among its "brothers". The hull glacis armour benefited from a composite construction taken directly from the T-64A, and the turret was a single homogeneous steel casting. The all-steel turret was closely based on the turret of the T-64A but differed somewhat in the shape of the frontal profile and most of all in the shape of the back half, as it had a distinctive step between the almost-flat rear armour and the heavily sloped roof to house the AZ autoloader ammunition lifter and rammer mechanisms.


GLACIS


The timeline of the evolution of the hull array is as follows (front to back):

1973: 80mm RHA + 105mm Glass Textolite + 20mm RHA

1976: 60mm RHA + 105mm Glass Textolite + 50mm RHA

1983: 16mm Appliqué + 60mm RHA + 105mm Glass Textolite + 50mm RHA


The original upper glacis armour for the T-72 Ural from 1973 is a composite sandwich consisting of a 105mm "steklotekstolit" (glass textolite) layer sandwiched between an 80mm RHA front plate and a 20mm RHA backing plate. The total thickness is 205mm to the normal, but the glacis is angled at 68 degrees to produce a total LOS thickness of 547mm. The source for the 105mm thickness figure of the glass textolite layer is "Kampfpanzer: Heute und Morgen" by noted German armour expert Rolf Hilmes and various other Russian documents. Two glass textolite plates were pressed together to form the 105mm layer. Some publications mention that the 105mm glass textolite interlayer was split evenly into two 52.5mm layers, but according to Rolf Hilmes, the 105mm glass textolite interlayer was split into a 60mm plate and a 45mm plate as shown in the drawing below.mar




The armour array is identical to the array used in the T-64A, so we will be using documentation for the T-64A as part of our short analysis.

According to the page below, the original requirements for the new prospective main battle tank of the USSR dictated that it had to be immune to 100mm armour piercing shells fired at 1000 m/s (normal muzzle velocity is 895 m/s) and 105mm subcaliber shells fired from the American M68 cannon at a distance of 1,000 meters. The armour was also required to be immune to 85mm HEAT as well as 105mm HEAT fired from an M68 cannon. However, these figures were corrected on the very same page (possibly by Morozov himself, chief designer at the KMDB design bureau responsible for inventing the T-64) so that the armour was required to be immune to 105mm subcaliber shells at 500 meters and 115mm HEAT shells with a copper liner (ordinary ones used a less effective steel liner) as well as 105mm HEAT shells. The required resistance level of the armour was around 330mm RHA against KE threats and around 450mm against HEAT threats. It is noted in the margins that the data on the performance of the M68 was estimated and was subject to change, which may explain the revision of the protection requirement from immunity from 1,000 m to immunity from 500 m. On one hand, the only subcaliber ammunition available for the 105mm L7 at that time was APDS with tungsten carbide cores and APFSDS ammunition did not enter service in this caliber for almost two decades. On the other hand, this may not have been obvious at that time and long rod APFSDS ammunition had already entered service in the USSR for the 115mm gun of the T-62. Under the assumption that the enemy had parity in munitions technology, it would be completely reasonable to provide sufficient armour for the new generation tank to resist this threat.




Adding on to that, a chapter of a catalogue published by NII Stali titled simply as "Защита" ("Protection") states that the armour of the T-72, T-72K, T-72M and T-72MK is equivalent to 335mm RHA vs KE, as shown in the page fragment below.




In short, the hull armour of the T-64A is worth at least 330mm RHA against KE threats and 450mm against HEAT threats while the T-72 hull armour is equivalent to 335mm RHA (which fulfills the requirement of having at least 330mm RHA of protection) against KE threats and 450mm RHA against HEAT threats. Needless to say, these sources are quite authoritative.

Besides direct evidence, there is also indirect evidence to support these numbers. Referring to page 16 of this CIA intelligence report on Soviet tanks, it appears that the M735 APFSDS round was considered to be incapable of defeating the armour of the T-72 except for the small weak points based on the stated probability of kill per hit of 0.22 for both the lower and upper bound estimates of the armour. These results were based on test firings conducted by the Ballistics Research Laboratory.



The lack of any difference in the probability of kill for both the upper and lower bound estimates indicates that the M735 round cannot defeat the turret and upper hull armour under any circumstances, but can defeat weaker zones such as the lower glacis which remains at a constant thickness regardless of any uncertainty in the estimations of the upper glacis and turret armour of the tank. The M735A1 round with a DU core is claimed by Janes to penetrate 370mm of RHA steel at 0 degrees at 1 km, so the M735 round with a tungsten penetrator and identical ballistic properties should penetrate around 10% less under the same conditions, or around 330mm RHA, and only on a flat plate. Therefore, it can be extrapolated that the armour of the T-72 must be worth more than this amount even for a lower end estimate. This does not contradict the 330mm and 335mm RHA figures provided by our Russian sources because the M735 round uses an unusual teardrop-shaped tungsten alloy penetrator with a hemispherical tip. This type of penetrator probably does not exhibit improved penetration performance on highly oblique armour and declassified documents have indicated that it is inferior to monobloc rods on composite armour. Unsurprisingly, the M774 round with a long rod depleted uranium penetrator is rated much more favourably than the M735, having a probability of kill per hit of 0.71 for a lower bound estimate and 0.50 for a higher bound estimate. The 21 percentage point difference is difficult to interpret because the table is not stating the probability of penetration, but the probability of kill on the first hit. This includes a multitude of factors including the probability of hit and the post-penetration effects in the event of armour perforation. As such, the estimations for M774 will not be taken into consideration, although it is known from calculations using the Lanz-Odermatt equation that the 80-105-20 armour should not be capable of withstanding M774 at any range up to the tracer burnout range of the projectile. Overall, these estimations appear to support the notion that the T-72 upper glacis armour cannot be equivalent to less than 330mm RHA but can be more.


However, sources such as "Боевые Машины Уралвагонзавода: Танк Т-72" published by the Uralvagonzavod Production Association state that the armour is equal to 305mm, and the table below from "Теория И Конструкция Танка: Т. 10. Кн. 2. Комплексная защита" (Tank Theory and Construction - Vol. 10, Book 2: Comprehensive protection) also states that the resistance of this same armour (on the T-64A) is equivalent to 305mm of RHA steel against KE threats and 450mm RHA against shaped charges.




Clearly, this issue requires additional investigation. The first thing to note is that the source of the table below is not known, and the book published by Uralvagonzavod may contain typos or errors incurred during the scanning process (the author owns a scanned digital copy of the book). To find out the actual value of the armour against KE attack, we must first understand the working principles of the armour as a system and find out its physical characteristics. The characteristics of the interactions between the armour and shaped charge jets will also be studied as part of this comprehensive examination.


GENERAL FEATURES OF NOTE



The high obliquity of the glacis armour presents a mixture of advantages and disadvantages, but the composite nature of the array makes the true value of the armour much more nuanced than it appears at first glance. The most obvious advantage of steep angling is that the penetration power of earlier APDS rounds will be drastically reduced and some HEAT warheads may even fail to fuse on impact, but there may be side effects stemming from the ability of long rod penetrators to perforate more armour at higher angles up until the critical ricochet angle, which is usually around 80 degrees and above and depends on the aspect ratio of the penetrator rod as well as the shape of its tip. It is known that the higher penetrative power of long rod penetrators on high obliquity plates is caused by the asymmetry of forces acting on the back of the plate as the penetrator passes through, but the impact and breakout effects for a finite thickness plate are often ignored. The lower effective thickness of a steel plate at high obliquity is only directly relevant for the steel back plate of a composite armour array, as that back plate must absorb the remnants of a penetrator without failing whereas the other plates in an armour array are usually designed to fail in such a way that the penetrator is damaged in the process. An ideal armour design could, for example, have a highly oblique front plate paired with a flat back plate in order to fully exploit the peculiarities of these phenomena.

Against HEAT warheads, the principle benefit of the high slope of the armour is that some warheads may not detonate properly. During the famous Yugo tests, the 90mm M431 HEAT shell with the M509A1 PIBD fuze was demonstrated to have a very high probability of failing to detonate against the 60-degree upper glacis of the target tank (a T-54) when the tank was angled 20 degrees sideways. Using the compound angle table on page 47 of WWII Ballistics: Armor and Gunnery, we find that a 60 degree vertical slope and 20 degree horizontal slope creates a compound angle of 62 degrees. The 68 degree slope of the T-72 upper glacis exceeds this in excess. Although 90mm guns were obviously obsolete in the face of the T-72, the newer 105mm M456A2 HEAT shell also uses the M509A1 PIBD fuze, so the results of the Yugo tests imply that M456A2 will also struggle to properly fuze on the upper glacis of the T-72. If a shaped charge succeeds at detonating on the upper glacis, it will be handled by the composite armour which is reportedly rated for 450mm RHA against shaped charges. Against kinetic energy threats, the array is reportedly rated for anywhere from 305-335mm RHA as we have discussed, but the type of threat was not specified, i.e steel long rod, tungsten carbide APDS, tungsten alloy long rod, etc.

Quite interestingly, it appears that the high obliquity of the upper glacis also helps reduce the effectiveness of HESH (High-Explosive Squash Head) or HEP (High Explosive Plastic) rounds. Based on this document fragment shared in this Tankarchives post, it appears that HESH shells are most effective at an impact angle of 45 degrees but drop off sharply down to 0mm of penetration at 70 degrees. This most is most likely due to a failure to fuze, but even if the round detonates, it appears that it may not even be enough to cause the 80mm or 60mm steel front plate of the T-72 composite armour to spall. Of course, the low velocity and arced trajectory will reduce the relative impact angle of the round if it is used at long range, but even so, it is clear that the combination of high obliquity and composite layering makes the upper glacis armour extremely resilient to HESH attack. It is preferable to avoid detonating the shell at all, of course, because the power of the explosion can still have some physiological and psychological effects on the crew even if they are not physically harmed by spalling. The explosion may also damage other parts of the tank (periscopes, sights) and render it incapable of normal operation, thus knocking out the tank without actually defeating its armour.

If the HESH round detonates, the high blast attenuation offered by composite armour would be beneficial to the survival of the crew. By placing multiple layers of multiple materials of drastically different densities and mechanical properties (including sound speed) in the path of the blast waves, the effectiveness of the array in attenuating explosions is significantly improved as compared to homogeneous materials of the same weight. This was quite important seeing as HESH shells were a British favourite during the Cold War. Indeed, it is rumoured that the primary impetus for the development of the L11 120mm rifled gun for the Chieftain was because a larger HESH shell could be fired from it. Furthermore, spall would not be able to harm the crew or damage the internal equipment of the tank on account of the 50mm-thick anti-radiation lining behind the composite armour which is resistant to spalling on its own.


Besides HESH, the majority of interest lies in how the armour interacts with the two major threats - KE attack and HEAT attack. Almost all of the amateur attempts to distill the relative RHA efficiency factor of glass textolite use the thicknesses of each individual component of the armour as given, and almost all of these attempts are fundamentally incorrect. For example, the most common method is to subtract the physical LOS thickness of the steel plates of the array (80mm + 20mm) from a relative RHA thickness figure, which we can take to be 330mm in this case. 80mm + 20mm is 100mm, which when divided by the cosine of 68 gives a physical LOS thickness of 267mm, and 330mm minus 267mm is 63mm. By this logic, the 63mm figure therefore denotes the resistance of glass textolite in terms of RHA. The 105mm glass textolite layer has a physical LOS thickness of 280mm when angled at 68 degrees, so 280mm of glass textolite is ostensibly equal to 63mm of RHA steel, giving it a thickness efficiency of 0.225 against KE threats and a mass efficiency of 0.98. This is fundamentally incorrect.

As most of the armour community knows, long rods penetrate more armour at higher obliquity than at lower obliquity. For a plate angled at 60 degrees, a generic tungsten alloy penetrator pierces 1.17 times more steel in physical thickness compared to a plate at 0 degrees, whereas for a plate angled at 68 degrees, the same penetrator pierces 1.24 times more steel compared to a plate at 0 degrees. Therefore, the 100mm steel layer would not be directly equivalent to 267mm RHA in effective thickness, but actually equivalent to 267mm multiplied by the reciprocal of 1.24, or 215mm. Subtracting this from 330mm gives us 115mm, so 280mm of glass textolite would therefore be equivalent to 115mm of RHA steel and it should have a relative thickness efficiency of 1.79. Unfortunately, this is also incorrect. The increased performance of long rod penetrators at high obliquity affects glass textolite panels as much as it would affect steel plates, so 280mm of glass textolite would be worth much less than 115mm RHA. When all is said and done, adding up the steel and glass textolite as individual components gives us much less than 330mm, so it is plain to see that something important is missing and that these crude methods are far too simple to apply to composite armour. The first and most obvious mistake would be to combine the 80mm heavy front plate with the 20mm back plate and treat it as a single 100mm steel plate, and the second mistake would be to assume that the angle of the plates invariably weakens it against KE threats. For example, the Lanz-Odermatt equation reveals that a generic tungsten alloy long rod penetrator will defeat around 1.24 times more armour at 68 degrees obliquity compared to 0 degrees, increasing to as much as 1.48 times more at 80 degrees, but in reality, the rod may ricochet from the surface of a thick plate sloped at 80 degrees and leave only a shallow crater on the surface of the plate. As such, it should be obvious that a direct comparison between the apparent penetration depth of long rod rounds into semi-infinite steel blocks and the claimed or calculated equivalent thickness of a composite armour in terms of RHA is largely invalid.

Rather, the actual effectiveness of any composite armour (not just the armour of the T-72) in terms of RHA can only be determined by actual live fire testing of specific rounds against the armour. The velocity limit of armour perforation for the composite armour must be recorded and compared to the velocity limit of the same round for a homogeneous RHA block. If round 'x' can successfully perforate a composite armour array at a minimum velocity of 1,500 m/s and round 'x' can also perforate 600mm RHA at a minimum velocity of 1,500 m/s, then the composite armour is equivalent to 600mm RHA against that specific round. However, this is only true for round 'x'. Other rounds with the same penetration power on a homogeneous RHA block may fail against the same composite armour array or perforate it at lower velocities. As such, some degree of uncertainty is always present in any estimation of armour effectiveness, even in the detailed examinations that are presented in this article.



BREAKDOWN



Each element of a composite armour array has its own special purpose such that all of the individual layers added together would be more than the sum of its parts. To better understand the capabilities of the complete array, it is necessary to know the function of its individual parts, beginning with the glass textolite interlayer.

Glass textolite is a material consisting of layered sheets of glass textile bonded by resin and pressed together. Glass textolite is not the same as fiberglass, because glass textolites are manufactured using laminated sheets of glass matting bonded together by resin, whereas fiberglass is manufactured using continuous glass fibers or chopped strands suspended in resin. Both contain glass fibers, but the use of fiber sheets in glass textolite makes it stronger than regular fiberglass. It is hugely important to realize that the glass textolite used in the tank armour has very specific properties which were carefully chosen to provide optimal performance, such that it caused some complications during the manufacture of T-72M tanks in Warsaw Pact nations because the grade glass textolite could not be replicated and it could not be substituted for inferior types. Armour-grade glass textolite such as the type used in the T-72 is known generically as STB. A more common English alternative for "STB" is "STEF", a term that appears to have originated from a book by Steven Zaloga.

A U.S Army technical translation of the "Plastmassy v bronetankovoy tekhnike" (Plastics in Armor Materiél) technical document originally published by the USSR Ministry of Defence in 1965 gives us some information on the glass textolite and fiberglass types used in the Soviet Union that would have been used in the armour of the T-72. The Eurokompozit website also gives a description of the glass textolite used in the T-72 which we can cross reference with the Soviet document. It mentions woven glass roving (rovings are woven bundles of glass fibers) and special phenolic resin as the matrix material, and the phenolphenolic resin-based glass textolite (steklotekstolite) listed in page 24 of "Plastmassy v bronetankovoy tekhnike" matches the description exactly. From this, we can be absolutely certain that the density of the glass textolite used in the T-72 is around 1.8 g/cc. Referring to the table of material properties, the specific type of glass textolite used in the armour has a tensile strength of 274.6 MPa, compressive strength of 294.2 MPa, flexural strength of 382.5 MPa and a specific impact strength (toughness) of 4.7-5.4 MPa. Furthermore, the study "О Нэкоторых Закономерностях, Определяющих Защитные Свойства  Трехслойных Преград При Обстреле Сплошными Оперенными Бронебойно-Подкалиберными Снарядами " originally published in 1976 describes the glass textolite of the T-64 as having a density of 1.85 g/cc. However, it is quite frustrating to note that the designation or the grade of the glass textolite is not explicitly mentioned.

Rolled AG-4S phenol resin-based fiberglass from the AG-4 series of fiberglasses matches the description to some degree, but this conflicts with Russian sources that explicitly state that "steklotekstolit" was used. Furthermore, AG-4S uses continuous parallel glass threads, not woven glass rovings as described in the Eurokompozit website. The Eurokompozit website states that the glass textolite used in the armour uses a specially modified phenolic resin for the matrix, so it is not likely that a commercial glass textolite was used. The purpose of the modifications made to the phenolic resin in the glass textolite for the T-72 is not known, but it is well known that glass-reinforced plastics like glass textolite lose a significant amount of strength at very low temperatures where they may become susceptible to brittle failure, but phenol-based GRPs are less sensitive to lower temperatures and are generally more ductile at the cost of reduced mechanical properties compared to GRPs based on epoxide resins. Based on this information, the choice of a phenol-based glass textolite for the armour and the use of a modified phenol resin is probably related to the inflexible requirement for Soviet tanks to be operable in conditions of -50°C to +50°C.

The type used in early T-72 models is claimed to be STB-3-FEF-N according to "Wiedzmin" in a Tank-Net thread, but according to page 260 of "Particular Questions of Terminal Ballistics" 2006 (Частные Вопросы Конечной Баллистики (refer to table below), STB-3-FEF-N is a grade of glass textolite with a density of 1.9 g/cc. This is higher than the actual density of the glass textolite used in the tank as we have established earlier, thus ruling out this possibility. It is more likely that STB-3-02 is the grade of glass textolite used, but there is a distinct lack of direct proof for any concrete conclusions to be made.



The function of the glass textolite in the familiar composite armour sandwich of the T-72 is straightforward, but the overall operation of the composite armour as a whole is somewhat more complex. The mode of interaction between shaped charge jets and the glass textolite interlayer is studied in detail in the first sections of Chapter 5.11 of the book. The picture below (taken from page 267 and lightly edited into a more readable format) shows the disintegration of the shaped charge jet as it passes through the armour. The three x-ray photographs shown below detail the penetration of a shaped charge jet into three different types of composite armour designs with STB-3-02 as the glass textolite interlayer. Layout (a) is a triple layer array consisting of a 30mm steel front plate, 53mm glass textolite interlayer and a 15mm steel rear plate, angled at 60°. Layout (в) is a five-layer array consisting of three 30mm steel plates and two 53mm glass textolite interlayers, angled at 60°. Layout (б) is a triple layer array consisting of a 15mm steel front plate, 53mm glass textolite interlayer and a 15mm steel rear plate, angled at 75°. In all three photos, it can be observed that the shaped charge jet is broken up into discrete segments as it penetrates the interlayer.


According to the study, the penetration of shaped charge jets in the glass textolite interlayer is shown to be in the hydrodynamic mode. As such, the direct contribution of the glass textolite can be evaluated from its density alone in the same way that the resistance of steel can be calculated from its density, but this does not mean that the effectiveness of the armour can be calculated by simply plugging the densities of the steel and glass textolite into a hydrodynamic penetration formula. On the contrary, the overall resilience of the armour is greater than the sum of its parts. It is explained on page 269 that the increased resistance of this type of composite armour stems from the scattering of the shaped charge jet after perforating the front steel plate. By being broken up into discrete segments, the continuous jet is no longer able to stretch as it normally does when the jet is penetrating through a homogeneous material, which will occur regardless of the physical properties of that material - a shaped charge jet will stretch as it penetrates into steel just as it stretches when it is penetrating air. In other words, the armour will be penetrated by a succession of discrete "droplets" rather than a continuous stream.

According to the old NII Stali website from 2003, the efficiency of multi-layered armour against APFSDS ammunition increases as the filler density increases at obliquities of 0 to 40 degrees, but conversely, the efficiency increases as the filler density decreases when the armour is angled at an obliquity of 60 degrees and more. The final remark is that the absence of a filler (air gap) leads to a "negative result", which can be interpreted in two ways: it could mean that a long rod penetrator is not significantly affected by air gaps so the penetration into simple dual-layer spaced armour is more than the penetration into a three layer composite sandwich with any of the aforementioned fillers at any angle of attack, or it could be interpreted to mean that the penetration of a long rod penetrator is increased when an air gap is present. The latter option is not supported by any scientific literature whatsoever and is directly contradicted by prior claims regarding spaced armour on the same web page, so the former option is most probably correct.

The site mentions that high strength steels, titanium, aluminium, ceramics and glass textolite were among the materials studied for composite fillers and that a 15-30% increase in mass efficiency could be gained from the use of composite armour of this type. Apparently, the largest improvement in mass efficiency was achieved with glass textolite. This is presumably related to the follow-on claim that the efficiency of composite armour increases when higher density fillers are used at an obliquity of 0-40 degrees whereas lower density fillers are used at an angle at 60 degrees or more, so the ~1.8 g/cc density of glass textolite would make it the least dense and therefore the most optimal of all of the tested materials for the 68-degree glacis. An aluminium filler was used in the turret of the T-64 (115) instead of glass textolite, which makes sense because aluminium is denser (2.7 g/cc) and would be a more efficient filler at the low 25-30 degree slope of the turret.




These claims also appear to hold true for shaped charge threats as well, as shown in "Jet Penetration into Low Density Targets". The simulations and experiments detailed in the paper used a 100mm plate of variable density placed in front of a filler of variable density to find the most optimal combination. It was found that the velocity of the shaped charge jet tip emerging from the 100mm plate tended to be lower as the filler density decreased, but the jet increased in velocity when the density of the 100mm plate was decreased. As you can see from the graph below, the most serious reduction in jet tip velocity occurs when low density material is placed behind a 100mm plate with high areal density (m = 500 kg/m^2). Since the thickness of the plate is fixed at 100mm, achieving the 500 kg/m^2 areal density figure requires the plate to be made from a material with a density of 5.0 g/cc. The relatively high 7.85 g/cc density of steel makes it even more suitable for this purpose.




The paper goes on to detail that low density materials are more effective against particulated jets than continuous jets. The graph above was plotted with the assumption that the jet emerging from the 100mm front plate is continuous, but the mass efficiency of a filler increases as the density of the filler decreases if the jet is particulated as it enters the filler. As you can see in the graph below, the most serious reduction in jet tip velocity occurs when the jet passes through a high density plate (500 kg/m^2) and enters a low density filler, with the biggest reduction in velocity occurring when the filler density falls below 0.3 g/cc.





The most optimal configuration is to have a front plate of high areal density in front of a filler of low areal density. This ensures that the jet is particulated as it emerges from the front plate, so that the low density filler performs at an optimum level. This conclusion is reinforced by other studies on the topic of shaped charge jet penetration into multi-layered targets such as "Theory Of Penetration By Jets Of Non-Linear Velocity And In Layered Targets" by P. Chou and J. Foster, from which the drawing below was taken. For a double layer of an RHA plate together with an Aluminium plate each with an equal thickness of 50mm, the residual jet emerging from an RHA-AL double plate is shorter and slower than the residual jet emerging from an AL-RHA double plate, indicating that the efficiency of the layering scheme with the high areal density and high density plate in front of the low areal density and low density plate is higher and that the behaviour of multi-layered composite armour is anisotropic, i.e, dependent on the direction of attack. These results confirm the findings presented in "Particular Questions of Terminal Ballistics" that were discussed earlier.




Having a 80mm front plate sloped at 68 degrees for a LOS thickness of 213.6mm and an areal density of 1,677 kg/sq.m, the armour of the T-72 Ural is more than enough to particulate any shaped charge jet from the era and beyond, yielding very high efficiency from the glass textolite filler. A filler with an even lower density may be preferable as the mass efficiency would improve, but the performance and reliability against KE threats may suffer and an excessive thickness of low-density interlayer material may be needed to achieve the same level of protection. From all of this information, it can be deduced that the most optimal armour configuration for defeating shaped charges uses a steel front plate of high thickness angled at a very high obliquity with a very thick layer of glass textolite behind it.

Against long rod penetrators made from heavy alloys such as tungsten or depleted uranium, the contribution of glass textolite as a part of a multi-layered composite armour array is highly nuanced. The photograph on the left below shows a heavy alloy long rod penetrator passing through a dual layered composite of steel and glass textolite (steel front plate), and the photograph on the right below shows the penetrator passing through three layers of glass textolite placed at an angle. Photograph taken from page 290 and 291 of "Particular Questions of Terminal Ballistics" 2006 (Частные Вопросы Конечной Баллистики) published by Bauman Moscow State Technical University on behalf of NII Stali. The behaviour of dual and triple layers of steel-glass textolite composites as well as monolithic glass textolite plates were tested against scale model VNZh-90 tungsten alloy long rod penetrators with an aspect ratio of 10 and 12.5. As you can see in the photo on the left, the glass textolite layer behind the steel plate was delaminated in the area immediately surrounding the penetration channel, but the three glass textolite plates (solid glass textolite, no steel front plate) shown in the photo on the right show no such damage. This is explained by the fact that a long rod penetrator exiting the back of a steel plate sloped at a high obliquity will be highly bent and deflected, so that a larger surface area interacts with the glass textolite, thus tearing a larger channel as it passes through and resulting in some local delamination.




For angled and flat three-layer glass textolite target blocks, it was recorded in all cases that the tungsten alloy penetrator was bent and fractured by the time it reached the back of the block. Furthermore, the trajectory of the penetrator changes during penetration and became curved.

For the composite target, it was observed that the tungsten alloy penetrator was fractured and bent as it exited the steel front plate, and that increasing the hardness of the plate increased the severity of the damage sustained by the penetrator. At an impact velocity of 800 m/s to 1,500 m/s, it was found that the residual depth of penetration inside the glass textolite layer was 1.5 to 2.7 rod lengths in the case of an impact with the dual layer composite at an angle of 0 degrees. For an impact at an angle of 60 degrees, the residual depth of penetration was 2.5 to 3.2 rod lengths. In comparing the raw data, the residual penetration into the 60 degree target was 15-65% higher than in the 0 degree target, apparently showing that the composite is less effective at a high angle of obliquity. This was explained by the anisotropic properties of glass fibers in the glass textolite. However, this is compensated by the fact that the penetrator is much more heavily deflected after perforating the steel front plate of an angled dual layer composite target and the trajectory of the penetrator inside the glass textolite layer is heavily curved, so overall, the ballistic resistance of the glass textolite is not worse than for an impact at 0 degrees. This is explained in pages 292 and 293. The relevant paragraph is shown below:


"Таким образом, при соударении под углом 60° глубина внедрения возрастает примерно на 15...65% по сравнению с глубиной при соударении по нормали. Однако защитные свойства стеклотекстолита при соударении под углом могут быть не ниже, чем при соударении по нормали вследствие более интенсивного искривления траектории и отклонения движения элемента вдоль слоев преграды, что наблюдалось в лабораторных условиях.

Способность низклоплотных материалов вызывать при соударении изгиб корпуса и разрушение ньоражающего элемента из тяжелого сплава подтверждена и на менее плотных материалах типа полиэтилена. Однако такой эффект наблюдается не всегда и зависит в основном от качества сплава, из которого изготовлен сердечник."

Translation:

"Thus, in the case of an impact at an angle of 60°, the depth of penetration increases by approximately 15 ... 65% compared to the depth at a normal impact. However, the protective properties of glass textolite in an angled impact can not be lower than in a normal impact due to a more intensive curvature of the trajectory and deflection of the motion of the element (author's note: "element" refers to the penetrator) along the barrier layers, which was observed under laboratory conditions.

The ability of low-density materials to cause flexion of the body and the destruction of the striking element of a heavy alloy is confirmed on less dense materials such as polyethylene. However, this effect is not always observed and depends mainly on the quality of the alloy from which the core is made."


In other words, the depth of the penetration channel increases but the channel is curved away from the line-of-sight thickness of the armour, so the increased channel depth is irrelevant. It is presumed that if the residual long rod penetrator reaches the 20mm back plate, the deflected penetrator will impact the plate at an angle greater than the structural 68 degree slope. Furthermore, the second paragraph confirms the previous assertion that decreasing the density of the interlayer (which would increase the efficiency of the composite armour against shaped charges) may result in less reliable protection against long rod penetrators.

At a high impact velocity on a steel-glass textolite composite target at a high obliquity, it was observed that the contribution of glass textolite layer was very little compared to the steel plate. It was concluded in another study on steel-glass textolite composites on page 423 that the effectiveness of the glass textolite interlayer was very low at an angle of 68 degrees - its resistance was around 20 times lower than steel, and it had a negligible impact on the dynamics of the penetrator as it travels through the armour. Using steel and glass textolite composite targets at different angles, it was found that the armour set at an angle of 30 degrees stopped long rod penetrators of a variety of different diameters at a higher impact velocity than the same armour at 60 degrees. However, the glass textolite is not dead weight against long rod penetrators, as the composite armour did not have less ballistic resistance compared to a monolithic steel armour plate of the same mass. The relevant paragraph is shown below:


"На рисунке видно, что при внедрении снаряда под углом 60° при скоростях удара до 2000 м/с стойкость стали все время выше стойкости стеклотекстолита. Отсюда можно заключить, что при больших конструктивных углах преграды использование стеклотекстолита в комбинированной броне неэффективно. Однако экспериментально установлено, что на комбинированных преградах со стеклотекстолитом с большими конструктивными углами не наблюдается проигрыша по стойкости по сравнению с монолитной стальной броней равной массы."

Translated:

"The figure shows that when the projectile is deployed at an angle of 60° at impact speeds up to 2,000 m/s, the resistance of the steel is always higher than the strength of the glass textolite. Hence it can be concluded that with large structural angles of obstruction, the use of glass textolite in composite armour is ineffective. However, it has been experimentally established that on the composite targets with glass textolite with large structural angles, there is no loss in durability in comparison with monolithic steel armour of equal mass."


Because a dual layered steel and glass textolite composite armour is not less effective than a monolithic steel plate of the same mass, the mass efficiency is not less than 1.0. Keeping in mind that the test target in the study was very simple and consisted of only two layers whereas the armour of the T-72 consists of three layers, it should be obvious that the armour of the T-72 cannot be less efficient than the test target. Because the study concerns long rod penetrators and the experiments used monobloc tungsten alloy long rod penetrators with relatively high aspect ratios, it is valid for comparing this type of armour against modern APFSDS rounds. For the T-72, the mass efficiency of the composite armour may be higher against APDS rounds like the L52 and early APFSDS rounds like the M735, and the mass efficiency of the armour cannot be less than 1.0 against modern monobloc long rod APFSDS rounds such as M774. However, it is known that thicker glass textolite blocks exhibit greater efficiency against long rod penetrators and vice versa. For a glass textolite block of a fixed thickness, a more highly elongated long rod penetrator will be more efficient than a shorter rod, so the armour of the T-72 undoubtedly became less effective by some amount as APFSDS penetrators became more elongated as time went on. Nevertheless, the contribution of the glass textolite layer is small, so a loss in its efficiency due to its relatively low thickness does not necessarily translate into a significant impact on the overall resilience of the armour. More information on the interaction between highly elongated long rod penetrators and composites made from steel and glass fiber-reinforced resins (GFR) is available in this study.


Based on the knowledge that the resistance of glass textolite is 20 times lower than steel at an armour obliquity of 68 degrees, it appears that some rudimentary arithmetic can be performed to determine the efficiency of the armour as a comprehensive system. It is known that the thickness of the steel of the armour has a total combined LOS thickness of 100mm (80 + 20mm), which is equivalent to 267mm when angled at 68 degrees. The glass textolite has a total LOS thickness of 280mm and would be ostensibly equivalent to only 14mm RHA. Therefore, the individual elements of the armour - steel and glass textolite - only accounts for 281mm RHA of armour equivalence when the actual armour is equivalent to is 330-335mm RHA. In this particular instance, the difference between the calculated armour value and the actual armour value is around 19%. Other information indicates that the effective armour value of the T-72 is functionally equivalent to a 130mm RHA plate sloped at 68 degrees for APFSDS rounds, which is 347mm RHA in LOS thickness. The percentage point difference in this case is 23.4%. For more complex armour with more layers, the percentage point difference between calculated values and real values increases drastically due to the increasing contribution of complex interactions including yaw, rod damage, vector shifting, and so on. This is another perfect demonstration of the fact that the layers cannot simply be added up individually as if they were monolithic targets.


The path taken by Russian engineers to reach the final design is partly explained by Andrei Tarasenko in his article on the armour of the T-64, where he also describes the armour of an early prototype: the Object. 432. The armour of the Object. 432 had the 80mm steel front plate, but had a 140mm low density filler of glass textolite behind the plate, which would be highly optimal against shaped charges in particular. According to Tarasenko, this configuration was estimated to provide protection equal to 450mm of RHA against shaped charges. However, this configuration was soon changed to the familiar 80-105-20 combination in the Obj. 432SB-2 variant.




The back plate was almost certainly designed to act as a final barrier against KE threats and it should also be effective at stopping residual jet particles as well, but it may have also been intended to be a structural element designed to prevent the glass textolite from delaminating prematurely while it is being penetrated. One known fact is that the steel plate provides a solid structural backing that confines the glass textolite interlayer and increases its efficiency when it is being penetrated by a KE projectile. Besides that, it is also interesting to note that the original glacis design used a single piece 140mm glass textolite panel whereas the Obj. 432SB-2 used two panels instead.

It is mentioned in page 290 of "Particular Questions of Terminal Ballistics" that when monolithic glass textolite was divided into two layers of equal total thickness, ricocheting of the tip of long rod penetrators and the fracture of the rod were observed on the contacting boundaries between the two glass textolite layers. This heavily implies that splitting the single 140mm glass textolite into two layers on production model T-64 tanks had the effect of improving the ballistic resistance of the glass textolite interlayer on long rod penetrators, so it appears that the improvements of the Obj. 432SB-2 upper glacis array over the Obj. 432 design were far more nuanced than simply reducing the thickness of glass textolite and adding an additional steel back plate. Besides that, the fact that a 140mm panel existed and was experimentally tested shows that there was an intent behind the change to two thinner layers. This dispels the myth that two panels were used in the T-64A instead of one was because of some deficiency in the Soviet plastics manufacturing industry.

From one perspective, it could be said that the newer 80-105-20 configuration added another layer to the original two-layer design to make it a sandwich, but it would also be accurate to say that the new configuration substituted 35mm of low density filler for a 20mm plate. If we look at this design solution from the perspective of mass efficiency against shaped charges, the efficiency of the armour clearly decreased, because 20mm of steel is obviously much heavier than 35mm of glass textolite and the level of protection offered by the new configuration against shaped charges did not change; it was still equal to 450mm of RHA steel, as shown by the table below (row: T-64A, column: "KC").


According to the table, the 80-105-20 array at 68 degrees has a mass equivalent to 335mm of steel, and its resistance to KE threats is equivalent to 305mm of steel while its resistance of HEAT threats is equivalent to 450mm of steel. It is now known that "305mm" is far too low, but disregarding this error, the given areal density figures are still accurate: 785 kg/sq.m for the T-62, 980 kg/sq.m for the T-64A. These figures are only for the physical thickness of the armour and not the actual LOS thickness. This can be demonstrated fairly easily: The steel upper glacis plate of the T-62 is 100mm thick, or a tenth of a meter, so naturally, the areal density of the plate is a tenth of the volumetric density of 7,850 kg/m^3, which is 785 kg/sq.m. When the plate is inclined at 60 degrees it has twice its areal density at a perpendicular angle so the figure goes up to 1,570 kg/sq.m. The upper glacis plate of the T-64A/T-72 Ural should be treated the same way as the given areal density of the array is for its physical thickness of 205mm. When the plate is inclined at 68 degrees, the true areal density is 2,616 kg/sq.m. This is practically the same as the 2,609 kg/sq.m figure given in Figure 9 from this famous declassified CIA report on the T-72.

A solid 1-meter cube of steel would have an areal density of 7,850 kg/sq.m, and we can use this to find the mass of the glacis array relative to steel in terms of thickness by finding the quotient of the two terms, with the areal density of the array being the dividend and the areal density of a pure steel cube as the divisor. In this case, the answer is 0.33325 meters, or 333.25mm, which is almost exactly the same as the claimed mass equivalence of 335mm. This is the relative mass of the array in terms of steel, not its effective thickness in terms of steel. Areal densities can be used with some degree of accuracy to predict the amount of protection offered by composite armour, but the accuracy of such predictions hinges entirely on the mass efficiency of the armour. To obtain its effective thickness in terms of steel, 335mm is multiplied by the mass efficiency factor of the armour, and in this case, the mass efficiency is not less than 1.0 as proven by the scientific study mentioned earlier. This proves that the 335mm RHA figure published by NII Stali in the catalogue "Защита" is indeed correct and that the 305mm figure is incorrect.


On a side note, the areal density of the array given in the table can be used to confirm the 1.8 g/cc density figure of glass textolite deduced earlier. 100mm of steel gives a LOS thickness of 267mm, and 267mm of steel has an areal density of 2,096 kg/sq.m, so the areal density of the glass textolite interlayer must be 2,096 kg/sq.m subtracted from 2,616 kg/sq.m = 520 kg/sq.m. This is corroborated by the 520.3 kg/sq.m given in Figure 9 from the CIA report on the T-72. To find the density of the glass textolite, we only have to divide 520 kg/sq.m by the 280mm LOS thickness of the interlayer, and from that we obtain 1,857 kg/cu.m, or 1.857 g/cc, which is very close to the figure obtained from "Plastmassy v bronetankovoy tekhnike" and confirms the 1.85 g/cc number given in "О Нэкоторых Закономерностях, Определяющих  Защитные Свойства  Трехслойных Преград При Обстреле Сплошными Оперенными Бронебойно-Подкалиберными Снарядами".

It is understood that low density materials like glass textolite offer less resistance to shaped charges than high density materials like steel per unit length of thickness chiefly due to the difference in density, so on the surface, it does not make sense that substituting 35mm of glass textolite with 20mm of steel did not increase the protection level of the armour, so the explanation must lie in the intricacies of the interaction between particulated jets and low density fillers. When we consider the fact that the effectiveness of the low density glass textolite is increased due to the particulation of the shaped charge jet, 35mm glass textolite in this specific configuration is nominally equivalent to 20mm of steel. Not bad, considering that the density of glass textolite is only ~1.8 g/cc whereas the density of RHA is 7.85 g/cc.

Conversely, the heavier 20mm steel plate is more efficient in terms of thickness, but it is much less efficient in terms of mass, so the substitution of 35mm of glass textolite for 20mm of steel can only be to improve protection against APDS and APFSDS threats while maintaining the same level of protection from shaped charge threats. This gives us some context for how the array would behave. The early Obj. 432 prototypes relied on a single 80mm RHA plate for the bulk of the work of stopping a KE threat and left the 140mm-thick glass textolite layer to behave like a giant spall liner to absorb spall and residual fragments. However, if the penetrator is not completely stopped by the single heavy front plate or at least shattered upon exiting it, the glass textolite layer would not be up to the task of stopping it on its own. Considering that Soviet tests in 1973 found that L28A1 APDS could defeat 80mm RHA at 68 degrees at a distance of 2,000 meters, the addition of an additional steel back plate was clearly a wise choice.

In order to appreciate the function of the heavy front plate under circumstances where it is fully breached, the L15A3 can be seen as a good example of a more sophisticated APDS shell, as it has a tungsten alloy core with a relatively high elongation. Thanks to this, the shell has very good performance on highly sloped armour plate compared to earlier APDS and the high yield strength of tungsten alloys (a W-Ni-Cu alloy in this case) limits the severity of disintegration after the core emerges from a target plate. The emphasis is on the word 'limit', as demonstrated in the picture below (full page originally shared on tankandafvnews). The L15A4 is believed to be the primary APDS round of the Chieftain, but it is the same as the L15A3 for all intents and purposes because nothing related to its terminal ballistic performance was changed.


APDS


The graph on the left shows that the penetration of the APDS shell on a steel target at a 68 degree obliquity is around 110mm at 1000 yards (914 m) and around 100mm at 2000 yards (1,828 m), so it is obvious that the 80mm front plate of the upper glacis array is not enough to stop the L15A3 on its own out to 2 km and more, but it is definitely thick enough that the tungsten alloy core is shattered as it exits. This is exemplified in the photo on the right below.




It is not the best example, of course, because the thickness of the defeated plate shown in the picture was at the limit of the capabilities of the shell at that range and at that angle, so it is not quite as intact as it would be if it was facing the same plate at a shorter range, but the same concept applies: the asymmetry of forces acting on the plate due to the different relative thickness of metal above and below the penetrator cause the part of the plate below the penetrator to buckle, resulting in the early structural failure of the plate compared to a vertical plate. In parallel to this, the penetrator also experiences asymmetrical stresses as it penetrates the oblique plate, causing it to fracture into pieces inside the plate and to break apart as it exits due to the sudden release of the built-up stresses. This phenomenon becomes more pronounced at higher obliquity because the asymmetry of forces increases with the angle of the plate. The defeated plate in the photo on the right of the picture above was angled at 60° and you can already see how large the exit channel is. The photo below also illustrates how fragmented the tungsten core becomes after passing through a thick steel plate. As you can see, the core is shattered into dozens of smaller fragments, although many fragments of the steel plate itself undoubtedly contributed to the total amount of damage.




It's worth noting that the distribution of plate thicknesses in the two steel layers of the composite armour array is directly opposite from common simple spaced armour arrangements, which typically consist of a thin hard steel plate in front of a thicker but softer base armour plate. Such arrangements worked well on solid steel shells and APCR shells during tests conducted during and after WWII, but the effectiveness of such measures declined if attacked with capped shells including capped APCR and APDS shells, although they still performed better than homogeneous armour of the same mass.

On the other hand, the tungsten alloy armour piercing cap or tilting cap on advanced APDS rounds like the L15A3 would not contribute to improved performance on the composite armour of the T-72 itself, even though it contributes to better penetration on oblique plate targets in general. This is thanks to the heavy front plate of the 80-105-20 array which deflects and erodes the cap, forcing the tungsten core to penetrate the plate itself so that it loses much of its velocity and becomes fractured in the process. The low velocity fragments exiting the plate must then penetrate the glass textolite interlayer, and the non-optimal shape of the individual fragments of the core makes it much easier for the glass textolite to stop them as compared to an intact core with a pointed tip. If the armour array had a hypothetical 20-105-80 arrangement instead, only the cap will be destroyed during the interaction with the hypothetical thin front plate while the intact core will penetrate the thick interlayer. In doing so, it would not experience strong internal stresses so it does not fracture, nor does it lose any significant amount of its velocity. The naked core will have poorer performance on the high slope of the hypothetical thick back plate due to the lack of an armour piercing cap, but it is still a formidable threat as it retains almost all of its velocity and is fully intact. This can be combated by having a high thickness spaced plate in front of the base armour, as hinted by a conference paper titled "Spaced Armor" on page 4.



So a thin spaced plate in front of a thick base armour plate would be highly effective against APDS shells with unprotected tungsten carbide cores lacking an armour piercing cap. APDS shells of this description include the MK.3 shot for the British 20 pdr. gun, but more modern 105mm and 120mm APDS shells were made with tungsten alloy armour piercing caps to partly rectify this weakness, so generally speaking, a hypothetical 20-105-80 armour configuration would perform more poorly than the existing 80-105-20 array. This is confirmed by the following paragraph from the same document:



Indeed, this all but confirms that having a thick front plate and a thin back plate for the composite armour of the T-72 is a reasonable design solution (even if it is not the most optimal) as it has the effect of rendering the armour piercing or tilting cap of APDS rounds redundant. The disintegration of tungsten core penetrators would be more pronounced at higher obliquity, so the 68° angle of the upper glacis is highly effective at defeating APDS shells. If the target plate is monolithic, the many fragments created by the breakup of the tungsten alloy penetrator is hugely beneficial as it greatly increases the post-penetration lethality of the shell. On the other hand, the same phenomenon would be hugely disadvantageous against the oblique composite armour of the T-72, as the penetrator would successfully perforate the heavy front plate but the broken pieces (and also the fragments of the armour plate) will have to penetrate the glass textolite layer and may fail to defeat the back plate due to the bad shape of the individual core fragments, especially since the residual velocity of the fragments exiting the heavy front plate will be reduced. Of course, it should not be forgotten that an anti-radiation lining is present behind the 20mm steel back plate of the upper glacis array, so the likelihood of these penetrator fragments going through the last layers of the array is very low.

Even the incorrect 305mm figure for the armour shown earlier points towards this conclusion. L15A3 has a penetration of 382mm at the muzzle at 0 degrees and 355mm at 1000 yards at 0 degrees, indicating that it would perforate the armour with ease at 914 meters if the given protection values were taken literally. However, the 305mm figure needs to be processed further due to the format of the presentation. When we multiply 305mm by the cosine of 68 degrees, we find that 305mm RHA vs KE is equal to 114.3mm RHA at 68 degrees, and there does not seem to be anything obviously wrong with this at first glance - the cumulative thickness of steel in the array is 100mm, and 105mm of glass textolite is therefore ostensibly equivalent to 14.3mm of RHA which is not very high. However, the penetration graph shown earlier states that L15A3 can defeat only 110mm of steel at a 68 degree obliquity at a distance of 1,000 yards (914 m), so L15A3 should not be able to defeat the armour of the T-72 Ural at 914 meters. Suddenly, the same armour becomes immune to L15A3 and the importance of slope becomes clear. Indeed, knowing that the actual armour value is 330-335mm RHA against APFSDS, it seems extremely unlikely that L15A3 could have any hope of defeating the upper glacis armour even at very short ranges.


To find the virtual equivalent relative thickness of the armour array against a threat like the L15A3, we must divide the penetration of the shell at 0 degrees (355mm) with the penetration at 68 degrees (294mm LOS) to obtain the slope efficiency coefficient, which is around 0.83. When 305mm is multiplied by the reciprocal of 0.83, we find that the effective thickness of the armour against APDS is 367mm RHA, normalized for 0 degrees. The mass efficiency of the array increases from the miserly 0.9 claimed in the Russian table to a much more believable 1.1, rounded up from 1.095. The 355mm penetration of L15A3 at 1,000 yards is insufficient and would fail against this target as predicted when 305mm was converted by multiplying it by 68 degrees. When we use the 330mm figure instead, the protection jumps up to an excellent value of 397mm RHA at 0 degrees in relative thickness against APDS and the mass efficiency increases to 1.18. These numbers may seem far too high, but the original 305mm or 330mm figures cannot possibly represent the protection of the armour against APDS on a 0 degree impact, because the 100mm of steel in the array already has a LOS effective thickness of 321.6mm after taking the slope coefficient of 0.83 into account. The effective thickness of the entire package must be higher than that by at least some amount due to the relatively high sensitivity of APDS penetrators against complex armour.

This is an excellent lesson in caution, because it is not possible to express the protective value of a composite armour array in terms of RHA without also listing the corresponding angle. The 305mm RHA value sometimes attributed to the T-64A upper glacis armour is extremely odd as it contradicts scientific data, but it may be true if we assume that it represents the resistance of the armour to APDS, but not converted into a 0 degree plate. Under this assumption, we can view the armour thusly:


  • 335mm against long rod monobloc APFSDS
  • 367mm against advanced APDS


It is interesting to see that page 3 of the brochure states that the L15A3 shell is "the first high velocity shot of its type which effectively defeats multiple targets", which may be referring to the NATO Heavy Triple target. It also probably hinting that it was different from previous APDS designs and that previous designs would have performed worse against spaced armour or perhaps even composite armour. This is most likely referring to the use of a tungsten alloy core, as older APDS shells like the L28 and L36 have all the features of the L15 including the shape of the core and armour piercing cap, only differing in having a tungsten carbide core. However, it appears that the 105mm L52 was the first APDS round created for this purpose, not the L15. Indeed the L15 projectile is observed to be almost identical to L52 except for the scale.



The diagram below shows the L15A5, which is structurally similar to the L15A3 and differs only in the alloy of the core. Note the sharp-tipped conical steel tilting cap, labelled "nose pad", on top of the hemispherical nose of the tungsten carbide core.




From what we now understand, all the evidence indicates that the heavily sloped upper glacis array of the T-72 Ural should be quite adept at defeating all contemporary APDS projectiles up to the 120mm caliber, which were still credible threats even while new APFSDS was being developed on the other side of the Iron Curtain. The primary threat for some time was the Chieftain, which relied on the powerful L15 series of APDS shells that had some chance of penetrating the upper glacis at close range, but the American M60A1 rapidly overtook the Chieftain due to the emergence of M735 composite APFSDS ammunition. Other 105mm-armed tanks would not be considered nearly as dangerous because APDS was the only option besides HEAT, and neither types of ammunition would be enough to defeat the T-72.


GENERAL VIEW REGARDING APFSDS



Against APFSDS ammunition, the functions of the individual components of the armour array are similar as for APDS rounds but with additional nuances. The most important component is the heavy 80mm front plate and its ability to deflect long rod penetrators. This topic is not often discussed yet carries crucial importance pertaining to long rod penetrator performance on spaced and composite armour designs. For one, the complexity of the issue regarding the performance of certain nose shapes versus certain armour arrangements makes it almost impossible to create a standardized model for long rod performance against complex armour. Multiple models need to be combined to simulate specific penetrator and armour designs and the combined model needs to be verified with experimental results, making it a laborious process that is only truly useful on a case by case basis. This is one of the reasons why protection equivalency figures in RHA are often misleading, as there often are many differences between APFSDS penetrator designs that may improve or degrade its performance against specific types of composite armour, and this is also the reason why the RHA figures published in this article should not be taken at face value.

However, one fact is known for sure, and that is that certain nose shapes perform better on semi-infinite plate at high obliquity and certain nose shapes perform worse. For instance, it is known that DU long rod penetrators have significantly better performance compared to tungsten alloy penetrators across the board (up to 10% better for alloys of the same density), but the same guidelines for penetrator design apply for both types. Conical noses, for example, are rarely found on service ammunition partly because conical-nose rods yield the best results on perpendicular plate but perform very poorly at high obliquity. However, the clincher is that it does not offer nearly enough improvement on perpendicular plates to justify the huge losses in performance on oblique plates, not to mention that even flat targets will often be attacked at some angle during real tank battles as very few hits are sustained from a 0 degree angle of attack. All taken together, it is easy to understand why conical noses are never found on any long rod penetrator. Blunt noses are the most popular as they offer the best performance on highly oblique plates with only slightly reduced performance on perpendicular plates, which is largely irrelevant for modern tank armour design anyway. Frustrum-nosed rods offer a compromise between conical and blunt nosed rods, and for this reason it has found some usage, although it is not nearly as widespread as blunt noses.

This was examined in great detail in the study "Effect of Nose Shape on Depleted Uranium (DU) Long-Rod Penetrators" by W. Leonard. This study is particularly relevant for U.S-made depleted uranium long rod penetrators from the 70's and 80's as the material used for the DU test rod is the same U-3/4 Ti alloy as used in the M774 and M833. The DU test rod is not a replica of the two rods since the aspect ratio is less - 10.0 vs 14.3 and 18.0 respectively - but this does not affect the nature of the effect of nose shape.

As the tables below show, the effects of nose shape are consistent for both depleted uranium and tungsten alloy rods. For a 1" thick RHA plate sloped at 70.5 degrees, the velocity limit for a DU rod with a blunt tip is 1,088 m/s and the velocity limit for a DU rod with a conical tip is 1,355 m/s. This is a sizable difference of 267 m/s or 24.5%, meaning that a conical rod of the same mass and aspect ratio would need to have 24.5% higher impact velocity to defeat the same target. For a 3" thick RHA plate placed perpendicularly, the velocity limit for a DU rod with a blunt tip is 1,373 m/s and the velocity limit for a DU rod with a conical tip is 1,239 m/s. The difference is only 134 m/s or 9.76%, so in other words, the conical rod has an extremely minor advantage compared to the blunt rod.

The same pattern is observed for tungsten alloy rods. For a 1" thick RHA plate sloped at 70.5 degrees, the velocity limit for a tungsten alloy rod with a blunt tip is 1,186 m/s and the velocity limit for a tungsten alloy rod with a conical tip is 1,470 m/s. The difference is 284 m/s or 24%, which is very significant. For a 3" thick RHA plate placed perpendicularly, thvelocity limit for a tungsten alloy rod with a blunt tip is 1,440 m/s and the velocity limit for a tungsten alloy rod with a conical tip is 1,333 m/s. The difference is only 107 m/s or just 7.4%. As you may have noticed, the velocity limit of the tungsten alloy penetrators of all three nose types are higher than the depleted uranium penetrators of the same nose types for all angles, translating to lower penetration values at the same impact velocities.



Although nose shapes other than these three were not tested, it was mentioned that the study "The Penetration Performance of Tungsten Alloy L/D=10 Long Rods With Different Nose Shapes Fired At Rolled Homogenous Armor" by John Zooks where short frustum, hemispherical, and blunt nose shapes were studied showed that tungsten alloy rods performed worse than a conical nose rod on a perpendicular impact but better on an oblique impact.
In the conclusion of the paper, it is asserted that cone-nosed penetrators displayed an increased tendency of ricocheting off the face of oblique plates instead of digging into the target. The independence of nose shaped design from penetrator material was also noted, and the insignificant value of higher performance on perpendicular plate in real world conditions is also made clear.




This means that the findings by Zooks et al. with tungsten alloy penetrators can be directly applied to DU rods as well. Additionally, the study
"On The Role of Nose Profile In Long-Rod Penetration" by Z. Rosenburg and E. Dekel shows that these results are also applicable to long rod penetrators of a wide variety of different metals with wildly differing mechanical properties including titanium, aluminium and copper. Titanium is known to be a good representative of depleted uranium as it fails by adiabatic shearing under high strain rates, thus simulating the penetration characteristics of DU (the famed "self-sharpening" effect). Steel targets were used for the tungsten rods and aluminium targets were used for the titanium and copper rods, simulating a roughly similar ratio of penetrator to target strengths. The final penetration depth for the five nose types for all metals is presented in the table on the right, normalized in terms of penetrator rod length.





From the simulation results gathered from the study, it can be seen once again that conical nosed rods perform the best on perpendicular impacts compared to blunt nosed rods, and the difference between the conical nose rod and the T-shaped nose rod was by a factor of 3. The performance of the hemispherical nose rod lay between the conical nose rod and the blunt nose rod as predicted earlier using the information from Zooks et al., so the performance of hemispherical-nosed penetrators such as the American M735 shall be lower compared to a blunt-nosed penetrator on a highly oblique plate such as the 68 degree heavy front plate of the T-72 upper glacis array but higher than a conical nose rod which is far more likely to simply glance off. The design of American APFSDS penetrators shifted to an ogive nose shape in the M774 and M833 depleted uranium long rod penetrator for an unknown reason. According to various studies on the subject, an ogive could be considered the most optimal nose shape in theory because it is conducive towards greater armour penetration at a perpendicular angle compared to a blunt nose, but it does not possess the same weakness as a conical nose on high obliquity impacts. However, the performance of ogived nose rods on oblique targets is significantly poorer than blunt nose rods and it is also poorer than hemispherical nose rods, and because neither the M744 and M833 have enough penetration power to defeat the flat turret armour of the T-72 anyway, the loss of penetration power on the highly oblique upper glacis plate is a considerable step backwards. It has also been shown that the poor performance of ogive nose rods is apparent even at a medium obliquity. From the results of the study "Penetration of 6061-T6511 aluminum targets by ogive-nosed VAR 4340 steel projectiles at oblique angles: experiments and simulations" by T. Warren et al., it can be seen that a steel long rod penetrator with an ogive nose experiences a large rotational moment as it penetrates the target, and the rotational forces are large enough in the case of a 45 degree impact that the rod is bent in the direction parallel to the surface of the target and its penetration path forms a curve towards the free surface of the plate - towards the region of lower material resistance.




For practical tank armour applications, these results indicate that the large bending forces experienced by a long rod penetrator with an ogive nose on a highly oblique plate will likely lead to the ricochet of the tip and a subsequent decrease in penetrative efficiency. All of this hints that M735, M774 and M833 may have slightly reduced penetration performance on the upper glacis of the T-72 as a result of less-than-optimal tip design for high obliquity plates.

There have been a variety of unique solutions devised by munitions engineers to combine the benefits of conical and blunt nosed penetrators. An early solution was the use of rounded noses on the American M735 tungsten alloy and M774 depleted uranium long rod penetrators, but this was a compromise solution and did not give the penetrators the best possible performance on both perpendicular and oblique plates. The L27 "Charm-3" APFSDS round features a more recent solution which was to install a conical tip segment on top of a blunt nosed monobloc rod, connected via a weak joint. In the case of an impact with a target at a perpendicular angle, the conical tip yields better penetrative power and the mass of the tip contributes to the penetration depth. If the projectile impacts an oblique plate, the conical tip segment readily ricochets off the plate and is detached from the rest of the rod at the weakened joint, leaving the base rod with its blunt tip to dig into the target. This enables the penetrator to have optimal performance on both perpendicular and oblique targets with minimal sacrifices made to projectile design.




However, Charm-3 may be a little too recent to be considered a contemporary threat to the T-72 Ural, considering that the latter was only produced from 1973 to 1975. The armour array was changed in 1976 as part of a modernization programme.


URAL-1



In 1976, a new glacis array was introduced for the T-72 Ural-1 modernization. The new array retained the 105mm glass textolite interlayer, but it now had a 60mm RHA front plate and a 50mm back plate instead. The total thickness becomes 574mm when angled and the mass of the array in terms of steel was increased to 361mm due to the additional thickness of steel. The areal density increased from 2,616 kg/sq.m to 2,826 kg/sq.m. The vast majority of the Red Army's T-72 tanks incorporated this newer armour scheme, and this is instantly obvious when we examine the production record of the T-72: the production volume at Nizhny Tagil in 1976 alone was 1,017 units, whereas only 950 units were released during the entire production run of the original T-72 Ural model from 1973 to 1975. This new 60-105-50 array was also a fairly common configuration for most T-72M tanks, and it was carried over to the T-72A in 1979 as well as the T-72M1 later on.

One of the primary incentives behind the upgrade to a 60-105-50 armour design in 1976 was new intelligence regarding a German 120mm smoothbore cannon and further influenced by fears regarding possible developments in APFSDS technology, hence the enhanced emphasis on the defeat of long rod projectiles. Before examining the technical side of the design solutions implemented in the 60-105-50 armour array, a better appreciation of the foresightedness of this upgrade can be gained by looking at the 105mm APFSDS ammunition that was available at the time and the relationship between it and the 120mm APFSDS ammunition that had initially prompted the upgrade.

Firstly, it should be noted that production of the M735 tungsten alloy APFSDS round with a composite construction and a teardrop-shaped penetrator with a hemispherical tip only began in 1978. Prior to this, the most advanced ammunition available to any NATO nation operating a 105mm gun was the British L52, which has already been established as being utterly deficient against the older three-layer armour of the T-72 Ural earlier in this article. Immediately it becomes clear that in practice, the 60-105-50 armour would have vastly overmatched contemporary APDS ammunition and would still have been proofed against 105mm APFSDS ammunition that appeared two years later.

For further information on 120mm APFSDS in the context of the capabilities of contemporary 105mm APFSDS, reference can be made to the report "Hearings on Army Reprograming Request No. 78-14, P/A, FRG Smooth Bore 120-mm Gun and XM-1 Tank, Before the Investigations Subcommittee of the Committee on Armed Services, House of Representatives, Ninety-fifth Congress, Second Session: Volume 5". On page 127-128, it is intimated that the U.S Army would go ahead with the procurement of the German 120mm Rh120 L/44 smoothbore gun but would not procure German ammunition as it was seen as ineffective. Critical details on the relative performance of the APFSDS ammunition for the 105mm and 120mm guns were provided by Brigadier General Donald W. Babers, project manager of the XM-1 tank. The lines below are taken verbatim from page 108 the report.


"Mr. Stratton. The kinetic energy round is the 38-mm round, is that right?

General Babers. That is correct, sir.

Mr. Stratton. Let me ask a couple of questions here. As I understand it, this is a round that didn't appear in the tests this year.

General Babers. No, sir, it did not. This year the Germans used a round with a 32-mm penetrator as their primary candidate.

Mr. Stratton. And it's also my understanding that this is not as good as the improved M774 round in development for the 105. Is that correct?

General Babers. The 38-mm round that they're going into production with we saw fired a year ago. Against the BRL-II-type it did not perform as well as the Army's XM774 round."


The German round with a 38mm penetrator is the DM13 which had a two-part jacketed tungsten alloy penetrator, and the German round with a 32mm penetrator is the DM23 which is a monobloc tungsten alloy penetrator. From General Babers' account of the comparative tests in 1977, the monobloc DU penetrator of the M774 round outperformed the more complex but less sophisticated DM13 round on the BRL-2 armour target.

Mr. Justus P. White of the Investigations Subcommittee of the Committee on Armed Services provided a simplified rundown of the nuances of the ammunition technology on page 139. The paragraph below is taken verbatim:


"If you use the same generation of ammunition with the 120-mm; that is, the same stage of ammunition technology, which you fire out of the 105-mm, you will have more penetration capability with the 120-mm because it is a more powerful gun, and you can load more propellant. The size of the dart that you throw downrange at the target may well be exactly the same. You are simply sending it down- range at greater velocity.

The problem that confronts us is that there are three generations of ammunition in process right now for each of these two guns. The 120-mm with first generation ammunition is less effective than the 105-mm with second generation. The Germans are going into production with first generation 120-mm ammunition. They have no plans to develop or produce a second or third generation ammunition, which they tested this year. The Army program calls for taking that first generation 120-mm ammunition and modifying it to put a depleted uranium warhead on it, which makes it somewhat more effective and brings it approximately to the capability of second generation 105-mm ammunition. However, the 120-mm with second generation ammunition modified would be less effective than the 105-mm with the third generation - the growth potential round that we fired this year. Therefore, the proposed recommendation of the subcommittee is that it makes no sense to develop the interim 120-mm round, which would be less capable than what you could already have out in the field with the 105-mm in the same time frame."


For context, the German DM13 round represents the "first generation ammunition" for the 120mm gun. It entered production one year later as stated and was the primary anti-armour round for the Leopard 2. DM13 was replicated with secondary American components (tracers, fins, etc) and tested in the U.S as the XM827 as an interim 120mm APFSDS round. Besides the basic XM827 model with the original tungsten alloy penetrator of the DM13 design, an improved model with a U-3/4 Ti penetrator was created to provide enhanced performance. As implied by the closing line of the paragraph above, the XM827 never entered service and the U.S Army leapfrogged to the XM829. The American M774 round represents the "second generation ammunition" for the 105mm gun, with the M735 representing the first generation and the M833 representing the third generation.

From all of the information above, it is understood that the basic German 120mm DM13 APFSDS round that armed the Leopard 2 in the early years of its service was found to be less effective than the American 105mm M774 APFSDS when tested against composite armour (BRL-2). With a DU penetrator of American make, DM13 would have been roughly comparable to M774. DM23 with its monobloc tungsten alloy core would be outperformed by the M833. As such, having the T-72 proofed against the APFSDS ammunition of a smaller and ostensibly weaker caliber would actually have been a more challenging objective until the Americans fielded the M829 round for their own 120mm guns in 1985. Having established this historical context, the foundation is laid on which it is possible to gain an accurate perception of the value of the 60-105-50 armour design.


In a relatively recent series of studies compiled in "Particular Questions of Terminal Ballistics" 2006 (Частные Вопросы Конечной Баллистики) published by Bauman Moscow State Technical University on behalf of NII Stali, a multitude of different array layouts with different ratios of layer thicknesses were tested against tungsten alloy long rod penetrators of differing aspect ratios to find the optimal distribution of thicknesses and the optimal obliquity.

The three-layer array shown below has a 1.2:2.12:1.0 ratio of layer thicknesses with steel front and back plates with a glass textolite interlayer, equivalent to the 60-105-50 armour layout. This layout was placed at an angle of 68 degrees and was tested against two types of tungsten alloy long rod penetrators with equal lengths but different diameters (aspect ratios: UPE-3 = 11.0, UPE-4 = 12.0) and compared to other layouts. The calculated amplitude of normalization of the penetrator is shown in the first two graphs, and the change in velocity of the penetrator (measured at the tail) is shown in the third graph. As you can see, the penetrator experiences large destabilizing effects inside the steel front and back plates, but remains almost completely steady inside the glass textolite interlayer. Similarly, the velocity of the penetrator drops sharply as it penetrates the steel plates but barely changes as it travels through the glass textolite layer. These are quite bad results compared to a seven layer target which was able to obtain much better results by simply redistributing the same two components into multiple layers. Two different long rod penetrators were fired at this target, UPE-3 and UPE-4 with aspect ratios of 10.0 and 12.0 respectively. Huge resistance was created and the velocity of the penetrator is constantly reduced as it travels through the armour array.



The redistribution of thicknesses of the steel plates in the Ural-1 variant was done to improve the mass efficiency of the array, but from a technical standpoint it was for two reasons; a tendency of the thin 20mm back plate of the original array to buckle or bulge excessively when impacted by the remnants of an APDS or APFSDS shell, and its inability to reliably absorb the fractured or otherwise degraded penetrator of new long rod APFSDS projectiles due to the low efficiency of thin plates. Having a thickness of only 20mm, it is thinner than the diameter of practically all 105mm long rod APFSDS rounds. As mentioned previously, one of the original purposes of the thin steel back plate was to provide a solid structural backing to the glass textolite interlayer to improve the efficiency of the glass textolite and also to deflect the remnants of a penetrator that should be highly weakened after passing through the thick steel front plate and thick glass textolite interlayer.


From the information gathered so far, it is obvious that the the 60-105-50 armour layout is far from the most optimal design, but it was definitely designed after taking contemporary APFSDS rounds into consideration. It is not a coincidence that the thickness of the 60mm heavy front plate of the array is approximately 1-2 times the diameter of APFSDS shells fielded by NATO armies from the late 70's to the late 80's. For instance, the American M774 and M833 rounds for the 105mm M68 have penetrator diameters of 26mm and 24mm respectively. The British L23 and L23A1 rounds for the 120mm L11A5 have the same penetrator diameter of 29mm, and the German DM23 round for the 105mm L7A3 has a penetrator diameter of 26mm. The German DM13 and DM23 rounds for the 120mm Rh120 L/44 gun have penetrator diameters of 38mm and 32mm respectively. These have the "fattest" penetrators of all, but still remain comfortably within the optimal zone of the heavy front plate.

The higher elongation of later APFSDS round led to increased performance against composite armour but higher elongation does not affect the effectiveness of the heavy front plate, so the increasing elongation of APFSDS rounds during the 80's and 90's does not change the fact that 60mm remained the optimum thickness. This is rather important since the hull armour of the T-80B obr. 1978 was developed from the T-72 and had a 60mm front plate. The T-64BV also had a 60mm front plate for its five layered armour array, and the T-72B continued to make use of a 60mm front plate in all of the three variations of its hull armour. Only the T-80BV and T-80U deviated from this pattern, but that may have been due to the ever-decreasing diameter of modern 105mm and 120mm APFSDS observed at the time. In that case, the ratio between penetrator diameter and front plate thickness would have remained largely unchanged.


It is possible that the front steel plate was made slightly harder to further improve its protective characteristics and because it is thinner and therefore easier to treat to a higher hardness than the earlier 80mm plate. However, there is no evidence for or against this notion, so it is pure speculation. The stimulus behind the change to a new array is unknown, but there is a possibility that it may have been influenced by some yet-unpublished analysis of enemy anti-tank weapons from the 1973 Yom Kippur war. It could also be due to some new projections and predictions regarding APFSDS developments in the West or new intelligence regarding the soon-to-arrive M735 APFSDS (1978). Whatever the reason was, the implementation of the new array was purely beneficial. For comparison, the T-64B (1976) continued to use the older 80-105-20 array well into the mid-80's, but the protection was not significantly inferior to the redesigned Ural-1 array because high hardness BTK-1 steel was used as a replacement for the medium hardness steel of the T-72. Similarly, the T-80 used the older design but incorporated BTK-1, and the T-80B featured a slightly thinner 60-100-45 array that had comparable or slightly better protection as it used BTK-1. According to Andrei Tarasenko, the upper glacis of the T-64B is equivalent to 360mm RHA against APFSDS.


The effects of redistributing the thicknesses of the steel layers is studied in "Regarding Some Regularities Defining The Protective Properties of Three-Layered Barriers In The Testing Of Long Rod Armour-Piercing Sub-Caliber Projectiles" published in 1976 by O.I Alekseev. The study encompasses a broad range of armour thicknesses for dual and triple layered steel-glass textolite composite armour designs and compares them with homogeneous steel plating of equal weight. Data from live fire testing is used for homogeneous steel targets as well as the multi-layer composite targets. The hardness of the RHA steel for all targets is kept constant at 285-311 BHN and the glass textolite had a density of 1.85 g/cc (the same type used in mass production tanks).

It was found that upon increasing the physical thickness of the steel back plate beyond 20-25mm, the resulting increase in effective armour value increased disproportionately by 2-3 times per unit thickness. To put it more succinctly, for every millimeter of thickness added to the steel back plate, the effective armour thickness increases by 2-3 millimeters. Thus, the mass efficiency coefficient of the armour will rise above 1.0. This begins to occur when the steel back plate has a minimum physical thickness of 35-40mm. In the process of increasing the thickness from 20mm to 50mm, the first 15-20mm of thickness added to the 20mm thin steel back plate only increases the effective armour thickness value in a 1:1 proportion. The next 10mm increase in thickness increases the effective armour thickness value in a 1:2 to 1:3 proportion.

Keeping in mind that the 60mm steel front plate of the new design is 20mm thinner than the 80mm steel front plate of the old design, the main increase in effective armour thickness comes from the additional 10mm of thickness for the steel back plate, which is equivalent to 20-30mm of thickness. The increase in the equivalent armour value is therefore in the order of 53mm to 80mm. Since the original armour is equivalent to around 335mm RHA against long rod APFSDS rounds, the new 60-105-50 armour design would be equivalent to between 388mm and 415mm. The midpoint of these two possibilities is 401mm. In short, the mass efficiency coefficient of the new 60-105-50 armour must be above 1.0 and the calculated equivalent thickness in terms of solid homogeneous steel is around 400mm.

The increase in mass efficiency can be calculated quite easily: as mentioned before, the additional 10mm of steel compared to the original 80-105-20 armour design resulted in the increase of the mass of the array in terms of steel to 361mm. By having an effective thickness equivalent to 401mm RHA, the mass efficiency coefficient of the new armour is 1.10. This is very low by modern standards and still quite low compared to experimental armour arrays that had been created by 1976, but still quite respectable with the context that the most dangerous threats at that time were the 105mm M735 APFSDS round (1978) and 120mm DM13 APFSDS round (1979). Neither of these rounds had a long rod penetrator, and this armour design would have been more efficient against these threats. As such, this armour design was fully adequate for its time, but it was not future-proofed. Most importantly, it is a much, much better alternative to the old 80-105-20 array design that continued to be installed in the T-64B series up until 1984.

According to Rolf Hilmes, the upper glacis armour of an ex-East German T-72M provided a protection level of 400mm against APFSDS rounds (and 490mm against HEAT rounds as mentioned before), implying a mass efficiency of 1.1 against APFSDS. These numbers are in good agreement with our prior assumptions. Knowing that the 80-105-20 array has a mass efficiency of 1.0, the 60-105-50 array should have a higher ME, and a 1.1 coefficient represents a perfectly reasonable increase of 10%. According to "Боевые Машины Уралвагонзавода: Танк Т-72", however, the upper glacis armour of the T-72A is equivalent to 360mm RHA against APFSDS threats. With the information currently available to us, this figure is clearly too low to be accurate as it implies a mass efficiency of less than 1.0.


The effect of the redistribution of thicknesses is less clear on shaped charge threats. Since the thicknesses of the front and back plates of the array have changed, there is no doubt that the nature of the interactions between the armour array have also changed in some way - a 60mm plate will not be as effective as an 80mm plate at particulating a shaped charge jet, so a more continuous jet will penetrate the glass textolite filler. As we have already established, the low density glass textolite filler is less optimal against a continuous jet, so it may be that not only was the thicker back plate intended to absorb the rest of the jet, but the back plate had to 30mm thicker than the original 20mm plate in order to make up for the reduced effectiveness of the interlayer. This can be viewed as a compromise to improve protection against KE threats while keeping the protection against SC threats at the same level, with the penalty of a reduction in mass efficiency. From this perspective, the additional 10mm of steel should not be regarded as additional armour against shaped charges, but as compensation for the reduced front plate thickness so the mass efficiency should remain the same at 1.35. Therefore, any attempts to directly add 26mm of armour equivalence (10mm / cos 68°) to the previously given 450mm RHA figure would be fundamentally invalid. A decidedly more reasonable approach is to divide the relative mass of the array (361mm) by the reciprocal of 1.35. This gives us 490mm RHA, which is supported in "Kampfpanzer: Heute und Morgen" by German author and military expert Rolf Hilmes who also attributes the T-72M with an armour protection level of 490mm RHA against shaped charges. This calculated figure is also supported by the NII Stali catalogue as the page fragment shows once again in the last row (T-72M1):



This source also appears to supports the calculations done earlier that credit the armour with an equivalent effective thickness of 401mm RHA. It is possible that the "T-72M1" referred to in the table has a 16mm appliqué armour plate, but this seems unlikely. Based on how the T-72M and T-72MK are listed as having the same armour as the T-72 and T-72K, it appears that the table categorizes the T-72M as having the same armour as an original production model T-72 Ural. This is somewhat unusual. The effective thickness equivalence given for the turret of the T-72M1 in the table is unusually low, whereas the effectiveness of the turrets of the T-72 and T-72M against "hard-core" (heavy metal alloy APFSDS) weapons is also unusual as it reflects the lower effectiveness of cast steel compared to RHA. This was not done for the figures published in "Боевые Машины Уралвагонзавода: Танк Т-72" published by the Uralvagonzavod Production Association. The numbers imply a thickness efficiency coefficient of 0.92 for the cast steel used to construct turret of the T-72 Ural against KE projectiles and 1.0 against shaped charges.

According to page 159 of "Боевые Машины Уралвагонзавода: Танк Т-72" published by the Uralvagonzavod Production Association, the hull armour of the T-72A (the same as the Ural-1 and T-72M1) is equal to 500mm RHA against shaped charges. As usual, this source appears to be the odd one out.


To some extent, we can also corroborate the 400mm figure (both the reported and calculated numbers) using the table below. It is probably not a coincidence that the required armour penetration of L23A1 is 400mm, nor is it a coincidence that the maximum effective range of L23A1 is stated to be 3.5 km.




With this interpretation of the data, the 400mm RHA figure supplied by Hilmes and NII Stali is somewhat validated and finding out the range limit of L23A1 against other armour arrrays is almost trivial. The round will cut straight through the hull of the T-72 Ural (335mm) at 5-6 kilometers and defeat the hull of the T-72 Ural-1 and T-72A (400mm) at 3.5 km or less. This seems imply that the T-72 is hopeless whenever it encounters a Challenger 1/2 or a Chieftain Mk.5/2, but it is important to note that the original L23 round entered service in 1985 and the L23A1 only arrived during the late 80's, so the L23A1 came only after more than decade had passed since the T-72 Ural-1 was fielded. By this time, the tougher T-72B had already entered service and the earlier models had already been uparmoured with an additional 16mm armour plate.

The assertion that the armour is equivalent to 400mm RHA does not contradict with the known fact that M111 "Hetz" was able to defeat this armour at short range. It is known that M111 penetrates 405mm RHA at an impact velocity of 1428 m/s (corresponding to a distance of 500 m) when tested against Soviet steel-glass textolite composite armour. As such, M111 should successfully defeat the armour of the T-72 Ural-1 and T-72A at short range, but fail at ranges of 1 km and further.


APPLIQUÉ ARMOUR



In 1983, an additional 16mm high hardness plate was added to the upper glacis armour by welding. This came about as a result of live fire testing of captured Israeli M111 tungsten-cored shells from Lebanon (in the 1982 war in Lebanon). Contrary to popular belief, the Israelis did not "discover" that their M111 Hetz could perforate the T-72 from the front "at about 650 meters". The Israelis never got their hands on an intact T-72, nor did they ever face them with 105mm guns in combat. Strong evidence has indicated that at best, the limited number of Syrian T-72s that were destroyed had been destroyed in an ambush by TOW missiles fired at their flanks from gunships.




However, it is not a myth that the M111 "Hetz" was acquired by the Soviet Union and extensively examined and tested. A very popular theory is that these rounds came with the captured Israeli M48A3 derivative (Magach 4) that was until recently on display in Kubinka. The original American M48A3 doesn't have a 105mm gun, of course, but Israelis had a habit of upgrading their tanks. Having captured M111 "Hetz" rounds in some quantities, it was discovered by the Soviets that the upper glacis of the T-72 was vulnerable at short ranges (the exact range was never publicized), thus necessitating the installation of the appliqué armour plate. However, this additional armour was not only intended to immunize the tank from the new 105mm threat, but also to counteract the 120mm smoothbore gun of the new Leopard 2 tank in 1979.


The addition of the plate increased the mass of the array to the equivalent of 403mm of steel and increased the areal density to 3,161 kg/sq.m, but the change in the mass efficiency of the armour is difficult to determine. It is known that the T-64A, T-64B and T-80, T-80B also received weld-on appliqué armour at around the same time as the revelation, but all of these variants received a 30mm plate rather than a 16mm plate. The reason for this is not that the T-64A/B and T-80/B were more valuable assets than the T-72 and deserved better armour, as some may assume based on common perception. Rather, it was because the vast majority of T-72 tanks at the time were already using the 60-105-50 hull glacis armour scheme whereas the others were still built with the older 80-105-20 armour array. As it had a similar but slightly thinner new armour scheme (60-100-45), the T-80B received a 16mm appliqué armour plate in 1983 like the T-72, and the original T-80 received a 20mm plate in 1979 as part of an unrelated modernization effort to increase its protection to the same level as the T-80B. The T-64A and T-64B both received a 30mm appliqué armour plate in 1984-1985 during a modernization effort to improve the armour up to the level of the new T-64BV, which had a completely new 5-layer upper glacis array designed with M111 "Hetz" and 120mm APFSDS in mind.


The value of the 16mm plate against KE threats is difficult to quantify, but it is certainly inaccurate to simply add the LOS thickness of the plate (42.7mm) to the known effective thickness of the base armour array (400mm RHA). The differences between HHS and RHA are not accounted for, nor are the positive effects of the obliquity of the plate, or the advantages of layering a high hardness plate over a lower hardness plate to create a DHA (Dual-Hardness Armour) arrangement as high hardness steel is best used as appliqué armour, like in this case. According to Jarosław Wolski (a Polish military journalist) otherwise known online as "Militarysta", the hardness of the 16mm appliqué armour plate is more than 500 BHN. The higher hardness and strength of HHS yields the best results for defeating KE threats especially at a very high obliquity, but can be disadvantageous against HEAT threats due to several complex factors. This has been shown by multiple studies on the topic of layered steel targets and is additionally reinforced by the previous discussion on steel-glass textolite composite armour where it was found that increasing the hardness of the steel front plate increases the resistance of the armour against long rod penetrators. However, the lack of confirmation on the composition of the plate combined with a multitude of other factors make it much more difficult to find out the true contribution of the appliqué plate towards the overall protection properties of the armour, so we must rely on secondary sources for the bulk of our research.


The November 2006 issue of the "Tekhnika i Vooruzhenie" (Журнал Техника и Вооружение) magazine mentions in page 14 that in 1993, a report published in the specialized magazine "German Airspace" by A. Mann states that the armour of the T-72M1 exhibited protection equivalent to 420-480mm of rolled homogeneous armour when tested against modern 105mm and 120mm ammunition from West Germany. The upper glacis armour of the T-72M1 is the same as the 1976 modification of the T-72 Ural plus the 16mm appliqué armour plate (16-60-105-50). For all intents and purposes, "420-480mm" can be interpreted to mean that the hull armour is equivalent to 420mm RHA against modern long rod tungsten alloy ammunition like the 105mm DM33 (standard 105mm APFSDS in the late 80's and the decade after), while the turret is equivalent to around 480mm RHA, probably at the cheeks. The use of "modern" APFSDS rounds instead of earlier types like the M735, M774, 105mm DM23, or the 120mm DM13 could be responsible for the reduced mass efficiency of the uparmoured array in this specific context.

On the other hand, it is claimed on Andrei Tarasenko's website that the armour of the T-72A with the appliqué plate is equivalent to 405mm of steel against M111. The relevant paragraphs are cited verbatim here:


"Одним из выводов специальной комиссии по определению противоснарядной стойкости отечественных танков было то, что М111 имеет преимущества перед отечественными 125 мм снарядом БМ22 по дальности пробития под углом 68° комбинированной брони ВЛД серийных отечественных танков. Это дает основание полагать, что снаряд М111 отрабатывался преимущественно для поражения ВЛД танка Т72 с учетом особенностей ее конструкции, в то время как снаряд БМ22 отрабатывался по монолитной броне под углом 60 градусов.

В ответ на это по завершении ОКР «Отражение» на танки вышеуказанных типов в ходе капитального ремонта на ремзаводах МО СССР на танках с 1984 года осуществлялось дополнительное усиление верхней лобовой детали. В частности на Т-72А устанавливалась дополнительная плита толщиной 16 мм, что обеспечивало эквивалентную стойкость 405 мм от ОБПС М111 при скорости предела кондиционного поражения 1428 м/с."


This translates to:


"One of the conclusions of the special commission for determining the anti-ballistic security of domestic tanks was that M111 has advantages over domestic 125 mm with a BM22 projectile at the penetration range at an angle of 68° combined armor of the upper glacis of serial domestic tanks. This gives grounds to believe that the M111 projectile was developed primarily for the destruction of the upper glacis of the T72 tank, taking into account the features of its design, while the BM22 projectile was tested on a monolithic armor at an angle of 60 degrees.

In response to this, after the completion of the OKR "Reflection" for tanks of the above types during the overhaul at the Soviet factory of the Ministry of Defense of the USSR, since 1984 an additional reinforcement of the upper glacis was carried out. In particular, the T-72A was equipped with an additional plate with a thickness of 16 mm, which provided [the armour with] the equivalent thickness of 405mm of steel from M111 APFSDS at the velocity limit of defeat of 1428 m/s."


In short, it is stated that M111 is able to defeat the reinforced armour at an impact velocity of 1428 m/s. Based on the known velocity characteristics of DM23 (West German variant of M111) from this firing table, an impact velocity of 1428 m/s corresponds to a distance of 500 meters, so the armour of a T-72A with the 16mm appliqué armour plate is immune to M111 only at a distance above 500 meters. However, this does not seem to fit with information from the book "Particular Questions of Terminal Ballistics" 2006 which states that M111 penetrates 340mm at a 60 degree slope at 2 km. Furthermore, using a simple slope modifier derived from the Lanz-Odermatt equation to convert the perforation limit at 60 degrees to 68 degrees, the performance of M111 still falls far short of the required level. The tungsten penetrator rod of the M111 (and DM23) projectile is actually quite short and the stepped tip of the penetrator is not a part of the penetrator rod but is made from multiple nested cylinders. Even when the tip is considered to be an extension of the monobloc rod behind it, the numbers still do not add up. It is indeed quite likely that the M111 penetrator was designed specifically to defeat the highly sloped upper glacis armour of the T-72 as well as the T-64 and T-80 in such a way that the Lanz-Odermatt equation cannot predict. What is less clear is how effective the armour is against conventional monobloc long rod penetrators with a simple blunt tip or an ogived tip like the M774 and M833 penetrators.

Now, we are left with two distinct figures for the same 16-60-105-50 armour configuration: 420mm by Mann and 405mm by Tarasenko. However, this discrepancy can be explained by the unique stepped tip of the M111 penetrator (refer to the drawing earlier) having superior performance at high angles of impact whereas standard monobloc rounds from West Germany like the DM33 have blunt tips that presumably perform worse than the M111. This adequately explains the differences in the claimed armour values, but is balanced out somewhat by the fact that more elongated long rod penetrators will be able to defeat composite armour more readily. The mass efficiency of the armour may not have increased, as the upgraded array now has an areal density of 3,144 kg/sq.m and has the relative weight of 400mm of steel, but has a maximum effective thickness of 420mm RHA. The mass efficiency coefficient is therefore 1.05. This is lower than the 1.1 coefficient of the bare 60-105-50 armour design which is highly unusual, but not outside the realm of possibility. Assuming that the mass efficiency coefficient is the same as the bare armour, the effective thickness in terms of RHA would be 440mm. If the mass efficiency coefficient rose due to the use of a high hardness appliqué plate atop the existing 60mm front plate (as it should), then the effective thickness would be above 440mm RHA.

Once again, a reminder must be made to exercise caution with these figures as the penetration depth of long rod penetrators tends to increase at higher target angles up until a certain point where deflection effects come into play, and eventually, ricocheting occurs at a sufficiently high impact angle. After taking into consideration the fact that the armour is sloped at 68 degrees and exhibits the same penetrator interaction dynamics as the 60-105-50 armour array, it becomes clear that the low-end estimate implies that the armour is only borderline acceptable for resisting M774 from a kilometer away. In fact, hot summer weather may be enough to increase the muzzle velocity of the round that it could defeat the armour from two kilometers or more, not to mention the temperature of a Middle Eastern desert during the day. The high-end estimate of an effective thickness of 440mm RHA or more would provide much better proof against this round. However, an objective evaluation of this armour scheme must take into account the fact that M833 entered service in 1983 - the same year that the 16mm plate was added.

Nevertheless is worth noting that M111 or DM23 were among the most advanced 105mm APFSDS rounds of the early 80's and were the best anti-tank ammunition available for the Leopard 1A4 and 1A5 at that time, not to mention that they were practically standard for the remainder of the decade. British tanks with L7 guns were still limited to L52 series APDS rounds, and the British Army never fielded APFSDS rounds during the Cold War. It also must be understood that the up-armouring programme was merely a temporary stopgap measure to keep the Soviet Army's large fleet of T-72 tanks viable against common 105mm APFSDS threats for the next few years. The limitations of the outdated three-layer armour sandwich design were recognized and work on a much more serious upgrade in armour protection was already underway. The solution that ended up on late T-72A tanks produced in 1984 was a complex spaced armour array that omitted glass textolite entirely. These developments will be discussed later in this article.




Against shaped charges, it is not possible to simply add the LOS thickness of the appliqué plate to the total effective thickness. The mass efficiency of the array may possibly increase due to the added thickness of the heavy front plate but it is too complex to quantify the changes, not least because the mechanical properties of the plate material must be known. The effectiveness of high hardness steel may not be higher than RHA because the penetration of shaped charges is not related to the yield strength, but to the ultimate tensile strength (UTS). A high hardness steel plate with a lower UTS would offer less resistance than an RHA plate with lower hardness but higher UTS. In the example below, Hardox 500 steel offers significantly less protection compared to RHA steel. Table taken from the study "Hypervelocity Penetration against Mechanical Properties of Target Materials" by K. Kamarudin et al.



As the appliqué armour plate is a high hardness steel with a hardness of more than 500 BHN, the closest example seems to be BT-70Sh steel. If true, the shaped charge resistance will be lower as the steel has a UTS of only 1700 MPa, lower than both RHA steel and Hardox 500. This is consistent with an article published on Andrei Tarasenko's website that increasing the hardness of the front plate of the three-layer sandwich leads to a decrease in the shaped charge resistance of the armour. The relevant claim, verbatim:

"Уровень трехпреградной (сталь + стеклотекстолит + сталь) броневой защиты танков Т-64А, Т-72А и Т-80Б обеспечивался подбором оптимальных толщин и твердости материалов лицевой и тыльной стальных преград. К примеру, повышение твердости стального лицевого слоя ведет к снижению противокумулятив­ной стойкости комбинированных преград, установленных под большими конструктивны­ми углами (68°). Это происходит вследствие снижения расхода кумулятивной струи на внедрение в лицевой слой и, следовательно, увеличения ее доли, участвующей в углублении кавер­ны."

Translated:

"The level of the three-barrier (steel + glass textolite + steel) armored protection of the T-64A, T-72A and T-80B tanks was ensured by the selection of optimal thicknesses and hardness of the front and rear steel barriers. For example, increasing the hardness of the steel face layer leads to a decrease in the anti-cumulative resistance of the combined barriers installed at large structural angles (68 °). This is due to the reduction in the flow rate of the cumulative jet during penetration into the face layer and, consequently, to an increase in its length involved in the deepening of the cavity."

It should be noted that the paragraph is referring to the performance of the entire array as a whole system and not the front plate alone. Unlike the example given where the hardness of the entire heavy front plate of the steel-glass textolite-steel was changed, the 16mm appliqué plate is added on top of the existing 60-105-50 array so the optimal arrangement of thicknesses and hardness is not disrupted but is instead augmented. This means that the mass efficiency of the array does not decrease as a result of adding the appliqué plate, but the additional effective thickness from the appliqué plate is still less than its LOS thickness. However, the exact reduction in efficiency compared to normal RHA steel is unclear. If we proceed to simply add the LOS thickness of the appliqué plate to the array, then an effective thickness of 532.7mm is obtained. The enhancement to the protection level could be speculated to be an increase from 490mm to between 500mm to 530mm against HEAT.


Regardless of the exact increase in protection, the armour is clearly insufficient against modern anti-tank missiles fielded during the early 80's. The standard TOW and Dragon anti-tank missiles would not be effective against this armour, but they were also ineffective against the original 80-105-20 array so the up-armoured design did not provide any real qualitative improvement. The armour is still nominally insufficient against the rather old MILAN missile (530mm penetration) from 1972, and the newly appearing ITOW (1982) and MILAN 2 (1983) missiles were far too powerful for the simple three-layer array to handle on its own. A substantial improvement in the mass efficiency of the armour was required to achieve a sufficient level of protection from these threats as well as against future threats without encumbering the tank too much. This improvement took the form of Kontakt-1 reactive armour. However, having an effective thickness exceeding 500mm RHA against shaped charges was not trivial as this made the base armour immune to all man-portable shoulder-fired anti-tank grenades for the remainder of the Cold War including the Soviet PG-7VL (1977) which could penetrate 500mm of steel.


TURRET




The turret is made from MBL-1 armour-grade cast steel and is assembled from two pieces. The turret front, sides and rear are cast as a single piece, but the roof is cast separately and welded on. This slightly degrades the structural integrity of the roof, as the weld seams can be weak points. This is probably some byproduct of the close imitation of the T-64A turret design, since the UVZ plant had already mastered the production of one-piece turrets for the T-62 and demonstrated the ability to produce a one-piece turret with composite armour for the Object. 167M. The decision to use a monolithic steel turret even though a composite turret with the early T-64 (Object 432) aluminium filler could be produced is also unexplained and rather difficult to justify, given that significant weight savings could have been made without any real drawbacks. Indeed, the Object 172 prototypes developed from the six T-64A tanks sent to Nizhny Tagil had the standardized T-64A turret with tool steel inserts and the UKBTM had access to the design documentation for the tank. This turret should also have been relatively simple to master in production, but this was also not done for some inexplicable reason.

According to a well known CIA analysis of a diagram from a captured Soviet T-72 manual, the thickness of the turret at the mantlet area is 350mm. This figure is confirmed by Rolf Hilmes in his book "Kampfpanzer: Technologie Heute und Morgen" where he states that the turret is 355mm thick. The mantlet is the area immediately next to the cannon. The area directly next to the machine gun port is already 475mm thick, and from there, the turret only gets thicker, so even the weakest part of the turret can survive a hit from 105mm M392A2 APDS from 500 meters or less and the rest is thick enough to be largely invulnerable to any 105mm APFSDS shell when hit from straight ahead. The diagram is shown below. The areal density of the cheek (475mm) is 3,729 kg/sq.m. The gun mask wrapped around the gun barrel is designed to eliminate the gap between the gun barrel and the turret (depicted in the drawing below), but it is not large enough to be useful against serious anti-tank munitions. It is only designed to prevent machine gun bullets and autocannon shells from entering the gap and potentially jamming the gun. The mask itself is not particularly thick - it is only rated for 12.7mm bullets.




This weakened zone is very narrow as it only exists to accommodate the co-axial machine gun. It is also not very tall. This can be seen in the photo below of a T-80 turret (T-80 obr. 1976) stripped of much of its internal equipment and its co-axial machine gun. Photo by VoLLanD and published on the sfw website. The T-80 obr. 1976 turret is taken directly from the T-64A, and as such, closely resembles the T-72 Ural turret in many respects. In this case, the two turrets are directly equivalent as there are no differences in the cannon mount and co-axial machine gun mount.




The area between the gun barrel and the co-axial machine gun is especially weak due to the gun trunnion block. The diagram processed by the CIA is reproduced rather poorly, so an original diagram from a higher quality Soviet T-72A manual gives us a better idea of the armour profile. The trunnion block is highlighted below:




This is not the actual trunnion of the gun itself, but an armoured block that connects the gun trunnion to the turret. Little is known about the composition of the steel of this armoured block, but it is safe to assume that it is a die-cast block of armour-grade steel. Combining the cast steel of the turret with the trunnion block, the total physical thickness amounts to only 320mm at the most, but this does not reveal the actual protection value of the steel. Adjusted for the lower effectiveness of cast steel, this part of the turret is worth between 280mm to 290mm of RHA steel at the most - thin enough that L28 and M392 APDS rounds with 300mm of penetration at 1 km has a chance to defeat this part of the turret at under 1 km.

The diagram appears to show that only the turret cheek on the right has a thickness of 475mm, and the turret cheek on the left appears to be substantially thinner, but both cheeks are equally thick. Both sides of the turret are symmetrical, and the gunsight interface port constitutes a weak point on the left side of the mantlet, mirroring the machine gun port.




The turret roof over the crew positions is 45mm thick and sloped at 78 degrees, and the thickness of the roof above the gun breech is more than twice as thick, angled at between 78 to 80 degrees. According to "Kampfpanzer: Technologie Heute und Morgen" by Rolf Hilmes, the thickness of the roof plate is 45mm and the angle is 80 degrees at the peak of the roof. The total LOS thickness is at least 210mm. Adjusted for the lower hardness and strength of cast steel, the roof armour is more than capable of causing contemporary APDS rounds to ricochet harmlessly, even though some small areas may still be weaker. When new long rod rounds began to appear in the late 70's, the invulnerability of the roof was seriously challenged.


Due to the geometry of the turret, the maximum physical thickness of the cheeks of around 475mm is not replicated anywhere other than the area immediately beside the gun mantlet. The cheeks become progressively thinner as it nears the edge of the frontal profile of the turret, but the line-of-sight thickness from the front increases due to the rounded shape of the cheeks. As such, the 475mm figure is only the minimum thickness of the turret cheeks from the front. From a side angle, however, the relative thickness of the turret cheeks is significantly lower than 475mm, although still extremely formidable. According to Baryatinsky, the thickness of the turret cheeks at a side angle of 30 or 35 degrees is 400 to 410mm with a vertical slope of 10 to 25 degrees. The thickness of the side armour of the turret (80mm thick) varies between 395mm to 440mm at a side angle of 20 to 25 degrees. Due to the curvature of the turret, the base sections of the turret cheek is less sloped than the upper sections so the claimed 10 degree vertical slope must be for the thicker 410mm section while the 25 degree vertical slope must be for the thinner 400mm section. According to page 159 of "Боевые Машины Уралвагонзавода: Танк Т-72" published by the Uralvagonzavod Production Association, the LOS thickness of the turret at a 30 degree side angle is 410mm.



PROTECTION ESTIMATE


Based on the available information, the effective thickness of turret ranges between 369mm RHA to 427mm RHA against KE threats in a 60 degree frontal arc. This is not much worse than the early T-64 composite turret with a cast aluminium filler mainly because of the very high physical thickness of the cast steel, but it is significantly worse than the T-64A turret with tool steel inserts. Due to the exclusive use of cast steel in the Ural turret, the mass efficiency of the turret is no higher than 0.9 against KE threats and 1.0 against HEAT whereas the composite armour of the T-64 and T-64A invariably had higher mass efficiency against both types of threats, especially HEAT.

According to this Russian drawing, the LOS thickness of the T-64 turret from the front at a 0 degree angle is 599mm - much thicker than the 475mm of the Ural turret at the same location, but out of that 599mm of turret armour, the first 199mm is cast steel, the 295mm center layer is cast aluminium and the 185mm back plate is cast steel. It should come as no surprise that the areal density of this armour is 3,781 kg/sq.m which is almost exactly the same as the areal density of the Ural turret, so the turret of the T-72 Ural has roughly the same armour mass as the T-64. At a 30 degree side angle, the physical thickness of the turret of the T-64 is 575mm at 20 degrees for a LOS thickness of 612mm. It is equivalent to 410mm RHA against KE threats and 450mm against shaped charges which is significantly higher than the Ural turret which is worth 369mm and 410mm respectively for the two threat types. It would not be possible to improve the protection of the Ural turret to the level of the T-64 turret while retaining the same weight without using a composite construction, making this comparison a perfect demonstration of the benefits of composite armour.

Comparing the T-64A turret with tool steel inserts to the Ural turret, the Ural still loses out, especially in KE protection. The physical thickness of the two turrets is very similar, but the use of tool steel inserts and an RHA back plate in the T-64A turret armour led to a significant improvement in both mass efficiency and thickness efficiency compared to homogeneous cast steel while also reducing the overall thickness of the turret from the T-64 turret with an aluminium filler. When contrasted to the later T-64A turret from 1975 with the corundum balls, the Ural turret is simply crude in comparison which is highly regrettable since the T-72 Ural entered service just two years prior.

Of course, the thickness of the T-64 and the T-64A turrets increase towards the sides due to the curvature of the turret so that the LOS thickness can be 625mm or more at the cheeks directly in front of the gunner and commander, but the same is true for the Ural turret as well. For all intents and purposes, the LOS thickness from the front at 0 degrees will only refer to the minimum thickness of the turret cheeks.3

Using the 400-410mm figure by Baryatinsky and 410mm figure from "Боевые Машины Уралвагонзавода: Танк Т-72", the line-of-sight thickness of the same part of the turret from the front at 0 degrees can be determined with some degree of accuracy by dividing 410mm by the cosine of 30 degrees. This gives us around 473mm, which is extremely close to the 475mm figure obtained by the CIA. Based on this, we can confidently conclude that the turret cheeks of the T-72 Ural offer a generally uniform LOS thickness of steel of 475mm from the front, which is worth 427mm RHA against KE threats when converted from cast steel. When shooting at the turret cheeks from a 30 degree side angle, the cheeks are equivalent to 369mm RHA against KE threats. For context, note that the 120mm L15A5 APDS round penetrates 355mm of steel at 0 degrees at 914 m, while the advanced 105mm M833 APFSDS round penetrates around 360mm of steel at 0 degrees at 1 km and M900 penetrates around 440mm under the same conditions. In other words, the armour is proofed against the most powerful APDS ammunition ever fielded by NATO and also proofed against 105mm APFSDS appearing ten to twenty years later on its 60 degree frontal arc from a distance of around 1 km. Penetration figures for the 105mm APFSDS were taken from a Nitrochemie presentation.


The lack of a composite filling in the turret is disadvantageous when the tank has to deal with HEAT and HESH ammunition, but this is compensated to some extent by the extreme thickness of the steel. HESH works well on homogeneous plate, but there is a limit to how thick the plate can be. As far as the Ural is concerned, HESH is no more deadly than any other high explosive round, which is to say that the turret is completely immune. A bigger challenge would be 105mm HEAT shells. The most common 105mm HEAT round of the day, the M456A2, could reportedly penetrate 425mm of steel armour at an impact angle of 0 degrees or 210mm of steel at 60 degrees. Bearing in mind that the cast-to-rolled armour conversion coefficient does not apply for shaped charges, 425mm of penetration is far too low to go through the 475mm turret cheek in a head-on attack, but it has just enough power to have a chance of success on a shot from the side at an angle of 30 degrees where the LOS thickness of the turret is only 410mm. Despite the lack of composite armour, the chances of defeating the turret armour from the frontal arc with 105mm HEAT seems to be very slim indeed. Furthermore, it should be noted that a Soviet study found that the average penetration of M456A1 is only 398mm, with a minimum of 355mm and a maximum of 434mm. Using this average figure as a representation of the actual expected penetration, the chances of defeating the homogeneous turret armour of the T-72 drops even more. However, the Ural turret is still inferior to the T-64 turret with an aluminium filler in this aspect because it does not offer an absolute guarantee of immunity.




GILL ARMOUR



In addition to solid armour protection elements, the T-72 Ural is also equipped with four flip-out panels on each side of the hull, known as "gill" armour. Of the four panels on each side of the hull, three are mounted to the hull sponsons and one is mounted to the front mudguards. "Gill" armour was notoriously fragile. These panels took the place of traditional side skirts and were originally found on the T-64A. The implementation of "gill" armour augmented the high resistance of the T-72 to HEAT weapons in its frontal arc. Originally, the armour was intended to protect the hull of the T-64A from tank-fired 105mm HEAT rounds within a 70-degree frontal arc, which is the same level of protection provided by the turret according to the official requirements.




The purpose of these panels was to detonate shaped charge warheads at a great distance from the sides of the tank to allow the shaped charge jet to dissipate before reaching the sides of the hull, thus providing a great deal of protection. However, the coverage offered by these "gills" was somewhat limited as gaps will begin to appear past a side angle of 35 degrees from the centerline of the hull. Although the panels could still work at non-optimal angles, the chance of intercepting an incoming projectile becomes slimmer and slimmer as the angle of attack relative to the side of the hull decreases. The maximum standoff distance and best coverage is achieved when the "gills" are deployed, but even when folded, the panels may still provide a modicum of spaced armour from certain angles, as you can see in the photo on the left below. It is interesting to note that the suspension of the T-72 is rather densely packed, so there is hardly any room for a shaped charge jet to slip through without colliding with some part of a track or a roadwheel. As long as the jet does not break a track link, anything can act as additional armour, especially the roadwheels.




Each panel is constructed from hard vulcanized rubber flaps secured to an aluminium sheet. They offer absolutely no protection whatsoever from any type of KE projectile, even bullets from small arms, although it is very clear that there was a lot of missed potential in improving the relatively thin side armour of the tank. Nevertheless, the design of the "gills" makes them a very lightweight accessory to a lightweight main battle tank. As you can see in the two photos below, the thickness of the rubber flaps is 6mm and the thickness of the aluminium sheet is 2mm. These measurements were kindly provided to the author by Jarosław Wolski.




The primary disadvantage to "gill" armour is that the panels are rather easy to knock off when maneuvering in densely wooded areas. Each gill panel is spring loaded so that they bend and flex if they happen to cross paths with a tree or some other obstacle, and the heavy duty hinges upon which the gills rotate are very robust. However, the heavy duty hinges are secured onto the sponson fender on the side of the hull with only two small bolts, as you can see in the photo below.


Notice the thick L-shaped wire; it's a part of the spring that flips these panels out.


Depending on the exact point of impact on the "gills", the air gap between the panel and the side hull armour can range from 1.8 meters to a whopping 3.5 meters, as shown in the diagram and caption below (taken from "Kampfpanzer: Die Entwicklungen der Nachkriegszeit" by Rolf Hilmes). If a shaped charge warhead struck the center of any one of the panels at a 30 degree side angle from the centerline of the hull, the panel creates around 2.65 meters of air space between the panel and the side armour of the hull. The air gap will be larger if the panel is struck at the outer edge and less if struck at the inner edge, but on average, a great deal of spaced protection will be achieved. Note that the standard complement of four "gill" panels will fully cover the side of the hull including the engine compartment from a 30 degree side angle but covers only the fighting compartment from a 35 degree side angle.




In summary, the "gill" armour panels would have given the T-72 Ural a great amount of side protection from the various types of guided anti-tank missiles, recoilless guns, tank-fired HEAT rounds, and man-portable rockets fielded during the 1960's within a 70-degree frontal arc, but this may not be true for anti-tank missiles of the 1970's. To fully convey the peculiarities of the effects of spacing on the penetration of shaped charges, the drawing below can be of great help. This drawing comes from the article "Hydrodynamic theory of shaped charge jet penetration" published in 1991 in the Journal of Explosives and Propellants by Dr. Manfred Held. The graph is rather faded, but the dotted line plotting the maximum penetration depths in RHA versus the standoff distance is still visible. It shows the depth of penetration of a 100mm shaped charge increasing to a maximum of 700mm (7 CD) when the standoff distance is increased to 0.6 meters, but the penetration drops down to less than 400mm at a standoff of 1.2 meters, around 180mm at 2.4 meters, and less than 50mm at 4.8 meters.




The normal achievable penetration of the 100mm diameter warhead would probably correspond to the penetration at a 15cm (0.15 m) standoff distance or less, since the typical built-in standoff for a rocket-delivered shaped charge warhead with a typical pointed aerodynamic fairing without a standoff probe or a spike tip is usually less between 1 to 2 CD. This implies a penetration of just slightly over 500mm in RHA.

As you can see in the graph, an additional 0.45 meters of space in front of a 100mm warhead with a built-in standoff of 0.15 meters yields the best penetration obtained from the warhead, and this helps to communicate the peculiarities of shaped charges: spaced armour can be effective, but only when integrated in a complex armour configuration or with a sufficiently large air gap. For example, if an APC with a ~400mm-wide track had a simple sheet metal or rubber side skirt installed to cover the suspension, it would actually become even more vulnerable to a shaped charge grenade due to the increased standoff. Even at 30 degrees, the side skirts of a typical tank would not provide sufficient spacing to defeat a tank-fired HEAT shell. Because of this, the primary incentive to install simple side skirts on tanks was usually to reduce the amount of dust kicked up into the air by the tracks, mainly to reduce the chances of being spotted by enemy forces from faraway distances and also to improve the visibility for other tanks at the back of a single-file formation or a convoy. Protection from shaped charges would not be one of the reasons unless the side skirts were thick armoured panels such as on the M1 Abrams.

The "gill" armour panels provided more spacing than normal side skirts would, and this makes them genuinely useful as spaced armour screens. If a "gill" armour panel was struck at a 30 degree side angle by the 100mm warhead described in the diagram, the total air space between the panel and the side of the hull would be around 2.8 meters. Considering that the penetration of the 100mm warhead diminishes to only around 180mm with 2.4 meters of air space, the likelihood of the warhead failing to defeat the 160mm side armour (80mm at 60 degrees) with 2.8 meters of air space is quite high. Protection would be guaranteed at angles steeper than 30 degrees since the amount of air space provided would increase drastically. All taken together, the combination of composite armour and spaced armour theoretically gives the frontal arc of the tank hull a high level of protection against shaped charge warheads. However, this is only a hypothetical scenario with a nondescript shaped charge. By comparing the specifications of actual anti-tank missiles with the spacing of "gill" armour, it is clear that the results could vary wildly.

Older missiles like the SS.11 (1962) using older shaped charge technology form less cohesive jets due to imperfections in the manufacturing of the shaped charge liner, so the shaped charge jet dissipates more quickly over spaces. A missile like the SS.11 will fail to perforate the side armour of the T-72 despite having a 164mm diameter warhead with a 125mm diameter shaped charge that was allegedly capable of 600mm of penetration, whereas the much newer TOW missile (1970) with less penetration was much more likely to go through. It is very much worth noting that the shaped charge liner of the SS.11 is the same diameter as the TOW, yet the SS.11 is advertised to penetrate much much more armour. The only conclusion is that the 600mm figure is bogus and that the penetration of the SS.11 is similar to the 125mm warhead of the 9M14 Malyutka. Besides the TOW, another interesting example is the ITOW from 1982 which has a 127mm warhead (152mm missile body) and a 124.2mm diameter shaped charge with 630mm of penetration compared to only 430mm from the original TOW despite having a reduced explosive filler (2.08 kg vs 2.45 kg). This was achieved by adding an extendable probe to increase the standoff distance to 370mm (14.6 inches) as opposed to only 107mm for the original TOW, by using a more elongated shaped charge liner with a steeper apex angle, and by incorporating a wave shaper in the explosive charge. The implications of these details will be immediately apparent after deciphering the graph below. The graph comes from the 1989 book "Fundamentals of shaped charges" by W.P Walters and J. Zukas.




For more precise estimations, it is important to keep in mind that the actual shaped charge liner in all HEAT warheads is actually smaller than the diameter of the warhead. This is often ignored for missiles due to the thin skin of the warhead casing, but some missiles like the SS.11 are unique. The SS.11 warhead casing has an external diameter of 164mm, but the shaped charge in the warhead is only 125mm in diameter. If this 125mm warhead impacted the side skirt of the T-72 at an angle of 30 degrees from the axis of the hull, the 2.65 meters of standoff distance from the warhead to the side armour would be equivalent to 21.2 CD or around 22.6 CD when the built-in standoff of the missile nose fairing is accounted for. As shown in the graph for a "standard charge", this cuts down the penetration of the warhead to less than one CD, or in other words, less than 125mm. The 80mm side hull armour of the T-72 will be more than enough to resist such an attack, having 160mm of effective thickness when angled at 30 degrees.

Tank-fired 105mm HEAT rounds like the M456 required a thick casing due to the high stresses during the acceleration of the projectile in the barrel to reach the final muzzle velocity of 1,025 m/s. As such, it is no surprise that the shaped charge liner has a diameter of only 85mm, but the spike tip of the projectile gives it a built-in standoff of around 2.4 CD. This enabled it to achieve a penetration power of 5 CD, which is verified by other sources. However, if the M456 round impacted a "gill" armour panel, the air gap would be equivalent to a whopping 31.2 CD, or 33.6 CD when the built-in standoff is accounted for. From this, it is abundantly clear that it would have no chance of defeating the side armour of the T-72 at this angle. Even at a side angle of 35 degrees, the penetration losses are simply too high to overcome with an 85mm shaped charge. This allowed the tank to fulfill the same requirement of providing protection from 105mm HEAT rounds in a 70-degree frontal arc that was stipulated for the T-64.

As another example, the total amount of standoff for the ITOW missile from the 2.65 meters of air space would be 21.3 CD, or 24.3 when considering the built-in standoff distance. If the warhead in the ITOW missile had a shaped charge liner made using older technologies, this would reduce the penetration to less than half of a charge diameter, or just 62mm, but thanks to the superior performance of precision-made shaped charges, the actual penetration of the missile would be around 1.8 CD, or 224mm. There is always a chance that one of the roadwheels or a track link could be in the path of the shaped charge jet, but otherwise, the missile would have enough penetration power to pierce the side hull armour and cause damage. If the obliquity of the side angle is increased to 25 degrees, 3.135 meters of air space is created. This increases the standoff to 25.1 CD or 28.1 CD with the built-in standoff accounted for. At this angle, the ITOW would fail against the side armour of the T-72 by a large margin. Knowing that the M1 Abrams was designed to resist a 127mm ATGM from its 50-degree frontal arc, the T-72 should be considered to have the same level of protection as the M1 Abrams.

When "gill" armour was first implemented on the T-64, the most powerful anti-tank missiles at the time were slow, manually guided types with paltry penetration power for their size and weight, so this solution was not simply limited to providing protection from 105mm HEAT shells. However, the forward march of technology gradually eroded the usefulness of the "gill" armour and the fragility of the panels made it less attractive still. Of course, the best case scenario where the "gill" panels create 3.5 meters of air space may have the effect of neutralizing the threat posed by more modern missiles, but this is not possible to achieve consistently and from all angles of attack due to simple geometric constraints. All taken together, it is much easier to understand why this unusual solution was replaced with conventional side skirts after only a few short years, and even so, this was not necessarily a downgrade. By reducing the likelihood of being spotted at long distances from the dust cloud, the likelihood of being targeted an ATGM at long distances is also consequently reduced. Given that a tank crew cannot be expected to see a well-hidden ATGM crew firing from three to four kilometers away let alone return fire and suppress it, remaining hidden is not a trivial advantage for a tank.


"Gill" armour is useless from the side

These panels are no longer seen even on unmodernized T-72 Urals, having being rapidly replaced with conventional side skirts as seen on the T-72A. This could be due to two reasons already mentioned above; fragility and incomplete coverage. One concrete advantage of the conventional side skirts is that it keeps the amount of dust kicked up by the tracks under control, but why not combine the two? The more conventional side skirts that began to be installed on T-72 tanks since 1975 on the Ural-1 model retained mounting points for "gill" panels and it would be completely possible for a tank to have both types of side screens. However, there does not appear to be any photographic evidence of a T-72 having this combination of features in the Soviet Army. Such a modification seems to only exist on Czech T-72M1 tanks and their derivatives as the photos below show, but even then, it does not appear to be a standard modification for Czech-operated T-72 tanks or even a large scale modification for their T-72M1 tanks as part of some overhaul plan as this combination is rarely seen.




It is rather likely that the panels were installed as part of a modernization programme, but they simply kept falling off and it became tedious to replace them after every exercise, so they were removed once and for all, leaving only the standard side skirts.




T-72A



Protection-wise, the production model T-72A differs from the T-72 Ural and Ural-1 mainly by the implementation of composite armour in the turret. The gill armour had also been replaced with conventional side skirts. The front hull armour was the same as in the Ural-1. The T-72A can be directly compared to the Leopard 2A0, as both were introduced in 1979.


Glacis Array



The upper glacis armour on the T-72A was identical to the T-72 Ural-1, which was introduced just three years prior. In 1983, the T-72A received a 16mm appliqué armour plate alongside its predecessors. The total thickness of the glacis with the appliqué armour plate now becomes 231mm, or 616mm when angled at 68 degrees. As we have already examined the armour in full detail, there is nothing else to talk about.


Determining the presence of appliqué armour is simple business. The tow hook area is a good indicator. If the cut-out over the tow hook is present, then appliqué armour is present. This is a good way of distinguishing earlier T-72 models from the T-72B when the turret is not visible, as the T-72B has thicker armour but no appliqué aarmou on the glacis as sometimes claimed.





"KVARTZ" COMPOSITE TURRET


Notice the characteristic ledge on the middle of the turret cheek

It should be noted that the T-72A was not the first T-72 model to feature the composite armour turret, which is colloquially referred to as the "Kvartz" turret. According to Mikhail Baryatinsky in "Т-72: Уральская броня против НАТО" (T-72: Ural versus NATO), the T-72 began to receive the "Kvartz" turret from 1977 onward in some unknown quantity, which would mean that virtually all of these turrets went to the T-72 Ural-1 model as the production life of the Ural-1 was from 1976 to 1979. This relatively small batch of turrets had composite armour, but also had the extension for the second optic for the TPD-2-49 optical coincidence rangefinder. This unusual model is not seen very often, but the photo below shows at least three of these tanks participating in some exercise.




The T-72A was outfitted with this turret since the beginning of its military service 1979, and continued to be manufactured with this turret for five more years until 1984 when production switched over to the T-72B. Outside of the USSR, the production of the turret continued as an integral part of the T-72M1 tank. The composite turret features a cast armour cavity on each cheek filled with a material known as "Kvartz". "Kvartz" translates to "Quartz", so quartz is the main ingredient, but the exact composition of this compound is unknown. Based on an ARMOR journal article penned by James Warford, the armour of captured Iraqi T-72M1 tanks was thoroughly analyzed in the U.S but the composition of the filler has not yet been disclosed to the public. Warford emphasizes that typical sand is probably not used, and he speculates that the name "Kvartz" hints that quartz may be used and recalls the use of quartz gravel as an ingredient in HCR2 add-on armour kits during WWII. The full ARMOR article can be read here.

According to page 4-5 the article "Anatomia pancerza. Polski czołg PT-91 Twardy, Nowa Technika Wojskowa" ("Anatomy of Armour. Polish tank  PT-91 Twardy, New Military Technology magazine") published in April 2018 by Jarosław Wolski, the filler used in the T-72M1 turret is sintered quartz. In a recent correspondence with Mr. Wolski, he revealed that the "Kvartz" substance is prepared using quartz sand. It is sintered in a special furnace at a temperature of 1,200°C at high pressure. The resultant material is a solid block of sintered quartz ceramic. The pebble shown in the photo below is apparently a chipped fragment of the "Kvartz" insert from a T-80B (Obj. 219R) turret which is functionally identical to the T-72A turret.




These prefabricated solid ceramic blocks are then used as the casting mould, around which the molten steel is poured to form the turret itself. To keep the block centered at the desired positions in the mould, three protruding bars are built into the prefabricated blocks. After the steel turret shell has cooled, the bars are cut flush to the turret roof. The use of sintered quartz as the casting mould is only natural given that silica sand is already a standard type of casting sand used for casting steel, and using prefabricated blocks allows the dimensions of the composite armour to be easily controlled. The outlines of the protruding bars are visible in the turret below. Photo from "Nowa Technika Wojskowa", a Polish military news magazine.




The physical and mechanical properties of the particular form of sintered quartz used in the "Kvartz" insert is difficult to ascertain, not only due to the lack of detailed information on the production process of the material itself, but also because of the lack of information on the raw ingredients. The main focus is on finding the density of the ceramic substance, as that will allow us to determine the areal density of the turret armour array and find the mass efficiency coefficient. This, in turn, will allow us to compare the technological level of the turret with its peers as well as verify or disprove claims regarding the turret armour.

The bulk density of commercial quartz sand is 1.2 g/cc but the density of pure solid quartz is 2.6 g/cc - the high porosity of sand is responsible for the large difference in density. According to several studies, the density of sintered quartz increases as the sintering temperature increases whereas the porosity decreases. From this, it is guaranteed that "Kvartz" will have a density of between 1.2 g/cc to 2.6 g/cc. Besides quartz sand, however, the compound contains the normal ingredients for a casting mould such as binding clay and some additives. According to a Polish document "Odlewnictwo: Technologia wykonywania form i rdzeni - skrypt nr 1747 Politechniki Śląskiej. Gliwice 1993" ("Casting. The technology of making molds and cores - script No. 1747 of the Silesian University of Technology. Gliwice City 1993") on casting technology, 75-85% of the content of the "Kvartz" ceramic blocks used in the turrets of Polish T-72M1 tanks in terms of mass was a material known as "Casting Material Sz01-III", which is a compound made from 70% quartz sand and 30% aluminum oxide and titanium dioxide. Besides that, 12-15% was clay (binding material), and the remainder was an additive made from graphite or ground electrodes with water.

It is unclear how closely this Polish recipe for "Kvartz" matches the original Soviet type, and it may depend on how much technology transfer was needed to prepare for Polish production of T-72M1 turrets using local manufacturing facilities and equipment. Due to the sheer abundance of quartz sand or silica sand in the commercial market, acquiring the raw ingredients for the "Kvartz" insert will not strain the budget, and the production process itself is fairly straightforward for any country with a modest metalworking industry. The light prerequisites for the production of this type of armour was probably an attractive feature for client states during the Cold War, so it is no surprise that so many second and third-world nations produced the T-72M1 under licence. The extremely favourable performance to cost ratio of this type of armour would also make the T-72M1 highly desired.


Since the "Kvartz" insert is commonly described as "sandbar" armour or "sand rod" armour, it may be difficult to appreciate the fact that it is actually a ceramic block, and that the armour of the T-72A turret is a simple three-layer ceramic sandwich. However, it is necessary to differentiate it from "siliceous core armour" developed and tested by the U.S Army in the late 1950's. Both types of armour use silicon dioxide as the main ingredient, but siliceous core armour uses fused quartz and not sintered quartz. Fused quartz is a glass, not a ceramic. Fused silica armour utilizes a phenomenon described as "elastic rebound" to defeat shaped charge jets and KE projectiles alike which is only possible due to the physical properties of glass. Although little is known about "Kvartz", there is little doubt that its behaviour will not be anything similar to siliceous core armour.




Needless to say, the three-layer arrangement of the armour will help it attain greater standards of protection than homogeneous armour of the same mass against shaped charges. As noted with the hull array, the composite nature of the T-72A's turret should also give it an added damping effect against high explosives and high explosive squash heads, but also against the shockwave of nuclear explosions as well as the radiation. The effect of the "Kvartz" filling on long rod penetrators is less clear, but the low density of the sintered compound compared to ceramics like alumina and silicon carbide is not encouraging.

The thickness of the T-72A turret is partly known, but we can use the same method employed by the CIA to determine the thickness of the turret of the T-72 Ural. As mentioned before regarding the turret of the T-72 Ural, the CIA determined the thickness of the turret by scaling it against the known length of the barrel of the co-axial machine gun. Comparing the diagram used by the CIA and the diagram from the T-72A manual, we can clearly see that the "Kvartz" turret is thicker. Taking the machine gun barrel to be 680mm long, we find that the thickness of the cast steel around the machine gun barrel is 370mm - just slightly thicker than on the T-72 Ural. The beginning of the turret cheek to the immediate right of the co-axial machine gun measures approximately 514mm, which is 8.2% thicker than on the Ural turret. The lack of a non-metallic filler in the depiction of the turret armour appears to be a security measure.




Referring to the manual drawing, the turret measures 514mm in LOS thickness at the start of the cheek and increases to around 600mm at the area directly in front of the commander's cupola. According to According to page 159 of "Боевые Машины Уралвагонзавода: Танк Т-72" published by the Uralvagonzavod Production Association, the LOS thickness of the T-72A turret from a side angle of 30 degrees is 530mm.


A cross-section of the armour of the T-72A is available by referring to a factory blueprint tracing created by internet user "Wiedzmin" and supplied by Jarosław Wolski. The blueprint tracing was made using Polish blueprints for locally produced T-72M1 tanks. Technically, the original prints cannot be published in the public domain as the T-72M1 armour is still being manufactured to this day and used in PT-91 tanks, but it is apparent that the level of secrecy is extremely lax which is probably due to the fact that it is a 41-year old design that is well known to every virtually every military in the world.

The thickness of the center of the turret cheeks at a 38 degree side angle (III) is 540mm. From a 30 degree side angle at the same point, the thickness is higher by the dividend of 540mm by cosine of 8 degrees, which is 545mm. These figures appear to match quite closely with the 530mm figure claimed by the Uralvagonzavod book as well as other sources by independent Russian historians, who alternately attribute the turret with a thickness of either 530mm or 540mm. The small difference may be explained from minor casting imperfections. From the front at a 0 degree angle, the thickness of the turret increases from 564mm at (III) to more than 700mm at the middle of the turret cheeks (in front of the commander and gunner), and increasing to 900-1000mm as the cheek progresses to the edge of the inhabited space of the turret.




The general depiction of the turret in the blueprint tracing seems to agree with the drawing taken from the T-72A manual. Both drawings show that the turret cheek has a thickness of around 510mm at the edge where it joins with the mantlet weakened zone, although the blueprint tracing seems to indicate that the weakened zone is 410mm thick and not 370mm thick as determined from the manual. However, this detail might be explained by a slight asymmetry of the turret, since the two drawings are not depicting the same side of the turret. On the other hand, a factory blueprint would be far, far more accurate than a drawing from a manual as the former is an actual description of the specified thickness and the latter is merely illustrative.


The subject of the photo is the turret of an ex-GDR T-72M1, purchased by Sweden in the early 90's and used for testing purposes. Many of the vehicles purchased by Sweden during that time are still used today as OPFOR assets for training purposes. Looking closely at the photo below, you will notice that the turret is rusted on the surfaces of the cut, but the filler retains its original colour and some amount of it has fallen out of the cavity. It is worth noting that this particular implementation of ceramic armour ensures that the ceramic component is fully confined from all three axes which ensures optimal performance.




Based on the thickness of the steel and "Kvartz" in the cutaway photo, it can be surmised that the cavity containing the "Kvartz" layer, whatever it is, is present in a 1:5 ratio to the steel aspect of the turret, as you can see in the photo below. Knowing that the thickness of the turret cheek from a 30 degree side angle is 530mm, the outer wall of the cavity should be 212mm thick, and the inner wall should be have the same thickness. The cavity containing the "Kvartz" filler should be 106mm thick, assuming that it is about half the thickness of the steel cavity walls. This is very different from the distribution of thicknesses in the turret of the T-64 and T-64A, which had almost the same thickness of filler as the steel walls of the composite armour cavity. The low thickness of the filler in the T-72A turret indicates that it has relatively low mass efficiency (ME) but relatively high thickness efficiency (TE) against both KE threats and shaped charges, as the bulk of the work of defeating both types of threats is still accomplished by the cast steel of the armour.

The co-axial machine gun port weakened zone did not change in size and the thickness of the cast armour above the machine gun port weakened zone was increased slightly, but this increase did not correspond directly with the increase in thickness of the turret cheeks with the "Kvartz" filling. As such, this part of the gun mantlet is only slightly thicker than the turret of the T-72 Ural at the same location and can be considered an additional weakened zone when compared to the turret cheeks. This detail can be faintly seen in the photo below (credit to livejournal user meteo), although the angle of the photo is not ideal.




Unlike the turret cheeks, the interior surface of the mantlet zone has practically no slope. The geometric nuances of the turret design at this location can be seen much more clearly in the photo below. The photo is a screenshot taken from this video of a T-72 turret used for ballistic tests displayed at the Parola museum.




PROTECTION ESTIMATE


The "Kvartz" composite turret apparently appears to be effective against 3BM-15 APFSDS. This was demonstrated by a well-known T-72M1 turret test target in the Parola Tank Museum, located at Parola, Finland. Tag (5) in the photo below marks the impact of a 3BM-15 shell into the left turret cheek. Photo by Andrej Smirnov.




According to a placard underneath the turret at the Parola museum, the shell was stopped completely after digging only 170mm through the multilayer armour. This is rather strange as this would mean that the shell successfully penetrated the outer cast steel wall but then stopped after penetrating only an inch into the "Kvartz" layer. The extremely shallow penetration channel implies that the ceramic "Kvartz" filler somehow destroyed the entire penetrator by interface defeat, but this is rather absurd. Instead, the close-up photo of the penetration cavity shown below indicates that the 3BM-15 round initially created a clean, straight tunnel through the outer cast steel wall but was deflected upwards when it reached the "Kvartz" layer. The entire penetrator then became embedded inside the turret cheek. It is extremely likely that the museum staff only measured the depth of the straight tunnel through the outer cast steel wall, leading to a misleading result.


A more conclusive answer could be obtained if more details of this test were known, but unfortunately, the range (simulated or otherwise) at which the shot occurred is not known, and there is no explanation about how they determined the depth of penetration. The inner wall of the turret was obviously not cut up to examine the armour, so they must have poked a stick into the shell crater until they hit solid resistance. It is possible that the stick was touching the penetrator remnants embedded inside the armour, implying that the round successfully penetrated the outer cast steel wall and the "Kvartz" filler, but stopped somewhere in the cast steel back plate.  It is also possible that the perforation of the "Kvartz" layer pulverized the brittle ceramic such that the pulverized debris refilled the hole and gave the illusion of a shallow penetration channel. On the other hand, the statement on the placard can be interpreted to mean that the shell defeated the outer cast steel wall, passed through the "Kvartz" layer and penetrated 170mm into the inner cast steel wall, where it stopped. Either way, this hands-on ballistic test of the turret armour gave a very strange result.


Nevertheless, this example is valid enough to understand why it is often misleading to express the protection value of armour in terms of RHA steel. 3BM-15 is known to be capable of nominally penetrating 400mm of RHA at 0 degrees at 2 kilometers, but that performance was not demonstrated on the composite armour of the T-72A turret. One has to contend with the fact that there are are multitude of unique APDS and APFSDS penetrator designs, none of which will behave like the other. M735 APFSDS, for instance, has a tungsten alloy penetrator with a teardrop shape encased in a steel sheath which peels away upon impact.




And the 3BM-15 round along with all Soviet APFSDS designs before "Vant" and "Mango" were comprised of a steel projectile encasing a small tungsten carbide slug behind a steel armour piercing cap. These penetrators will not behave in the same way as the composite penetrator of the M735 or the long rod penetrator of the M774 when striking the same composite armour. As such, it would be rather foolish to assign a fixed armour value to a composite array. That said, the armour is still expressed in terms of RHA in official publications and by Russian military historians, so the main difficulty is to determine the context of those numbers. As proven previously, early Soviet three-layered glass textolite-based composite armour had a mass efficiency coefficient of not less than 1.0 against tungsten long rod penetrators. This gave us a valid scientific backing to discredit the figures implying a mass efficiency coefficient of less than 1.0.

Similarly, the "Kvartz" composite turret should have a mass efficiency greater than the homogeneous cast turret of the T-72A's predecessor although the coefficient may not necessarily be more than 1.0, and this is an important distinction to make due to the fact that the previous homogeneous turret was made from cast steel and not RHA, giving it a mass efficiency coefficient of around 0.9. Whether the numbers credited to the turret are relevant for long rods or APDS remains to be seen, as there is literally no scientific literature in the public domain that describes "Kvartz" armour in the relevant perspective. Still, at least there is no doubt that the "Kvartz" composite turret would be more efficient than homogeneous steel against shaped charges.


As mentioned before, the total physical thickness of the center of the turret cheek armour from a 30 degree side angle at point (III) is between 545mm ("Wiedzmin" turret drawing) and 530mm (various sources). For the sake of simplicity, the average thickness of 537mm will be taken. Due to the fact that casting imperfections should only be observed in the steel casting and not the "Kvartz" casting core, the thickness of the "Kvartz" filler should be quite consistent whereas the thickness of the steel will vary by a more appreciable amount. Thus, it can be said that of the total thickness, 115mm is "Kvartz" and around 422mm is cast steel. In terms of weight, the estimated density of "Kvartz" (1.8 g/cc) implies that it weighs the same as 26.4mm of steel and has an areal density of 207 kg/sq.m. The cast steel of the turret weighs the same as its thickness indicates, of course, and the areal density is 3,313 kg/sq.m. In total, the weight of the turret is equivalent to 448mm of steel and the areal density is 3,520 kg/sq.m.

From a 0 degree frontal angle at the same point on the turret face (III), the geometry of the turret reduces the thickness of steel but not the "Kvartz" filler. The thickness of the cast steel is 418mm and the thickness of the filler is 146mm. The total weight of the turret should be equivalent to 451mm of steel and the areal density is 3,540 kg/sq.m. In other words, the armour at 0 degrees will be very similar to the armour at 30 degrees. As such, large differences in the armour equivalence credited to the turret cannot be explained by differences in the angles of impact.


Sergey Suvorov reports that the armour is equivalent to 500mm against armour-piercing subcaliber threats and 560mm against shaped charges in his article "T-72: Yesterday, Today, Tomorrow", published in the July 2004 issue of the "Техника и Вооружение" magazine.

According to "Боевые Машины Уралвагонзавода: Танк Т-72", the resistance of the T-72A turret from a 30 degree side angle is equivalent to 410mm RHA against APFSDS rounds and 500mm against HEAT rounds. This implies a mass efficiency coefficient of 0.915, which is essentially the same as homogeneous cast steel.

Jarosław Wolski reports in "Anatomia pancerza. Polski czołg PT-91 Twardy" that the turret of a T-72M1 is equal to 400mm RHA against KE attack and 500mm RHA against shaped charge attack at a 30 degree side angle where the physical LOS thickness is 530mm. This implies a mass efficiency coefficient of 0.89, which is essentially the same as homogeneous cast steel.

Wolski also states that from the front at a 0 degree angle, the armour is equivalent to 480mm RHA against KE and 600mm RHA against shaped charges where the physical LOS thickness is 650mm. At that location (referring to the "Wiedzmin" turret drawing), the thickness of the "Kvartz" filler is 146mm and the thickness of the cast steel is 532mm. Wolski's numbers imply a mass efficiency coefficient of 0.85, which is somehow even worse than the armour at 30 degrees.

It is mentioned in page 14 of the November 2006 issue of the "Техника и Вооружение" magazine that in 1993, a report published in the specialized magazine "German Airspace" by A. Mann states that the armour protection of the T-72M1 exhibited protection equivalent to 420-480mm of rolled homogeneous armour when tested against modern 105mm and 120mm ammunition from West Germany. It is possible to interpret these numbers in the same format as Wolski's reports, in which case the mass efficiency coefficient of the turret armour remains in the vicinity of 0.85-0.90. However, the article does not differentiate between the armour of the turret and the hull, so the 420mm figure could refer to the upper glacis while the 480mm figure could refer to the turret at an unknown angle of attack.

Strangely enough, Andrei Tarasenko writes that the turret of the T-72AV (1984) with 380mm RHA vs KE but also credits the turret of the T-80BV (1984) with 500mm RHA vs KE even though both tanks have essentially identical composite armour in their turrets with the same "Kvartz" filler.

The resilience of the turret armour against contemporary APDS and kinetic energy projectiles of all sorts should still be very high, definitely high enough to resist 105mm APFSDS from well into the 80's. It should not, however, be able to resist 120mm DM13 at the maximum combat distance of 1,500 meters, unless the composite penetrator design of DM13 is badly affected by non monolithic armour. If DM13 is indeed much worse off from not being a monobloc penetrator, then it is perfectly possible that DM13 cannot penetrate the cheeks at combat ranges or at least the upper boundaries of normal combat ranges.

According to first hand accounts on the performance of ex-East German T-72M1s during Canadian testing, found here, new experimental 105mm shells, presumably designed in the late 80's, claimed to be "jazzed up" to match 120mm rounds in performance, failed to perforate the turret armour. Apparently, the impact only formed a "slight [dinner] plate sized bulge in the armour and cast some paint flakes around the turret wall". The hull armour fared worse, but still quite respectably. If this anecdotal account is true, these tests echo the initial relationship between M111 "Hetz" and the T-72A, as "Hetz" was able to defeat the glacis armour at close ranges while the turret was effectively invulnerable.


SIDE SKIRTS



Steel-reinforced plastic side skirts (interwoven textile) were first installed in 1975 on the T-72 Ural-1 model. These skirts were 10mm thick and provided complete coverage for the sides of the hull with some limited overlap with the roadwheels. Each side of the tank had four skirt panels, three of them being identical rectangular panels and one of them being shaped like a right trapezoid at the rear of the hull. Mudguards of a new design were also installed to seamlessly cover the entire side of the hull from end to end. The height of the skirts on the T-72 was the same as the "Gill" armour. It was sufficient to cover almost all of the hull sides and the remainder was covered by the roadwheels themselves. Mounting points for a full set of four "Gill" panels on each side of the hull were still provided on the new side skirts. Sometime during the production run of the T-72, three wire footholds were added to the bottom edges of the front skirt panels.




Unlike rigid sheet steel side skirts as found on the Centurion series of tanks, a flexible textile skirt is much less likely to fall off during maneuvers in heavily vegetated areas and will not allow the suspension to be clogged by mud or vegetation collected in the gap between the tracks and the skirt - a common complaint of Centurion crews in Korea and Vietnam, with Australian Centurion crews in Vietnam resorting to removing the skirts altogether as standard practice. The textile skirts of the T-72 can also absorb blast pressure just as readily as a metal skirt. These advantages are made all the more attractive by the benefit of a reduced weight due to the much lower density of the textile skirt compared to steel sheeting.


However, the disadvantage to a textile skirt such of this type is that it may fail to offer enough resistance to set off the fuses of certain anti-tank warheads. For instance, it was found during Hungarian testing of a T-54 retrofitted with the side skirts of a T-55AM (same reinforced textile skirt as the T-72) that a Fagot missile fired at the side of the hull at a perpendicular angle of attack resulted in the missile piercing the skirt cleanly and detonating on the surface of the side hull armour. Some fuses for HEAT shells are also known to be rated to be insensitive to plywood obstructions to ensure that the shell does not detonate prematurely on bushes and branches before reaching the target. As such, there is an additional layer of nuance that has to be taken into account when assessing the effectiveness of the side skirts as spacing screens.


Each skirt panel is secured to the sponson fender by two or three hinges (horizontal cross pins) and each panel is linked to one another by a pair of hinges (vertical cross pins). As such, it is possible to alternatively lift the skirt panels up to a horizontal position or swing them aside depending on which hinges are disconnected. To access the suspension through individual skirt panels, it can be disconnected from its neighbouring panels and lifted upward or disconnected from the fender and swung to the side. The latter option may be more expedient if reactive armour is installed as the weight would make it difficult to lift up the skirt and keep it up. To gain access to the suspension, the entire set of skirts on each side of the tank can be lifted up as an entire unit or individual sections of the skirt could be lifted. If lifted, the skirts are held up by simply putting a metal loop on the side skirt panel onto a hook on the sponson fender.





The skirts were mounted 610mm away from the side of the hull and could thus still drastically reduce the effectiveness of a small HEAT warhead like the 66mm warhead of the M72 LAW when impacted at a steep angle, though certainly not to the degree that the earlier "gill" armour configuration could achieve. In general, simple side skirts of this type do not contribute enough armour value against contemporary shaped charge weapons to achieve a useful level of protection except under ideal circumstances and are completely useless against KE munitions. Nevertheless, a modicum of protection is provided which may prove useful under certain circumstances. For example, a shaped charge warhead for a light shoulder-fired weapon from the 1960's can be handled by this type of armour within a fairly wide range of attack angles. The performance of the warhead of a PG-7V grenade (1961) with 260mm of penetration degrades on spaced armour at a rather high rate, coinciding with the technological level of that time. The chart below from the TRADOC manual "M72 LAW and The RPG-7: Handheld Anti-Tank Weapon Operator Manuals" shows the standoff effect on the penetration of PG-7V.




From the TRADOC manual, it can be seen that the PG-7V grenade penetrates around 260mm (10.2") with the built-in standoff distance, marked by the starting point of the solid line. For a T-72 with the textile side skirts, the PG-7V would fail to defeat the side hull armour at an impact angle of 45 degrees and above. At 45 degrees, the air gap would amount to 877mm (2.87') including the skirt itself and the penetration of the grenade would be only 109mm (4.3") whereas the LOS thickness of the side hull armour would be 113mm (4.45"). As such, the protection of the side of the hull can be said to be equivalent to >260mm RHA against an 85mm HEAT warhead with a standard shaped charge liner at the technological level of the early 1960's. Against more modern weapons that are capable of generating more precise and less sensitive shaped charge jets, the effectiveness of the side skirts as spacing screens drops drastically and it quickly becomes apparent that the side hull armour of the T-72 was inadequate against contemporary threats. Supplementing this is the fact that the T-72M1 hull is rated at 500mm RHA against shaped charges in a 44-degree frontal arc, implying that the side of the hull is equivalent to 500mm RHA at a 22 degree angle where the air gap between the side skirts and the hull side would be 1,655mm, including the skirt itself. This is broadly consistent with the penetration-standoff curve for a precision shaped charge with a diameter of 84mm. For a 84mm HEAT warhead, a standoff distance of 1,655mm is equivalent to 19.7 CD and together with a built-in standoff of 1.5 CD, the total standoff is 21.2 CD. The penetration at this standoff is around 2.5 CD, or around 210mm, so the 80mm side hull armour plate with LOS thickness of 213mm at a 22 degree side angle would be at the edge of its protection limit. The disruptive effect of the skirt material on the shaped charge jet is considered negligible in this simple analysis.

On the other hand, the M1 Abrams had more serious requirements for shaped charge protection in the frontal arc of its crew compartment which was fulfilled by incorporating composite armour in the sides of the turret and in its side skirts. The requirements for the side armour over the crew compartment (both hull and turret) in the XM-1 that ended up proceeding into production as the M1 Abrams was required to withstand an 81mm (3.2") HEAT charge at a 45 degree angle. Assuming that this refers to the Ballistics Research Laboratory (BRL) standard 81mm shaped charge with a precision-made copper liner detonated at the standard standoff distance of 147mm, the penetration of the charge would be around 350mm RHA, so the side hull armour would have to be equivalent to slightly more than 350mm RHA when hit at a 45 degree angle. This is confirmed by this drawing of the M1A2 showing that the side turret and side hull armour of the M1A2 - which was unchanged from the M1 - is equivalent to 380mm RHA against an 81mm Hand-held Infantry Weapon (HHIW). Protection against a 127mm ATGM was also required in a 50-degree frontal arc, and as such, the side hull armour achieved an effective thickness of 750mm RHA from a side angle of 25 degrees. It is self-evident that this is a significantly higher level of protection than what the T-72 offers with its simple textile side skirts, but it is important to point out that the difference in effective thickness rapidly declines as the angle of attack declines until there is hardly any difference at all when both tanks are attacked perpendicularly to their side armour.



With the growing inadequacy of the "Gill" armour solution against modern anti-tank missiles, the merits of the conventional side skirts became more apparent. When we also consider the lack of durability associated with "gill" panels, it is obvious that the decision to switch to a conventional side skirt was a completely pragmatic one.


Besides the large and obvious side skirts, there were also additional flaps mounted to the sponsons. The external sponson fuel tanks and stowage bins were made from stamped sheet metal (reportedly aluminium) and were completely exposed on the original T-72 Ural. When conventional side skirts were implemented in the late 70's, steel-reinforced plastic flaps were added along the entire length of both spnsons. The purpose of these flaps is not known, but it could be assumed that they are meant to ensure the detonation of an anti-tank grenade to maximize the protective effects of the sponson fuel tanks and stowage bins. On the T-72AV and T-72B, these rubber flaps were replaced by sheet steel flaps with mounting points for Kontakt-1 blocks, but the flaps disappeared from tanks equipped with Kontakt-5. The use of steel plates on the T-72AV and T-72B presumably had the additional benefit of providing the sponson fuel tanks with protection from small arms and artillery fragments. The photos below show the sponson flaps on a T-72A and the steel sponson plates on a T-72AV. Photos posted to dishmodels.ru by Ilya Sterlikov.








On the T-72B3 obr. 2016, additional steel plates were added to the sponsons. The primary purpose of these plates appears to be for mounting the new armoured side skirts, but they also offer additional ballistic protection for the sponson fuel cells and stowage bins.

KONTAKT-1




Kontakt-1 is a type of explosive reactive armour. Works on the integration of the reactive armour with the T-72 was completed in the Summer of 1982 and testing of a single experimental tank with Kontakt-1 was carried out in November 1982. Since 1984, the T-72 and T-72A began to be fitted with Kontakt-1. The installation of the reactive armour blocks does not differ between tanks that had the 16mm appliqué armour plate on the upper glacis or lacked it.

There are two types of Kontakt-1 blocks - full sized and reduced size. The reduced size block is used to protect special areas of the tank, like behind the headlights.

Installing the armour on the the tank is easy, though quite tedious. Each block is bolted onto a spacer welded to the surface of the hull and turret, or bolted directly to the side skirts. The ease of installing and replacing the blocks meant that the entire modification could be carried out as part of regular scheduled maintenance and blocks lost to battle damage can be easily replaced. However, the  simplicity of the installation comes at a price. The ERA boxes are rather fragile and can be quite easily knocked off when the tank is travelling through densely wooded areas or perhaps while it is traversing obstacles in urban sprawl. This is perfectly illustrated by the example below.




Unlike the T-64, the Kontakt-1 blocks for the hull sides of the T-72 are mounted directly to the textile side skirts and not to a metal frame that is installed over the existing side skirt, as seen on this T-64BV. However, this does not necessarily mean that the arrangement on the T-72 is inferior. According to an anecdote by a pro-rebel volunteer fighting named "Kurt", the arrangement of ERA blocks on skirts of a T-72 are slightly more resilient to damage but torn blocks are easier to replace on a T-64BV. Neither type lasts longer than a week of intense usage. A translated excerpt from the interview with "Kurt" is available on this Tank-Net post. A single anecdote is not good enough to form a conclusion, of course, but it is plausible that mounting the Kontakt-1 blocks directly on the flexible skirts is more resistant to damage because the skirt will flex if the tank hits something, thus limiting the damage to the blocks and to the skirt itself.


Each Kontakt-1 block consists of two 4S20 explosive elements which are composed of plastic explosives sandwiched between two flat steel plates. The operating principle of the armour lies in the disruption of shaped charge jets through the violent separation of the steel plates sandwiching the explosive layer upon detonation. It is sometimes claimed that the large number of small gaps between the individual blocks leaves a statistically large portion of the tank surface vulnerable, but this is only partially true at very specific angles. This is examined in the diagram below, taken from "Защита Танков" (Protection of Tanks) by V.A Grigoryan. The column of numbers 'N' to the left indicates the number of reactive plates that a shaped charge jet must pass through depending on the point of impact. As you can see, even if a warhead impacted the edge of one of the Kontakt-1 blocks, the design of the blocks is such that the jet must pass through at least two 4S20 elements. If a warhead impacted the middle of a Kontakt-1 block, the shaped charge jet will intersect with the 4S20 element of the first block, and then continue into the next block, where it will intersect with both 4S20 elements for a total of three intersections.




At the 68-degree angle of installation on the upper glacis and on the turret cheeks, the 40mm gap between the Kontakt-1 blocks does not significantly weaken the overall protective qualities of the reactive armour. The overlap between the blocks when viewed frontally is also sufficient to counteract the decrease in ERA efficiency from edge effects (shaped charge jet impacting the edge of the ERA element).

From a frontal perspective, Kontakt-1 provides uncompromising coverage despite the presence of gaps between the individual blocks. The same can be said of the blocks installed on the side skirts. It is obvious that the height, angle and spacing of the reactive armour package was tailored specifically for an installation angle of 68 degrees and problems may arise when the blocks are installed at a smaller angles. As long as the blocks are installed at the appropriate angle, there are only a few circumstances in which the gaps between the blocks become weak points, and even so, they are quite small.

The 4S20 elements are arranged in a V-shape with an angle of 9 degrees between them. The mass of the explosive material in each element is 260 grams and the explosive power is equivalent to 280 grams of TNT. The explosive elements are highly insensitive to ensure safety during rough handling first and foremost, but also to ensure that unintended detonation from machine gun fire and napalm attack is not possible. Kontakt-1 is safe enough from external damage that destroyed tanks clad in Kontakt-1 are universally observed to retain their Kontakt-1 blocks even if the metal of the tank itself is completely burnt out from a catastrophic destruction. This shows that the blocks do not detonate even when burned by the intense heat of ammunition or fuel fires for prolonged periods. Here are some examples:

This burnt-out Georgian T-72B:




And on this Georgian T-72AV:





The highly insensitive nature of the plastic explosives contained inside 4S20 explains why Kontakt-1 has absolutely no effect on KE rounds - they are so insensitive that they fail to detonate when hit. The low sensitivity also makes Kontakt-1 easier to defeat by tandem warheads using the non-initiation approach. However, the 4S20 elements may still constitute a fire hazard if the tank is attacked with napalm because the explosive charge will still burn when exposed to intense heat. This essentially means that large areas of the tank may become unprotected after it is doused in burning napalm.

The weight of each block is 5.7 kg and the reduced size block weighs slightly less. A full set covering the entire tank weighs approximately 1.2 tons. The 4S20 explosive elements can be removed from the block by simply unbolting it, essentially leaving empty metal boxes bolted to the tank. This was always done as a safety precaution before putting tanks into long term storage.



Kontakt-1 is extremely easy and simple to install. All that are needed are some bolts and nuts.

As mentioned before, the Kontakt-1 blocks are installed on bolts that are welded to the surface of the tank armour. On uparmoured T-72 models featuring a 16mm appliqué armour plate, the ERA blocks are simply installed on top of the appliqué plate as you can see in the photo below.





The detonation of one Kontakt-1 block generally has little effect on the neighboring blocks. This effectively prevents chain detonations, but due to the relatively thin sheet steel walls of each block, a large explosive warhead impacting the tank can neutralize multiple blocks with the blast pressure. According to the article "Динамическая защита. Израильский щит ковался в... СССР?" co-authored by Andrei Tarasenko, between 9-31% of the protected surface area of one side of a tank turret may be left unprotected by Kontakt-1 blocks after the detonation of a large shaped charge warhead. The reactive armour blocks on 16-71% (!) of the protected surface area of the upper glacis may be neutralized and the blocks on 31-51% of the protected surface area on the sides of the hull may be neutralized. Testing was done with 9M112M missiles and 3BK-14M shells, both of which contain large explosive fillers. Adding on to that, 3BK-14M has powerful fragmentation effects which likely increased its effectiveness in removing a larger number of Kontakt-1 blocks upon detonation.


METHOD OF OPERATION





When a shaped charge jet passes through the explosive elements, the resulting explosions will propel the steel casing at a very high velocity at oblique angles to the jet, thereby cutting off most of the body of the jet. Compared to the Israeli Blazer ERA, Kontakt-1 is much more powerful, has more flyer plates, is better angled, much less sensitive to changes in angle, and has a more optimized sandwich arrangement. This is compounded by the lack of special angled brackets for Blazer to increase the obliquity of the explosive elements unlike the T-72AV.





Each individual 4S20 explosive element is technically considered an explosive reactive armour panel by itself. In Russian nomenclature, each explosive element is classified as a so-called "Dynamic Element", as it can work adequately on its own, like "Blazer", for example. The explosive element consists of of two medium hardness steel sheets sandwiching a layer of plastic explosives. The steel box containing the two explosive elements has walls measuring around 2-3mm thick. This relatively high thickness gives the boxes sufficient stiffness so that they can support the weight of a person standing on top without deforming, and sufficient durability so that it cannot be easily destroyed by heavy objects falling on the tank (bricks, concrete) or by small arms fire. The relatively high thickness also helps to guarantee that impacting projectiles experience enough resistance to fuze properly as opposed to penetrating straight through the ERA block without detonating. Besides that, the walls of the steel box do not merely function as a container for the explosive elements but also contribute to the overall disruptive effect against shaped charges when the explosive charge is detonated.

The thicknesses of the three layers of 4S20 is not disclosed, but from the photo above, it appears that the ratio of the thickness of the steel plates sandwiching the explosive layer thickness is 1:2. By scaling the known thickness of a full 4S20 plate to the 3mm walls of the steel box, the thickness of the steel sheets should be around 2.3mm or less, while the PVV-5A plastic explosive layer is around 5.4mm or more. Other sources state that the sandwich composition is 2-7-2 but this is in contradiction to this information placard that states that the thickness of a 4S20 element is 10mm. Regardless of the exact thicknesses, 4S20 has a slightly better ratio of flyer plate thickness to explosive layer thickness compared to "Blazer" ERA, which had a simpler 3/3/3 steel-explosive-steel sandwich configuration according to Rickard O. Lindström ointres.se. This would be a 1:1 ratio.

Using the known characteristics of the PVV-5A plastic explosive used in 4S20, we can apply the Gurney equation for symmetric sandwiches to calculate the velocity of the flyer plates. As mentioned before, the mass of a complete 4S20 element is 1.35 kg, while the mass of the explosive charge is 0.26 kg. The mass of the flyer plates sandwiching the explosive layer is obtained simply by subtracting the mass of the explosives from the total mass of the sandwich. The detonation velocity of PVV-5A is 7400 m/s, so we obtain a Gurney constant of 2.46 km/s. From all this, the velocity of the flyer plates is predicted to be approximately 1.156 km/s. The Gurney method of predicting plate velocities is detailed in "Gurney Energy of Explosives: Estimation of the Velocity and Impulse Imparted to Driven Metal".


In "Stopping Power of ERA Sandwiches as a Function of Explosive Layer Thickness or Plate Velocities", Dr. Manfred Held observed that the performance of 1mm thick flyer plates increased exponentially as the explosive layer increased, concluding that the increases in the flyer plate velocity is responsible for the increased performance.

This is further supported by the theoretical model proposed by Yadav in "Interaction of a Metallic Jet with a Moving Target". Yadav's model showed that the magnitude of the reduction of penetration of a shaped charge jet was primarily affected by the velocity of the flyer plate, and not by the density of the plate, and that by increasing the ratio of explosive charge thickness to the flyer plate, the penetration of a shaped charge jet could be reduced. A reduction in the density of the flyer plates resulted in an increase of performance due to the subsequent increase of the velocity of the plate.


Held states that the experimental data obtained by M. Ismail in "Optimization of performance of Explosive Reactive Armors" using 1-3mm flyer plates and explosive layers with thicknesses ranging from 2-5mm fits well into his model, to his surprise. Since access "Optimization of performance of Explosive Reactive Armors" is not currently available, the reproduction of Ismail's data in Held's paper is extremely useful. As we can see in pages 235 and 236, the reduction of residual penetration of shaped charge jets plateaus between explosive layer thicknesses of 2-5mm with both Held's 1mm flyer plates as well as Ismail's 3mm flyer plates. From this data, we can predict that the 2.3/5.4/2.3 configuration of Kontakt-1 should achieve something close to the maximum performance possible from a symmetrical sandwich layout, considering that PVV-5A is slightly weaker than the explosives used by Held.


According to an NII Stali information placard, the dimensions of a 4S20 explosive element is 252x130x10 mm. A complete Kontakt-1 block measures 314 x 148 mm overall, including the sheet metal flaps at each end of the block for attachment bolts to pass through. There are two variants of Kontakt-1 blocks, as you can see below. Diagram taken from "Защита Танков" by V.A Grigoryan.



Stock footage and stills of a Kontakt-1 block being disassembled are available here (link). Disassembly and the removal of the explosive elements can be done with a simple wrench.



EFFECTIVENESS



According to the information presented in the poster below, the installation of Kontakt-1 was offered  for the modernization of T-72M1 tanks to the T-72M1M level - a designation that has been used several times to describe completely different T-72 export models. The main difference is that the Kontakt-1 set offered in the package includes only 155 blocks as opposed to the standard 227 blocks of the T-72AV. Thus, the weight of the package is only 1,200 kg instead of 1,500 kg and the number of unprotected zones is correspondingly higher. However, the effective thickness of the armour would not be less since the T-72M1 is functionally identical to the T-72A in terms of protection, so the information presented in the poster can be used as a surrogate for the T-72A. Only the information on the size of the protected frontal arc may be inaccurate.




The poster was taken from the private website of Russian military historian A.V Karpenko. The original source is unknown.

According to the subheading of the poster, the Kontakt-1 package offers an effective thickness of 850-900mm RHA against the TOW, HOT, MILAN and Dragon anti-tank guided missiles, against the tank-fired 120mm HEAT shells of the M1A1 Abrams and Leopard 2, and against the M72A2 and Panzerfaust-3 shoulder-fired anti-tank grenade launchers. The Kontakt-1 package also offers 730-750mm RHA of effective thickness against artillery-fired HEAT rounds.

Interestingly, the drawings at the bottom of the poster credit the T-72M1 with 500mm RHA of effective thickness in protection against shaped charges in a 44-degree frontal arc. With Kontakt-1, the T-72M1M is credited with 900mm RHA of effective thickness in a 70-degree frontal arc. Because the frontal arc size is factored into these figures, these figures express the minimum level of protection at the outer boundaries of the frontal arc and do not represent the maximum effective thickness at the toughest parts of the tank, i.e the front of the turret cheeks and the upper glacis.

With Kontakt-1, the resistance of a T-72M1 or T-72A tank is increased 1.8 times and the size of the protected frontal arc was greatly expanded. From the Soviet perspective, the addition of reactive armour vastly improved the survivability of the tank against the most powerful shaped charge weapons appearing in the first half of the 1980's. It also boosted the protection of the tank above the level of the most heavily armoured NATO tanks of the period, namely the M1A1 Abrams and Leopard 2A4, especially the protection on the sides of the tank, which is often quite undervalued.


As mentioned before, the M1 Abrams provides a whopping 750mm RHA in effective thickness against a 127mm ATGM from a 25 degree side angle but only 380mm RHA against an 81mm grenade from a 45 degree side angle. The sharp drop in protection when attacking the armour from a 25 degree side angle (65 degree angle of incidence) and from a 45 degree side angle (45 degree angle of incidence) is not explained simply by the natural decrease in LOS thickness as this is a reduction in the obliquity of the angle of incidence of only 20 degrees, thus the LOS thickness was lower by 40.2%, but the drop in the effective thickness was in the order of 49.3%. This is explained by the use of a 38mm steel front plate and two NERA panels placed parallel to the side of the hull. This is because the effectiveness of bulging plates varies exponentially with its obliquity, and as the angle of incidence approaches zero, the effect of the bulging plates also approaches zero. If attacked perpendicular to its hull, the side armour of any Abrams variant from the M1 up to the M1A2 would fail against practically all postwar HEAT weapons unless an ERA package is fitted. On the other hand, Kontakt-1 still ensures a 55% reduction in penetration power when hit at a perpendicular angle. Together with the air gap of more than 610mm between the Kontakt-1 bricks on the side skirt and the surface of the hull sides, it would be possible to reliably resist light shoulder-fired HEAT weapons. This is thanks to the internal angling of the 4S20 explosive elements in a V-shape. As such, not only does a T-72 equipped with Kontakt-1 boast a higher level of protection in a larger frontal arc compared to all but the latest Abrams tanks, it also avoids suffering a near-total loss of protection when attacked at a perpendicular angle to the sides of the hull. The caveat is, of course, the lack of a multi-hit capability.

The V-shaped arrangement of the 4S20 elements inside the Kontakt-1 block was a unique Soviet development and was substantially more advanced than any other reactive armour configuration available anywhere else in the world at the time. The paper "A numerical study on the disturbance of explosive reactive armors to jet penetration" penned by a team of Chinese researchers gives us a detailed look into how Kontakt-1 works. The research, which was funded by the Chinese Ordnance Society, involved testing reactive armour on armour plate inclined at an obliquity of 68 degrees using a 54mm shaped charge warhead with a copper liner. This oddly specific angle hints that this research was perhaps part of a Chinese evaluation of the performance of Soviet reactive armour on tanks like the T-72, which had an upper glacis plate sloped at 68 degrees. We can learn much from it as well. The paper describes the effects of a single layer of ERA placed at oblique angles of 45 degrees to 68 degrees under subheading 4.2. Here are the relevant paragraphs, given verbatim:


"4.2. Oblique penetration

The typical interaction patterns of the jet penetrating into ERA and main target at an impact angle of 68° are shown in Fig. 7. Compared with the normal penetration shown in Fig. 6, the reactive armor disturbs the jet more significantly during oblique impact. When the explosive of ERA is detonated, the outward movements of the plates cut the jet directly, thus severely disturbing the penetration process. With the formation of more jet segments as a result of the continuous interaction, the residual penetration capability is reduced significantly. It can be seen from Fig. 7 that, when the disturbed jet penetrate into the plate at a larger impact angle, its tip slides along the surface of the rear plate, resulting in bending, breaking, and scattering the jet (segments). Thus the depth of penetration into the main target is significantly reduced."

"It can be seen from Fig. 9 that the greater the impact angle is, the shallower the penetration depth is. In addition, the penetration depth is reduced significantly when the impact angle is more than 45°. The penetration depth is reduced by 55%–75% in the range from 45° to 68° (impact angle) with respect to case without ERA"


This is Fig. 9:




As you can see, a single layer of ERA with a design similar to a 4S20 explosive element (if not exactly the same) can provide a 75% decrease in penetration at 68 degrees obliquity. But Kontakt-1 is a V-shaped design. How would that fare? Let us take a look under subheading 5.2:


"5.2. Influence of impact angle

Fig. 11 shows the predicted results of main target penetration for the cases with and without 9° V-shaped ERA at various impact angles. It can be seen from Fig. 11 that the penetration capability is reduced by 60%–90% for the range of impact angles studied. Fig. 12 shows the penetration holes of the disturbed jet penetrating into the main target. It is shown that the penetration path is deviated, and the deflection increases with the increase in impact angle. The diameter of the hole, especially at the entrance, becomes larger with the increase in impact angle. Similar to the case of flat ERA described in Section 4.2, the former and the latter are probably caused by the bend of jet and the decentralization of jet, respectively."


Fig. 11 is show below:



With a V-shaped design, the pair of ERA elements can reduce the penetration of a shaped charge by 90% at 68 degrees obliquity. According to a fact sheet from NII Stali, Kontakt-1 can reportedly reduce the penetrating effects of shaped charge jets by an average of 55% at 0 degrees obliquity and up to 80% when angled at 60 degrees. Based on this, increasing the obliquity to 68 degrees could easily garner a 90% reduction, so we have complete justification to treat the Chinese V-shaped ERA as an exact replica of Kontakt-1.


Furthermore, NII Stali claims that Kontakt-1 can reduce the penetration power of a typical anti-tank missile (using the Konkurs as an example) by up to 86%, or by 58% for a 125mm HEAT shell, or up to a whopping 92% for smaller sized warheads like the one on the M72 LAW. These figures are generally consistent with the 90% reduction reported for the Chinese V-shaped ERA at a 68 degree obliquity, with the exception of the claimed reduction of only 58% for a 125mm HEAT shell. It is not exactly known why a 125mm HEAT shell would fare so much better than even an anti-tank missile with a much large shaped charge diameter (the 125mm HEAT shell has a thick casing, so the actual diameter of the shaped charge inside it is only around 105mm). A plausible explanation is that the thick-walled spike tip/probe protects the tail of the jet and the copper slug when the reactive armour block is detonated and the flyer plates are propelled into the path of the jet. This presumably reduces the disruptive effect of the armour.

Keeping these impressive figures in mind, it is evident that the largest gain in protection was on the sides of the hull where no composite armour is present. Normally, a grenade fired from an M72A2 should effortlessly defeat the side hull armour of a basic T-72 even on a highly oblique impact angle, but with Kontakt-1 present, it becomes ineffective even when attacking the side armour at a perfectly perpendicular angle. Moreover, the toughest parts of the frontal armour gain a massive increase in protection and it becomes virtually impossible to defeat it without special munitions designed specifically to counter ERA.


The rationale supporting the design solution of arranging the explosive elements with a V-angle is examined under subheading 5.3. The research shows that the maximum performance of the ERA elements can be obtained if the two elements are arranged parallel to each other, but if a shaped charge impacts at 0 degrees obliquity to ERA with such an arrangement, the effect will be absolutely minimal. Since practical experience shows that tanks are not always hit at the optimal angle, to put it mildly, the V-shape of the experimental ERA would give it better performance in low obliquity hits. Where a simpler single cell ERA may be of minimal value at low obliquity, a V-shaped ERA like Kontakt-1 may still manage to perform its primary function even with an acceptable loss in performance. However, it appears that the specific V-angle of 9 degrees used on Kontakt-1 was largely arbitrary. The paper explains that varying the angle between the ERA layers does not significantly change the performance of the reactive armour. Here is the relevant excerpt:



"However, the variation of penetration depth with increase of V-angle is quite small. It is observed that the penetration depth is reduced by 85%–90% for all the studied V-angles. Therefore it is demonstrated that the reduction of the penetration depth is not sensitive to V-angles investigated in this paper."


Note that the researchers tested angles of 0, 5, 9, 13, 17, and 21 degrees.

Here are X-ray photos and simulations of the passage of a shaped charge jet through the V-shaped ERA at a 0 degree obliquity. Even at 0 degrees, the disruptive effect of the ERA is substantial.





Now that we have covered the working mechanism of Kontakt-1, it is important to note that it is not only used to protect the tank from frontal attack. The addition of Kontakt-1 blocks is also important for a different reason, which is that the crew now becomes much better protected from tube-launched or air-dropped shaped charge bomblets and submunitions, though the hatches are not protected. It does not matter very much that ERA blocks have a much smaller obliquity relative to a vertically descending bomblet when mounted on the turret roof, which is almost flat, because all small-sized HEDP bomblets have very low armour penetration. Even if penetration is achieved somehow, the after-armour effects from the highly degraded cumulative jet will be pitiful at best. The only disadvantage is that there are numerous gaps between the Kontakt-1 blocks, so the roof of the T-72 turret cannot be considered fully immune to such attacks.

During the the First Chechen War, many tanks had their 4S22 explosives stolen and sold on the black market due to the poor economic conditions of Russia at the time and the extremely poor living conditions of Army servicemen. Of course, the Kontakt-1 bricks are not filled during peacetime and they are only filled during preparations for tank maneuvers, but many tanks in Chechnya were left without explosive fillings partially due to the haste of the preparations (hundreds of bricks on each tank makes it a tedious chore) and due to theft. As a result of a combination of these unfortunate circumstances, many tanks rode into Grozny with Kontakt-1 bricks, but with no explosives inside.
 Similar cases of theft have been reported recently in Ukraine.


T-72B



The T-72B and the sub-series it spawned represented a very significant step in the evolution of the T-72, with the introduction of bulging armour in the turret as well as in the hull later on. Bulging armour is a type of non-energetic reactive armour (NERA), meaning that it is a reactive armour having the effect of actively degrading a penetrating projectile rather than only passively eroding it or absorbing its energy. This will be explained in an expository section below. The T-72B is also notable for being the first T-72 to incorporate an ERA package as part of its original factory configuration. As such, there was no "T-72BV" in the same way that the T-72AV had the "V" suffix denoting the addition of reactive armour. There was also no internal product designation that had the "V" suffix like the T-80BV which had the internal index of "Object 219RV" while the original T-80B had the index of "Object 219R"; the T-72B only had the internal index of "Object 184" without any suffix.



Glacis


The glacis array of the T-72B represents the first major update since the original type found on the T-72 Ural. The thickness of the armour remained practically the same after the first update in 1976 with the introduction of the Ural-1. The spaced armour array of the T-72B may have significantly better protection from KE projectiles than the NERA arrays used in its NATO adversaries, but significantly worse shaped charge protection. This is a consequence of the loss of glass textolite interlayers, but the shift to an ostensibly simpler armour design was backed by sound reasoning. It is now understood that the most efficient use of glass textolite in composite armour is in a multi-layer layout with multiple steel plates. but even so, glass textolite is most efficient at low obliquity and least efficient at the high 68 degree slope of the upper hull of the T-72, so the use of spaced steel armour on the T-72B could be considered a rational decision given that the contribution of glass textolite would always be quite limited unless the hull of the tank was completely overhauled. The loss in shaped charge protection was fully compensated by the increased thickness of steel, and the use of Kontakt-1 reactive armour. Overall, the T-72B attained a level of protection that matched or even exceeded its contemporaries, including the T-64BV and T-80BV.

The illustration below was prepared by Otvaga and Tank-Net user Wiedzmin:





Arrays 5, and 6 refer to the upper glacis armour configuration of the T-72B models  obr. 1985 and obr. 1989 respectively. Array 4 is an estimate of the possible armour configuration of the T-72A obr. 1983, alternatively labeled as the T-72B obr. 1984. Here is a listing of each layer, translated from the original claims.


T-72A obr. 1983 / T-72B Obr. 1984

60mm RHA + 15mm Air Space + 15mm RHA + 15mm Air Space + 15mm RHA + 15mm Air Space + 15mm RHA + 15mm Air Space + 50mm RHA (215mm Total)

T-72B Obr. 1985

60mm RHA + 10mm Air Space + 10mm RHA+ 10mm Air Space + 10mm RHA + 10mm Air Space + 20mm RHA + 10mm Air Space + 20mm RHA + 10mm Air Space + 50mm RHA (220mm Total)


T-72B Obr. 1989

60mm RHA + 35mm NERA (5mm Rubber + 3mm RHA + 19mm Air Space + 3mm RHA + 5mm Rubber) + 60mm RHA + 10mm Anti-Radiation Layer + 50mm RHA (215mm Total)



The upper glacis armour of the T-72B obr. 1985 incorporated complex spaced steel armour in different configurations, and NERA was finally implemented in the 1989 model in the form of a single pair of bulging plates.

It should be noted that the T-72B and the T-72B1 officially entered service on the 23rd of January, 1985. As such, the so-called "T-72B obr. 1984" model does not officially exist. When discussing the "T-72B" or "T-72B1" (Object 184, Object 184-1), only the obr. 1985 and obr. 1989 models are truly relevant. Only the T-72A obr. 1983 designation is official. The distinction is not always clear, because T-72A tanks with the so-called "T-72B" turret already made their appearance in 1983 and the transition from the T-72A to the T-72B in other aspects was not entirely discrete. According to Alexey Khlopotov, the upper glacis armour of the T-72A was changed to a new design in 1983 together with a new chassis. However, Andrei Tarasenko appears to believe that the T-72B uses the same armour as the T-72A obr. 1983, distinguishing it from the T-72B obr. 1985. Indeed, he may not be wrong since the T-72B began mass production in late 1984 even though it was not officially inducted into the Red Army until January of the next year. For the sake of convenience, these late model T-72A or early model T-72B tanks will be referred to as the T-72B obr. 1984 variant from this point onward to maintain the theme of spaced upper glacis armour as a distinguishing feature of the T-72B.

Before examining the armour design, it should be noted that the T-72B (Obj. 184) is almost always outfitted with Kontakt-1, and the 1989 variant is always outfitted with Kontakt-5. Apparently, the decision to standardize Kontakt-1 on all T-72B tanks was formalized a few months after the official order for the T-72B to enter service, so theoretically there are a handful of early examples that lack Kontakt-1, but this relies on the assumption that they did not have the reactive armour retrofitted. However, these tanks should not be mistaken for the tanks that appeared in various parades during the mid-1980's that had the T-72B turret were actually the T-72A obr. 1983 model, as identified by the all-metal rounded mudguards. These late model T-72A tanks from 1983 lacked Kontakt-1 despite having the relocated smoke grenade arrangement (as shown in the photo on the left below), but when the order for the installation of Kontakt-1 on all T-72 tanks began in 1984, the late model T-72A were not exempted as shown by this particular tank at the Museum-Panorama at Volgograd. These tanks are known as the T-72AV and look practically identical to a T-72B1 down to the mounting pattern of the Kontakt-1 blocks, but are distinguished by the all-metal mudguards. However, several of these late T-72A tanks continued to omit Kontakt-1 well after 1984, as observed in the photo on the right below.




BTK-1 or BTK-1Sh steel is possibly used in lieu of the usual 42 SM medium hardness RHA steel for the thicker plates of the upper glacis array, and also possibly for the side hull armour as well. It is known that BTK-1 was used in the hulls of late production T-64A tanks since 1976, and in the hulls of T-64B tanks since the beginning of production in 1976. The T-80 tank also makes extensive use of this steel in the hull and the cast turret of the T-80U contains thick plates of the steel within the armour cavities.

BTK-1Sh steel is a high strength steel produced by electroslag remelting (ESR), giving it higher hardness than normal medium hardness steel without sacrificing ductility.

According to Andrei Tarasenko, BTK-1Sh steel is used in the turret of the T-72B, so it is possible that it was used in the hull of the T-72B as well to some extent. This seems likely considering that BTK-1 is also known to be used in the hull of the T-80 tank according to this document. In general, BTK-1Sh is recognized as a general purpose high strength steel, suitable for welding (according to the aforementioned document, which dealt with the weldability of the steel) and for manufacture in thick plates of up to 85mm, or perhaps more. Depending on the thickness of the plate, the hardness of the steel ranges from 400 to 450 BHN. Tarasenko asserts that the resistance of BTK-1Sh is around 5-10% more compared to RHA steel against subcaliber projectiles at angles of 68 to 70 degrees, but the type of subcaliber projectile is not specified. It is likely that the "subcaliber projectile" refers to monobloc tungsten alloy long rod penetrators.


That said, there is no real confirmation that the T-72B uses BTK-1Sh in the hull. Nevertheless, the implementation of this improved steel by 1985 is to be expected, seeing as BTK-1Sh has been used in the production of welded hulls since the early 1970's.





The steel used for the high hardness spaced plates is unclear. It is possible that normal 42 SM medium hardness steel was used for the walls of the array while BTK-1Sh is used for the spaced steel plates, but it is also very possible that high hardness steels were used for the spaced steel plates. If so, then it is highly likely that BT-70Sh steel was used, as it is treated a hardness of around 534 BHN when produced in thin plates. In fact, the patent for BT-70Sh specifically mentions that the range of thicknesses for BT-70Sh is from 15mm to 25mm. This matches perfectly with the thicknesses of the spaced steel plates in the upper glacis array of the T-72B. The relevant passage from the patent is presented below:


"Техническим результатом настоящего изобретения является получение листового проката толщиной 15-25 мм, обладающего высокой противопульной стойкостью в сочетании с пониженной склонностью к образованию вторичных осколков, повышенными характеристиками прочности и твердости при достаточной пластичности и вязкости, что позволит увеличить надежность защитных конструкций."


The translation:


"The technical result of the present invention is the production of sheet steel with a thickness of 15-25 mm, having high ballistic resistance combined with a reduced propensity to form secondary fragments, increased strength and hardness characteristics with sufficient ductility and viscosity, which will increase the reliability of the protective structures."


BT-70Sh is also manufactured using ESR technology, and is suitable for welding, as proven by the fact that the hull of the BMP-2 infantry fighting vehicle is constructed from welded BT-70Sh steel. However, the spaced steel plates of the armour arrays described for the Obr. 1984 and Obr. 1985 variants are not secured to the side hull plates by welding but are suspended by spacers, as we will see later. This means that welding is not an issue, so high hardness steels with poor weldability can be used.

Without clear answers regarding what steel is used in the T-72B, it is more likely that normal 42 SM steel was used for the hull and for the thicker plates of the array while the thinner spaced steel plates are made from BTK-1Sh or BT-70Sh. Another possibility is that all of the plates in all of the armour designs are simple, medium hardness RHA plates. This conservative guess represents the worse case scenario and will be our operating assumption throughout the rest of this article.



T-72B Obr. 1984


An unknown variant of the T-72 uses a five-layer spaced steel armour array in the upper glacis. The total thickness of the array is estimated by Internet user "Wiedzmin" to be 215mm and the total thickness of steel in the array is estimated to be 155mm. The configuration and thicknesses of the armour layers was estimated by "Wiedzmin" from the photo shown below. Compared to earlier armour designs, the armour is heavier yet not particularly heavy. The areal density of the armour is 3,248 kg/sq.m, which is quite high, but not significantly higher than the armour of the T-72A with a 16mm appliqué armour plate which has an areal density of 3,161 kg/sq.m. With mass being a minor issue, the main consequence of switching from a steel-glass textolite composite to a spaced steel armour array would be the increased efficiency against long rod penetrators and reduced efficiency against shaped charges.




The photo above shows a destroyed T-72 from the first Chechen war. The glacis array of an unknown destroyed T-72 is visible down at the bottom half of the left side of the photo. It is possible to identify this T-72 as a late model T-72A based on the shape of the mudguard. The T-72 used rounded all-metal mudguards since 1973 and switched to squarish rubberized mudguards only since 1984. Note that the spaced steel plates are held by spacers identical to the type used in the earlier 80-105-20 and 60-105-20 armour designs, presumably for the purpose of ensuring proper spacing between the plates. It is unclear if the spaced steel plates are allowed to flex elastically during armour penetration or if they are completely rigid. The thickness of the internal plates is not known, and in fact, it is not possible to determine if they are NERA plates or if they are simple steel plates. The only information that can be gleaned from this single photo is that the three plates are spaced equally apart by air gaps with the same size as the thickness of the plates, and the plates all appear to have identical thicknesses. Thus, with the assumption that the upper glacis of the T-72B obr. 1984 has the same physical thickness as the previous 60-105-50 armour design of earlier tanks (215mm) and the same thicknesses for the front plate and back plate (60mm and 50mm respectively), the 105mm gap can be divided into seven parts representing three plates and four air gaps of equal thicknesses. Thus, the plates should be around 15mm thick and the air gaps should be around 15mm in size.

We will not be examining this array in much detail, partly because the T-72B obr. 1984 is not a common variant and does not represent the T-72B, and partly because there are virtually no descriptions of this armour besides the work done by "Wiedzmin". Our analysis will be focused on the Obr. 1985 variant. That said, there are some preliminary observations we can make of the T-72B Obr. 1984 glacis array that hold true for all of the other variants.


This array design is a good example of a multi-layered spaced armour array comprised of multiple thin steel plates. Some of the protection value of the array may come from the interference of a shaped charge jet or a long rod projectile by the "lips" formed at the edges of the perforated plates, which are deflected from the neighbouring plate and into the path of the penetrator. The photo comes courtesy of Jarosław Wolski.




According to Jarosław Wolski, it was noted that only slightly better results were observed at high angles of obliquity, and that an improvement can be gained by packing more spaced plates in a smaller space. It is inferred that the additional protection offered by the intersection of the "lips" with the body of the cumulative jet is rather low, and would be an inefficient method of employing spaced armour, especially for the T-72B, as there are only three (!) spaced plates in the array, and the ratio of plate thickness to air gap size is one to one. The back surface of the heavy 60mm front plate and the front surface of the 50mm back plate would also have some effect, but overall, the contribution of the "lip" effect is obviously very minor.

Indeed, if the array in the T-72B obr. 1984 truly focuses on relying on the use of these "lips" to disrupt the cumulative jet, then it is very likely that the armour would be worse than that of the uparmoured T-72A upper glacis (16-60-105-50). Recall that the combined thickness of the steel in the array amounts to only 155mm, while the rest of the array is only filled with air. An up-armoured T-72A upper glacis contains 126mm of steel, and 105mm of glass textolite. The design of the armour of the T-72B obr. 1984 does not hold up even if we make the conservative assumption that the spaced plate array maintains the same resistance to shaped charges as the T-72A but has improved ballistic resistance against long rod penetrators.

Therefore, the theory that the spaced armour for the T-72B obr. 1984 relies on "lips" for increased protection is a completely insufficient explanation, and does not justify the change from a glass textolite filler to a spaced plate array. Rather, the effectiveness of the spaced armour against KE threats is derived from the mechanisms of projectile deflection, destabilization, yawing, and foreshortening, among others. According to Andrei Tarasenko, the first version of the T-72B hull armour was 20% more effective than a homogenous plate by mass, so the mass efficiency coefficient is 1.2. Additionally, Tarasenko states that the T-72B (1984) has an armour of 490mm RHA against APFSDS. The T-72B obr. 1984 array has a mass equivalent to 413.8mm of steel, so by using the mass efficiency coefficient of 1.2, the effective thickness should be 496mm RHA against long rod APFSDS, coinciding with Tarasenko's claim. Considering that the preceding 60-105-50 design had a mass efficiency of 1.1, the improvement in mass efficiency against APFSDS is just 9%. It is not insignificant, but it is not very high at all. However, it is worth noting that Tarasenko also claims that the upper glacis of the T-72B obr. 1985 is equal to 480mm RHA vs KE. Additionally, he credits the turret of the T-72AV (1984) with 380mm RHA vs KE but also credits the turret of the T-80BV (1984) with 500mm RHA vs KE even though both tanks have essentially identical composite armour in their turrets with the same "Kvartz" filler and the same armour thickness according to actual factory blueprints. The numbers he gives for the T-72AV, T-80BV and T-72B tanks upgraded with "Relikt" are also extremely dubious. Due to the age of his site and the general fickleness of this nature of information, the latest claims from his livejournal post may be considered more likely to be true.


Against HEAT, the mass efficiency of spaced armour is typically not significantly more than 10% greater than monolithic homogeneous armour of the same mass, meaning that the average coefficient is typically around 1.1. There seems to be no specific information on the performance of the T-72B obr. 1984 hull armour array against HEAT attack, but if we operate under the basic assumption that the armour must be at least equal to the original design requirement of 450mm RHA, we find that the mass efficiency coefficient in this case is a perfectly reasonable 1.087, close to our 1.1 average. The effectiveness of the armour is most likely somewhere between the 80-105-20 armour array (450mm RHA) and the 60-105-50 armour array. Assuming that the estimated mass efficiency coefficient of 1.1 is accurate, the armour would be 18.5% less efficient than the 60-105-50 armour design.


Although this armour scheme appears to be slightly more efficient against long rod attack, it also appears to be much less efficient against shaped charge threats. The large trade-off for the relatively small gain performance against KE threats seems to have been an unattractive compromise, hence the rapid development of the Obr. 1985 armour design. Of course, this is only speculative. Once again, it should be emphasized that there is virtually nothing written about this armour configuration.

We will further examine spaced armour as a general topic in more detail in the section regarding the Obr. 1985 array.


Obr. 1985




The photo above shows the exposed glacis armour of a damaged T-72B3, taken during the 2015 Tank Biathlon. As you may recall, the T-72B3 program refurbishes and modernizes old T-72Bs. The majority of T-72B in the Russian army are Obr. 1985 tanks, so it should be no surprise that the vast majority of T-72B3s will have the same base armour. Others include T-72B obr. 1989 tanks and T-72BA tanks of various models, all of which have the same base armour as the T-72B obr. 1989.




The total thickness of this array is 220mm which is only 5mm more than the 60-105-50 array of the T-72A and 6mm less than the upgraded 16-60-105-50 array, but the thickness of steel in the array is increased from 110-126mm to 170mm. The total thickness of steel is also greater than in the Obr. 1984 array: at the 68-degree angle of the upper glacis, the physical LOS thickness of steel in the Obr. 1985 array is 454mm. This is an increase of 35.5% in mass over the original T-72 Ural armour array, 26.1% over the T-72 Ural-1 and T-72A armour array, and 12.7 over the T-72A array with appliqué armour.

Again, it is very obvious that the spaced steel plates are not welded to the side hull armour plate by looking at the photo below. Note the jagged edges of the front and back plates and on the lower glacis plate. This is evidence of welding. The spaced steel plates, on the other hand, are clean. The spacing between the plates is maintained by metal spacing brackets similar to the type seen on the Obr. 1984 variant, but they are removed in the photo below. This explains why the space between the plates is uneven and some of the plates are in contact with each other, whereas the plates of the damaged T-72B3 seen in the photo above clearly show uniform spacing between the plates. The spacers for the hull in the photo below were presumably removed because it was about to be scrapped.




The glacis array of T-72B obr. 1985 is similar to the early obr. 1984 version, but probably more effective due to a more nuanced design. If the internal spaced steel plates are made from BT-70Sh steel while the heavy front and back plates were made from BTK-1Sh, the spaced plates will have a very high hardness of around 534 BHN and the heavy front and back plates would have a hardness of 450 BHN. If BTK-1Sh is used for the spaced plates instead of BT-70Sh and the heavy front and back plates are made from normal 42 SM steel, then the hardness of the spaced places will be around 450 BHN, while the heavy front and back plates would remain the softest at 340 BHN. Alternatively, a combination of 42 SM and BT-70Sh is also possible.

Whatever the combination is, it should be quite effective against monobloc long rod penetrators. A simple method of estimating the protection level would be to find the areal density of the armour array and modify it with a mass efficiency factor, but there are obstacles. The problem is, even though the task of calculating the areal density is trivial (it is 3,562 kg/sq.m), finding mass efficiency figures for the T-72B is not. From areal density alone, the hull armour array of the T-72B obr. 1985 would be similar to the armour of the Leopard 2 (~3,500 kg/sq.m), but the actual effective armour value requires the mass efficiency to be known. For instance, since the Leopard 2 is known to use NERA armour, it must have a higher mass efficiency against HEAT threats compared to the spaced steel armour of the T-72B, but it is also known that early NERA designs were largely ineffective against long rod penetrators so the armour may be less effective than the T-72B against KE threats. Knowing the areal densities, the comparative thicknesses of the armour does not matter that much as it is obvious that the thicker array is simply filled with more air than the thinner array.

It is worth noting that the November issue of the famous Russian Tekhnika i Vooruzhenie 2006 (Журнал Техника и Вооружение) magazine mentions in page 14 that the protection of the 1985 edition of the T-72B is equivalent to more than 550mm against a KE projectile. Normally, figures presented like this in Russian publications are referring to the turret armour from a 30 degree side angle, but the armour protection of the turret at 30 degrees tends to be uncannily similar to the armour protection of the upper glacis. The armour protection of the turret at 35 degrees is usually very close or even identical to the protection of the hull at 0 degrees. With a mass equivalent to 454mm of steel, the armour protection figure of ~550mm implies that the upper glacis armour has a mass efficiency of around 1.21. The veracity of this claim will be verified, and to do so, let us understand the mechanisms that enable complex oblique spaced armour to defeat modern anti-tank projectiles.


The 60mm front plate is intended to particulate shaped charge jets and to erode as well as damage long rod penetrators before they enter and interact with the internal spaced armour array. As shown earlier with the upper glacis armour of the T-72 Ural, the relatively high thickness of the front plate is meant to particulate shaped charge jets so that the efficiency of the filler is increased. The same reasoning applies for long rod penetrators. Long rod penetrators are generally capable of penetrating more armour at higher obliquity than at lower obliquity, so the steep 68 degree angle of the upper glacis is ostensibly a drawback, but that is far from the case here. Long rod penetrators are susceptible to fracturing and deforming after perforating oblique high hardness armour plates, especially at very high angles. This is due to the asymmetric buildup of stress within the rod during penetration, which is immediately released once the rod emerges from the back surface of the plate. The release of stress generally fractures the rod at the tip but sometimes fractures the entire rod as well, and the asymmetric forces also deflect the rod into a direction perpendicular to the surface of the plate. Thicker plates are more effective and more reliable at producing fractures because the longer duration of penetration causes a bigger buildup of internal stress in the rod, leading to a more severe fracture once the rod exits the back of the plate, but thinner plates can be used in this capacity as well.


The behaviour of long rods penetrators as they perforate and emerge from behind an armour plate is termed "breakout", and the period is known as the "breakout phase". These umbrella terms describe the behaviour of penetrator rods as well as the damage inflicted onto them, including yawing, tip deformation, fracturing, and so on.

The study "The Penetration Process Of Long Rods Into Thin Metallic Targets At High Obliquity" by Yaziv et al. gives us a good general understanding of the damages inflicted onto a long rod penetrator during the impact and penetration phases. The experiments and numerical simulations were conducted at target plate angles of 70 to 80 degrees, with two of the experiments having been conducted at angles of 73 and 76 degrees. The angles are slightly higher than that of the upper glacis of the T-72B, but it is still perfectly acceptable to apply the results to the armour array, since 68 degrees is reasonably close to 70 so the operating characteristics are the same. High strength steel plates with a yield strength of 1200 MPa were used in the simulations and in both experiments (A and B), matching closely with the steel known to be used in Soviet tanks.

The long rod penetrators were detailed as being 135mm long with a length to diameter ratio of 17:1, denoting that the diameter of the rod is 7.94mm. The plates had a thickness ranging from 7mm to 13mm - closely equivalent to the diameter of the long rod penetrator, so the thickness to penetrator diameter ratio is approximately 1:1. The L:D ratio of the tungsten alloy rod is much higher than actual long rod penetrators of the mid 1980's such as the 120mm DM23 APFSDS round (1983) which had an L:D ratio of 11:1, and the rod has a tapered frustrum that matches the profile of common tungsten long rod projectiles. The impact velocity was 1407 m/s.




The tip of the rod ricochets on impact with the plate and shatters into fragments that are deflected away, and only the central part of the rod actually does the work of penetrating the plate. As the central part of the rod penetrates the plate, it is deflected downwards and begins to rotate as it emerges from the plate. These effects are measurable on armour plates at lower angles of obliquity as well, but they generally become significant at angles of more than 60 degrees. The ricocheting of the tip of a tungsten alloy long rod is extremely apparent at a target plate obliquity of 75 degrees, and increases in severity until the critical ricochet angle of the projectile is reached, whereby the entire rod ricochets off the plate and not just the tip. Depending on the L:D ratio of the long rod penetrator, it may ricochet at an angle of 82 degrees or more. For reference, this short clip shows how a long rod projectile can ricochet with catastrophic damage off a high obliquity plate (link) while only doing surface damage to the plate itself.

The downward deflection of the central part of long rod projectiles is caused by a bending moment exerted on the rod due to the non-uniform thickness of plate material above and below the rod as it travels through the sloped plate. The deflection effect occurs at any obliquity and is manifests as a fracture on the rod that promptly detaches from the rest of the body after the rod emerges from the back of the plate. A study titled "Experimental and Numerical Simulation Analysis of the Impact Process of Structured KE-Penetrators onto Semi-infinite and Oblique Plate Targets" by N. Heider et al. offers a more concise explanation of the loads experienced by a long rod projectile as it penetrates an oblique plate.

"During the perforation process the maximum bending moments occur at the tip of the projectile. This corresponds to a situation where the penetrator can be regarded as a cantilever beam with a fixed tip region and the inertial forces acting as loads leading to the typical concave bending of the projectile ... bending dominates the structural loads during the perforation process of KE projectiles."

The bending moment also introduces a lateral velocity component to the rod, and thus induces yaw. The severity of the yaw for tungsten alloy rods depends on a variety of factors, including: the momentum of the rod, the thickness to diameter ratio between the target plate and the rod, the obliquity of the target plate, and the length to diameter ratio of the rod. It is very important to note that this phenomenon could be avoided if a separate heavy alloy segment is added at the tip of the rod, so that the tip of the rod suffers most of the effects of the ricochet and sustains the bending moment during the penetration process described in the citation above, whereupon it detaches from the rest of the rod. There are a few heavy alloy long rod projectiles that feature a separate segment at the tip of the main penetrator, a few examples being BM-42 "Mango", DM53 and M829A3, the BM-42 and DM53 projectiles being the most interesting, both having three separate tungsten alloy penetrators. Because the tip segment of these projectiles is separate from the main rod, the main rod does not get bent or yawed in any way, and maintains the shape of its own tip. The small loss of penetration in a single homogeneous steel target from the use of such a tip is definitely outweighed by the increase in performance against complex composite and spaced armour such as the type found on the T-72B, M1 Abrams and Leopard 2, hence the popularity of segmented rod designs in the modern era. Moving on -

The penetration of the thin plate only has the effect of eroding 18% of the rod, whereas a much larger segment of the rod (27%) was lost from ricocheting and shattering on impact with the surface of the plate. The total amount of rod material lost from these interactions amounts to 45%, but the reduction in penetration from this effect is more than the loss of material would suggest, as the tip of the emerging rod is deformed by the downward deflection during the exiting phase as you can see below. The deformation of the tip can be expressed as another 8-9% of rod material that is deflected downwards. However,

The velocity loss from this interaction is quite minor at only 10%, which is consistent with the analytic model presented study "Post-perforation Length and Velocity of KE Projectiles with single oblique Plates" by R. Jeanquartier and W. Odermatt. The main method of defeating the penetrator is via the huge loss of penetrator material.




The study indirectly shows that the thickness of the sloped plate has a much smaller effect on the defeat of the penetrator than the hardness and slope of the plate. As mentioned before, the ratio of plate thickness to penetrator diameter is around 1:1 or less in the study, but if the loss in penetrator material from erosion by penetrating the plate amounts to only 18% whereas a 27% loss in penetrator material can be expected from ricocheting and shattering while another 8-9% can be expected from the breakout phase, then it is apparent that increasing the T:D ratio brings much fewer benefits compared to decreasing the thickness of the plates while increasing the number of plates so that the number of impacts and breakouts is maximized. One of the benefits of a thicker plate is that the severity of deflection on the tip of a perforating rod is increased due to the increase in the lateral velocity component, so there is definitely a difference in performance between the thin 10mm spaced steel plates and the thick 20mm spaced steel plates in the T-72B obr. 1985 array beyond the mechanisms of simple armour penetration and ricocheting.

In other words, the amount of penetrator material loss from perforating a single thick spaced plate at high obliquity would be much less than the loss from perforating a pair of spaced plates of half the thickness at the same obliquity. Such an arrangement would vastly increase the mass efficiency of a spaced armour array, so that a large amount of penetrator material can be removed without requiring a large thickness of steel at the cost of requiring increased armour volume to account for the increase in the number of air gaps between multiple spaced plates.

From this, it is easy to see the advantage of multiple oblique spaced plates of high hardness steel. These results are supported by "Oblique Impact of Elongated Projectiles on Massive Targets" by Veldanov et al. and "Ricochet of a tungsten heavy alloy long-rod projectile from deformable steel plates" by Woong Lee et al., and multiple other studies. Of course, it should not be forgotten that all of the same effects apply to the heavy front plate of the array as well as the surface of the back plate. This cannot be ignored in any attempt to estimate the armour value of the array. Likewise, the 60mm heavy front plate of the array contributes to the effectiveness of the spaced plates as it removes and deforms the tip of long rod penetrators, conditioning them for defeat by the spaced plates. This was examined in detail in the section on the upper glacis armour of the T-72 Ural.


The study "Comparisons of Unitary and Jacketed Rod Penetration into Semi-Infinite and Oblique Plate Targets at System Equivalent Velocities" by J. Stubberfield et al. The topic of the study is not entirely relevant to our current investigation of spaced armour as the objective of the study was to compare monobloc and jacketed penetrators, but the study includes the highly interesting results of test firings against a homogeneous RHA block and a simple spaced armour array. The momnobloc penetrator used for the experiments was a W-Ni-Fe rod and the experimental setup is shown below.



With a rod diameter of 8.5mm, the thickness of the spaced plates normalized in terms of rod diameters is around 1.65 so it can be considered a medium thickness plate. The air gap between the two plates in LOS distance is 118mm, which is quite large. The total penetration of the monobloc rod into the two-plate spaced armour is an average of only around 66% of the penetration of the same rod into a semi-infinite plate at 0 degrees. The mass efficiency of the simple two-plate spaced armour is therefore the reciprocal of 66%, or 1.51. That is very good for such a simple spaced armour design with only two plates.

A histogram of the penetration of the monobloc tungsten rod and the jacketed rod is shown on the left, expressed as a percentage of the penetration on a semi-infinite plate. The x-axis lists the results of twelve individual shots described in the table on the right.




The condition of the monobloc rod as it exits the second spaced plate is captured in the radiograph below. As you can see, the rod is highly fragmented and the tip is completely missing, having been destroyed as it was deflected off the surfaces of the first and second spaced plates. The tip was ejected up from the surfaces of the two plates, and the amount of debris visible on the second plate is clearly more than the debris from the first plate, showing that the destruction of the original tip on the surface of the first plate reduced the efficiency of the rod during the following impact with the second plate.




If the tip of the penetrator rod is not destroyed, the lateral impulse on the tip is usually enough to cause plastic deformation and yawing, which produces a similar loss in penetration efficiency as the destruction of the tip. This is shown in the X-ray photo below, taken from a different study.





On the topic of air gaps, it has to be understood that the size of the air gap between densely packed spaced plates has no significant effect on the integrity of the rod, because a transverse force is generated during penetration so the rod is already deflected as it emerges from the plate. However, this does not mean that the size of air gaps in tank armour is arbitrary; one of the functions of the air gap is to allow the tip of the rod to ricochet up and away from the plate and to allow the shattered fragments of the tip to be ejected away from the penetration crater, preventing them from contributing to the depth of the penetration. Without a sufficiently large air gap, the fragments have nowhere to go. Increasing the size of the air gap also gives more time and space for the rod to rotate and yaw before it impacts the next plate, but the amount of space needed to produce a useful reduction in the penetration power of the rod is impractical for tank armour. The simple two-plate spaced array setup used in the study, for instance, measured 184.5mm in total LOS thickness excluding the 120mm air gap between it and the RHA witness block (the actual air gap is bigger due to the angles). The total thickness is therefore around 454.5mm which is around 50% more than the 300mm homogeneous semi-infinite block. Another interesting phenomenon associated with the breakout phase is the continued shortening of a tungsten alloy penetrator rod due to the residual stress on the tip from the release of internal pressure as it emerges from behind a steel plate and into an air gap. This is a potential advantage to having larger air gaps, but once again, the volumetric disadvantage generally makes it impractical to exploit this to the fullest extent. Without such a large air gap, the 1.51 mass efficiency coefficient of the simple spaced armour setup could not exist.

Furthermore, it has been noted in page 247 of "Particular Questions of Terminal Ballistics" 2006 (Частные Вопросы Конечной Баллистики) that for a multi-layered stack of steel plates at a high obliquity (>60°) with no air gaps or with negligible air gaps between the plates, the resistance of the multi-layered stack is 10-12% less than a monolithic homogeneous plate. This is consistent with a myriad of other studies regarding the penetration of complex armour and illustrates the importance of the size of the air gaps in spaced armour. For example, even a simple dual-layer spaced plate armour at a high obliquity (>60°) can be up to 8% more effective than a monolithic homogeneous plate of the same mass when the front plate has a thickness equal to 0.5-1.0 rod diameters.

To understand this phenomenon and to compare the performance of the oblique spaced steel array to a solid RHA block, we can refer to the study "Pretest Predictions of Long-Rod Interactions With Armor Technology Targets" under Subheading 3.0 "Finite-Thickness RHA Target". The penetration of a finite thickness RHA plate was tested using the same long rod projectile. Behind the finite thickness RHA plate was an RHA witness block placed at a distance of 76.4mm, identical to the spaced plate array.

In the study, the finite thickness plate fails before the penetrator reaches the back of the plate and will no longer resist the motion of the penetrator even before it fully perforates the plate. During this 20 microsecond period, the penetrator continues to be eroded despite the lack of resistance from the armour and was shown to erode by 0.2 diameters in length over a distance of 60mm. The residual rod eroded by another 0.3 diameters over the next 16.4mm of air before it struck the witness block. From this, we can surmise that the size of the air gaps in tank armour does have a supplementary effect in degrading long rod penetrators albeit at a rather low rate of 0.065 diameters per centimeter of air. Due to this glacial rate of rod erosion, very large air gaps in tank armour would be needed before a useful gain in mass efficiency will be observed. When considering the relatively small 10mm air gaps in the armour of the T-72B obr. 1985, the eroded length of a rod should not exceed 0.17 diameters per gap. There are five air gaps in the armour, so the total eroded length is approximately 0.867 diameters.



"Ricochet of a tungsten heavy alloy long-rod projectile from deformable steel plates" by W. Lee et al. provides us with additional data that the previous studies regarding high obliquity plates. Among the findings was that the strength of the oblique plate mattered especially at lower impact velocities. For this application, a high strength steel like BTK-1Sh is suitable. However, the findings regarding impact velocity require more interpretation. It is extremely straightforward if a rod were impacting a single oblique plate at a fixed impact velocity, but in the case of the T-72B glacis, the condition of the rod after it has perforated the thick front plate of the array has to be considered.

During the penetration of a high thickness plate where the rod can achieve steady state penetration, the velocity of the tip of the rod is typically reduced to around half of the initial impact velocity in the first few microseconds after impact but the rod quickly achieves quasi-steady state penetration so the tip retains almost the same velocity throughout the penetration period, while the tail only decelerates gradually at a low rate due to elastic waves propagating from the rod tip interfacing with the target material. Immediately after perforating a plate, the velocity of the tip of the rod begins to equalize with the tail, but this would take almost a hundred microseconds for a rod with an initial impact velocity of 1400-1500 m/s, which translates to a distance traveled of around 70mm before the velocities are equalized. This must have some effect on the ricocheting of the rod on highly oblique plates, but it appears that the effect has not been investigated. Of course, a 60-70mm air gap does not exist between the heavy front plate and the first spaced plate in the array of the T-72B.




Based on the rod tip and tail velocity data published in the study "Penetrator Strength Effect in Long-Rod Critical Ricochet Angle" by K. Daneshjou and M. Shahravi, it appears that the relatively low velocity of the tip of a rod emerging from a finite thickness plate will decrease the critical ricochet angle such that the tip of the rod will ricochet from a plate at a lower obliquity than the critical ricochet angle of the rod travelling uniformly at the same impact velocity. This decreases the minimum obliquity for partial ricochet as a side effect.

As mentioned before, the propensity of the tip of a tungsten alloy long rod penetrator to ricochet and shatter on impact with an oblique armour plate depends not only on the angle but also on the strength of the armour plate, but in the study by Daneshjou and Shahravi, it was also noted that the effect of target hardness is considerable especially at lower velocities. If the tip of a rod has not equalized its velocity with its tail after perforating a thick plate, i.e it is still in the 700<Vt<1400 m/s or 750<Vt<1500 m/s velocity range, then the relatively low velocity of the tip would increase the partial ricochet angle of the rod as well. With an air gap of only 10mm between the back of the 60mm heavy front plate and the first 10mm thin spaced plate, it definitely seems that there is not nearly enough time for the tip of any long rod penetrator to equalize its velocity with the tail before it impacts the first spaced plate. The entire rod does not need to have a reduced velocity, just the tip, because the ricocheting of the tip from a highly oblique plate depends only on the conditions of the rod at the tip and not at the tail.

The description of the high hardness plate in the paper by Yaziv et al. is consistent with armour plates with a hardness between 400 and 500 BHN, making the conclusions from the paper compatible with BTK-1Sh steel, but if BT-70Sh is used instead, then the protection level offered by the array increases accordingly. According to the patent for BT-70Sh, the maximum strength of the steel is between 1.9 to 2.0 GPa when treated to the maximum hardness of 54 HRC (543 BHN). This greatly surpasses the strength and hardness of the steel used in the simulations and experiments, and would have yielded even better results, but since there is no confirmation on the composition of the steel plates, it may be prudent to stick to the more conservative estimate.


A good example of oblique spaced steel armour arrays can be found in the study "A unified model for long-rod penetration in multiple metallic plates" by S. Chocron et al. A dense pack of six spaced plates was used for the tests, each plate being 19mm thick and sloped at 65 degrees to the vertical plane. Each plate was separated by an air gap of 25.4mm in length and the distance between the last plate and the RHA witness block was 76.2mm. Long rod projectiles were fired at the armour pack at super-ordnance velocity and hypervelocity and the depth of penetration into the witness block was recorded.

Super-ordnance velocity was defined as the range velocities of between 1.72 to 1.78 km/s which exceeds the normal muzzle velocity of 105mm and 120mm guns by around Mach 1 and Mach 0.3 respectively. This simulated hypersonic impacts. Hypervelocity penetrators with a velocity of 2.6 km/s were also tested, but the results of these tests have little relevance to us. The lower the impact velocity of the penetrator, the greater the effect of target and penetrator material strength, and the typical impact velocity range for APFSDS fired from 105-120mm guns at 1.5 km is 1400-1500 m/s, so the effect of the strength of the RHA and HHS plates in the T-72B array is undoubtedly remains a highly relevant factor in the overall protective capabilities of the armour under normal conditions.

The pretest assumption was that the spaced steel plates would offer the same resistance as the line-of-sight thickness indicated, i.e each 19mm plate was assumed to possess a resistance of 45mm of steel. However, the experiment showed that the estimated penetration depth into the witness block was 40mm less than predicted. It was surmised that repeated impacts and breakouts was the cause of the overprediction, and although it was not explicitly mentioned to be a source of penetration loss, it is worth noting that the 1.78 km/s rod was yawed by 2.34 degrees after passing through the spaced plate array, before it impacted the RHA witness plate. This is consistent with all of the other studies concerning spaced armour. The information regarding the yaw of the penetration was included in a different study, "Pretest Predictions of Long-Rod Interactions With Armor Technology Targets".

As you can see in the illustration below, the pressure spikes at the moment of impact with a spaced plate and falls rapidly as the rod passes through the physical thickness of the plate. After perforating the plate, the pressure drops down to zero as the rod travels into the air gap before spiking again as the next plate is struck.





The inability of the penetrator rod to achieve quasi-steady state penetration through spaced plates results in a reduction in the efficiency of the rod.

According to the experiments, it was deduced that the deformed and fractured tip of the penetrator is a result of structural failure from large stresses, so it was considered to no longer be a part of the rod. For all intents and purposes, the tip was therefore considered to be incapable of contributing to the penetration of the rod, so it was discarded after the perforation of each spaced plate to simulate the detachment of the tip. To simulate the discarded tip, lengths of 1.5 D or 1.8 D were subtracted from the rod, and a loss of 1.8 D was found to generally agree with the results of the super-ordnance penetrator (1.72 km/s) but not the hypervelocity penetrator (2.6 km/s). The analytic model for the hypervelocity penetrator would require a length reduction of as much as 2.0 D to agree with the experimental results. To supplement this, it is stated on page 250 in "Particular Questions of Terminal Ballistics" 2006 (Частные Вопросы Конечной Баллистики) that the length of the rod broken off due to breakout effects for plates at a high obliquity was equal to 1.5 times the LOS thickness of the plate, regardless of the hardness of the plate.

As mentioned before, six spaced plates were used in the array, each 19mm thick and spaced an inch apart from each other (25.4mm). The witness block was spaced behind the last plate at a distance of 76.2mm and simulated a semi-infinite target. The entire array was angled at 65 degrees and the total LOS thickness was 270mm. It is extremely interesting, then, that the LOS penetration of the spaced plate array including the penetration depth into the witness block amounted to a total of only 414mm. Compared to the penetration depth of 524mm recorded for the finite thickness plate at a normal impact angle, the difference amounts 110mm RHA. Therefore, the spaced armour array is worth 110mm more armour than its own LOS thickness, implicitly indicating a mass efficiency of 1.26 for the spaced steel plate array. This is despite the fact that long rod penetrators are known to penetrate a greater thickness of sloped armour plate than unsloped armour plate.


The array of the T-72B is set at a greater angle than the experimental setup (68 degrees vs 65 degrees), but the number of impacts and breakouts is fewer; there are 7 impacts and 6 breakouts for the experimental setup and 6 impacts and 5 breakouts for the T-72B armour, and the spaced plates in the T-72B array are distributed in two different thicknesses. Without knowing exactly how much the effect scales with angle, plate thickness and the number of impacts and breakouts, it is difficult to apply the coefficient directly to the armour, but according to Andrei Tarasenko, the first version of the T-72B hull armour (presumably referring to the obr. 1984 variant) was 20% more effective than a homogenous plate by mass, so the mass efficiency coefficient is 1.2. Compared to the others, the obr. 1984 array design can only generate five impacts and four breakouts making it the worst performer among the three in terms of efficiency, so the ME of the obr. 1985 design should be between 1.2 and 1.26. Applying these coefficients to the 454mm steel mass of the array, it is calculated that the armour offers between 545mm to 572mm RHA of protection against a monobloc tungsten alloy long rod penetrator. This fits well with information stating that the armour of the T-72B is equivalent to more than 550mm RHA. For the sake of simplicity, the ME coefficient is assumed to be around 1.23 so the protection level of the armour should be equivalent to 560mm RHA, rounded up from 558.4mm.

This is reinforced by information on page 250 of "Particular Questions of Terminal Ballistics" 2006 (Частные Вопросы Конечной Баллистики) published by Bauman Moscow State Technical University on behalf of NII Stali, where an examination of spaced armour concludes that high armour obliquity is required for spaced armour to be effective against long rod monobloc penetrators, that increasing the number of plates in a spaced armour array improves its mass efficiency and that increasing the elongation of a long rod penetrator reduces the effectiveness of the spaced armour array. The relevant paragraph is shown below:


"Прирост стойкости двух- и многопреградных структур фиксированной толщины неизбежно падает увеличением длины сердечника БПС в связи с соответствующим увеличением МПР, необходимого для максимально возможного использования эффектов изгиба и разрушения сердечника при пробитии сильно наклоненных преград. На реальном возможных толщинах многопреградных структур следует рассчитывать не более чем на 15% прироста стойкости при воздействии моноблочных вольфрамовых сердечников с удлинением 15...20 (с использованием броневых сталей средней твердости) Этот прирост при больших углах встречи достигается числом преград от трех до пяти, в зависимости от соотношения МПР и общей толщины преграды. При малых углах встречи разнесение преград малоэффективно."


Translation:


"The increase in the durability of dual and multi-layered structures of fixed thickness inevitably falls with the increase in the length of the APFSDS core due to the corresponding increase in the MPR required for the maximum possible use of the bending and fracture effects of the core when penetrating strongly inclined barriers. On the realistic possible thicknesses of multi-layered structures, one should calculate no more than 15% of the increase in resistance when exposed to monobloc tungsten cores with an elongation of 15 ... 20 (using medium-hard armor steels). This increase at large meeting angles is achieved by a number of obstacles from three to five, depending on the ratio of the MPR  and the total thickness of the barrier. At small angles of the meeting, the separation of the barriers is ineffective."


In other words, a multi-layered spaced armour array is not more effective than a monolithic homogeneous block of armour at small angles of obliquity and the efficiency of highly angled spaced armour array will decrease when the elongation of a long rod penetrator is increased. Compared to a monolithic homogeneous block when attacked with a tungsten long rod penetrator with an aspect ratio of 15-20, a five-layer spaced armour array has a mass efficiency of around 1.15. In addition to this, using high hardness and high strength steels yields further improvements in the efficiency of the armour array:


"Увеличение прочности (твердости) стальных броневых преград при сохранении пластичности приводит к соответствующему повышению противоснарядной стойкости многопреградных структур. Использование броневых сталей повышенной и высокой твердости с пределами текучести 120 ... 130 МПа на структурах, характерных для лобового бронирования танков, обеспечивает дополнительный прирост стойкости 10...15%."


Translation:


"Increasing the strength (hardness) of steel armored barriers while maintaining ductility leads to a corresponding increase in the ballistic resistance of multi-layered structures. The use of high hardness armour steels with yield strengths of 120-130 MPa on structures characteristic for frontal tank armour provides an additional increase in resistance of 10-15%."

Using high hardness steels leads to an additional increase of 10-15%, so a mass efficiency coefficient of 1.2 is increased to between 1.32 to 1.38. Based on these facts, the mass efficiency of a five layer array (1.2) can be improved by increasing the number of layers in the array and by utilizing high hardness and high strength armour steels. With that in mind, the mass efficiency coefficient of 1.23 estimated earlier seems to be rather pedestrian. It is wise to remain conservative in our estimates, of course, but even so, it is very obvious from our current understanding of spaced armour that the common estimates of "480-530mm" seen on the Internet are far too low to be plausible except perhaps in the context of very highly elongated long rod penetrators, perhaps with an aspect ratio of above 30.


CONCLUSIONS



As you may recall, the L23A1 round was previously shown to be capable of easily piercing the hull armour of the T-72 Ural-1 and T-72A from several miles away based on declassified British data, but against the armour of the T-72B obr. 1985, the situation is completely reversed. The first hint, of course, is that the line-of-sight thickness of the T-72B obr. 1985 array is almost the same as the penetration of the round at 1 km. With the current range of ME coefficients of 1.2-1.26, it is plain to see that that L23A1 has no chance of defeating the array at point blank range even for the armour estimate at the lowest end of the spectrum. Suddenly, the "crude" spaced armour appears to be one of the strongest composite armour designs ever fielded for a tank hull during the Cold War.


All of the information we have gathered is also highly relevant for the West German DM13 and DM23 APFSDS rounds due to the unique composition of the projectiles. DM13 (120) does not use a monobloc long rod penetrator like the American 105mm M774 and M833, but instead have a tungsten alloy rod carried in a hollow steel jacket with a steel armour penetrating tip as you can see in the photo below. For a composite long rod projectile like this, the steel armour piercing cap has a very poor L:D ratio and a hollow tip, making it an inefficient penetrator although it there is some possibility that it could have improved performance on oblique armour plate (there are no publicly available studies to support this, however). This armour piercing cap should be completely eroded by the heavy 60mm front plate of the upper glacis array of the T-72B while the thin steel sheath around the long rod penetrator is peeled away upon impact. The tungsten alloy long rod penetrator will emerge more or less intact from the heavy front plate and interact with the internal spaced plates of the array. The monobloc penetrator of DM23 (120) is more suitable for a complex spaced armour array, but it has a hemispherical tip which is not ideal for the slope angle of the upper glacis armour of the T-72B. Having an L:D ratio of only 8:1 and 11:1 for the DM13 and DM23 respectively, the performance of the tungsten alloy rods against the spaced array would not be very good.



1. Steel windshield and armour piercing cap 2. Steel armour piercing cap 3. Tungsten penetrator 4. Steel sheath 5. Tailfins and tracer assembly


However, a separate tip designed explicitly to counteract these effects was not included in most long rod APFSDS rounds, and indeed, there were no long rod APFSDS shells with such a feature fielded for NATO 105mm and 120mm tank guns during the 80's. In that case, a contemporary APFSDS round fired at the T-72B obr. 1985 can be expected to perforate the heavy front plate and the first two light spaced plates, whereby it is severely fractured and yaw is induced in the rod before it impacts the last two heavy spaced plates and the back plate of the array.

The array design should be adequate for APFSDS shells appearing in the early 80's such as the 105mm DM23 at 1 km or perhaps less. This estimation is based on the knowledge that DM23 (105) is a licence produced version of the M111 "Hetz", and that the reinforced T-72A glacis array is already sufficient to resist the M111 even at short range. Composite shells like the 120mm DM13 (1979) will not perform well against this array, and will most likely fail to penetrate even at the average combat distance of 1 km to 1.5 km. The monobloc long rod penetrator of DM23 is principally more suited against a complex spaced armour array, but its actual penetration power is still not enough and its hemispherical tip further limits its effectiveness on the highly sloped upper glacis armour of the T-72 series.The much more elongated DM33 round (1987) with 480mm of penetration at 2 km (according to the manufacturer, as stated in this document) or 470-480mm at 2 km (according to Swedish data) should be sufficient at combat ranges, considering that DM33 was specifically designed to overcome multi-layered spaced armour and possibly NERA armour as well. If we assume that the T-72B obr. 1985 armour array has a mass efficiency of more than 1.0 but less than 1.2-1.26 against DM33, then it may be justified to expect that it will be vulnerable at a distance of more than 2 km. However, there is some doubt that the DM33 is able to accomplish such a tremendous feat given that its enhanced capabilities against spaced armour is derived from a special tip design according to a patent drawing and not by a segmented penetrator or a jacketed penetrator. The special tip and tip of the penetrator rod will be eroded within the 60mm heavy front plate of the array (160mm LOS thickness) and there are no special provisions for defeating spaced armour incorporated in the bare monobloc rod itself. This was not necessarily a design flaw of the DM33 penetrator - the use of a special tip is justified against a spaced armour target which has spaced thin plates in front of a thicker base plate such as the NATO Triple Heavy target. However, it is not effective against an armour design with a heavy spaced plate.


In short, the ballistic resistance of the spaced armour array should be very high despite its ostensibly simple construction. However, the resistance of the armour to shaped charge threats heavily depends on the raw physical thickness of the steel, and is nowhere close to the level of protection offered by Non-Energetic Reactive Armour (NERA).



AGAINST SHAPED CHARGES


After learning about how the side skirts on a tank may increase the standoff distance of a shaped charge jet and thereby increase its penetration rather than decreasing it, it seems counter-intuitive that the T-72B uses multiple spaced armour plates in the upper glacis array rather than evolving the three-layer composite sandwich from the T-72 Ural (originally from the T-64A) into a more complex multilayered steel and glass textolite array like the T-64BV or T-80BV, but as is often the case, the terminology can be misleading as not all spaced armour is the same.

From what we have seen of the original T-72 Ural and T-72A composite armour sandwiches, it is known that the heavy front plate of the array is intended to particulate a shaped charge jet before it enters the low density glass textolite filler, thus maximizing the performance of the filler. The chief concern with side skirts acting as standoff for shaped charges is that the skirting is too thin or too light to particulate a shaped charge jet, so it emerges as a continuous, undisturbed jet and gains increased penetration power as it stretches in the air gap between the skirt and the side of the tank. When a side skirt of sufficient thickness like the side skirt of the M1 Abrams is used, the jet is particulated as it emerges, meaning that it ceases to stretch and the jet splits into discrete particles as a result of the velocity gradient along the body of the jet. In other words, the front parts of the jet are faster than the middle and the tail, so the front parts leave the rest behind causing the jet to separate into individual particles of discrete velocities. If you were to take a continuous jet of a fixed length and divide it into 10 individual segments, each segment would have a different velocity but the faster portions do not separate themselves from the slower portions because the jet is accelerating forward over its entire length so that the front part of the jet is continually fed by material (usually copper) accelerating forward from the apex of the shaped charge cone, powered by the explosive charge of the shaped charge warhead.

The heavy 60mm front plate of the T-72B is still thick enough to particulate the jet of a typical shaped charge, so the penetration of the jet will not increase by stretching in the air gaps of the spaced armour array. This resolves the issue of spaced armour acting as additional standoff for a shaped charge warhead. Nevertheless, having air instead of a low density filler gives the densely packed spaced armour array of the T-72B a lower mass efficiency against shaped charge jets, although it can certainly be considered efficient for its thickness. As mentioned before, a brief explanation on the NII Stali website stated that a low density nonmetallic filler sandwiched between two steel plates was the most optimum configuration at angles more than 60 degrees, and having an air gap instead of a nonmetallic filler gave the worst results of all. This might be interpreted to mean that the spaced steel array in the T-72B obr. 1985 is a step backwards. However, further examination on the effectiveness of this type of armour is needed.


As shown in the table below, a composite sandwich with a low density filler has higher mass efficiency and thickness efficiency compared to any of the three spaced armour configurations. The composite armour sandwich described here is composed of a light 1/4" mild steel front plate and a thick 4" filling of HCR 2 (Hollow Charge Resisting), a simple low density aggregate made from asphalt (75%) and wood flour (25%). Spaced plate No.1 is composed of a single 1 1/4" RHA plate spaced 3" away from the mild steel witness block. Spaced array No.2 is composed of a 3/4" RHA front plate with a 1/2" RHA plate between it and the witness block. Spaced array No.3 is composed of a 3/4" RHA front plate and two 1/4" RHA plates behind it. All four designs have the same areal density. According to the residual penetration figures, configuration No.1 was the least effective, being a crude single-layer spaced plate. Configuration No.3 had the second best performance, or rather, second worst as it was barely an improvement over No.1. The best performing configuration was No.2, showing that spaced medium thickness plates are more effective than spaced thin plates.




Conceptually speaking, the glass textolite-based armour scheme of the earlier T-72 models is approximately equivalent to the HCR 2 sandwich in that it is much more effective than a spaced array of the same mass, translating to a high mass efficiency. To be more precise, the mass efficiency coefficients of the Ural and Ural-1 armour arrays are both 1.35. Following the results in this example, the mass efficiency of a spaced steel array of comparable weight would be less than 1.35, but higher than 1.0 due to breakout effects and other phenomena associated with spaced armour arrays.

According to the Swedish study "Protection against shaped charge ammunition" by Brent Johansson & P.E Ellergård and translated by amateur tank and AFV historian Viktor Norlun ("sp15"), layered 10 mm plates with 20 mm air gaps gave the largest decrease in penetration of the solutions studied. The testing was only done with one type of 80mm shaped charge warhead.

Plates with Bofors CRO 861 constructional steel was tested together with commercial iron (of variable quality) and face-hardened commercial iron. CRO 861 has a hardness of 300 BHN and tensile strength of 941 MPa. Apparently it is considered to be comparable to certain types of armor quality steel used by FOA, but it is not on the same level as RHA. RHA has a tensile strength of 1,750 MPa. As such, the results from the tests may be an underrepresentation of the spaced armour array of the T-72B upper glacis.

The table shown in the photo on the right lists the penetration of the shaped charge on various homogeneous semi-infinite target blocks at various standoff distances, where the standoff distance is denoted by (D). The penetration on a semi-infinite CRO 861 target at a standoff distance of 120mm was 257mm. This particular standoff is the most relevant as it is a 1.5 CD standoff distance for an 80mm shaped charge, making it a better representation of real anti-tank grenade designs.

The table shown in the photo on the left lists the penetration of the shaped charge on various layered and spaced armour configurations at a standoff distance of 120mm. Fig. 7 refers to the aforementioned spaced armour array with 10mm plates with 20mm air gaps. The table includes results for four different materials, but only the results for the Fig. 7 array with CRO 861 are relevant.




From the table, it can be seen that when the spaced armour array is sloped at 65 degrees, the recorded penetration of the shaped charge is 135mm and >113mm. When the armour array is sloped at 63 degrees, the penetration is 132mm (large margin of error in recorded figure). When the armour array is sloped at 63 degrees, the penetration is 147mm. Therefore, for a spaced armour array design closest to the T-72B, using a material closest to RHA, and placed at a slope closest to the 68 degree slope of the T-72B upper glacis, the penetration of the 80mm shaped charge was reduced by 52.5%. In other words, the efficiency of the spaced armour is 1.9 times higher than homogeneous armour.

Evidence of jet particulation can be observed on the front surface of all the spaced plates except the first plate. The front surface of the first three spaced plates is shown in the photo on the left, and the underside of the same plates is shown in the photo on the right.




The high performance of the spaced armour array against the specific 80mm shaped charge used in the test may not be a good representation of the armour of the T-72B in several ways. Most importantly, the shaped charge warhead is of a dated design, lacking several of the features that became common during the 1980's which was the period of action for the T-72B. This increases the sensitivity of the shaped charge to non-homogeneous armour compared to modern designs. However, this example serves to illustrate the fact that a highly oblique spaced armour made from relatively thin steel plates can be highly effective against HEAT attack.


According to "Shaped Charge Attack of Spaced and Composite Armour", spaced armour can be effective against shaped charge jets due to the forces acting on the jet as it penetrates the target plate. The relevant passage is presented below:

"It has been shown [1,2] that the shaped charge jet tip is disrupted when it exits from a finite thickness plate. This is due to longitudinal and radial shock wave effects in the jet causing mushrooming of the jet tip or enhanced particulation. This effect has been utilised in the design of 'Whipple shields' which consist of multiple thin plates."

As you may recall, the same phenomenon was examined as part of our analysis of the T-72 Ural and Ural-1 upper glacis array. The 60mm heavy front plate of the obr. 1985 fulfills the same function as the 80mm heavy front plate in the earlier designs. This is supported by "Spaced Armor Effects of Shaped Charge Jet Penetration", where it is stated that:

"During the process of target perforation, the jet was compressed, which increased the jet tip diameter. Upon leaving the first target plate, relief of the compressed material occurred, which led to further expansion of the jet tip."

It was also confirmed in "Shaped Charge Attack of Spaced and Composite Armour" that there is a danger of spaced armour having the opposite of the desired effect; noting that "Conversely the ultimate warhead penetration may actually increase with spacing and/or standoff as the warhead is brought closer to an optimum standoff compared to the normally fused short standoff". Other studies dealing with spaced armour have included similar remarks, and is a legitimate concern with spaced armour. As we have already learned, this can be solved by using a heavy front plate in the armour array so that the jet is particulated before it enters the spaced array, thus nullifying the effect of increased standoff.


A detailed examination of the effects of thin plates on shaped charge jets is provided by "The Shaped Charge Jet Interaction With Finite Thickness Targets". The paper examines the interaction of shaped charge jets with individual and multiple armour plates of finite thickness. Here it is mentioned that shaped charge jets continue to erode as they travel in the air gaps between spaced plates (termed "foreshortening" in the paper) in the same way as long rod penetrators continue to erode after the breakout phase. The paper gives this explanation on the effect of finite thickness targets on shaped charge jets:


" ... the problem concerning the interaction of the shaped charge jet with the target whose thickness does not exceed several jet diameters as well as with a set of such targets, spaced at some distance apart from each other, is considered. The existence of air gaps between such targets lead to additional losses of the jet length due to the erosion of its tip region upon the target perforation, which was first noticed by Brown and Finch [1] and was termed "foreshortening" (forefront shortening)."


In other words, the existence of air gaps prevents us from simply adding up the physical LOS thicknesses of the individual plates to find out the nominal RHA equivalency of the armour against shaped charges, as the figures obtained from this method will always be too low. It is necessary to understand that the publicly available RHA penetration figures for shaped charges is always obtained using semi-infinite target plates - targets where the penetration of the jet does not exceed the thickness of the plate so breakout effects are not considered at all. This is the most optimal condition for shaped charges and cannot be applied to spaced armour or composite armour.


The most relevant study on this topic is "On Modelling of Shaped Charges Jet Interaction With Spaced Plate". The paper directly deals with spaced plates at a normal impact angle as well as oblique spaced plates and is highly expository, making it a convenient resource in analyzing the armour of the T-72B obr. 1985. The conclusion of the paper supports the previous claim that spaced armour cannot be directly compared to homogeneous plates, even though shaped charge jets penetrate both types of targets via hydrodynamic interaction. Indeed, it is explicitly stated in the conclusion that equating the two types of targets leads to an overprediction of the jet velocity in the case of spaced plates, meaning that the spaced plates reduce the velocity of a shaped charge jet by a greater amount given the same plate material, the same cumulative total thickness of plate material, the same standoff, and so on. The relevant passage is given below:


"It has been shown that the hydrodynamic penetration theory can be used for getting a good estimation of shaped charge performance against homogeneous steel targets, provided to know the lateral velocities of all jet elements. But it has also been shown that such modelling is not suitable against spaced targets and overpredicts the jet residual velocities after perforating metallic plates."


The paper also examines and compares normal and oblique spaced plates of 10mm thickness angled at 60 degrees. Using the same penetration models (1D-code + eq. (5)) as the plates impacted at a normal angle but with the addition of a simple equation (eq. (6)) to account for the new relative thickness of the oblique plates, it was proven that oblique spaced plates behave and interact with shaped charge jets in the same manner as non-oblique plates, so plate obliquity for spaced arrays has no effect on shaped charge jet penetration except to increase the LOS thickness of each individual plate, unlike in the case of long rod penetrators.



Everything considered, it is clear that the spaced armour array in the T-72B obr. 1985 is less efficient against shaped charge threats compared to a composite armour array with glass textolite, but still more efficient than homogeneous steel. All together, it is likely that the anti-shaped charge properties of the spaced armour array are at least on the same level as the T-72A, not lower.



It is reported in page 286 of "Particular Questions of Terminal Ballistics" that a multi-layered NERA armour design is 40% more effective than monolithic steel of the same weight and 10-23% more effective than multi-layered spaced steel armour of the same weight. Based on this, it can be surmised that spaced steel armour would have a mass efficiency of 1.14 to 1.27 compared to homogeneous steel armour. Applying these coefficients, it appears that the spaced armour of the T-72B obr. 1985 glacis armour ranges from 517mm to 576mm RHA. The midpoint of these figures is 550mm RHA. This would mean that the armour is only a mere ~3.7% better than the T-72A glacis with a 16mm appliqué armour plate for a 13.5% increase in weight, and it would be even less efficient when compared to the five-layer steel and glass textolite designs used in the T-64BV and T-80BV.


It is important to note that the raw physical thickness of the steel in the T-72B obr. 1985 array (454mm) already exceeds the HEAT resistance of 450mm RHA of the original 80-105-20 array of the T-64, so the armour is so heavy that it fulfills the basic requirement for protection against 115mm HEAT without even considering the advantages of the spaced plates. The armour is sufficient against 120mm HEAT such as the likes of M830 and DM12. To be more specific, DM12 is described in German literature as having a penetration of 450mm at 0 degrees and 220mm at 60 degrees, and the M830 is also attributed with the same figures. The armour would also be sufficient against practically all handheld antitank weapons as well as most older anti-tank missiles like the TOW (430mm penetration), but it has no chance of resisting the ITOW on its own (630mm penetration), it will probably not hold up to the Milan (580mm), and it will definitely not be able to resist the Milan 2 (790mm), or the TOW-2 (890mm penetration), but this is based on the assumption that Kontakt-1 is not present. Due to the installation of Kontakt-1 as standard equipment on the T-72B, the upper glacis should still be completely invulnerable to all of these missiles, and any other single-charge HEAT warhead. The use of tandem warheads would negate Kontakt-1 to a large extent, so missiles like the TOW-2A would be a serious threat to the upper glacis armour.

In conclusion, the spaced steel armour of the T-72B obr. 1985 cannot be labeled as "simplistic" or "crude". The armour is designed to make full use of a complex set of mechanisms aimed primarily at destroying long rod projectiles but also with comparable or slightly better shaped charge resistance as compared to the earlier pattern of composite sandwiches. The perception of spaced steel as a crude method of protection may be valid, but only when compared to NERA armour in terms of shaped charge resistance.


Obr. 1989



According to the description provided by Wiedzmin, the glacis array of T-72B obr. 1989 can be considered to be slightly more advanced on account of its meager NERA array, but it is still rather crude. It is designed to work in conjunction with Kontakt-5, which may explain the change from simple spaced plates to thicker solid steel plates. The NERA plate installed immediately behind the front plate is comprised of two opposing bulging plates, and should be equivalent to a single NERA sandwich. Against shaped charges, the NERA works by disrupting the cumulative jet (this is further discussed in the section on the T-72B turret). Against KE threats, the NERA works based on the principle of penetrator deflection and shearing. As the long rod penetrator enters the array, it activates the first bulging plate, which bulges downward, exerting downwards force on the penetrator, and as the second bulging plate is activated, it bulges upward, exerting upwards force. This exerts a shearing force on the rod.

Stopping the rest of the attacking projectile or shaped charge jet would be the the job of the remainder of the array, 110mm thick in total. The 60mm steel plate, 10mm anti-radiation layer and 50mm steel plate sandwich behind the NERA layer could technically be considered a composite armour sandwich, as the 10mm anti-radiation layer is probably made from polyethylene. Assuming the anti-radiation layer is composed of borated UHMWPE (Ultra-High Molecular Weight Polyethylene) with a density of 1.00 g/cc (density of polyethylene produced in the Soviet Union was 0.92-0.96 g/cc), then the composite sandwich should be quite decent in principle, though it might not be the most optimal configuration given the low thickness of the anti-radiation layer.

Note that the total thickness of steel in the array is 170mm, which is the same as the Obr. 1985 array. Except for the NERA plate and the anti-radiation layer, the mass of the Obr. 1989 array should be very close to the Obr. 1985 array.


The photo below confirms that the array described by Wiedzmin is indeed used on late T-72B models. Credit for all photos goes to armor.kiev.ua.





As you can see, the exposed upper glacis array matches the description perfectly. There are three solid plates, and two gaps of appropriate sizes between the three plates. Also, the rearmost plate appears to be slightly thinner than the middle plate, and this matches the thicknesses given by Wiedzmin. The tank in the photo is clearly a T-72B and most likely a T-72BA, because the tracks are UMSh tracks and not RMSh tracks, as shown in the photo below.






It is known that very late T-72A models had the T-72B turret and early spaced armour upper glacis array, but these models still used RMSh tracks. Furthermore, the exposed glacis array in the photo above looks nothing like the spaced armour array, and it is not possible that the exposed array of the tank shows the earlier glass textolite-based composite sandwich because it does not have spacer plates, like in the usual T-72A array and also in the transitional T-72A models with spaced armour.




The tank cannot be a T-72B3 either, because the disembodied turret shows four Kontakt-5 panels on the right side, where a T-72B3 would have five. A T-72BA would have four panels because the IR searchlight occupies the position next to the gun mantlet. Therefore, it is not possible that that this tank is somehow a very late T-72A model upgraded to T-72B3 standard.




According to illustrations published in Sergey Suvorov's "T-90: First Serial Tank of Russia", the T-90 has the same hull armour as the T-72B obr. 1989. The illustration below shows a T-72B obr. 1989, as identified by the presence of Kontakt-5 on the hull and the manually operated anti-aircraft machine gun. The drawing of the hull array appears to match what we now understand to be the correct configuration of the armour.





The drawing below shows a T-90, as identified by the forward-facing remotely controlled anti-aircraft machine gun and the large housing for the Agava thermal imaging sight. As you can see, the hull array is identical. Since the T-90 uses the same cast turret as the T-72B, it is safe to assume that the composition of the turret armour is also totally identical between the T-90 and T-72B obr. 1989. It is also mentioned in various examples of literature on tank design that the T-90 is built with the hull and turret of the T-72B obr. 1989, so there can be little doubt that the T-90 kept the then-recent armour of the latest T-72 model.






Turret (UNDER RENOVATION)




As mentioned in the introduction section in Part 1 of this article, the T-72B uses the 172.10.077SB (172.10.077СБ) turret which could originally be found on late model T-72 tanks from 1983-1984.
The November issue of the famous Russian Tekhnika i Vooruzhenie 2006 (Журнал Техника и Вооружение) magazine mentions in page 14 that the protection of the 1985 edition of the T-72B is equivalent to more than 550mm against a KE projectile. This is probably a general descriptor that applies for the frontal arc of the tank including both the turret and the hull, but it is widely accepted that the turret of the T-72B is the stronger of the two, for reasons which we will see later on. Andrei Tarasenko reports that the turret of the T-72B is equivalent to 540mm RHA at a side angle of 30 degrees.

The turret of the T-72B - dubbed "Super Dolly Parton" by American observers - fully retains the usual T-72 layout but with an up-armoured frontal projection and the associated changes made to the armour profile. The two primary constituents of the turret's frontal armour are the solid cast steel cavities and the NERA array contained within them. The hollow cavity in the turret cheeks for the NERA panels is much larger than the cavity in the earlier turret design with a "Kvartz" filler. The front wall of the cavity is approximately 130mm thick at its thickest part (LOS), near the gun mantlet, thinning to 90mm as the turret cheek curves into the side of the turret (normal). The rear facing is composed of the 90mm cast steel wall of the turret cavity casting supplemented by a 45mm HHS rolled steel plate in front of it (pictured below). The HHS plate is made from BTK-1Sh armour grade high hardness steel.





We don't actually know exactly how thick the cast steel is, but we know for a fact that the rolled plate is 45mm from the famous ARMOR magazine article. The thickness of the cast steel is estimated from the distance between the armour cavity and the gunner's primary sight aperture (it is recessed a bit into the armoured housing). Based on the photo below (one black/white segment = one inch) we can see that this LOS thickness is around 6 inches. Converting the LOS thickness to perpendicular plate, we can confidently say that the thickness of the cast steel is 85mm to 90mm. Combined with the 45 rolled steel plate, the total thickness of the plates behind the NERA array is a healthy 235mm.





The ARMOR Magazine article mentions that the plates inside the cavity are angled at 55 degrees from the gun barrel. As far as NERA armour goes, this is completely sufficient, and the relative angle increases as the turret is viewed from a sideways angle. The combined total weight of the contents of both cavities is 781 kg.
The multi-stack bulging plate array of the turret consists of 20 modules. This type of armour can be considered a form of integrated NERA (Non-Explosive Reactive Armour).




Each NERA panel may vary greatly in length, but all of them are uniform in their thickness, each module being 30mm thick. The modules are composed of a 6mm rubber interlayer sandwiched between a 21mm steel front plate and a 3mm steel bulging plate. The maximum length of the NERA panel is 280mm. The air gaps between each panel is 22mm. The entire array is angled at 55 degrees relative to the gun barrel.

The Russian terminology for non-explosive reactive armour is the same as in the West, being labeled as a "non-explosive dynamic armour" as opposed to "explosive dynamic armour" which is better known as explosive reactive armour in English speaking countries. The operating principles of the two types of "dynamic armour" are recognized as the same, except that one is simply more energetic than the other. The drawing on the left below describes the action of ERA, and the drawing on the right below shows the action of NERA.



Both types of reactive armour were implemented in the T-72B, one of the first mass-produced tanks to do so in the history of tank design.

The placement of the plates means that four to six plates will intersect with the direct line of fire of a projectile when the turret is being shot at head-on, more plates if the shot lands at the center of the turret cheek and less at the edges. Only two or three plates will be in the path of a projectile when the turret cheek is struck at an angle of 35 degrees. This is superior to the arrangement of the NERA plates in the front hull of the M1 Abrams, which places a maximum of four plates in the line of fire. Behind the NERA panels in the armour of the M1 is a spacer, which appears to provide almost no armour value as it is only there to brace the NERA panels and provide proper spacing. At best, it is a perforated steel plate which would offer much more substantial protection, but the large size of the holes depicted in the diagram make this extremely unlikely. Behind the spacer is the main armour, which is a rolled steel plate that is estimated to be about 160mm thick. The turret cheek armour of the M1 is probably similar as the thickness of the turret cheeks is approximately equal to the hull armour.




Overall it can be seen that the armour of the M1 Abrams has rather large air gaps, making the large thickness of armour largely meaningless when comparing protection capabilities, and indeed, all or nearly all composite armour designs found on Western tanks are characterized by the presence of very large air gaps that necessitate very thick composite armour cavities. The Leopard 2A4, for example, has an areal density of  around 3,500 kg/sq.m according to Rolf Hilmes, and it is known that the thickness of the turret cheeks is 860mm according to measurements. This means that the density of the armour is only 4,070 kg/cu.m which is rather low compared to even a T-72A turret which has an estimated density of 6,520 kg/cu.m. The armour of the T-72B turret is substantially thicker than the T-72A turret, but it is still denser than the Leopard 2A4 turret. Another example is the T-80U turret which completely lacks air gaps and instead has an extremely dense NERA design incorporating polymer-filled pockets in solid steel plates, backed by another steel plate. The armour is essentially layers of steel upon layers of steel, making it incredibly dense. The high areal density of these Soviet armour designs is offset by the small overall size of the turret and unique teardrop shape.




As you can see from the excerpt above, the roof of the turret and the commander's cupola are highly vulnerable to munitions like 3BM-22 and 3BM-26. At two kilometers, the two rounds have a certified penetration of 170mm RHA at 60° and 200mm RHA at 60° respectively. These rounds can perforate the commander's hatch (cupola protrusion) from 3,900 meters, perforate the turret roof from 3,700 meters and perforate the gun mantlet zone from 1,650 meters. On a side note, the driver's periscope area is also a weakened zone and can be perforated from 1,700 meters, and the gun mask can be perforated by 12.7mm B-32 armour piercing rounds from 100 meters. Of course, the T-72 doesn't actually have the type of gun mantlet or gun mask that most people are familiar with. Instead of a large armoured plate like the mantlet of the Panther or M-46, the T-72 merely has a piece of cast armour wrapped around the base of the barrel to prevent fragments from entering the gap between the turret and the gun breech assembly. Based on the reported protection level, this gun mask is primarily meant to protect the gun barrel from the splash of an explosive warhead detonating against the turret cheek, and to prevent shell splinters from jamming the gun elevation system by becoming lodged between the turret and gun breech.


It is interesting to note that the T-72M1M export model tank also uses NERA armour in the turret, although the turret design is not the same as the T-72S which is the export variant of the T-72B. The photo below shows a cross section of the T-72M1M armour as described in "Kampfpanzer: Heute und Morgen" by Rolf Hilmes. This is apparently from a single example operated by the Iraqis, found after Operation Iraqi Freedom. Note that the angle of the internal NERA array of this "T-72M1M" is stated to be 55 degrees in the drawing below, which is the same angle as armour of the T-72B.





How NERA Works:


NERA was first proposed by Dr. Manfred Held in 1973 in a research paper, after inventing reactive armour in 1969 . The Wikipedia page on reactive armour has this to say about NERA:

"NERA and NxRA operate similarly to explosive reactive armour, but without the explosive liner. Two metal plates sandwich an inert liner, such as rubber.[3] When struck by a shaped charge's metal jet, some of the impact energy is dissipated into the inert liner layer, and the resulting high pressure causes a localized bending or bulging of the plates in the area of the impact. As the plates bulge, the point of jet impact shifts with the plate bulging, increasing the effective thickness of the armour. This is almost the same as the second mechanism that explosive reactive armour uses, but it uses energy from the shaped charge jet rather than from explosives.[4]"


The description of how the inert interlayer is energized by the impact of a shaped charge jet is simplified, but accurate. To be more specific, the source of energy is the shock waves travelling through the inert liner between the two metal plates sandwiching it. Here is a relevant passage from the paper "3D Numerical Simulation Of Non-Energetic Reactive Armor", quoted verbatim:

"The protective mechanism of bulging armors is slightly different than explosive reactive armors. When a shaped charge jet hits the inert intermediate layer, a shock wave interactions through the interlayer results in bulging of the metallic layers [Yaziv, Friling and Kivity , 1995], [Gov, Kivity, Yaziv, 1992], [Mayseless et al., 1993]"

The Wikipedia article's explanation of "increasing the effective thickness of the armour" is, sadly, only a half-truth at best. The research paper quoted above gives a short but concise explanation that the moving plates interact with the shaped charge jet and distort it. There is no mention of increasing the effective thickness of the armour in the paper, or in almost every other paper or journal article on NERA published in the last few decades. Dr. Held's early patents for explosive reactive armour describes the mechanism of the reduction in the penetration of a shaped charge jet as a product of the disruption of the jet. Patent 5811712 from 1975, for example, makes this very clear in the following excerpts:

"... the destruction of a hollow charge spike takes place in such a way that the spike is chopped up over large portions of its length, the individual particles of the spike being additionally diverted. The spike, of which the penetrative capacity in a homogeneous wall of steel is otherwise too high, then loses its boring power and remains in a divergent crater in armour plating following disruptor walls of this kind."

"The military effect of the invention resides quite generally in the efficient disruption and destruction of even elongated hollow charge spikes with a very high energy content and with a high velocity gradient, by the intervention of moving parts of the layer or wall in the total length of the spike ..."

"As shown by the present example, the invention makes it possible for the following charge spike, over its entire length, and despite its considerable velocity gradient, to be combated by moving walls and layers, so that by introducing material over a cutting (oblique) path into the traject of the spike the latter is completely disrupted and finally destroyed, or deprived of its boring action."


However, United States Patent 4,368,660 filed by Dr. Held in 1980 under assignment by MBB GmbH mentions the "consumption" of a shaped charge jet as an additional penetration reduction factor. Reading the "Summary of the invention" section of the patent, we see that Dr. Held describes the action of the flyer plates of the reactive armour having the purpose of "cutting up" or "consuming" or "spending" the shaped charge jet, which is referred to as a "thorn". The term "consumption" had so far never been used before when describing the action of flyer plates against shaped charge jets. Based on this, and the remarks of various scientists and academicians, it appears that Held was the first to identify the increase in effective armour thickness as a factor in the reduction of penetration.


In 2004, Dr. Held published "Dynamic Plate Thickness of ERA Sandwiches against Shaped Charge Jets" in Volume 29 of Propellants, Explosives, Pyrotechnics, issue No. 4. Held examines the mechanism behind the generation of dynamic plate thickness and concludes that the disruption and destruction of shaped charge jets is still the main method of jet defeat by reactive armours. It is important to note that Held defined "dynamic plate thickness" as the virtual plate thickness that intersects with the path of the shaped charge jet. Held made no attempt to explain how the jet is degraded by the intersection, so his definition of "dynamic plate thickness" is merely arbitrary.

It is well known that the intersection of a moving plate obliquely against a shaped charge jet results in the loss of plate material and jet material alike through erosion. However, classifying the interaction as the penetration of the moving plate is misleading. In actuality, the moving plate is penetrating the shaped charge jet as much as the jet is penetrating the plate, so the mechanism cannot be described as simple armour penetration. The most important distinction is that the tip of the cumulative jet will almost always be on the other side of the plate before the plate even begins to move, due to the immense speed of the jet tip, so it is not the tip of the jet impacting the edges of the plate as the plate moves obliquely against it, but the midsection of the jet body. The interaction causes the jet to be disintegrated, meaning that the single continuous jet is divided into smaller segments, each with their own discrete velocities. The result is that the armour plate behind the NERA plate will be impacted consecutively by two forms of shaped charge jets: a disembodied continuous jet (jet tip), and a smattering of particulated jet segments.

This is why a shaped charge jet does not penetrate smoothly into armour plate after passing through a NERA plate. Instead, shallow craters are created on a large area of the surface of the plate from the impact of the particulated jet, and some end up on the inside the deepest crater which is invariably made by the disembodied jet tip. Jet particles that do not impact the tunnel made by the disembodied jet tip do not contribute to the final depth of penetration of the target plate. This is best seen in the four photographs below taken from "Study on Rubber Composite Armor Anti‐Shaped Charge Jet Penetration". The craters were produced by a shaped charge jet disturbed by a rubber NERA sandwich plate at four different angles.




The greatest reduction in penetration was achieved when the rubber NERA plate was angled at 60 degrees and the largest amount of jet scattering can also be observed at this angle. It is interesting to note that even at 0 degrees, the NERA plate caused some particulation to occur as evidenced by the shallow pockmarks around the tunnel created by the otherwise untouched shaped charge jet. In this case, the NERA plate acted as simple spaced armour, causing the tip of the jet to lose some material due to the compression of the jet when it passed through the NERA plate and subsequent decompression as it exited. At 30 and 45 degrees, the degree of particulation increased drastically as evident from the much larger surface area covered with pockmarks, but the jet still appears to remain somewhat unperturbed. At 60 degrees, the jet is badly disturbed by the NERA plate and is split into a number of segments. Lateral forces from the bulging plate gives the segments a sideways velocity component, causing them to impact some distance away from the main tunnel created by the disembodied jet tip.


Although Held's study "Dynamic Plate Thickness of ERA Sandwiches against Shaped Charge Jets" deals with reactive armour, his findings can be applied to NERA to some extent. We cannot equate ERA to NERA directly in this context, of course, because the behaviour of bulging plates is simply not the same as flyer plates. The most significant differences are in the kinematics of the plates and their geometry while they are in motion. Held's calculations are based on the assumption that the flyer plate is flat and maintains a constant velocity throughout its interaction with the jet. A bulging plate, on the other hand, takes quite a lot of time to accelerate to peak velocity, and the shape of the bulging plate is curved rather than flat. Thus, the paper can be read to gain an understanding of the general mechanism of dynamic plate thickness only.




Referring to the graph above, we see that as the plate velocity increases, the dynamic thickness increases. For a rear plate (in-pursuit), there is an exponential increase in dynamic thickness against plate velocity, whereas for a front plate (head-on), the rate of increase is almost linear. Note that the velocities required to achieve a high dynamic plate thickness are well beyond the range achievable by NERA plates, so we can confidently infer that dynamic plate thickness is a very minor factor in the reduction of a shaped charge jet during its interaction with NERA bulging armour.


For an explanation of how we can know the bulging plate velocities attainable by NERA plates, read the three research papers below:




The first paper investigates the deformation characteristics of the rubber interlayer and its ability to displace (bulge) the steel plates sandwiching it, with experiments conducted using a 3/5/3 bulging armour arrangement. The second and third papers examine the mechanisms behind the transfer of energy into the inert interlayer material of a NERA sandwich. All of the papers deal with the impact of shaped charge jets and the transfer of the jet energy into the NERA interlayer at a normal impact angle, but Rosenberg states that the motion of bulging plates is not sensitive to obliquity since the main source of propulsion is the energy transferred into the interlayer. Yadav's paper states that the amount of energy transferred into the interlayer depends on the duration of contact between the shaped charge jet and the interlayer during penetration, and on the velocity of the jet - the higher the better. Rosenberg's paper is the most convenient for us, as the bulging plate velocities for 3mm steel in-pursuit plates have already been modeled for us. Rosenberg's simulations use a 10mm plexiglass interlayer, but also investigate the effect of varying thicknesses.





Since plexiglass is less dense than rubber, it can be assumed that the peak bulging plate velocity of the T-72B NERA at H=13.2 will be higher than the value stated in the graph. Only the peak bulging plate velocity matters to us because that is the region in contact with the shaped charge jet as it passes through.

Rosenberg goes on to state in page 304 that NERA plates bulge faster with thinner back plates (in-pursuit) than with thinner front plates (head-on). He goes on to recommend an asymmetric NERA plate design for optimum performance. The context is that NERA plates with thicker front plates and thinner back plates will have superior overall performance, so this is not direct advocacy of the design of the NERA in the T-72B turret, but it is still strongly suggested that such a design would be advantageous as it would cause the back plate (in-pursuit) to bulge at a higher velocity. Based on Rosenberg's data on plexiglass interlayers, a reasonable guess of the peak bulging velocity of the rubber-based bulging plate of a T-72B NERA plate should be between 0.5 km/s and 0.55 km/s.


The graph below, taken from Held's "Dynamic Plate Thickness of ERA Sandwiches against Shaped Charge Jets", shows that the dynamic plate increases exponentially with increasing NERA plate obliquity. At 55 degrees, an in-pursuit flyer plate travelling at 0.4 km/s generates barely more than 50mm of dynamic plate thickness and an in-pursuit flyer plate travelling at 0.8 km/s generates only around 175mm of dynamic plate thickness. Based on our guess that the bulging plates in the T-72B turret have a peak bulging velocity of between 0.5 km/s and 0.55 km/s, the dynamic plate thickness offered by the bulging plate should be between 60mm and 80mm, but only if we treat the bulging plate as a flyer plate. Since it isn't, then the actual dynamic thickness should be much less.


Based on this information, it is clear that the primary mechanism of shaped charge jet defeat by bulging plates lies in the disruption effect of the plate. This confirms the earlier claim that the contribution of dynamic plate thickness to the anti-shaped charge capability of NERA is either negligible, misunderstood, or both.


The photos below illustrate the effect of a NERA plate on a shaped charge jet. The three photos are from three separate repetitions of the same experimental set up. Note that a substantial portion of the tip of the jet is unaffected in all three tests, and the location of the disturbed regions of the jet is consistent between the second and third photo.




The body of the jet behind the tip is disturbed due to the formation of instabilities caused by the disruption of the shape of the jet. According to "The role of Kelvin-Helmholz instabilities on shaped charge jet interaction with reactive armour plates", the disruptions experienced by the cumulative jet are Kelvin-Helmholz instabilities. Kelvin-Helmholtz instabilities are formed when there is velocity shear in the continuous flow of a fluid, namely the shaped charge jet.


There must be some space behind the NERA plate in order for it to perform efficiently. This is because the perturbations to the shaped charge jet do not manifest until a small period of time has passed. Here are several X-ray photographs, taken from Dr. Manfred Held's paper "Disturbance of Shaped Charge Jets by Bulging Armour", page 194.





The photo below shows three bulging plates shot through by a high power shaped charge jet. Notice that there are keyhole-shaped cuts in the plates, and that the plates are cracked.




More energetic interlayer materials can improve the reaction speed of the NERA plates and increase the lateral energy imparted onto the jet. Rubber is the earliest and most basic material for this application, and can be considered the least sophisticated.


According to the document Multiple Cross-Wise Oriented NERA-Panels Against Shaped Charge Warheads, (the same document contains the photos above) a single NERA panel can decrease the penetration of an 84mm shaped charge warhead from 410mm to just 70mm - a reduction of 83%. Placing two NERA panels in parallel reduces the penetration by only one centimeter more, to 60mm. This seems rather odd, but is actually due to the rather simple fact that bulging armour cannot react quickly enough to intercept the tip of a shaped charge jet. Remember that the tip of a cumulative jet formed from a typical shaped charge travels at velocities of between 8 km/s and 10 km/s or more. The high velocity jet tip imparts a lot of energy into the inert interlayer, but it is simply too fast intercept and disrupt, but it is possible to cut off the rest of the jet and prevent it from doing any harm. This fact is illustrated the photo below, taken from the aforementioned document.




The very small reduction in performance offered by the second NERA plate is almost entirely due to the erosion of the jet from impacting the material of the panel (two 3mm RHA plates and one 5mm layer of rubber), not by the movement of the plates. This was because the body of the shaped charge jet had been disrupted by the first NERA plate, leaving only the disembodied jet tip to continue. The disturbed jet body could not contribute to the final penetration depth, as many of the particles were stopped on impact with the second NERA plate. More importantly, however, this tells us that NERA plates alone are not enough to stop shaped charges. The hypervelocity jet tip is too fast to be affected by the movement of the NERA plates, and can only be stopped by erosion against a solid plate. This is why it is always necessary to install an armour plate behind a NERA array to ensure full defeat of a shaped charge jet. This also shows that there are diminishing returns past a certain number of layers of NERA panels in an armour array as the back layers may not be able to contribute much to the reduction in jet penetration.


Moreover, the efficacy of NERA panels will depend on the material of the bulging plates as well. The document "Combination of Inert and Energetic Materials in Reactive Armor Against Shaped Charge Jets", gives us some perspective. A rubber-based NERA panel was also involved in their testing. However, their NERA panel could only effect a 22% reduction in penetration performance for a 64mm shaped charge warhead. Where did the 61 percentage point difference go? Here they used a sandwich of 8mm of rubber between two 2mm thick mild steel plates. In the first document, they used a sandwich with a 5mm rubber interlayer placed between two 3mm thick sheets of Domex Protect 300, which is a armour-grade steel with a hardness of 300 BHN and much higher strength and toughness than mild steel. Both examples were set at an obliquity of 60 degrees. This shows us that even though shaped charge jets achieve penetration by hydrodynamic interaction whereby both the jet and the target (at the point of contact) behave as fluids, the strength of the bulging plates still matters, and that hydrodynamic penetration is not a sufficient explanation for the interaction between bulging plates and shaped charge jets. It also hints that the extra energy imparted onto the bulging through the interlayer only increases up to a certain limit. Here, an 8mm rubber interlayer did not noticeably improve the performance of the NERA panel compared to a 5mm rubber interlayer. The optimal thickness of interlayer depends on the caliber of the shaped charge warhead.

It is understood, then, that all of the sandwich materials are important. The ability of a bulging plate to effectively disrupt a shaped charge jet also has some dependence on the strength and toughness of the plate itself despite the lack of strength input in the hydrodynamic penetration of jets, and this is because the bulging plate in a NERA panel mainly works by interfering with the shape of the jet rather than by consuming it or eroding it by "brute force" via dynamic thickness. A relatively minor reduction in the penetration of the cumulative jet does come from penetrating the dynamic thickness of the bulging plates as they intersect with the path of the jet, of course, although the definition of dynamic thickness appears to be arbitrary. There appears to have been no studies or experiments to measure the mass of shaped charge jets before and after their interaction with NERA panels so it is difficult to ascertain if any jet mass is eroded or lost during the interaction with bulging plates or if the mass is simply scattered by the disruption of the jet. Now, let us see what the T-72B uses.




How T-72B bulging Armour Works


The bulging plates in the T-72B work essentially as described above, except that the one plate is much thicker and therefore much more rigid than the other, forcing the thinner plate to bulge. The time taken for the rubber interlayer will be slightly shorter, because the pressure wave from the impact of the shaped charge jet with the thick front plate will energize the rubber interlayer before the jet actually passes through it, and the thick front plate will slow down the jet somewhat before it reaches the interlayer, so the bulging plate can manage to interact with the front part of the jet. The diagram below, taken from the old NII Stali website, shows the passage of the shaped charge jet through the NERA plate in three successive stages.




The first stage shows the shaped charge jet penetrating the front plate, creating a bulge in the rear surface of the plate. The second stage shows the destruction of the rear surface, causing an expansion of the rubber interlayer and the subsequent bulging of the thin rear plate. The third stage shows that by the time the shaped charge jet passes through the rubber interlayer and the thin plate, the thin plate has already begun to move perpendicularly to the front plate.

The unidirectional NERA plate might propel its single bulging plate more violently, since all of the energy absorbed into the inert sandwich layer is used to propel only one plate and not two. Still, the effect of a single bulging plate will be less effective than two plates taken together, because there is one fewer plate to disrupt the cumulative jet. However, this might be compensated by emphasizing more violent expansion in a certain direction, as shown below:




(a) "Backwards moving" means that the plate bulges against the direction of travel of the jet. This is known as an "in retreat" or "head-on" type NERA.
(b) "Forwards moving" means that the plate bulges in the same direction as the direction of travel of the jet. This is known as an "in pursuit" type NERA.


The pictures above are not of an actual simulation of cumulative jet hitting a NERA panel. The plates pictured were moved by explosives which were detonated before the jet reached the plate, but they achieve the same effect in its essence. The photos above shed light on an extremely important phenomenon, which is integral to the operation of the armour of the T-72B. In the turret, the NERA panels are all of the "in pursuit" type. This maximizes their performance, effectively reversing any penalties potentially incurred by the unidirectional design, or at least neutralizing the disadvantages.

The reason for the increased effectiveness of in-pursuit plates over head-on plates is explained on page 59 in "Interactions Between High-Velocity Penetrators and Moving Armour Components". Here is the relevant passage:

"The severe scattering of an SC jet is due to instabilities of the same kind as can be found in two fluids in contact moving in parallel with different tangential velocities (Kelvin-Helmholtz instabilities). Although this kind of instability is seldom observed in solid materials, the very high velocity and relatively low material strength of the jet, in combination with the high contact pressure and the motion of the plate allow instabilities to occur in spite of the stabilizing effect of the material strength. It is recognized in fluid mechanics that an accelerating flow is more stable than a decelerating flow, and the negative pressure gradient due to obliquity of a backwards moving plate accelerates the flow in the jet direction while the positive pressure gradient in the case of a forwards moving plate decelerates the flow in the jet direction."





The bulging armour design on the turret of the T-72B cannot be compared directly to its NATO counterparts like the M1 Abrams. The M1 Abrams uses conventional bidirectional bulging plates described on page 453 of "Army" magazine, volume 34 (October 1984 issue), as being a pair of titanium alloy sheets sandwiching a layer of ballistic-grade nylon. Defeat of the tip of the cumulative jet in all cases is achieved by the erosion of the jet against the NERA plate material itself and by relying on the thick steel plating of the main armour. This is not optimum against long rod projectiles, or any KE projectile, really, as thin NERA plates will do very little against such threats and the bulging effects of the NERA armour will only do so much to the projectile before it impacts the main armour. On the other hand, titanium is a good material for bulging plates as it has a low density, so the bulging velocity for a thin and light titanium sheet will also be higher than a steel sheet and the front portions of the shaped charge jet will be intercepted more readily. Therefore, we can say that the NERA armour in the Abrams is capable of handling kinetic energy threats to a limited extent, and that it is much more optimized for shaped charge threats.

The NERA plates in the T-72B turret have thick, high hardness steel front plates acting as spaced armour (in the same manner as the glacis array, which we have already discussed) working with bulging plates to defeat the projectile before it reaches the main armour, which is itself additionally reinforced. The substitution of bidirectional bulging plates for a unidirectional bulging plate with a thick armour plate could be a deliberate compromise to boost protection from KE threats, but having a thick plate in front of a bulging plate also improves the performance of the bulging plate against shaped charges.

In page 286 of "Particular Questions of Terminal Ballistics" 2006 (Частные Вопросы Конечной Баллистики) published by Bauman Moscow State Technical University on behalf of NII Stali, an optimal distribution of thicknesses of the five basic elements of a NERA sandwich (the front plate, interlayer, and the back plate) with a rubber interlayer was formulated based on data accumulated from testing and simulating armour of this type. The study posits that the most rational distribution of thicknesses is as follows:


  • Steel front plate - thicknesses equal to 0.2-0.5 times the caliber of the HEAT warhead.
  • Rubber interlayer - thickness equal to 1.0-2.0 times the diameter of the shaped charge jet.
  • Thin steel bulging plate - thickness equal to 1.5 times the diameter of the shaped charge jet.
  • Size of the air gap behind the thin steel bulging plate - 0.4 times the caliber of the HEAT warhead.
  • The optimal angle of the NERA panel - 60 to 70 degrees.

The jet diameter of a typical shoulder-fired anti-tank HEAT warhead is 2.5-3.5mm. This includes warheads with a diameter of 60-90mm, fired from weapons such as the Carl Gustav and the RPG-7. A typical guided anti-tank missile with a shaped charge warhead caliber of 127-152mm produces a jet with a diameter of approximately 3.0-6.0mm. Based on this, it appears that the NERA panels in the armour of the T-72B are designed with an optimum ratio of thicknesses and provided with an appropriately sized air gap between each panel, but the panels are not placed at the optimum angle. Furthermore, the actual thicknesses of the components (21-6-3) indicates that the NERA design is optimized to handle a HEAT warhead of only moderate size, between 80mm to 100mm. However, the turret of the tank is not only required to defeat anti-tank munitions from a direct frontal attack, but also from a side angle of up to 35 degrees. Due to the obliquity of the NERA panels, aiming at the turret at an side angle increases the relative angle of the panels, up to 85 degrees when viewing the turret at a side angle of 30 degrees. Between the side angles of 0 and 30 degrees, the NERA panels inside the armour cavities of the T-72B turret will be within a 55-85 degree range of angles which is very reasonable.

Needless to say, this optimized design only applies for a steel NERA sandwich using rubber as an interlayer (though the optimum angle applies for all designs). It has been found that more energetic materials can be used for the interlayer instead of rubber, and better materials for the front and back plates can be used instead of steel. According to the same paper, the increase in mass efficiency for shaped charge protection achieved by multi-layered armour using bulging armour is up to 40% compared to homogeneous steel armour of medium hardness, and the armour is more effective than a spaced steel armour array of the same weight by 10-23%. From these figures, it can be said that the mass efficiency of the armour of the T-72B (depending on the angle of attack) can be as high as 40%, depending on the side angle. Based on the claim that NERA armour is 10-23% more effective than spaced steel armour of the same weight, it can be surmised that spaced steel armour would have a mass efficiency of 1.14 to 1.27 compared to homogeneous steel armour whereas the same armour array with NERA has a mass efficiency of 1.4, so even if NERA were absent, the spaced steel plates alone provide more protection than their weight suggests.

Mass efficiency coefficients of up to 20.0 have been achieved with other NERA designs using bidirectional bulging plates and better interlayer materials, but it is important to remember that these reported figures are only for the NERA panel itself and usually have a setup with more than a meter of air space between the panel and a witness plate, unlike the Russian figures here where the NERA panels are part of a multi-layered armour array for a tank. The constraints for actual tank armour include limited internal volume which limits the size of the air gaps and the permissible mounting angle of the internal NERA panels. Due to these real world constraints, much of the efficiency is lost after averaging out the numbers from including thick steel plates into the array. Therefore, a direct comparison between NERA designs examined in various scientific studies and the NERA armour of the T-72B is not valid.


NERA armour can work with both both long rod projectiles and shaped charge jets, but the mechanism of defeat is not exactly the same.

When faced with shaped charges, the bulging armour works in the same way as typical NERA plates. As the first bulging plate bulges, the midsection of the jet (the tip is far too fast to be affected) are put under lateral stresses, thus interrupting its shape. Disruption of the flow of the jet causes it to disintegrate into individual particles, and the disruption of the flow also results in Kelvin-Helmholtz instabilities forming in the jet. A sample of the NERA plates used in the T-72B turret can be seen doing exactly this in the X-ray photograph below, taken from btvt.info. The plate is angled at 68 degrees.




We can see that large disrupted portions in the jet, like troughs in a sine graph, appear quite often down the length of a jet, indicating the the jet is highly disrupted. It is unfortunate that the photo is so closely focused on the NERA panel, because we cannot see the tip of the jet and its length and condition - that is the most important observation we could make from an X-ray photo like this. Besides that, it is quite clear that the disturbances in the jet only appear after travelling a certain distance behind the bulging plate, which is completely consistent with Dr. Held's findings in "Disturbance of Shaped Charge Jets by Bulging Armour". Interestingly, we can see the base of the cumulative jet at the far left of the photo, indicating that the shaped charge was detonated at a relatively short standoff distance. Overall, it would appear that the NERA configuration was successful, but we must take into consideration that the plate is oriented at 68 degrees obliquity, and this is somewhat steeper than most experimental samples demonstrated in the research papers cited, not to mention the fact that the NERA plates are angled at only 55° degrees in the T-72B turret.

Other experiments on NERA were carried out in Soviet Russia as well. Here we see a Soviet NERA design using a sandwich of 4mm steel, 3mm rubber and 6mm steel. The disruption of the jet is very massive as well, perhaps even more than the in-pursuit bulging plate design.




However, this does not mean that the armour in the T-72B turret is ineffective. There are a variety of factors that vastly increase the performance of the NERA plates. As mentioned before, the unidirectional bulging plate of the T-72B NERA can be highly beneficial. The research paper "Study on Rubber Composite Armor Anti-Shaped Charge Jet Penetration" examines the effects of interlayer thickness in bulging armour with a rubber interlayer. It is stated on page 701 that "The interference between the back plate and the jet was neglected because the B plate gave a relatively smooth deflection of the jet without characteristic instabilities, whereas the jet was severely scattered by the F plate". The authors defined the back plate as the front bulging plate, and the front plate as the rear bulging plate. See the diagram below, taken from page 696.





The paper "Shaped Charge Optimisation against Bulging Targets" authored by Dr. Held shows that as the velocity of a shaped charge jet tip decreases, the effectiveness of bulging armour increases. This is succinctly illustrated in the diagrams below.

The velocity of the shaped charge jets was adjusted by varying the thickness of the shaped charge liner without changing the the diameter or the cone angle, which remain at 96mm and 60° respectively. The target was a 10mm steel plate in front of a 2/15/4 bulging armour plate. Shaped charges with liner thicknesses of 1mm, 2mm, 3mm and 4mm were tested. As the thickness of the shape charge liner increases, the lower the jet tip velocity. Jet tip dimeter, however, was unaffected. All warheads were detonated at a standoff of 2 CDs, except for the 2mm liner warhead, which was detonated at 6 CD. This skewed the results slightly, but the trend is very clear:




The shaped charges consistently exhibited more symptoms of disturbance as the liner thickness increases, except for the 2mm liner, but again, this exception exists only because the warhead was detonated at a greater standoff distance so that it attained higher velocity by stretching. The 2mm liner jet was also observed to be thinner than the other three, all of which had the same diameter despite having different liner thicknesses, but this was attributed once again to the increased standoff distance of the 2mm liner shaped charge.




Reducing the velocity of shaped charge jets greatly degrades its performance against bulging armour. The jet tip velocities and the liner thicknesses are given on page 368 in the graph. They are as follows:


Liner thickness, mmJet tip velocity, km/s
19.3
28.9
37.6
46.6


This is relevant to the T-72B because the thick steel armour in front of the turret cheek cavities will slow down a shaped charge jet drastically as it is penetrated, and thus improve the performance of the NERA plates by the time the jet emerges from the back of the turret cheek and into the cavity. While the bulging armour used in the test is not directly equivalent to the bulging armour configuration of the T-72B, these results are still perfectly applicable since all bulging armour designs work on the same basic principles.


The design of the bulging plates in the T-72B have another advantage because of its thick steel plate. A typical NERA array with multiple thin plates would easily reduce the penetration of a small shaped charge to nearly nothing by the time it reaches the main armour at the very back, but the tip of the cumulative jet will pass through each and every NERA plate on its way there, since it is too fast to be affected by any one of the NERA plates, and the NERA plates themselves offer too little resistance, since they are (usually) made from some plastic or elastomer sandwiched between two thin metal sheets. Because of this, there will be a hole in the second plate, third plate, fourth plate and every other plate behind it all the way to the main armour if attacked by a serious large caliber anti-tank missile. This would presumably make the NERA array of an early M1 Abrams highly vulnerable to tandem warheads.

Some tandem warheads have precursor shaped charge with a shallow cone angle like the type found in the PG-7VR, Panzerfaust 3-T, and in many other designs, including guided missiles like the Kombat. The precursor shaped charge in a tandem warhead would simply fail to penetrate all the way through, or not penetrate much at all in the case of tandem warheads that work on the principle of bypassing the reactive armour rather than destroying it. Case in point: patents for tandem warheads like Patent US5415105 A by Dynamit Nobel Aktiengesellschaft (manufacturer of Pzf. 3-T) have outright stated that:

"When firing against ERA-boxes, such boxes were penetrated by the preliminary charge so that the jet from the main charge could flow almost undisturbed through the hole in the box generated by the preliminary charge."

And the official website of Dynamit Nobel says this about the Panzerfaust 3-T:

"The warhead of the Pzf 3-T is designed in such a way that the first of both shaped charges immediately penetrates the add-on armour without initiating the explosive contained therein. Less than one millisecond later, the main charge of the tandem warhead ignites and thereby immobilises the vehicle. The shooter therefore is not exposed to fragments thrown back from a reactive protection element."


In such tandem warhead designs, a hole is created without detonation of the ERA block due to the low energy of the shaped charge jet, owing to the shallow cone angle of the precursor warhead which produces a large diameter, low velocity jet. A large diameter, low velocity jet has less energy and spreads the force of impact more widely over the ERA block, thus preventing its detonation. There are proposals to use non-metal shaped charge liners to further enhance this quality, but it appears that copper or brass liners for precursor warheads are still the norm.

Besides this, other tandem warheads may have a high penetration precursor shaped charge. Such designs may protect the primary shaped charge from being damaged by the flyer plates of the ERA block by extending the delay of the detonation of the primary shaped charge so that the flyer plates have flown clear of the path of the primary shaped charge jet. This is described in detail in Russian Patent 2062439. The TOW-2A, for example, relies on detonating the ERA block to clear a path for the primary warhead, as you can see by the high angle liner for the precursor shaped charge in the diagram below (from official U.S government document, acquired by armamentresearch).




In any case, the thick front wall of the turret cavities of the T-72B turret protects the NERA array within from the influence of tandem warheads, though the same cannot be said of any externally mounted reactive armour blocks. However, the power of the primary charge of the tandem warhead of modern anti-tank missiles may still be a challenge for many parts of the T-72B turret base armour.


Also, recall that there are diminishing returns when multiple NERA plates are installed in an armour array, so it may not be advantageous to install 6, 7 or 8 NERA plates in a composite armour array but place a relatively thin main armour plate behind it. Such an array would be incredibly effective against individual shaped charges of all sizes, but incredibly ineffective against a KE penetrator.


Besides the effects of bulging armour, we must also not ignore the fact that the thick 21mm front plates make a substantial contribute as both spaced armour and to aid in increasing the effectiveness of the bulging plate by decreasing the jet tip velocity. Reading "Spaced Armor Effects on Shaped Charge Jet Penetration" by researchers from the Nanjing University of Science and Technology, we learn that the space in spaced armour may actually increase the penetration of the shaped charge jet if the air gap corresponds to the optimal stand off distance of the shaped charge. Beyond such unlucky coincidences, increasing the size of the air gap is not as beneficial as compared to increases in the thickness of the spaced plates.


Here is the conclusion of the paper, verbatim:

(DOP = Depth Of Penetration)

"The effect of the distance and plate thickness of spaced armor on penetration was analyzed. For a spaced armor plate with a given size, DOP decreased with the increase in the distance between the first and second plate. However, within a certain stand-off range, DOP did not decrease with an increase in distance mainly because of jet stretch, which created increasing penetration on the penetration vs. stand-off curve. When the distance was constant, DOP decreased with an increase in spaced armor plate thickness."


The paper also details the changing physical condition of the shaped charge jet as it impacts and exits the spaced plates. It is noted that "During the process of target perforation, the jet was compressed, which increased the jet tip diameter. Upon leaving the first target plate, relief of the compressed material occurred, which led to further expansion of the jet tip". Needless to say, an increase in the jet tip diameter and its partial particulation are not very beneficial to the penetration power of the shaped charge jet, but not only that; as noted beforehand, Dr. Held's research showed that "robust" jets with larger diameters but lower velocities performed more poorly against bulging armour.



The RHA plates used in the experiment were 10mm thick, angled at 69 degrees - analogous to the spaced steel plates in the T-72B glacis. It is stated that the original jet velocity at the point of formation was 6.5 km/s, decreasing to 5.3 km/s as it exited the first plate, further decreasing to 4.8 km/s as it exited the second plate. In other words, the first plate decreased the velocity of the jet by 18.46%, and the second plate by 9.4%. The smaller reduction offered by the second plate is likely due to the stretching of the jet - the first plate was not thick enough to particulate the jet and halt stretching. Since we have already established that the heavy front wall of the turret cavity (up to 130mm LOS thickness) will substantially decrease the velocity of a shaped charge jet before it even impacts the thick front wall of the NERA plate, it is clear that the jet will be particulated, slow, and therefore highly vulnerable to the bulging plates in the turret cavity when it finally reaches them.

In addition, the shaped charge jet will most likely be disrupted and particulated as it leaves the first NERA plate, leaving only a section of the jet tip travelling at hypervelocity to continue through the array. The jet tip will probably escape the bulging effect of any subsequent NERA plate past the first or perhaps the second plate in an array of typical NERA sandwiches, but the thick steel wall of the NERA plates in the T-72B turret may reduce the velocity of the jet tip before it impacts the next bulging plate. Reducing the velocity of the jet tip may enable the bulging plate to disrupt the tail part of the jet tip segment, which will probably not result in a big reduction in penetration, but in theory, there should at least be some small contribution. The thick walls also help stop the jet tip by acting as spaced armour.



AGAINST LONG ROD PROJECTILES


NERA works in a similar way against long rod projectiles. In this context, the Soviet style NERA is clearly more suitable than a traditional sandwich configuration, thanks to the heavy front plate if nothing else. One conceivable advantage of the Soviet NERA design is that the heavy front plate enables energy to be transmitted to the rubber interlayer before the projectile impacts the rubber itself, and this may be a major source of energy for the interlayer. Typical NERA sandwiches with plastic interlayers may find themselves neatly perforated without substantial energetic expansion.

The movement of the bulging plates in the T-72B turret may induce lateral movement and produce internal stresses in a long rod penetrator. The addition of a sideways velocity component in a long rod penetrator can lead to yaw.

According to "The Relation between Initial Yaw and Long Rod Projectile Shape after Penetrating an Oblique Thin Plate" authored by Israeli researchers, even one degree of yaw before striking a thin angled plate would significantly reduce that projectile's penetration potential against any armour behind that plate as a result of the deformation of that projectile.




The two x-ray photos above show the same high elongation tungsten alloy rod interacting with an oblique armour steel plate with 1 degree of yaw, and no yaw. The rod with no yaw lost its tip as the result of breakout effects, but survived mostly unscathed. The rod with 1 degree of yaw, on the other hand, is seen visibly bent and the tip has been violently dislodged. It is visible just above the new tip of the remnant rod. The combination of oblique spaced armour and NERA in the turret of the T-72B may work in that direction.

The greater the yaw, the greater the negative effect. The hard steel strike plate (45mm) behind the NERA array is angled in the opposite direction to the angle of the NERA panels, so that as the long rod penetrator passes through each panel is becomes increasingly deflecting away (both due to deflection from the bulging plates and due to the natural tendency of long rod penetrators to tunnel inwards into the plate), the relative angle between the rod and the strike plate continually increases. Be reminded that there are at least five bulging modules in the projectile's flight path if the turret is shot head-on. Each individual bulging module works with the next module directly behind it to place the penetrator under great stress, causing it to bend, and perhaps fracture as it passes through the multi-layer array.


According to German tank expert author and lecturer Rolf Hilmes, one method to augment the efficacy of NERA armour against kinetic threats is to incorporate a heavy armour plate in front of the NERA array, so that the penetrator is shattered or fractured before it enters the array. This is the function of the heavy cast steel front plate of the turret cheeks. In later iterations of the T-72B, this effect is augmented by Kontakt-5 reactive armour, so that the NERA array in the turret is highly amplified.

If and when the projectile has gone through all of the NERA panels, it will meet the hardened rolled steel plate backing. Angled at 55 degrees to the horizontal axis, the 45mm plate measures 78.45mm. However, the function of the plate is much more significant than its mere thickness suggests, since the projectile that will be striking it will no longer have an optimal shaping, meaning that this plate could function to totally outright shatter the already fractured and damaged penetrator. The dissimilar hardnesses of the 45mm steel plate and the 90mm cast steel wall behind it turns it into a DHA (Dual Hardness Armour) regime, making it inherently stronger and more resilient than a single monolithic RHA plate of the same total thickness, so that the mass efficiency is more than 1.0.


Note that bulging armour shouldn't be specially affected by projectiles with impressive length/diameter ratios by any great amount. In fact, it's quite possible that greater aspect ratios will actually increase the effectiveness of the array compared to a penetrator of the same mass but lower aspect ratio as it would make bending and fracturing it easier, because the stiffness is decreased while the material properties of the rod remain the same. Snapping of the rod is possible because of the forward momentum of the projectile, which naturally resists a change in the direction of motion. Pressure builds up in the rod due to the large forces opposing each other, and if there is a weakened point in the rod, a plastic hinge point where a segment of the rod may break off is formed. Of course, a stubbier rod would also penetrate less armour overall, so the solution lies within increasingly elongated rods with multiple segments rather than shorter and fatter rods.


Also, a rather important point related to the effectiveness of the NERA array in the turret is its ability to perform when hit at less than optimal angles, especially considering the regularity in which tanks are hit from the flank. The answer is that the NERA plates would work even better at steeper angles, as it would be if the turret was struck from the side, although that is not to say that the tank is better protected from the side. Not at all; against shaped charges, the array would still have more to lose than gain since fewer bulging modules would be in the path of the shaped charge jet. It is in this situation that the high hardness steel front plates of the NERA plates again become particularly useful as the thickness of the steel plates will further increase due to the steeper angle. From an angle of 30 degrees to the side of the turret, a pair of 21mm front plates would yield a total LOS thickness of 240mm in thickness, having a slope angle of 80 degrees. Besides increasing the LOS thickness of the armour array, the high obliquity of the spaced plates at this turret angle ensures high resistance to long rod projectiles because the angle of 80 degrees is very close to the critical ricochet angle of very high elongation long rod projectiles in the 1,400 m/s to 1,500 m/s velocity range, and is the critical ricochet angle for almost all 105mm APFSDS shells. The effect of high obliquity on long rod penetrators has already been thoroughly explored in the previous section regarding the upper glacis armour of the T-72B, so there is no need for further exposition here. Still, it is important to note that the cast steel front armour of the cavities conditions long rods for defeat by the internal spaced NERA armour in the same way as the heavy front plate of the glacis array.


From what has been demonstrated through the rationalizations earlier, it is apparent the effect of a partial ricochet on a long rod penetrator at an angle very close to the critical ricochet angle is catastrophic, and effectively reduces the penetration of the residual rod to only a small fraction of its original capacity due to severe deformation, yaw, and fracturing. This perfectly illustrated in the picture below, taken from the study "Analysis of Critical Ricochet Angle Using Two Space Discretization Methods". The tungsten alloy rods used for the experiments and simulations was 7mm in diameter and 75mm in length, and the impact velocity was 1,000 m/s. The obliquity of the plate in this particular example is 76 degrees, and the plate was 6.25mm in thickness (less than one rod diameter).




As we have already learned from our earlier examination of the spaced armour in the upper glacis of the T-72B obr. 1985, the obliquity has a much greater effect on a penetrating long rod projectile than the layman may assume. In short, we can say with confidence that the T-72B is virtually impenetrable from a frontal 70-degree arc by contemporary 105mm APFSDS unless the weak gun mantlet was hit, and the resistance to 120mm APFSDS is also extremely high.



PROTECTION ESTIMATE



As with all composite and spaced armours, the complex operation of the T-72B's armour does not truly allow an expression of its protection value in the simple terms of homogeneous RHA plates, especially with regards to KE threats. Generally speaking, T-72B is immune to practically all single charge HEAT missiles like the HOT missile across the frontal arc due to the combination of its NERA armour and Kontakt-1, with the only exception being the devastating 300mm diameter shaped charge of the WDU-20/B warhead on a Maverick missile, although this is meaningless since the 136 kg HE-Frag warhead of the WDU-24/B variant would be just as effective at destroying the tank.


A very basic estimation of the total steel thickness of the turret cheek against shaped charges and long rod penetrators can be done by adding up the LOS steel thickness of all the plates from a frontal view. First, we add up the 130mm cast front wall with the 157mm cast steel rear wall and 78.5mm high hardness backing plate, and then we add the LOS thicknesses of four 21mm high hardness steel plates. The areal density of this armour array is approximately 4,160 kg/sq.m from a 0 degree frontal view at the turret cheek directly in front of the crew positions. The areal density decreases towards the gun mantlet and increases towards the edge of the turret.

As we have seen earlier, high hardness steels actually perform worse than normal RHA steel against shaped charges but perform much better than normal RHA steel against long rod penetrators, but if we ignore every benefit that the nuances of the armour array brings and only use simple modifiers for the cast and high hardness steels (0.9 for cast armour, 1,1 for high hardness armour), then the relative mass of the turret cheek should be equivalent to around 521mm RHA against KE and 530mm against HEAT in pure thickness alone, ignoring the mass of the 3mm bulging plates of the NERA panels. This is reasonably close to the claimed protection value of 550mm against a KE projectile (Tekhnika i Vooruzhenie Magazine, November 2006 issue, p.14) considering that we are simply adding up the thickness in pure steel and ignoring the benefits of the spaced armour configuration, the NERA armour, and the different hardness of the steel plates inside the array. Since jet disruption is the primary mechanism of bulging plates, the actual protection offered by the T-72B turret cheek must be much higher than this. Based on the earlier discussion on the design and operation of NERA, the mass efficiency coefficient of Russian "multi-layered armour" incorporating NERA against HEAT should be 1.4. Treating the turret armour of the T-72B as such, we can multiply the mass of the armour - 551mm in terms of steel including four 3mm bulging plates - by 1.4 to obtain 771mm, so it appears that the armour is worth around 770mm RHA against shaped charge warheads. The mass of the rubber interlayer of the NERA panels is ignored as it is insignificant compared to the margin of error of our estimation.


In general, this level of protection is sufficient for common anti-tank missiles and most shoulder-fired anti-tank grenades, but it cannot be considered truly comprehensive. By the mid 1980's, the MILAN 2, TOW-2, HOT, and "Hellfire" missiles with a high penetration power constituted the primary threat for Soviet tanks like the T-72B. Even shoulder-fired weapons became much more formidable - in 1985, the Panzerfaust 3 began low rate production. Weighing in at 2.3 kg, the 110mm caliber warhead of the DM12A1 round fired from the PzF 3 is claimed to be capable of penetrating "steel armor of approximately 800mm thickness" by Dynamit Nobel Defence in a brochure published in August 2010 (page 13), but it is not clear if DM12A1 existed when the system began pre-series production in 1985. It is documented in a JPRS (Joint Publications Research Service) report from December 1987 (pages 17, 19) that Dynamit Nobel representatives credited the PzF 3 with "penetrating armor more than 700mm thick", which is not entirely consistent with the claim of 800mm of penetration. Either way, the turret of the T-72B would struggle to reliably resist attacks from such weapons. Of course, the curvature of the turret causes the relative thickness of some parts of the turret cheeks to increase drastically near the edges, but the projected area of these zones is lower compared to the rest of the turret. From these examples, it is clear that Kontakt-1 is not merely a supplement for the considerable armour of the T-72B but a necessity given the gravity of the threat posed by contemporary NATO weapons.

After the dissolution of the USSR in 1991, a variety of ex-Soviet hardware found its way into foreign hands. A large number of T-72B tanks were shipped over to the U.S and extensively examined along with other T-72 models as well as samples of Kontakt-5 reactive armour, and T-80U tanks equipped with Kontakt-5 were thoroughly examined in Sweden. As a result of this unprecedented insight into Soviet tank armour, the DM22 round for the Panzerfaust 3-T (Tandem) was developed in 1998 to defeat a "T-72 with ERA" and the DM72 round for the Panzerfaust 3-IT (Improved Tandem) was developed in the same year to defeat the T-80U with ERA. The DM22 warhead features 800mm of penetration behind ERA and the DM72 warhead features 900mm of penetration behind ERA. Of course, it is immediately obvious that this shows the existence of a gap between the protection level of the T-80U and the "T-72", and also that it implies a certain level of protection for the two tanks. Based on our knowledge of the level of protection offered by the various T-72 models in existence, the "T-72" must be a T-72B by default as no other model has enough armour to require such a powerful warhead. Based on this, we can be reasonably sure that the T-72B does not have an effective armour thickness of 800mm. This lends credence to the estimated protection value of 770mm RHA for the T-72B turret.


Besides the base armour alone, Kontakt-1 is installed as a standard feature on the T-72B and it is known that the reduction in penetration offered by Kontakt-1 at 0 degrees obliquity is 55%, so we can multiply 551mm with the reciprocal of 0.45 to get 1,224mm RHA (we are ignoring that the surface of the T-72B turret is not actually flat). This represents the effective armour thickness of the armour if we treat it as a monolithic armour block. When the armour is treated as a NERA array as it should be, the actual effective thickness would be 771mm RHA multiplied by the reciprocal of 0.45, which is equal to 1,713mm RHA. From a 30-degree side angle, the effective thickness would be reduced to around 660mm RHA.


According to a presentation by Rolf Hilmes, the first generation of armour (known as the "B" package) used in the Leopard 2 series had an areal density of ~3,500 kg/sq.m for the frontal armour, equivalent to ~450mm of RHA steel in weight. It is known that the turret cheeks and hull upper glacis armour were equivalent to 700mm RHA in protection against shaped charges in a relatively narrow frontal arc. Depending on how the numbers are handled, the mass efficiency coefficient of the armour can be as low as 1.46 or as high as 1.5. Efficiency aside, all three tank turrets are capable of resisting a contemporary anti-tank missile (exemplified by a Milan) in a 60 degree frontal arc and can be considered roughly equal, ignoring the Kontakt-1 on the T-72B. With Kontakt-1, the T-72B easily outstrips any other NATO tank of the time in terms of shaped charge resistance.

Against KE threats, it would be extremely difficult to imagine that the "more than 550mm" claim was incorrect considering that the hull armour of the T-72B obr. 1985 is equivalent to around 560mm RHA against a monobloc long rod penetrator with a high aspect ratio. In typical Russian fashion, the 550mm RHA figure against KE threats almost definitely refers to the protection at a ~30 degree side angle and not at 0 degrees, but since the behaviour of NERA and spaced armour is anisotropic, it is not possible to simply divide 550mm by the cosine of 30 degrees to obtain the effective protection level from a head-on frontal view so an accurate estimation cannot be made this way. Figuring out the mass efficiency of the armour is also complicated by the use of cast steel along with the rolled high hardness steel plating and the spaced NERA panels implemented in the armour design. With so many factors to consider at the same time, it is practically impossible to come up with a reasonably correct estimation as the margin of error is simply too high. A reasonable guess is that the armour has a similar effectiveness to the thinner but much more efficient T-80U turret. Considering that the T-72B turret armour array has a weight equal to 530mm of steel and measures 650-700mm in LOS thickness, a ballpark figure of 600mm RHA appears to be completely plausible as it not only implies a rather modest mass efficiency of only 1.089, but it is also not much higher than the claimed effectiveness of "more than 550mm".


Based on available information, both the turret cheeks and the upper glacis armour would be able to handle M833 (1983) very well, as the M833 is less impressive than the M829 but still slightly better than 120mm DM23. For reference, M833 has a 24mm diameter, 427mm long DU penetrator, travelling at 1495 m/s. Seeing as it would have been the most common ammunition available to M60A3 and M1 Abrams tanks, this is rather important. Latecomers like the M900 (introduction in 1989 to 1990) would still be worse than its more powerful 120mm counterparts like the M829A1 as it has a lower muzzle velocity (1500 m/s) even compared to the relatively slow M829A1 and it does not have a superior aspect ratio. For reference, the M900 has a 23mm diameter, 603mm long DU penetrator. The penetration of the German 120mm DM23 and DM33 tungsten long rod projectiles appear to be insufficient at combat ranges, being less than the physical thickness of the steel in the turret array. M829A1 has the best performance among all other 120mm tank gun rounds at the time of its introduction and for the remainder of the Cold War. It is guaranteed to defeat the armour at combat distances.

The turret cheek cavities offer a great deal of modularity and repairability. The NERA panels are simply inserted into the turret cavity one by one. In the field, replacing the bulging armour is a simple matter of cutting off the top at the weld lines (very distinctly seen in the picture below), putting new panels in, and replacing the top. This makes battle damage comparatively easy to repair and also simplifies the installation of upgraded armour inserts in the future, unlike the earlier T-72A which did not have a replaceable insert. The penetration of the "Kvartz" filler in the turret of the T-72A would create voids which cannot be mended because the fillers are prefabricated as complete blocks and incorporated into the turret cheeks during the casting process of the turret itself.




Aside from that, it must be noted that despite the huge leap in protection relative to the previous T-72 models, the T-72B turret is still as simple to produce as its predecessors since no new technologies were needed to cast the turret and the workmanship required to process the cast turret does not demand any new skills or any retraining. The sheer commodity of steel and rubber makes it very easy and inexpensive to fabricate the NERA panels of the T-72B and the bonding of the rubber to the steel plates is done using only glue. The highly economic design is undeniably an important asset during wartime as it would have ensured a very high volume of production even in the hardest times. Indeed, it is worth noting that the peak of T-72 production in Uralvagonzavod was in 1985 - the year the T-72B obr. 1985 entered mass production.



KONTAKT-1




Coming out of the factory, all T-72B models except the obr. 1989 are outfitted with a set of 227 blocks of Kontakt-1 covering the most of the hull and the forward arc of the turret as well as the turret roof. As discussed earlier in the section regarding the ERA armour on the T-72A, each block can reduce the penetration of a shaped charge warhead by an average of 55% at 0 degrees, and by up to 80% when angled at 60 degrees. NII Stali claims that it can reduce the penetration power of a typical anti-tank missile like the Konkurs (130mm diameter) by up to 86%, or 58% for a 125mm HEAT shell, or up to a whopping 92% for lower velocity shaped charge warheads like the one on the 66mm LAW.

The most important benefit of Kontakt-1 is that the sides of the hull are now given adequate protection from shaped charge weapons, but other weakened zones are also reinforced in the same way. The turret roof, for example, has a LOS thickness of only 210mm at the weakest zones. Adding Kontakt-1 to these areas immunizes them from the vast majority of shaped charge weapons, especially considering that the slope of the roof is 78 degrees which is very steep indeed. At such a high obliquity, a penetration loss of over 90% can be expected, making it difficult or perhaps even impossible to defeat the roof armour with any contemporary single-charge HEAT warhead.


According to NII Stali, the percentage of the tank surface covered by Kontakt-1 is as follows:

Turret Hull Front Hull Sides
62%
82%
32%


The weight of the Kontakt-1 blocks over the three individual surfaces for a T-72S are as follows:


Turret Hull Front Hull Sides
422 kg
288 kg
300 kg


The total weight of the Kontakt-1 set for the T-72B is 1,310 kg, 110 kg more than on the T-72A. There are 46 blocks on each side skirt, 63 blocks on the upper and lower glacis plates, and 72 blocks on the frontal arc of the turret and turret roof.

Unlike the T-72A, the arrangement of blocks on the T-72B provides better coverage at the cost of somewhat reduced effectiveness. As mentioned earlier, the blocks on the T-72A are mounted on special metal frames to form a wedge shape around the circumference of the turret cheeks, allowing the reactive armour to perform up to its maximum potential at a high obliquity. However, this arrangement left the turret ring and much of the mantlet area unprotected, a problem which can be considered solved in the T-72B, even though the blocks are less effective due to the low angle of the mounts. The Kontakt-1 blocks on the turret ring of the T-72B are mounted on rails and are easy to remove. They are often removed when not needed during peacetime so that the driver is not obstructed when his head is out of the hatch while driving. The photo below shows Kontakt-1 on the turret ring and on top of the gun, but nowhere else.




The presence of Kontakt-1 on the turret ring area is important considering that the turret ring lacks a composite filler for structural reasons and the bottom edge of the turret ring area has a reduced thickness of steel to accommodate the turret ring race ring. As such, the resistance to shaped charges is limited to whatever thickness of cast steel is present at the point of impact.

As stated before, Kontakt-1 blocks are often left unfilled when the tank is used on exercises and when it is placed into long term storage. Sometimes, the blocks are taken off altogether.





KONTAKT-5





Kontakt-5 is classified as integrated reactive armour as opposed to add-on reactive armour like Kontakt-1. Being somewhat heavier and more powerful than Kontakt-1, it was not possible to simply bolt the Kontakt-5 reactive armour panels onto the tank, thus necessitating the installation of the panels onto the base armour by welding. The panels on the upper glacis are particularly interesting because the tow hooks are welded on top, showing that the reactive armour is an integral load-bearing structure of the hull. Thus, it could be argued that the thickness of the armour should be included in the total thickness of the upper glacis. In this case, the physical thickness of the upper glacis of the T-72B obr. 1989 at the zones covered by Kontakt-5 would be 265mm and the LOS thickness is 707mm.

The only way to remove them is to cut off the plates at the weld seams, so it is only possible to remove the panels if the tank is at a depot or if a BREM-1 recovery vehicle is available. If a panel is spent, a new one is simply welded in its place. A complete set of Kontakt-5 weighs 1.5 tons, most of it from the heavy steel plating. A T-72B equipped with Kontakt-5 would weigh around 46 tons dry, and a combat-loaded T-72B obr. 1989 should weight between 48-49 tons based on the verified information from Uralvagonzavod that the T-72B3 weighs 48.8 tons. NII Stali claims that the total area of the tank protected by Kontakt-5 from a frontal view is 55%. The hull is 45% covered when viewed from a sideways angle of 20 degrees. The turret is 45% covered at a sideways angle of 35 degrees. Atrocious as it may seem, these figures still do not tell the whole story; a large part of the unprotected area is at the turret ring area and gun mantlet, which is the center mass of the tank. This problem was partially solved in the T-72B3 modernization where another three Kontakt-5 panels was installed on the turret, but even so, the coverage is not particularly good as you can see from the photo below. While it may have been a novel application for explosive reactive armour, Kontakt-5 was certainly not a panacea.






Although Kontakt-5 is also used on the T-80U, there are actually a few distinct variants of Kontakt-5 that all differ in the exact construction but operate on the same basic unifying principle. The Kontakt-5 reactive armour package used on the T-72B obr. 1989 is unique to itself and the T-90 based upon it.


There is sufficient information in the public domain for us to simulate the interaction between Kontakt-5 and many modern long rod projectiles. Equipped with the theoretical models designed by Dr. Manfred Held and H.S Yadav, among others, it would be rather simple. However, that is not the aim of this examination. Instead, the aim is to gain an accurate understanding of Kontakt-5, its many intricacies, and the paths taken by Soviet engineers more than 30 years ago.




4S22 EXPLOSIVE ELEMENTS


Kontakt-5 was designed to use 4S22 explosive elements, as opposed to 4S20 which was used in Kontakt-1. 4S22 is an improvement over 4S20 in every way. Chemically, the PVV-12M plastic explosive used in 4S22 is composed of 85% RDX and 15% inert phlegmatizing agent, similar to 4S20. However, 4S22 retains its ductility at a slightly expanded temperature range of -50°C to +50°C, and 4S22 has a higher flash point of 300°C, making it more resistant to napalm.


The manual for the tank and NII Stali both state that the total number of 4S22 explosive elements installed in the T-72B obr. 1989 is 240 pieces. Out of 1.5 tons, the total mass of the 4S22 explosive elements is only 329 kg so the heavy welded flyer plates of the reactive armour panels comprise the majority of the mass.




According to an NII Stali information placard shared by Alexey Khlopotov, 4S22 is identical to the 4S20 explosive element in dimensions, measuring in at 252x130x10 mm. The mass of the complete explosive element is 1.37 kg, while the mass of the explosive charge alone is 0.28 kg. The PVV-12M explosive charge has a similar composition as PVV-5A but is denser and more powerful. PVV-12M has a density of 1.5 g/cc and a detonation velocity of 7.76 km/s. Because PVV-12M has a higher detonation velocity compared to PVV-5A and a bigger mass, 4S22 has an explosive power equivalent to 0.33 kg of TNT. The thickness of the sandwich layers are assumed to be the same as the 4S20; a pair of 2.3mm steel plates sandwiching a 5.4mm plastic explosive interlayer. Using the Gurney equation for symmetrical sandwiches, the velocity of the plates of the 4S22 element at the moment of detonation should be around 1.258 km/s.


The anti-shaped charge capabilities of 4S22 on its own was demonstrated on a TV Zvezda show called "Военная приемка" ("Military Acceptance"), in episode "Т-90. Бункер на колесах" (T-90: Bunker on Tracks). The screenshot below, taken at the 18:40 mark of the show, shows the experimental set up used for the demonstration. The 60 kg armour plate used as the target is claimed to be equivalent to the steel used in the T-90 tank, and the so-called "dynamic element" is claimed to weigh 1.37 kg, which means that it can only be 4S22. The shaped charge is similar to the one previously used at the 18:17 mark of the show, which was shown to be capable of penetrating around 200mm of the same type of armour plate in LOS thickness. The targets are angled at 60 degrees.




As you can see in the screenshot below, an imprint of the forwards (in-pursuit) flyer plate is left on the armour plate and the penetration of the shaped charge jet is reduced to practically nothing. The fragments of the particulated jet only gouge the plate and crater the surface.




Evidently, a shaped charge with around 200mm of penetration into RHA can reduced to just a few millimeters by 4S22 at a 60 degree obliquity. This is only a demonstration, however, and not necessarily a scientific one. This is definitely not a demonstration of how much Kontakt-5 can reduce the penetration of a shaped charge, as the 4S22 elements are arranged differently in Kontakt-5.



4S23 EXPLOSIVE ELEMENTS



Part of the T-72B3 obr. 2016 modernization involved the replacement of the 4S22 elements in the built-in Kontakt-5 panels on the hull with 4S23 elements which were originally developed for the "Relikt" reactive armour system.




A more detailed examination of 4S23 and the expected nature of its function when incorporated into the old Kontakt-5 panel design will be available in the future.



ANATOMY OF KONTAKT-5 (UNDER RENOVATION)



Kontakt-5 is much more complex than commonly thought. The typical description of Kontakt-5 paints it as a head-on flyer plate design using a thick and slow flyer plate, and that the design is very inefficient as a consequence. Other descriptions mention the high thickness of the flyer plate as a positive thing, as it would "feed more armour into the path of the penetrator" as it passes through the armour, but we already know that that is largely incorrect. In reality, Kontakt-5 propels a total of three flyer plates head-on towards a projectile in a timed sequence to enable the ERA to resist both shaped charge jets and KE penetrators with minimal compromises.




Dr. Manfred Held conducted exhaustive studies on impact initiation, and his works in this subcategory of ballistics are relevant to us now in our examination of Kontakt-5. It is known that when a projectile or shaped charge jet passes through a barrier placed over an explosive charge, a highly energetic burst of spall and fragments is generated at the back surface of the plate and travels towards the explosive charge, thereby initiating detonation. According to a summary on page 8 in "The Legacy of Manfred Held with Critique", Dr. Held observed that an explosive charge directly in contact with a barrier was less easily initiated by a jet impact than a one with an air gap between the barrier and the charge. One of the explanations is that an explosive charge placed in contact with the barrier is exposed in a smaller area than the charge with an air gap between it and the barrier, as the air gap considerably increases the spall cone angle and therefore the area of the explosive charge exposed to the spray of spall and fragments emerging from the back surface of the barrier. This is supported by a later study titled "High Explosive Initiation Behavior by Shaped Charge Jet Impacts", where it was reported that an explosive charges with a gap between it and the steel barrier will detonate in the impact initiation mode, whereas an explosive charge in contact with the steel barrier detonates in the penetration initiation mode. This essentially means that when an air gap is present, the explosive charge detonates promptly whereas the lack of an air gap requires the shaped charge jet to penetrate far into the charge to initiate detonation. In practical terms, we can safely say that having an air gap decreases the reaction time of Kontakt-5 to shaped charge jets, and thus improves its effectiveness at disrupting the shaped charge jet.

These results apply for both bare explosive charges as well as cased charges (charges encased in a steel container), so it is applicable to 4S22 explosive elements. Russian publications have mentioned that Kontakt-5 relies on this phenomenon to achieve detonation when impacted by long rod penetrators. The explanation is that spall is readily produced when a thin and brittle plate of high hardness is struck by a projectile as well as during the penetration process. This is validated by infamous Russian expert and pessimist Mikhail Rastopshin, a former NII Stali scientist, who revealed in an article penned in 2005 that the flyer plate of Kontakt-5 has a high hardness and is very brittle. According to Rastopshin, this facilitates the generation of spall and fragments upon impact and penetration by a long rod penetrator, thus ensuring reliable and quick detonation of the explosive elements. However, this does not mean that Kontakt-5 relies exclusively on the spall from its heavy flyer plate to initiate its explosive content. The brittleness of the flyer plates can be seen in the photo below, where the cracking of the damage flyer plates is extremely evident.





"Test Setup For Instrumented Initiation Tests" by Dr. Held deals with the effects of projectile mass, projectile velocity and barrier thickness on the initiation threshold of encased explosive charges. Held found that adding a barrier in front of the case explosive charge increased the initiation threshold for projectile velocity compared to a plain cased charge, and increasing the thickness of the barrier increased the velocity threshold. This is completely unsurprising, because there is a pressure threshold that needs to be met or exceeded for an explosive charge to detonate, and the spalling and fragmentation of a barrier would transfer only a portion of the energy of a long rod projectile to the explosive charge. The impact of the projectile itself would invariably generate higher pressure for thin long rod projectiles.

This essentially means that the front flyer plate of Kontakt-5 would be detrimental to the reliability of detonation when compared to exposed 4S22 elements. The presence of an air gap in the design of Kontakt-5 would reduce the velocity threshold necessary to initiate detonation due to the increased spall cone angle, but the net effect would still be an increase in the velocity threshold. However, this would not matter if the velocity threshold is within the range of striking velocities for modern APFSDS ammunition. Needless to say, the specific velocity threshold varies between modern long rod projectiles due to the different characteristics of different rounds, so giving a fixed number to represent all long rod penetrators would be misleading. We can only estimate that this threshold encompasses the striking velocities of typical long rod projectiles at combat ranges of 1.5 to 2 km.



In short, if the velocity and mass threshold of the projectile is sufficient, the air gap between the heavy front plate and the explosive elements in each Kontakt-5 module will have the effect of shortening the reaction time of the system against shaped charge jets and facilitates the action of Kontakt-5 against long rod projectiles. For shaped charge jets, the quicker reaction time enables the flyer plates to intercept the tip of the jet and more of the body, thus preventing much of the hypervelocity tip from continuing into the main armour. This explains the very high reduction in shaped charge warhead performance against Kontakt-5 of up to 80% despite having fewer flyer plates and the use of head-on flyer plates rather than a mix of head-on and in-pursuit flyer plates like Kontakt-1.

The confined nature of the Kontakt-5 panels also improves their chance of detonation for a wider range of shaped charge jet velocities. Held observed that confined explosives have a lower threshold between detonation and reaction and between reaction and no reaction for significantly lower shaped charge jet velocities. The confinement would be partially from the built-in steel case of the 4S22 element itself and from the thick walls of the Kontakt-5 panels. If the velocity threshold for detonation from spall and fragmentation is not attained, the explosive elements can still be initiated by the direct impact of the projectile.

According to "A numerical study on the detonation behaviour of double reactive cassettes by impacts of projectiles with different nose shapes", the detonation of a double stack of explosive cassettes (elements) by high velocity long rod steel penetrators can be prevented by changing the shape of the nose. The paper is highly relevant to our study on Kontakt-5 as the double stack of explosives modeled in the same arrangement as the 4S22 explosive elements in Kontakt-5, and the mechanisms that dictate the initiation of the explosive charge are explained in full.

Steel rods were used in the simulations detailed in the study. The striking velocity of the rods was 1800 m/s. The explosive elements used in the simulations were roughly analogous to 4S22. The Composition B filler in the explosive elements in the study had a thickness of 7mm, and were encased in steel walls 2mm thick. Needless to say, the Composition B explosive charge used in the study is not directly comparable to PVV-12M, as PVV-12M has a much higher phlegmatizer content and is therefore much less sensitive to impact, but detonating 4S22 elements by direct impact from long rod projectiles is still completely plausible.




The main method of initiating detonation is by shock. The study "The Shock-to-Detonation Transition in Explosives - an Overview" gives a concise explanation of this phenomenon. In short, the impact of an object on the surface of an explosive charge produces a shockwave. The shockwave accelerates deeper into the explosive charge and detonation occurs after the shockwave has travelled a certain depth into the charge, and this depth is called the run distance to detonation. The run-to-detonation differs between explosives, but as a rule, the thickness of the charge must be equal to or greater than the run-distance of the explosive in order for the charge to detonate by this method.




It also found that reducing the velocity of the flat-nosed rod from 1800 m/s to 1700 m/s effectively prevented the initiation of a run-up detonation, but detonation was still achieved from the reflection of the shockwave of impact from the backplate of the explosive element and the build-up of pressure from the compression of the explosive material against the backplate. This effect is undoubtedly reinforced in Kontakt-5 by the placement of the 4S22 elements flush against the surface of the glacis plate, and by the fully contained nature of each Kontakt-5 panel. As detailed in the summary of the paper, the backplate effect is independent of the run-up detonation, and is therefore also independent to the spall effect. It was possible to avoid this effect with hemispherical noses as the build-up of pressure was followed by the displacement of the pressurized explosive material away from the path of the rod, so the pressure was insufficient to initiate detonation. The fact that a small reduction in velocity from 1800 m/s to 1700 m/s was enough to prevent detonation of the Composition B charge by the conventional run-to-detonation method indicates that PVV-12M would most definitely not be initiated even at higher striking velocities due to its low sensitivity. This essentially leaves the shockwave reflection effect solely responsible for initiating Kontakt-5 in the case of a failure to detonate from the spall effect.

There is less unpredictability with shaped charges, as the incredibly high pressure imparted onto an explosive charge upon impact and during penetration by a typical shaped charge jet practically guarantees detonation under any condition. The spall effect from the heavy flyer plate of Kontakt-5 merely reduces the reaction time of the system.


Although Rastopshin is entirely correct in his suggestion that Western long rod projectiles may defeat Kontakt-5 via their relatively low striking velocity, decreasing the velocity of the projectile has a negative effect on its penetration power, and this limits its ability to defeat the base armour. As such, the only truly viable methods of defeating Kontakt-5 are to have a special tip or to have a segmented penetrator. Indeed, modern APFSDS shells fielded by the major leaders in the field - Germany, Israel, U.S.A - are fired at their optimal velocities to maximize their penetrative power, rather than at velocities that are low enough to bypass reactive armour. The best example of this is the introduction of the Rh 120 L55 cannon in Germany to increase the muzzle velocity of existing 120mm APFSDS ammunition when fired from upgraded Leopard 2 tanks. Even the M829A3 - which is rumoured to be aimed at defeating Kontakt-5 via its low velocity of 1670 m/s - almost certainly has a relatively low muzzle velocity because it is closer to the optimum velocity for its particular alloy of depleted uranium. The graph below, created by Willi Odermatt (a well known scientist specializing in terminal ballistics), shows the relationship between the penetration depth of a generic long rod penetrator for generic alloys of depleted uranium, tungsten alloy and steel. As you can see, the optimum velocity for depleted uranium penetrators is generally lower than tungsten alloy.




From this, it is apparent that the defeat of Kontakt-5 by low velocity impact is currently not being pursued by Western militaries, and is not a feasible solution for the future. Indeed, the renowned German military expert, lecturer and author Rolf Hilmes stated that DM53 has a three-part penetrator and is specially designed to deal with composite and reactive armour, and it is reported that the DM53 is optimized to be fired from the L55 cannon, which allows it to attain a muzzle velocity of 1752 m/s. While this is not the optimum velocity for tungsten alloy long rod penetrators, that is only because the optimum velocity is unattainable with current generation tank guns.

Nevertheless, it is clear that the detonation of the explosive elements in Kontakt-5 is not always guaranteed. Special nose shapes on APFSDS projectiles may be able to reduce the pressure exerted on the explosive charge or prohibit the complete detonation of the charge. Russian engineers were fully aware of this fact, as proven by evidence of numerous experiments conducted in the USSR aimed at penetrating explosive elements without detonating them.




During the development of Kontakt-5, Soviet engineers spared no expense to find ways to overcome their own brainchild. According to Rastopshin, experiments have confirmed that long rod projectiles travelling at low velocities do not cause detonation of reactive armour from barrier spall. Another effort was aimed at modifying existing high velocity APFSDS rounds to defeat the armour. One of the successful solutions took the form of a protruding steel probe of small diameter installed on the tip of a specially modified 3BM-22 "Zakolka" shell.




As part of our analysis, we will once again refer to "Test Setup For Instrumented Initiation Tests" by Manfred Held. The paper deals with the effects of projectile mass, projectile velocity and barrier thickness on the initiation threshold of encased explosive charges. From his findings, we can surmise that the function of the small steel probe was to avoid the detonation of the explosive elements by presenting a small impact area, whereby the relative mass of the projectile impacting the front plate of the Kontakt-5 panel is minimal, thus preventing detonation from the spall effect. The subsequent detonation of the explosive elements from the direct impact of the rod itself might also be prevented in the same manner if the small steel probe could survive the penetration of the front plate. This is merely speculation, of course, so please do not take this explanation as concrete fact.


As the double stack of 4S22 explosive elements is pinned to the backplate of the reactive armour module, a reliable detonation of the explosive elements should be expected from a long rod projectiles with flat noses. Examples of such projectiles include the 3BM-32 "Vant", 3BM-42 "Mango", DM13 (120), DM23 (120), DM33 (120), DM23 (105), DM33 (105) and many more, including older projectiles. Information on the behaviour of projectiles with stepped tips like the M111 and the M829A2 is not easily found in the public domain, but it is known that stepped tips are used to dampen the shockwave travelling down the rod at the moment of impact to reduce the severity of the damage to the rod. How this affects the reliability of detonation is not known, but it is probably safe to assume that it is negligible, since the military-scientific industry of the USSR had access to captured M111 shells during the development of Kontakt-5.

From what we now understand of Kontakt-5 and the methods of overcoming it, it should be immensely clear that there are no modern long rod projectiles currently in use that are specifically aimed at defeating Kontakt-5 by low velocity or by low contact area, and this generalization includes some of the most modern ammunition such as M829A3 and DM53. M829A3 overcomes Kontakt-5 primarily via a two-part segmented penetrator with a steel segment at the tip, and DM53 overcomes Kontakt-5 via a segmented penetrator as well, albeit with three shorter tungsten alloy segments instead of a single longer steel segment at the tip. It should also be clear now that the M829A2 has no special provision for defeating Kontakt-5 by low velocity or low contact area, despite widespread rumours that it was designed as a special countermeasure to Kontakt-5. A simple comparison of muzzle velocities between the four members of the M829 series confirms this: the M829 travels at 1,670 m/s at the muzzle, M829A1 has a reduced velocity of 1575 m/s, and the M829A3 is only slightly slower than M829A1 at 1555 m/s. M829A2 has a muzzle velocity of 1,675 m/s and a penetrator diameter equal to the M829A1.

With the initiation of the reactive armour being all but unavoidable, the objective of M829A2 was to minimize the damage taken from the flyer plate of Kontakt-5. To that end, M829A2 was made from a new depleted uranium alloy that was more ductile and possessed higher yield strength, making it more resistant to bending and fracturing. That said, this approach cannot be described as a special provision to deal with Kontakt-5. The need to improve the ductility and yield strength of heavy alloy long rod penetrators had always been a requirement, and the use of metal jackets over long rod penetrators like on the Soviet "Mango" projectile is a consequence of an inability to create a sufficiently ductile and strong alloy. Having already discussed the protection mechanisms employed by the various forms of composite armour employed on the T-72 throughout its history, it is plain to see that a long rod projectile that is more resistant to bending and fracturing would also perform better against spaced and composite armour in general, making it much more useful as an anti-tank round during the late cold war period when such forms of tank armour were the norm.


ACTION OF FLYER PLATES



It has been shown by Dr. Manfred Held that the primary mechanism of long rod projectile defeat by heavy reactive armour is the transfer of momentum from the flyer plates to the projectile. The desired effect is the deflection of the projectile from its original direction of travel and in the disruption of the shape of the projectile, whether it be by fracturing it, shattering it, bending it, introducing yaw or by cutting it into fragments. In order to achieve this, a sufficiently thick and heavy flyer plate must be used against the long rod projectile, and the emphasis is on the mass of the flyer plate and not the velocity.


Kontakt-5 modules on the hull rely solely on the action of head-on flyer plates to defeat attacking projectiles, whereas the modules on the turret and on the side hull are designed to send flyer plates in both directions. We have already examined the peculiarities of forward moving (in-pursuit) and backward moving (head-on) flyer plates, and from what we know, it is quite clear that head-on flyer plates are much less efficient than in-pursuit plates. There are a few general rules of improving the performance of flyer plates; increasing the mass of the plate; increasing the velocity of the plate; and increasing the angle of the plate, and any combination of the three.

The efficiency of the modules on the hull are increased through a combination of all three methods to a certain extent, but not without a few negative consequences. The high angling of the Kontakt-5 modules for the hull is guaranteed by the good 68 degree slope of the upper glacis, so there were no compromises that needed to be made here. However, the heavy flyer plates of the hull modules are conspicuously thicker than the plates on the turret modules, and this led to an increase in the mass of the plates. To accelerate this heavy mass to a high velocity, as many as twelve 4S22 explosive elements are used in each module. The twelve explosive charges have a combined explosive power equivalent to 3.36 kg of TNT. The blast has a small contribution in the reduction of the penetration of a shaped charge jet, of course, but the side effect is that external equipment on the tank may be destroyed or damaged and personnel both inside and outside the tank may suffer injuries. There is even a possibility of a flyer plate impacting the gun barrel under the right conditions, but I digress.


Upon detonation, the thin front plates of the first and second explosive elements are propelled at high velocity head-on against the direction of travel of the jet. Estimating the velocity of the thin flyer plates of the 4S22 elements on their own is straightforward, but predicting the velocity of the heavy flyer plates requires a few more steps, because there is momentum transfer from the thin flyer plates of the 4S22 elements to the heavy plate. A simplified model of Kontakt-5 will be used for our calculations.




Due to the very high velocity of the thin flyer plates of the 4S22 elements, it is assumed that they will fuse to the surface of the heavy flyer plate upon impact, so we can classify it as an inelastic collision. The small gap between the 4S22 elements and the heavy flyer plate enable the thin flyer plates to is inconsequential due to the closed nature of Kontakt-5 panels. This enables us to conveniently add the mass of the thin flyer plates to the mass of the heavy flyer plate without other considerations to determine the final velocity of the heavy plate. This assumption is validated in "Momentum Transfer in Indirect Explosive Drive". The heavy flyer plate will be driven by the expansion of gasses only after it impacted by the thin flyer plates. Due to the conservation of energy, the momentum of the thin flyer plates and the heavy flyer plate cannot be calculated as separate entities and then added together, because there is a finite source of energy. Therefore, the mass of the heavy flyer plate alone cannot be plugged into a Gurney equation to obtain its velocity. We must add the mass of the thin flyer plates to the heavy flyer plate, and treat the resultant final mass as a single entity.


According to Russian academicians and experts, the thickness of the heavy flyer plates is 15mm. This is confirmed by the drawings from the T-72B obr. 1989 technical manual. Beyond that, we can figure out the mass of the heavy flyer plate with minimal guesswork by simply adding up the widths and lengths of the 4S22 elements behind each plate to get the approximate surface area, and then multiply that with the approximate thickness of the heavy flyer plate. The simplest modules to calculate are the modules along the top row on the upper glacis. Since there are six 4S22 elements behind the plate, the plate has a surface area of at least 0.19656 sq.m. There is a small gap between the explosive elements and the partitions onto which the flyer plate is welded, and if we make the assumption that these small details add just under 1 cm to the length and width of the plate, then we can round off the surface area to 0.2 sq.m. Using these figures, we get 23.55 kg.

The mass of the 4S22 thin flyer plates is readily determined by simply subtracting the mass of the explosive charge (0.28 kg) from the total mass of the explosive element (1.37 kg), and then dividing that by two. Six flyer plates gives us 3.27 kg, and another twelve flyer plates gives us 6.54 kg for a total of 9.81 kg. Therefore, the final mass of the heavy flyer plate is 33.36 kg.


The mass of the explosive charge will be 0.28 kg multiplied by twelve, giving us 3.36 kg. This is rather low compared to the final mass of the heavy flyer plate after factoring in the mass of the thin flyer plates. It is explained in "Flyer Plate Motion by Thin Sheet of Explosive" by H.S Yadav that at very low C/M ratio, the calculated velocity of the flyer plates using the Gurney model is at variance with experimental results. This is supported by "Gurney Energy of Explosives: Estimation of the Velocity and Impulse Imparted to Driven Metal", which mentions that the recommended restrictions for the Gurney model is 0.2 < M/C < 10 (p. 11). Fortunately, the M/C ratio of the final mass of the heavy flyer plate to the explosive charge is 9.92, placing it just within the stated restrictions. Thus, the results from the Gurney model can be considered reasonably accurate.

It is stated on page 11 in "Gurney Energy of Explosives: Estimation of the Velocity and Impulse Imparted to Driven Metal" that a small gap between the flyer plate and the explosive charge will result in very little decrease in plate velocity, so for all intents and purposes, we will assume that the heavy flyer plate is in contact with the explosive charge, and this means that the Gurney model is applicable. The loss in plate velocity will be considered negligible, but it will be represented in our calculations by rounding down our result to the nearest ten.


Now that we have ascertained all of our variables, we can use the Gurney equation for an infinitely tamped sandwich in our calculations. The reasoning is that even though the 60mm backing plate (the front plate of the base upper glacis armour) is only four times the thickness of the 15mm heavy flyer plate, the backing plate is affixed to a rigid structure - the hull - and the Kontakt-5 panel only occupies a relatively small area of the upper glacis, so the base armour plate does not experience any acceleration from the blast. Since the velocity of the backing plate would be zero, it has the same behaviour as an infinitely thick tamper plate, and it will be treated as such.

Plugging our figures into the Gurney equation, we get 807.47 m/s. Rounding it down to account for the air gap between the flyer plate and the explosive charge, we get 800 m/s.




Despite our precautions, these are still only approximations. The Gurney model used for this calculation is for an unenclosed explosive charge, so the true velocity of the heavy flyer plate could be slightly higher because no energy is lost from the system. An enclosed system like Kontakt-5 would force all of the propulsive energy of the explosive charge to be focused on the single flyer plate.



THE EFFECT OF KONTAKT-5



Due to the high strength of long rod penetrators compared to shaped charge jets, the interaction between it and the heavy flyer plate of Kontakt-5 is generally not the same. One similarity is that both long rod penetrators and shaped charge jets are only eroded while penetrating the heavy flyer plate prior to the detonation of the explosive charge. During the movement of the flyer plate, the interaction can no longer be described as erosion, so by definition, the notion that reactive armour places "more material in the path of the projectile to penetrate" is immediately demonstrated to be false. Rather, during the stage where the flyer plate moves laterally against the penetrator, whether it be a rod or a shaped charge jet, the interaction is better described as the sliding of the plate against the penetrator. Throughout the sliding action, lateral forces are imparted on the penetrator, and the resistive force cuts a crater into the plate.


The operating mechanism of flyer plates against long rod penetrators is summarized on pages 60-61 in "Interactions Between High-Velocity Penetrators and Moving Armour Components". The effect of heavy reactive armour on a long rod penetrator during the penetration of the front plate and before the detonation of the explosive charge is essentially the same as simple spaced armour.


"KH-instabilities do not occur in the case of an LRP interacting with reactive armour. In this case, the high strength of the projectile material and the low projectile velocity relative to that of an SC jet prevent the generation of instabilities. Instead, the abrupt change in pressure at the exit of the plate gives rise to fracture of the projectile."


So before the explosive charge even reacts, the projectile is fractured as a result of perforating the heavy front plate - or rather, the tip is fractured. The mechanisms of spaced plates has already been examined in the section on the T-72B obr. 1985. Navigate to that section for more information. There is a possibility that the heavy flyer plate may also partially condition the penetrator to facilitate more reliable detonation by blunting the tip. As we have seen from the studies presented earlier, long rod penetrators with a flat tip will detonate explosive elements most consistently; but I digress. The vast majority of the effect of Kontakt-5 comes from the motion of the flyer plate against the penetrator, and the paper clarifies the ramifications of the head-on direction and the thinness of the flyer plate.


"The positive pressure gradient and longer interaction time make forwards moving plates more effective than backwards moving plates. Besides from the direction of motion of the plate, the most significant plate parameter for effectively disturbing the projectile is the thickness. Increased plate thickness results in substantial increases in rotation, translation, bending, length reduction and fragmentation of the projectile.

For fractures to occur in the projectile, the plate velocity has to be relatively high, 300 m/s for a plate thickness of one projectile diameter and 200 m/s for a plate thickness of two projectile diameters (only forwards moving plates). Lower projectile velocity results in longer interaction time which increases the effect of the moving plate on the projectile. The experiments also indicated increased effect at higher projectile velocity which has not been explained in these studies."


As mentioned in the passage, the longer interaction time obtained from a forwards moving (in-pursuit) flyer plate is beneficial and vice versa. Not only is less force imparted on the rod, but less of the rod is affected. For Kontakt-5, this means that only the front part of a long rod penetrator will be affected. For this reason and many others, it is apparent that it is not the most efficient arrangement. It would be more efficient to have a single in-pursuit flyer plate of increased thickness, but this is not feasible for tank armour due to the limited space, and the best compromise would be bi-directional flyer plates. As such, the focus is on maximizing the effectiveness of the head-on flyer plate used in Kontakt-5.


According to "The Break-up Tendency of Long Rod Projectiles", the ductility of high strength tungsten alloy rods appears to not have much bearing on the bending of the rod from interacting with oblique flyer plates, but brittle high strength rods were unsurprisingly more prone to fracturing or fragmenting than more ductile high strength rods. Also, it is noted in the conclusion of the paper that the tendency for a long rod projectile to shatter increases with the strength, thickness and obliquity of the flyer plate, which is quite obvious, but more interestingly, it is stated that high velocity is beneficial for head-on flyer plates while high velocity is disadvantageous for in-pursuit flyer plates. In addition to that, it is stated that the velocity of the flyer plate and projectile have a bigger influence on the tendency of the projectile to shatter than the other parameters, which includes the thickness of the plate. As a rule, increasing the velocity of the flyer plate is more advantageous than increasing the thickness, but having a thick flyer plate travelling at high velocity would obviously be the best of both worlds. Considering the limitations of the practical application of heavy reactive armour on tanks, the high velocity of the flyer plate of Kontakt-5 appears to be the correct choice.

Although it is considered a heavy flyer plate, the 15mm front plate of Kontakt-5 actually has a rather low thickness when contrasted with the diameter of the long rod projectiles likely to be used against it. Even adding on the thickness of the thin flyer plates of the 4S22 explosive elements, the final thickness is only around 21mm to 22mm thick, which is still slightly less than the diameter of a typical heavy alloy long rod penetrator. Nevertheless, the combination of high velocity (800 m/s) and relatively high thickness would make the flyer plate of Kontakt-5 very effective at bending and fracturing a long rod penetrator. The famous photo below appears to demonstrate the effect of a head-on flyer plate against a long rod penetrator:




The penetrator in the photo was moving from right to left. The fragments appear to be a mix of pieces from the fragmented penetrator and spall from the flyer plate, which seems to be the black blob to the right of the rod. The downward curl of the damaged rod is clear evidence that the plate that intercepted it was travelling head-on towards the plate at an oblique angle, representing the flyer plate of Kontakt-5. It is evident that the plate was propelled independently of the rod and intercepted the rod at a predetermined point where the photograph was taken, so it does not fully represent the mechanism of Kontakt-5 where the penetrator impacts the plate and initiates detonation. The heavy fracturing experienced by the rod in the photograph is probably a consequence of the imperfect tungsten alloys available in the USSR at the time (early 80's).

Beyond fracturing and bending the rod, the interaction also induces yaw into the long rod penetrator. According to "Experimental and Numerical Simulation Analysis of The Impact Process of Structured KE Penetrators Onto Semi-Infinite and Oblique Plate Targets" even 1 degree of yaw can cause a tungsten alloy long rod penetrator to break apart in half after passing through a thick oblique spaced plate. The study is particularly useful for us as it explores the effects of a positive yaw angle on the rod, which is compatible with a scenario where a long rod penetrator passes through Kontakt-5. The heavy flyer plate of Kontakt-5 would impart lateral forces on the rod in an upwards direction, and thus generate positive yaw. However, the oblique plate used in the study was angled at only 60 degrees. It is known that increasing the angle of an oblique plate exacerbates the damage experienced by a yawed long rod penetrator. A long rod penetrator with 1 degree of yaw impacting a thick spaced plate angled at 68 degrees would be highly destructive towards the rod.

The picture below deals with the modelling of fragmentation and spall from the perforation of an oblique steel plate by a tungsten long rod penetrator as well as the damage sustained by the plate and rod. It is taken from the study "Behind Armor Debris Computations With Finite Elements and Meshless Particles". As you can see, a long rod penetrator perforating a thin oblique plate at 60 degrees will suffer minimal fracturing and come out largely unscathed except that it loses a chunk of its tip, but when the same penetrator strikes an oblique plate with 1 degree of yaw, the rod is broken into two large pieces when it exits the plate and the rod remnants are yawed at -1.5 degrees. When the penetrator strikes the same plate but with 2.4 degrees of yaw, the rod is broken into three large pieces when it exits and the remnants are yawed at -0.7 degrees. When we include the loss of the rod tip, then the rod has broken into three and four pieces for the two cases respectively.




The method of defeat against shaped charges is the same as any reactive armour or non-energetic reactive armour (NERA), and that has already been covered in the earlier review of Kontakt-1 and the armour of the T-72B. The efficiency of the Kontakt-5 design is not high against shaped charge jets, but the system is still quite effective by virtue of brute force. As explained before, Kontakt-5 sends three flyer plates head-on towards the shaped charge jet: two thin plates from the casing of the 4S22 explosive elements (one 2.3mm plate and one 4.6mm plate), and the single heavy flyer plate, 15mm thick, but the majority of the effect stems from the heavy flyer plate. Taken together, Kontakt-5 can be as effective as Kontakt-1 against shaped charges.


A quantitative analysis of Kontakt-5 has not been done yet, although it is definitely possible to do so now, having been equipped with a full understanding of the mechanisms at play. If any researcher or amateur enthusiast would like to assist me in conducting quantifying the effect of Kontakt-5 on generic heavy alloy long rod penetrators, you are welcome to contact me (see "Contacts" page).


NII Stali claims that the reduction in penetration for subcaliber shells (long rod penetrators) to be equivalent to 250mm RHA, but describing it as a solid figure is both illogical and misleading. All other materials published by NII Stali state instead that Kontakt-5 decreases the penetration of subcaliber shells by 1.2 times. Some publications describe the reactive armour as being able to reduce the penetration of a generic long rod projectile by 20% to 35%. Regardless, all given figures were deliberately left vague, as the actual effect of Kontakt-5 depends on the penetrator in question. Long rod projectiles with a very high L:D ratio will not be affected in the same manner as a short and stubby long rod projectile with a very low L:D ratio, and the strength of the rod in question makes a tremendous difference as well. Penetrators with a composite construction like the American M735 or Soviet 3BM-22 will behave even more differently. A "Журнал Техника и Вооружение" article claims that Kontakt-5 reduces the penetrating capability of cumulative jets by a minimum of 50% to a maximum of 80%, while NII Stali claims that Kontakt-5 reduces the penetration of shaped charges by 1.9 to 2 times.



TURRET LAYOUT





Kontakt-5 blocks are mounted in a clamshell layout around the frontal arc of the turret. There are total of 120 4S22 explosive elements installed in the turret, 46 on the upper half and 32 for the lower half. The other 42 explosive elements belong to the ERA blocks on the roof, two elements per block.




There are three different sizes of blocks used for the front of the turret, and the manual gives instructions on how to arrange the 4S22 explosive elements inside each type. All of the blocks have two layers of 4S22 elements arranged crosswise.


  • The most numerous type are the blocks for the lower half of the clam shell; 8 of these square blocks are installed on the turret. Each block contains four 4S22 explosive elements. The first layer of 4S22 is laid into the slot horizontally, and the second layer is laid vertically.
  • The second most numerous type are the blocks for the upper half of the clam shell, marked (1) on the diagram; 7 of these rectangular blocks are installed. Each block contains six 4S22 explosive elements. The first two elements of the first layer are laid vertically, and then another cell is added horizontally on top. The second layer is laid horizontally.
  • The third type is a squarish block - marked (2) on the diagram - for the upper half of the clam shell. There is only one example of the third type on the turret; it's the first block to the left hand side of the cannon. The first layer is laid vertically, and the second layer is laid horizontally.

Unlike the panels on the hull, the Kontakt-5 panels on the turret are bolted onto the turret and not welded. This makes it extremely easy to remove the panels if necessary.




As the photo below shows, the cover plate at the end of each reactive armour panel can be unbolted to remove the explosive elements inside. The explosive elements are typically salvaged from destroyed tanks like the one in the photo below and sold on the black market. Photo from lostarmour.info.





HULL LAYOUT





Kontakt-5 blocks cover a little over two thirds of the upper glacis. There are total of 84 4S22 explosive elements installed on the upper glacis; 48 in the top row of panels and 36 in the bottom row. The top row of panels all have the same rectangular design, housing twelve 4S22 elements each. The panels at the corners of the bottom row have a narrower rectangular design with only eight 4S22 elements each. The two panels at the center of the bottom row have an unusual L-shaped design with ten 4S22 elements each.




The photo below (Photo credit to Bellingcat) shows the Kontakt-5 blocks on the upper glacis of a catastrophically destroyed T-72B3 in Ukraine. The access panels for all eight reactive armour panels have been removed, and you can see the explosive elements within.




And here is a photo of an intact tank.




Inserting explosive elements into the two Kontakt-5 panels at the bottom corners is done by unbolting the cover plate at the bottom, laying the 4S22 elements into a tray and sliding it into the panel, as demonstrated in the two screenshots below (Screenshots taken from RT Documentary show "Tanks: Born in Russia (E9)").




Once filled, the panels are simply bolted shut. A tray is used to make it easier to keep the elements from sliding out while bolting the cover plate back on. The tray has no active role in the design of the reactive armour.




SIDE PANELS





There are three Kontakt-5 panels located on either side of the hull. These are a type of explosive flyer plate. They use the same 4S22 explosive elements as the Kontakt-5 plates on the front hull and turret. The side panels provide coverage for the fighting compartment in a 35 degree frontal arc, as illustrated in the photos below:



The panels are mounted on special brackets bolted to the steel screens over the sponsons. It is possible to flip the panels up to access the suspension. To do this, the panels are simply lifted upwards until the hole (shown in red in the photo below) is above the hinge, and then the panels are locked in the upward position by inserting a retaining pin through the hole.




The side panels contain six 4S22 explosive elements each. There are three reactive armour panels on each side of the hull, each with six 4S22 explosive elements for a total of 36 elements on both sides of the tank. Each element is laid flush onto the sheet steel tray, and held in place by rubber studs embedded onto the front plate for spacing. This creates an air gap between the front plate and the explosive elements in the same manner as the Kontakt-5 plates on the front hull and turret. This is illustrated in the diagram below, which has been coloured for easy identification. The areas marked in green denotes steel, while the light blue area is the rubber spacer stud and light red marks the explosive elements. The rubber stud is marked with a (7), the explosive element is marked with a (6), and the front plate is marked with a (5).




An opened panel can be seen in the photo below. Note the six protruding studs on the front plate, corresponding to the positions of the six 4S22 explosive elements. The strip of empty space down the middle of the sheet steel tray is very obvious in the photo.




It is not clear what the strip of empty space is meant for, but it should have no negative effect on the consistency of detonation if the panel is struck from the frontal arc of the tank, because the spray cone of high energy spall and fragments generated by an impacting long rod projectile or a shaped charge jet should be wide enough to detonate at least one of the explosive elements. The only way for an attacking projectile or warhead to slip through would be if it was fired perpendicular to the side of the tank and struck the panel squarely in the middle, but in that case, the reactive armour panel would have very little effect even if it managed to detonate as some obliquity is required for the flyer plates to be effective.

Like the reactive armour plates on the front hull and turret, the front plate of the side panels is 15mm thick. The sheet steel backplate is just under 3mm thick. However, the 2.3mm-thick steel casing of the 4S22 explosive elements also contributes to the overall thickness of material present in the panel. Since the elements lie flush to the sheet steel tray, the backplate of the system would have an effective thickness of 5.3mm, and the front plate will have a final thickness of 17.3mm after the explosive elements detonate and the front flyer plate of the explosive elements fuse to the back surface of the front plate of the panel.


It is quite obvious that the side panels are not as powerful as the ones on the hull or even the ones on the turret, despite the fact that the panels on the turret also house up to six 4S22 explosive elements, because the turret panels are of the same thickness (15mm) but are much smaller. This deficiency is not entirely counteracted by the bi-directional design of the side armour panels, as the turret panels are bi-directional as well. Rather, the overall effectiveness of the armour for the sides is heavily dependent on the very large air space between the side panels and the side of the hull. According to figures obtained from the T-72B obr. 1989 technical manual, the perpendicular space between the side of the hull to the end of the side panels is exactly 760mm. After subtracting the approximate thickness of the panel itself, the space should be around 720mm. At a 30 degree obliquity (viewing the side of the hull), the air gap is therefore 1,440mm wide between the Kontakt-5 side panels and the side hull armour.

The large air gap gives ample time and space for a long rod projectile or shaped charge jet to disintegrate before striking the main armour. This is particularly important for long rod projectiles, as the penetrator is given much more time to yaw before it strikes the main armour as compared to the reactive armour panels on the front hull and turret, where very little yaw is expected. A heavily yawed long rod penetrator has greatly reduced efficiency when penetrating armour.

More of these side panels can be bolted onto the sponsons if desired.



ROOF BRICKS



The T-72B obr. 1989 had unique hexagonal Kontakt-5 reactive armour bricks installed on the turret roof. Each brick is mounted directly to the cast steel turret roof on a pair of metal spacers. The bricks sit directly atop the anti-radiation cladding, with no air gap in between. This variant of Kontakt-5 roof armour is only one of several variants, as shown on Andrei Tarasenko's btvt.narod website. A steel barrier is installed around the forward perimeter of the roof bricks to provide protection from bullets.

One of the biggest mysteries concerning the T-72B obr. 1989 is why the designers felt the need to use a new design of roof ERA blocks with interlocking geometry that would have allowed the blocks to cover the entire turret without leaving any gaps, yet install so few of the blocks that the turret roof is less covered than the original T-72B with Kontakt-1. The two photos below show a T-72B3 with an identical layout of ERA on the roof. Photo credit to Vitaly Kuzmin.




Unlike the Kontakt-5 panels on the rest of the tank, these bricks have an entirely unique design, strongly indicating that they are not meant for the same purpose as the others. The bricks are composed of a front plate and a thin sheet steel tray, into which four alternating layers of inert lining and 4S22 explosive elements are inserted. The diagram below, taken from the manual and modified, shows a cross section of the bricks. The areas marked in green denotes steel, while the areas in light blue mark the inert liners and light red marks the explosive elements.




However, the diagram has a small inaccuracy. The two cropped photos below show that the sheet steel trays are actually very thin. The dimensions of the components illustrated in the diagram clearly do not represent reality, but it is safe to say that the arrangement of the components are accurate.




The cropped photo below confirms that there are no protrusions from the interior surface of the front plate at all.




SYMPATHETIC DETONATION




The cost of this performance is the danger of sympathetic detonations of the neighboring modules. As you can see in the adjacent photo, the top of the welded body blew off. Since there is no hole under that particular panel, it seems like the panel beside it inadvertently set it off, meaning that the partition between the two modules disintegrated under the pressure of the detonation of the first panel. This was long-known issue with ERA in general, and particularly with Kontakt-5 due to the large mass contained in each panel.




Presumably, one of the contributing factors would be poor welds. Perhaps sympathetic detonations could be prevented if the partitions were welded onto the hull by professional welders and not journalists.




Although it has been obsolete for over two decades, Kontakt-5 should be appreciated as a unique and ingenious solution to the problem of powerful long rod projectiles during the mid to late 1980's.




"RELIKT" SIDE SKIRTS




The fighting compartment and engine compartment of the tank is protected by heavy side skirts incorporating "Relikt" ERA elements. There are six skirt segments on either side of the hull, each with two prominent steel front plates. Like the Kontakt-1 armour package used on earlier T-72 models, the "Relikt" skirts extend up to the fifth roadwheel and thus cover the entire side of the hull from a 70-degree frontal arc. In total, there are twelve skirt segments and twenty four steel plates protecting the sides of the hull. Each skirt segment is attached to the hull sponsons by a pair of hinges, as seen in the photo on the left below. The two photos below are from Vitaly Kuzmin. Additional armoured plates protecting the sponsons were added for this purpose.




The mounting points for the armoured side skirts can be seen in the photo below.




These heavy skirts are officially listed as a component of "Relikt" reactive armour. This is supported by the fact that the skirts are distinguished from the "soft" fabric bagged-type ERA pouches that are listed as a completely separate item. A purchase agreement memo published in 2015 by the Uralvagonzavod company in accordance with the purchase of the T-72B3 obr. 2016 lists the agreed-upon upgrades and gives the following details:


"бортовых экранов корпуса с интегрированными модулями динамической защиты типа «Реликт» и решетчатых экранов проекции МТО корпуса.
Which translates to:
"Side screens of the hull with integrated modules of dynamic protection of the type "Relikt" and slat screens on the side projections of the engine compartment."


A recently released episode of the show "Военная приемка" on the T-90M "Proryv" published by TV Zvezda confirms that these side skirts contain explosive elements. It can be seen from close-up photos of the heavy armoured skirts that they are constructed from plastic textile material and steel plating, meaning that the elements must be embedded in special cutouts underneath the steel plates.





The thickness of the armoured side skirt is not known for certain, but based on the conservative assumption that the fabric sheet has a thickness equal to the older side skirt design (10mm), the thickness of the two sheets would be 20mm and the thickness of the complete sandwich can be estimated to be around 45mm, with a 12.7mm steel face plate, two 10mm plastic interlayers, and a 2mm steel back plate. The plastic layers appear to be the same type of steel-reinforced plastic textile that was used for the simple side skirts found on the T-72 since the mid to late 1970's. It is known from an information placard provided by NII Stali at an arms exhibition that a 4S23 explosive element designed for "Relikt" has dimensions of 250x125x7 mm. Having a thickness of only 7mm, it appears possible to stack up to three 4S23 explosive elements inside each skirt panel. Each skirt panel appears to be equal in length to a roadwheel, which has a diameter of 250mm, and the height of the panels is around a third of their length. This implies that up to three 4S23 elements can be fitted lengthwise inside each panel and up to two 4S23 elements fitted in height. The total number of elements contained within each skirt panel would be up to eighteen. A layout with angled plates similar to Kontakt-1 is also possible, but not very likely.

It is known that a similar armoured side skirt sandwich design was experimentally built and tested during the late 1990's on a prototype of the vehicle now known as the BMPT. Russian Patent RF 2238508 contains a description of this type of armour as well as two fairly detailed cross sectional drawings showing a similar sandwich configuration with two metal plates sandwiching two inner sheets. One of the inner sheets is even longer than the other for some reason, mirroring the skirts seen on the T-72B3 obr. 2016 and other tanks like the T-90M. Externally, the only visible difference is that the top half of the skirt is slightly inclined, giving it a slightly rounded appearance when mounted. The protective value of the armour is mainly provided by explosive reactive armour elements held in fabric containers placed on top of the side skirts. A variant of this side skirt design was used on the T-80U and several modernized T-64 models as part of the Kontakt-5 reactive armour set with 4S22 explosive elements embedded in the center layers of the skirts. In this variant, the explosive elements were not merely placed inside special cutouts in under the skirt panels, but held inside a container.


Returning to the side skirt armour of the T-72B3 obr. 2016 specifically, it can be surmised from the distribution of layer thicknesses that the armour is a bidirectional bulging plate design. Upon activation by a shaped charge jet or some other means of initiation, the thicker and heavier front plate is accelerated forward to a low velocity and the lighter thin back plate is accelerated backward to a high velocity. If a warhead strikes the armor at an angle, the movement of the bulging plates is oblique to the flight path of the shaped charge jet and the jet becomes disrupted. The working mechanisms of this type of armour have been discussed in great detail already, and as such, further examination is not needed, but it is very important to point out that the great length of each skirt panel (~750mm) is a contributing factor in the effectiveness of the armour as the working length of the flyer plates would be very high. Together with the large air gap between the side skirts and the side hull (even with the suspension in the way), this combination of features innately improves the effectiveness of the armour.

Unfortunately, the lack of any real information makes it practically impossible to evaluate the efficiency of this particular design, but it is beyond doubt that the large air gap between the side of the hull and the side skirt (610mm) provides ample room for a shaped charge jet to dissipate before striking the main hull armour. If a shaped charge warhead strikes the tank at an angle of 30 degrees, the size of the air gap increases to 1,220mm. Studies with simple bulging plate sandwiches showed that a single bulging plate angled at 60 degrees with a large air gap in front of RHA witness plates can reduce the penetration of a shaped charge by around two thirds or more, depending on how the NERA design is optimized. Naturally, ERA would be even more effective in this role due to the increased disruptive effect on the shaped charge jet, and an advanced ERA like "Relikt" with specially tailored detonation characteristics can provide enhanced protection. Protection against modern APFSDS rounds is also provided, but the level of protection is difficult to accurately estimate. Based on public literature, the "Relikt" skirt armour should offer an effective thickness of 1,000mm RHA against shaped charges from a 35-degree side angle.

However, it is quite likely that these skirts would not be useful if the side of the hull is attacked from a perpendicular angle. For example, the X-ray photographs below show how a shaped charge jet is almost completely undisturbed after perforating a bulging plate sandwich at 0 degrees.




The low protective value of the skirts at a flat angle of attack is probably the reason for the use of the soft bagged ERA pouches.

For comparison, the heavy ballistic skirts found on the M1 Abrams depend on NERA to achieve a modest level of protection. In a well known declassified document showing the "special armour" of the M1 Abrams, it is shown that the side skirts are classified as "special armour". It is stated in the document that the term "special armour" refers to a tri-plate arrangement which is understood to be simple NERA of the bulging plate type, and as seen in the drawing below, the heavy ballistic side skirt is composed of a thick steel front plate with the bulging plate armour elements placed behind it. It is worth noting that the drawing appears to show two thin bulging sandwiches separated by a small air gap behind the steel front plate, with one of them being attached directly to the steel front plate so that there is only one in-pursuit bulging plate. According to measurements, the armoured side skirts on the Abrams have a thickness of 65mm, and are composed of a one inch-thick steel front plate with 38mm of "special armour" behind it.




Photos of battle-damaged side skirts on M1A1 Abrams tanks confirm the presence of bulging plates by the characteristic bulging of the back plate. It is worth mentioning the requirements for the side armour over the crew compartment (both hull and turret) in the XM-1 that ended up proceeding into production as the M1 Abrams was rated for an 81mm (3.2") HEAT charge at a 45 degree angle. Assuming that this refers to the Ballistics Research Laboratory (BRL) standard 81mm shaped charge with a copper liner detonated at the standard standoff distance of 147mm, the penetration of the charge would be around 350mm RHA, so the level of protection would have to be equivalent to above 350mm RHA when hit at a 45 degree angle. This is confirmed by this drawing of the M1A2 showing that the side turret and side hull armour of the M1A2 (unchanged from the M1) is equivalent to 380mm RHA against an 81mm Hand-held Infantry Weapon (HHIW). This was already insufficient against a PG-7VS grenade (1972) for the RPG-7 with 400mm of penetration into RHA, and the PG-7VL (1977) with 500mm of penetration would provide a relatively high amount of armour overmatch at the given angle to achieve a high probability of killing crew members or even piercing the armoured ammunition rack blast doors. The T-72B3 obr. 2016 offers a much higher level of protection on the sides. An additional factor to consider is the better coverage of the "Relikt" side skirts, which are symmetrical on both sides of the hull and are long enough to protect the engine compartment on both sides when hit from the 70 degree frontal arc of the tank whereas on the Abrams, the starboard side armoured skirts extend up to the fourth roadwheel to protect the hull ammunition compartment from a 45 degree hit, and the port side armoured skirts only extend up to the second roadwheel to protect the fighting compartment from a 45 degree hit.

Because these new armoured skirts are not laid over the existing skirts like the Kontakt-5 panels of earlier T-72 models but instead replace the skirts entirely, the width of the hull actually decreased marginally compared to earlier T-72 models with Kontakt-1 and Kontakt-5.


SLAT ARMOUR



Photo credit to Vitaly Kuzmin


The side and rear aspects of the engine compartment are protected with slat armour screens installed over the preexisting textile side skirts. There are three small slat armour screens on each side of the hull and six screens protecting the back of the hull. The six screens at the back are split into a top half and a bottom half with three screens each, and the mounting frame is designed so that either half can be folded over the other half. Folding the top half away as shown in the photo on the left enables additional fuel drums to be carried and folding the bottom half away as shown in the photo on the right grants access to the back of the engine compartment. The photo on the left below is provided by Dmitry Derevyankin from the Dishmodels scale modeling website and the photo on the right below is from Yuri Pasholok.




As for the slat armour screens on the sides of the engine compartment, two of them are fixed in place with bolts and one screen can be folded upward. This is most likely designed to facilitate access to the roadwheels. The hinge for one of the slat armour screens can be seen in the photo below. Photo by Yuri Pasholok.




From a profile view, the slat armour screens comprise approximately one third of the protected area of the hull and the other two thirds are covered by the heavy Relikt skirts. The combination of the slat armour screens and the heavy Relikt skirts almost completely covers the entire surface area of the sides of the hull.



ADDITIONAL ERA BLOCKS




"Soft" ERA blocks were installed on the sides of the hull on top of the "Relikt" side skirts of the T-72B3 obr. 2016. Three different sizes were installed. Two small blocks are installed at the front of the side skirts above the first roadwheel, two medium blocks are installed behind them, above the first and second roadwheels, and eight large blocks are installed to cover the rest of the hull, from above the second roadwheel to the fifth roadwheel.

Little is known about these "soft" ERA blocks except that 4S24 explosive elements are used and special plastic inserts are contained within. Apparently, the plastic inserts are filled with sand of some sort. This indicates that the ERA is much more complex than a simple collection of explosive elements like most ERA designs of this type.




Four large ERA blocks with a sheet metal casing were installed on a special frame on each side of the turret.





Both the ERA blocks on the hull and turret are most likely designed to defeat tandem HEAT warheads. ERA blocks using 4S24 explosive elements with the capability to defeat tandem warheads even on a perpendicular impact have already been demonstrated years ago.




SMOKESCREEN





Earlier T-72 models can either lay its own smokescreen by injecting a diesel fuel into the exhaust manifold via the TDA (Thermal Smoke Apparatus), and later variants have the option of using its smoke grenade launchers. TDA is an inexpensive and extremely useful method of providing quick concealment at the cost of 10 liters of diesel per minute of continuous operation. By injecting diesel into the exhaust manifold, the hot manifold evaporates the fuel instantly, and it is ejected from the exhaust port by the exhaust gasses. Upon contacting the cool ambient air, the diesel mist condenses, forming a thick white fog. The fog obturates light in the 400-760 nm wavelength range, or in other words, the entire spectrum of visible light. This makes the TDA system a viable method of concealing the tank from anti-tank guided missiles, anti-tank guns and other tanks during daylight hours. The fog does not mask the tank from infrared searchlights like the AN/VSS-1 and AN/VSS-3A, which operate in the 785-1000 nm range, but it is possible to create denser smoke by driving the tank at a higher speeds to increase the fuel consumption rate by 10 times. High density smoke obturates light in the 400-3000 nm wavelength range, making it effective at concealing the tank from active infrared imaging systems. However, TDA cannot offer any concealment from thermal imaging devices like the AN/VSG-2 Tank Thermal Sight (TTS) installed in the M60A3 (TTS), which operates in the 7,600-11,750 nm range.

The driver should not shift gears when the TDA is in action if he wants to maintain a continuous curtain of fog, as the change in engine load will affect the volume of fog produced. It is not recommended to use the system for more than 10 minutes, and there must be an allowance of 3-5 minutes between each use. If the driver adheres to all of the guidelines, the system can theoretically be used for an infinite number of times (until something eventually breaks). The video screenshot below shows a low-density stream of smoke produced by an idling T-72. The volume of smoke produced when the engine is idling is not useful for screening purposes and it would probably reveal the tank's position more quickly rather than offer useful concealment.




The two photos below show high-volume, dense smokescreens produced by mobile tanks.




Aside from the TDA system, the T-72 was equipped with the 902A "Tucha" smoke grenade system beginning with the T-72A model. The "Tucha" system can launch two types of caseless 81mm grenades: the Soviet-era 3D6 or the modern 3D17. A high-low propulsion system is used to launch the grenades. Twelve grenades are available to the T-72A, but only eight grenades are available for the T-72AV and the T-72B. The grenade launchers covered by protective rubber caps which are removed before combat. The gunner of the tank is responsible for aiming and firing the grenades. If 3D6 grenades are used, he aims the grenades using his primary sight by referring to aiming points that he has memorized beforehand. If 3D17 grenades are used, the gunner simply aims in the direction of incoming fire.

Earlier T-72 versions had their smoke grenades launchers installed on the turret cheeks. This was a fairly common location for smoke grenade launchers; for example, the Chieftain, Challenger 1 and Challenger 2 all have their smoke grenade launchers mounted directly on their turret cheeks, and a large number of IFVs have their smoke grenades installed on the front of the turret.




In all honesty, this was probably not a very wise idea since a direct hit on the turret cheeks could potentially deprive the tank of the ability to react defensively to an attack by deploying a smoke screen. The issue is not necessarily the loss of the smoke grenades themselves, but also the danger of short-circuiting the system if a damaged launcher is triggered. A warning lamp on the 902A control panel will light up if the gunner selects a set of smoke grenades that are experiencing technical issues. Due to the lack of armour protection for the grenade launchers,  a direct hit from any type of ordnance with more power than a heavy machine gun bullet is practically guaranteed to put the smoke grenade out of commission. The cable that connects the grenade launchers to the launch system are also a weak point as they are exposed on the surface of the turret and they are only shielded with a simple metal tube, so it is possible to cut off an entire bank of grenade launchers by severing the cable tube on the turret. The photo below shows the turret of an ex-NVA T-72M1 after live fire testing in the early 1990's.




With the appearance of Kontakt-1 on tanks like the T-72AV and T-72B, the quantity of smoke grenade launchers was reduced and they were clustered together on the left side of the turret. This is a much safer location for the launchers, but having fewer smoke grenades is a disadvantage of its own.




NBC PROTETCION


Ventilation is controlled from the KUV-11-5-1S ventilation and filtration management box. The ventilation system has a built-in dust ejector at the air inlet to ensure a supply of clean air under normal operating conditions.

The diagram below - taken from "Special Electrical Equipment of the T-72" published by the military department of the Omsk State University of Technology - gives us a cross section of the system. The air outlet for the ventilator in the normal operating mode is marked (21). Air is taken in by the fan, flows through the air booster, and exits through the outlet (21). A dust ejector is installed at the air inlet to ensure that clean air is supplied into the crew compartment even under highly dusty conditions.




The ventilator draws air from a port on the hull roof, located just behind the turret ring. Before crossing water obstacles, the ventilation system is deactivated and the air intake is closed to prevent water from entering the fighting compartment and to prevent damage to the electric motor.

The ventilator housing and the white pipe leading to the air intake can be seen tucked away in the rear corner of the fighting compartment in the photo below. The air outlet from the filtration system drum is indicated by a red arrow.




GO-27





Soviet tank designers were very conscious of the dangers of nuclear warfare, especially artillery-fired tactical nukes. The T-72 perfectly reflected their seriousness, featuring the GO-27 NBC protection suite and the KUV-11-6-1S ventilation system with a filtration unit and the capability to generate an overpressure. A radiation lining shielded the occupants from neutrons. The photo above shows the B-1 instrument and control box, the B-2 sensor for gamma radiation detection, and the B-3 power supply unit.

The dosimeter detects and measures gamma radiation levels. The B-1 instrument and control panel displays the radiation level in rads per hour (rad/h), and is able to measure and display the radiation level in a range between 0.2 to 150 rads per hour. The system has a measurement accuracy of ± 30%. The B-1 instrument and control panel is shown in the photo below. Photo credit to Leonid Varlamov.




The system has different reactions depending on the rate of dosage of radiation. The system is able to react instantaneously to a nuclear detonation (classified as a Type "A" radiation threat) and initiate the necessary protective measures.

  • Type "R": When the tank is exposed to gamma radiation from a radioactively contaminated site and is exposed to a dose rate of 0.85 Rads/h and above, the response time of the system does not exceed 10 seconds.
  • Type "A": In the event that the tank is exposed to a gamma ray flux with a dose rate of 4 Rads/s and, the response time of the system does not exceed 0.1 seconds.
  • Type "O": When biological or chemical contaminants are detected, the response time of the system does not exceed 40 seconds.

The reaction of the system includes visual and audio signals to alert the crew. The above photo of the B-1 instrument and control box shows three coloured incandescent lights marked "O", "P" (R in Cyrillic) and "A". When any one of the threats is reacted upon, the driver is instantly informed of the type of threat by the colour of the light.

Once a Type "A" radiation threat is detected, the system immediately activates the air filtration system and initiates the lock down protocol, which seals every gap exposing the interior of the tank to the outside environment. Gaps such as the co-axial machine gun port are sealed using steel barriers propelled into position by pyrotechnic charges. Due to the immense speed of gamma rays (very close to speed of light) and the quick reaction of the system, the tank will be hermetically sealed by the time the blast wave from the nuclear explosive arrives. This protects the crew from the blast wave itself as well as from exposure to fallout after the initial blast wave.

A Type "R" radiation threat is a much less serious situation. Type "R" threats are detected when the tank is exposed to radiation from an irradiated environment. The long reaction time of the system to this type of threat is offset by the low danger of minor irradiation.

Type "O" threats are airborne biological or chemical threats. The system detects contaminants in the air using a cyclone-based air sampler and analyzer. The air inlet for the sampler and analyzer is depicted in the diagram below. Due to the rather long reaction time, the driver is sometimes obligated to manually switch on the chemical and biological threat protection measures when entering contaminated zones, assuming that the tank is preceded by a forward reconnaissance force that included chemical troops mounted on NBC reconnaissance vehicles like the BRDM-2RKh.




The air inlet is installed just next to the driver's hatch. Photo credit to the T-72.org Facebook page.




The location of the B-2 gamma radiation sensor can be seen in the photo below, taken from the STV Ground website.




The B-3 power supply unit is installed just next to the gear shift:





PKUZ-1A Digitized Protection Complex




The GO-27 system was replaced with the PKUZ-1A in the T-72B3 modernization. The PKUZ-1A was first used in the T-90A, and features improved detection and reaction time to chemical, biological and nuclear threats. The PKUZ-1A analyzes the air outside the tank using an ionizing system.

The system capable of detecting gamma rays with energies ranging from 0.66 to 1.25 MeV. The system is capable of measuring gamma radiation at dose rates of 0.1 to 500 rads/hour, making it somewhat more versatile than the GO-27. In order to measure the true level of radiation outside the tank, the radiation attenuation coefficient of the armour of the tank and the anti-radiation linings is manually inputted at the factory. This improves the accuracy of the system. Like the GO-27 system, PKUZ-1A automatically executes defensive systems and alerts the crew via visual and audio signals when an NBC threat is detected.

The PKUZ-1A system comes with a new instrument and control box. The new control panel fulfills the same function as its predecessor, but is more user friendly. The old ammeter-based radioactivity gauge was replaced by a digital LCD segment display for quicker and more precise readings. The old ammeter gauge display could not give an accurate reading if the tank was moving because the vibrations caused the indicator needle to jump around.

The new control panel can be seen at the right side of the screenshot below.






ANTI-RADIATION CLADDING AND LINER



Anti-radiation measures have been among the top priorities regarding crew protection, no less important than solid armour itself, given the nuclear environment that the T-72 was expected to fight in. In accordance with this requirement, the T-72 was fitted with an interior anti-radiation lining called "Podboi" since the very beginning as a means to keep the crew alive long enough to fulfill the Red Army's strategic goals. The "Podboi" lining was present on all interior surfaces of the tank, including the floor of the hull. From 1983 onward, the T-72 had an additional anti-radiation cladding called "Nadboi" installed on the exterior of the turret and hull as a response to an announcement by U.S president Ronald Reagan in 1981 that the production of neutron bombs would be restarted. The heavy armour of the T-72 (and tanks in general) provided very good protection from the immediate destructive blast and heat of nuclear weapons including neutron bombs, but the powerful burst of neutron radiation could not be easily blocked. The thin roof and sides of the turret and hull were particularly vulnerable, being much thinner than the frontal armour of the tank. The "Nadboi" external anti-neutron cladding was therefore concentrated around these areas. T-72A tanks built in 1983 received the additional cladding at the factory and other tanks were retrofitted at depots during scheduled repairs. The photo below on the left is an example of a T-72A that had the cladding retrofitted. The T-72B came with the cladding as a standard feature when it entered service.





"Nadboi" was also added to several zones on the external surface of the sides of the hull, excluding the area around the driver's compartment. This is because the driver was already protected from radiation from either side by the two large fuel tanks flanking him. The fuel supply system of the engine was arranged such that these frontal fuel tanks were used last, so that the additional protection from these tanks would persist as long as possible. However, the driver's seat in a T-72B had "Podboi" added to the back surface of the backrest.

The lining and cladding are composite materials composed of a mixture of polyethylene and polyisobutylene - polymers with a high hydrogen content, allowing them to absorb large amounts of radiation. The lining and cladding are fitted on the tank with a special glue and pressed firmly to the tank by special bolts with a washer affixed to the heads. The polymers are impregnated with lead to increase their opacity to gamma radiation, and boron was added as a response to developments in neutron bomb technology during the 1960's. One of the components was borated polyethylene, a type of high density polyethylene infused with boron. According to Anderi Tarasenko, the name of the material is "boron 2EP002". Boron is known to be extremely effective at capturing neutrons thanks to its large absorption cross section, making it suitable for use as radiation shielding. Unfortunately, the high cost of boron compounds made it impractical to implement in a high concentration, so it was decided to include only a thin layer of borated material in the composite cladding. The location of the layer was such that it reportedly slashed the required boron content by half, but the reduction in radiation dosage remained at the same level as before.

According to "Создание танка Т-64 (фрагменты истории)" (Creation of the T-64 Tank: Fragments of History) by V.V Polikarpov, the reduction in radiation dosage from penetrating radiation (neutrons and gamma rays) was by 16 times and the reduction in radiation dosage from an irradiated environment was by 18 times. The anti-radiation measures installed in the T-72 do not differ from the T-64, so the same level of reduction can be expected. With the installation of "Nadboi", the reduction in radiation dosage was further reduced, so that the detonation of a neutron bomb will have reduced effects on the combat capabilities of the crew and it becomes almost trivial to survive an attack by conventional nuclear weapons such that the likelihood of death from anti-tank guns and missiles is probably higher than from radiation sickness.

The fibrous construction of the sheets and layered nature of the anti-radiation lining also makes it a suitable spall liner not dissimilar to early flak vests that used woven nylon panels, but polyethylene is also a viable material for this purpose. NII Stali states on their website that as a rule, spall liners are made from aramid (kevlar) or from UHMWPE (Ultra High Molecular Weight Polyethylene). The high thickness of the lining in many parts of the tank is beneficial considering that it is probably not as effective as kevlar or purpose-built plastic spall liners. The cross-sectional drawing below, taken from a CIA report on Soviet tank developments, indicates that the thickness of the "Podboi" lining is around 50mm behind the upper glacis composite armour. From the thickness alone, it is very likely that the lining is capable of absorbing some amount of spall or even preventing the full perforation of the armour. The thickness of the "Podboi" lining behind the turret front armour is around 20-30mm and the lining around the sides, rear, and ceiling of the turret is 50mm thick. The low thickness of the lining behind the turret front is due to the high attenuation provided by the large thickness of cast steel armour, so a thick anti-radiation lining was not necessary.



It is worth noting that the original Obj. 432 tank with a 80-140 dual-layered armour scheme on its upper glacis lacked an anti-radiation lining whereas all of its successors had a 50mm "Podboi" lining behind the upper glacis armour. This is because glass textolite is a radiation absorbing material. The reduction in the thickness of glass textolite from 140mm to 105mm was not fully compensated by the addition of a 20mm steel back plate, and the steel back plate introduced the possibility of spalling when there was none on the Obj. 432. This prompted the need for the thick anti-radiation lining.

The flammability of the "Nadboi" cladding is unclear, but it is beyond question that it was designed to survive the heat from a nuclear explosion. The cladding would have to fulfill its purpose as neutron and gamma radiation shielding before it gets swept away by the nuclear shockwave and high speed winds (and the debris it carries) since neutrons and gamma radiation will arrive at the tank instantaneously, and the cladding needs to survive the flash of heat from the blast, since heat radiates at the speed of light. To prevent the destruction of the cladding from the heat of the nuclear blast, the outermost layer of the composite material is made from a flameproof material. Since "Nadboi" is often observed to be missing from burnt-out T-64, T-72 and T-80 tanks, it is obvious that the material is still flammable to some degree, although this may not be entirely relevant in a combat situation as the cladding is often burnt off by an external heat source like burning fuel from the wrecked tank. It may be a problem if the tank is attacked with napalm or other flame weapons, but such attacks are rare and would constitute a minor threat compared to more serious anti-tank weapons like recoilless rifles and guided missiles.

In the photo below, a T-64 with external "Nadboi" anti-radiation cladding displays the damage dealt by a 122mm HE-Frag artillery shell. Note the charred chunks of fabric, proving that the cladding is made from textile sheets. More importantly, the cladding has not burned off entirely. The damage is almost entirely localized to the point of impact of the artillery shell, indicating that the cladding does not burn readily when subjected to an intense flash of heat. Instead, it is much more likely that the cladding was stripped off by the blast of the shell and not burnt off.




The screenshots below are taken from a Czechoslovakian television news channel that showed the aftermath of an infamous tragedy that took place on the 9th of January, 1991, during the withdrawal of Soviet forces from Czechoslovakia. A T-72 was completely destroyed by the delayed detonation of three 125mm HE-Frag shells after an internal fire spontaneously started for unknown reasons. Somehow, all of the other explosive rounds stowed inside the tank failed to explode and most remained largely intact, despite the total destruction of the ammunition carousel. The force of the explosion was such that the turret was thrown 78 meters away, landing on a corner of a nearby tank shed and demolishing it, and the commander's cupola was detached from the turret and landed 142 meters away. In the screenshots below, it can be seen that the "Podboi" lining on the surface of the hull side wall of the fighting compartment (where ammunition was stowed) is destroyed, but the lining on the surface of the wall of the driver's station is only scorched and is otherwise perfectly intact despite the violence of the event.




The photo below shows how the mounting studs for Kontakt-1 reactive armour protrude through the "Nadboi" cladding. The thickness of "Nadboi" on the turret roof is around two inches (50mm), and the thickness of the cladding on the turret hatches are just as thick if not more so. This is because of the low thickness of the hatch compared to the turret roof, so there is less steel to absorb incoming radiation.




The circles with four holes that pockmark the surface of the cladding are the metal studs that press the cladding on the surface of the turret. When the cladding material is burnt away, these studs usually remain intact since they are welded to the turret. See the two photos below showing a burnt-out T-72 turret (photo credit to armour-kiev-ua).




The shell casing stub ejection hatch is heavily shielded with a 50mm layer of "Podboi" and received another 50mm "Nadboi" layer on its external surface beginning in 1983.




As mentioned before, the lining and cladding not only function as neutron absorbers, but they perform admirably as a form of spall liner as well. This CIA document reports on page 13 that the anti-radiation liner found on the T-72 and T-64 functions as a spall liner, and Rickard Lindström reports that Swedish trials of purchased ex-East German T-72M1s led to the conclusion that the anti-radiation liner was perfectly capable of absorbing the secondary fragments of shaped charge jets.

Depending on the construction, spall liners may reduce the spray cone angle of secondary fragments from a shaped charge warhead by up to 50% or more if the armour is greatly overmatched and it is possible reduce the quantity of secondary fragments by up to 80%. The NII Stali website gives a more optimistic claim that the spray cone angle of secondary fragments (from an unknown type of armour-piercing round) can be reduced by a factor of 3 and the quantity of fragments can be reduced by a factor of 10. Plus, the reduction in the amplitude of a shockwave from an external explosion is in the order of 4.5-5 times for a lightly armoured vehicle. The T-72 is not a "lightly armoured vehicle", of course, but the presence of a spall liner would still help improve the conditions inside the tank if explosive ordnance was detonated outside. If the armour is not perforated by an impacting shell, the spall liner may absorb all of the spall produced from the surface of the armour plate. Either way, the likelihood of injuring the crew or damaging the internal equipment of the tank is greatly reduced, particularly from munitions such as HESH shells which relies exclusively on spall and blast to concuss and injure the crew or damage internal equipment. The anti-radiation lining and cladding should have good performance on account of its substantial thickness both inside and outside the tank. In fact, this feature has helped to saved lives in at least one confirmed incident:




In this instance, the T-72 was hit in the flank by an RPG attack which also blew off a large section of the external sponson storage bins. The crew survived and the tank only suffered from a minor puncture wound. The anti-radiation cladding on the external surface of the side hull plate at the sponsons would not behave as a spall liner, but it is still additional material in the path of the shaped charge jet.

The presence of the lining is a significant factor in the safety of the carousel ammunition in case of armour perforation, especially from the side, but the low density plastic lining has the additional benefit of attenuating blast waves. By layering a plastic lining of low acoustic impedance behind a steel plate of high acoustic impedance, the energy of a shockwave can be absorbed via a mechanism known as impedance mismatch. For RHA steel the acoustic impedance is 46 MRayls and the acoustic impedance for polyethylene is 1.73 MRayls. The effect of having a low impedance layer behind the high impedance layer is that the compression wave from an explosion on the front surface of the high impedance layer is reflected back from the boundary between it and the low impendance layer, and for a combination of steel and low density plastics, the reflection ratio is very high. The reflected wave is a tensile wave, and when it intersects with the compression wave from the front surface of a plate, the plate experiences enormous tensile stresses. If the tensile stress exceeds the tensile strength of the plate, the plate fails at the point of intersection of the waves and spall is created. For the T-72, the impedance of the anti-radiation lining is low, but it is still higher than air. This reduces the intensity of the reflected tensile wave and reduces the energy of the spall particles or eliminates spalling entirely. If spall is still formed, it will be captured by the lining. As such, four protection mechanisms are at play: blast attenuation, prevention of spall, attenuation of spall energy, and capture of spall.

Close, uninterrupted contact between the steel plate and the anti-radiation lining is crucial in guaranteeing that these phenomena occur as this eliminates the air-steel interface. Hence, the "Podboi" anti-radiation lining was designed to conform to the shape of the internal surfaces of the tank hull and turret with relatively tight tolerances and was tightly secured with glue and multiple metal studs. If an air gap exists between the surface and the lining, some parts of the protective effect would be compromised or even annulled.

Additionally, the presence of a liner and a cladding on the metal surfaces of the turret and hull helps to insulate the tank and prevents condensation. This may help preserve the myriad of electric and electronic components in the tank. The "Nadboi" cladding on the turret may be especially useful as heat insulation since the outermost layer is composed of a flameproof material, which naturally implies that it would insulate the tank from solar radiation.

The lining and cladding was partially removed in the T-72B3, as you can see in the photos below showing a Belorussian T-72B3. Photos from the Belorussian Military Gazette.




Why they chose to remove "Podboi" from some parts of the sides of the turret while keeping the lining on the roof is unclear.




FIREFIGHTING


To prevent the spreading of internal fires in the engine and crew compartments, the 3ETs11-2 quick-acting firefighting system was installed. There are a total of fifteen TD-1 thermal sensors installed inside the tank, strategically placed in the engine compartment and crew compartment to cover the areas where the risk of a fire was statistically highest. The fire fighting system reacts regionally when a temperature difference of at least 150°C is detected in the crew compartment or engine compartment. Once a fire is detected by any one of the fifteen TD-1 sensors, the maximum response time of the system is 50 milliseconds.

The TD-1 thermal sensor consists of fifteen thermocouples wired in series. The reaction time of the TD-1 sensor does not exceed 10 seconds, meaning that it takes a maximum of 10 seconds between detecting the fire to the activation of the fire extinguishing system. The sensors do not guarantee reliable detection of fires in the 60°C to 150°C range of temperature differences due to insufficient contrast.

The driver can manually activate the fire extinguishers wired to the automatic firefighting system from a control panel to his right.There is also an additional OU-2 handheld fire extinguisher next to the driver's left foot. The OU-2 is an ordinary carbon dioxide fire extinguisher with a 2.68 liter capacity.

A TD-1 thermal sensor is shown below.



The photo below shows a T-72A tank. Notice the large number of TD-1 sensors placed on the walls and around the floor. Note that the sensors are all concentrated near potential fire hazards; the conformal fuel tanks, loose ammunition stowage positions, and the powerful amplidyne amplifier for the turret traverse motor. There are five TD-1 sensors placed next to the rear conformal fuel tank alone.





The P11-5 control and information panel is part of the firefighting system. The panel has seven indicator lights. The three lights on the top row (3, 5, 6) are to inform the driver of the serviceability of the pyrotechnic fire extinguisher quick release valves, the light on the center left (2) indicates the presence of a fire in the fighting compartment, the light on the center (4) indicates the presence of a fire in the engine compartment, the light on the center right (7) indicates the status of the air filtration system, and the light at the bottom center (12) indicates if the OPVT mode is activated. By referring to indicator lights (2) and (4), the driver can manually discharge the fire extinguishers for either the fighting compartment or the engine compartment by pressing the buttons (1) and (15), which are located behind a hinged metal cover.




The panel is partially visible at the very top of the photo below (from Prime Portal, credit to Marek Solar).




Like most firefighting systems for armoured vehicles, the 3ETs11-2 system uses a halon fire extinguishing agent. Halon 2402 gas is used, also known as Freon 114B2. There are three fire extinguisher bottles available, allowing three attempts to extinguish a fire.




Two handheld OU-2 carbon dioxide fire extinguishers are provided to supplement the automatic fire extinguisher system. If the TD-1 fire detectors fail to respond (usually in the case of small flames), then these will be the only firefighting tools available to the crew, if the driver opts not to manually activate the extinguishers connected to the 3ETs11-2 system.




The T-72B3 modernization replaced the 3ETs11-2 firefighting system with the newer 3ETs13 "Iney" system. "Iney" employs a slightly more modern control system, but the fire detection and response algorithms are essentially the same as in the 3ETs11-2. The main improvement offered by "Iney" is the use of new OD-1S optical thermal sensors. Ten of the fifteen TD-1 thermal sensors of the earlier 3ETs11-2 were replaced with OD-1S optical sensors, all installed in the crew compartment to maximize crew survivability. The engine compartment is still only equipped with five TD-1 sensors in the same locations as before.




The response time of the OD-1S optical sensor does not exceed 2 ms. This is a very substantial improvement over the TD-1, and greatly contributes towards the much quicker overall reaction time of the system. By releasing the fire extinguishing agent as soon as a fire is detected, the chances of further damage are reduced and at the very least, the crew gain a better chance of escaping the tank before the fire accelerates. It is worth noting that although the T-72B3 was not the first Soviet tank to feature optical thermal sensors, the U.S Army was still ahead in this regard as the M1 Abrams had these technologies since it was type-classified in 1979.

The P11-5 control and information panel was replaced with the P708 digital control and information panel. P708 replaces the simple incandescent light bulbs for the indicator lights on the P11-5 with an LED display, which is a much more intuitive way of conveying information to the driver quickly and efficiently, but other than that, the new panel is exactly the same as the P11-5. A close look shows that besides the new LED screen, the buttons, toggles and other interactive components are exactly the same as in the P11-5.




A P708 control panel can be seen tucked away at the right side of the photo below. Photo taken from Popular Mechanics Russia.





MOBILITY


The T-72 was a true main battle tank, having successfully achieved an excellent compromise of the three principle attributes that govern basic tank design: firepower, protection and mobility. Throughout its career during the Cold War, the T-72 had one of the world's most powerful tank guns, had excellent armour protection, and was reasonably agile compared to its peers. In terms of average travelling speed, the off-road performance of the T-72 was broadly comparable to peers such as the M60A1, Chieftain and Leopard 1 but the T-72 had better acceleration characteristics. However, the T-72 was by no means the best in this category as the T-80 entered service only a few years later, followed by the Leopard 2 and then the M1 Abrams. All of these tanks surpassed the T-72 in acceleration characteristics and top speed by a significant margin, although it should be pointed out that "mobility" is an umbrella term that covers more than just these two aspects.

Compared to the T-64A from which it was created, the T-72 Ural is a heavier tank. This is despite having the same gun, a very similar weight of armour for both the hull and turret and virtually identical internal equipment. The culprit of this added weight is the running gear, which weighed a total of 6.2 tons in the T-64A but weighed 8.47 tons in the T-72. The difference of 2.27 tons is due to the heavier roadwheels, heavier tracks, heavier cooling system, and the enlarged volume of the engine compartment which required more armour to be added to the tank due to the increased surface area. These factors were counterbalanced by the installation of a more powerful V-shaped engine, thus placing the mobility of the T-72 on a marginally higher level than the T-64A.

Despite being heavier than the T-64A, the T-72 was still small and lightweight for a tank of its type. This simplified rail transportation and allowed it to safely cross low-capacity bridges and make good use of the large fleet of tactical bridge layers in Soviet army service, including the ones derived from the then-already-antiquated T-54.

Swedish mobility trials of T-72M1s (and MTLBs) in Northern Norrland between 1992 and 1994 yielded positive results. The tanks in question displayed good performance over snow as deep as 0.8 meters although it still failed at times to reliably traverse frozen ice banks.



ENGINES

The T-72 has been host to several variations of the same type of engine over the years, starting with the V-46, evolving into the V-84, and finally the V-92. All of the T-72 engines to date are V-12 four-stroke diesels with a limited multifuel capability. They are able to consume low octane gasoline (A-66 and A-72), standard Soviet military-grade diesels, and jet fuel (TS-1, T-1 and T-2). At temperatures of above 0 degrees Celsius, referred to as "summertime", the DL grade is used. At temperatures of between 0 and -30 degrees Celsius, the DZ grade is used. At temperatures of between -30 and -50 degrees Celsius, the special DA grade is used.

The driver can switch the type of fuel between gasoline, diesel and jet fuel by simply setting a rotary selector located next to his seat. The engine does not need to be further modified beyond that, but it is inefficient when using anything except diesel. An ST-10-1S starter-generator is attached to the engine. It is a starter motor that doubles as the electrical generator to power the electrical systems of the tank. The operating speed of the generator is between 3,600-6,250 RPM. 14.7 kW is used to start the engine electrically.

The main method of starting the engine is via an electric starter. In cold weather, the engine can be started with compressed air, or even perhaps by towing. In exceptionally cold weather conditions, the most dependable method of starting is a combination of compressed air and the electric starter. It takes around 20 minutes to start the engine in extremely cold weather, which is much longer than the 3 minutes needed by the GTD-1000T gas turbine engine used on the T-80, but diesel piston engines have their own advantages. Allegedly, usage of the compressed air starting system is avoided except when absolutely needed as it apparently wears out the engine more quickly.




A pair of compressed air cylinders are used for the engine starting system. They are placed at the very front of the hull, to the right of the driver's feet but to the left of the right hull fuel tank. The compressed air is also used for the pneumatic periscope cleaning system.




It is not known if the compressed air cylinders pose a tangible hazard if the tank armour is struck but not pierced. There is no doubt that the cylinders will explode if penetrated by a shaped charge jet or by metal fragments, but the small size of the cylinders make that unlikely unless a very specific part of the front hull armour is hit.


V-46-4 / V-46-6


The V-46 liquid-cooled engine is the baseline engine for the T-72 series, first appearing on the T-72 Ural and then the T-72A. It traces its roots to the V-2 which once powered the iconic T-34 and KV-1. The high torque of the engine was achieved thanks to the large bore diameter of 150mm and piston stroke of 180mm (left cylinder group) and 186mm (right cylinder grorup), which is the same as the V-2. The capacity of the engine is 38.8 liters - again, identical to the V-2.  In general, the V-46 and all its descendants are robust and dependable long-stroke, relatively low speed diesel engines that offer a good amount of power for a tank in the weight class of the T-72. The maximum torque output is 3,090 Nm at an engine speed of 1,300 to 1,400 RPM which is very respectable for a V-12 engine as high torque is available at low engine speeds, so the engine is able to provide a large amount of tractive force to overcome rolling resistance which is necessary for accelerating a heavy vehicle like a tank from a standstill. The V-46 is good when compared to the AVDS-1790-2 series for the M60A1 and M60A3 (among others) which has a power output of 750 hp and generates a maximum torque output of 2,352 Nm at a relatively high engine speed of 1,800 RPM. The V-46 is nominally quite close to the MB 838 of the Leopard 1 which has a higher power output of 830 hp but a lower maximum torque output of 2,744 Nm at 1,500 RPM. Of course, it is worth noting that the T-72 is also lighter than both of these tanks (even the Leopard 1) but has a manual transmission.

The V-46 was also superior to contemporary opposed piston engines in this regard as the torque output is much higher than the 5TDF of the T-64 series which generates a maximum torque of 1,922 Nm at 2,050 RPM and also the L60 No.4 Mk.5A of the Chieftain Mk.3 which generates a maximum torque of 1,971 Nm at 1,300 RPM, not to mention that the dynamic running characteristics of opposed piston engines are generally poorer. However, the V-46 is soundly beaten by the advanced MB 873 Ka-501 of the Leopard 2 which has a maximum power output of 1,500 hp and generates a maximum torque of 4,700 Nm at 1,600 RPM. Of course, the MB 873 is a larger 47.6-liter engine with a bore diameter of 170mm and stroke of 175mm. The light weight of the T-72 only compensates for this to some extent. The V-46 has a respectable torque backup (also known as torque rise or torque reserve) which allows it to run at a higher engine speed under high loads. This allows the tank to more easily overcome obstacles and climb hills, improves the responsiveness of the engine, and improves off-road driving performance overall. A short explanation of torque backup is available on the Perkins website. Having a low peak torque speed of 1,300 to 1,400 RPM and a high torque backup allows the V-46 to provide good acceleration characteristics for an engine of its time.


Output at rated speed: 780 hp
Rated speed: 2,000 rpm
Idle speed: 800 rpm
Fuel Consumption: 1 g / 245 kWh or 1 g / 180 hp.h
Torque back up: 9% ... 18%
Weight: 980 kg

T-72 Ural and T-72A power to weight ratio: 18.1 hp/ton


According to the report "Propozycja Poprawy Manewrowości Czołgu Twardy" (Proposal to Improve Maneuverability of the "Twardy" Tank) from the University of Technology in Szczecin, the T-72 accelerates to 32 km/h in 10.5 seconds on a paved road whereas a "Leopard 2" apparently achieves this in 9.5 seconds and the M1A1 Abrams achieves this in 7 seconds. The acceleration figure for the "Leopard 2" presented in the study is most likely erroneous or may be representative of a heavier Leopard 2 model, as the Leopard 2A0 model is known to be capable of accelerating to 32 km/h in 6 seconds. It is reported on page 12 of the May-June 1977 issue of "ARMOR" magazine that the M60A1 or M60A3 accelerates to 32 km/h in 16 seconds on a paved road while the XM-1 achieves this in 6.2 seconds. More contemporary sources repeat that the acceleration of the M1 Abrams to 32 km/h as 6 seconds. Paul-Werner Krapke states in "Leopard 2: Sein Werden und seine Leistung" that the Leopard accelerates to 32 km/h in 10 seconds on a paved street. In terms of acceleration, the T-72 was clearly superior to tanks like the M60A1/M60A3 and was roughly on par with the Leopard 1, but was undoubtedly inferior to the new generation of NATO tanks, i.e, the Leopard 2 and M1 Abrams. As a side note, the Polish study also includes figures for the PT-91 "Twardy" which weighs 45.3 tons and has a modern Polish S-12U engine with a power output of 850 hp. The PT-91 reportedly accelerates to 32 km/h in 11.0 seconds. The acceleration of all four of these modern tanks far outpaces tanks like the T-54 and others of its generation; the T-54 requires 18 seconds to reach 32 km/h on a paved road, placing it in the same class as the M48 and M60A1 in this category.


The acceleration figures for the T-72 are supported by original technical documentation on the acceleration of the T-64 with the 5TDF opposed-piston engine (700 hp). The chart below (taken from Andrei Tarasenko) shows the drop in engine performance when jet fuel (grey line, ТС) and low octane gasoline (white line, A-72) is used instead of diesel (black line, ДЛ), but more importantly, the chart shows that a T-64 (Object 432) running under normal conditions on diesel fuel accelerates from 0 to 32 km/h in around 10 to 11 seconds. The T-72 with the V-46 engine has the same acceleration characteristics as the T-64 and outperforms the T-64A by a small margin.





However, there may be some doubt about these acceleration figures for the T-72 as the acceleration of a generic T-72 model from 0 to 32 km/h is claimed to be 14 seconds in this promotional webpage for the PP1000 powerpack upgrade for the T-72. In terms of the credibility of sources, a document from a university of technology is ranked higher than promotional material as the information may have been presented in a way as to make a new product appear more appealing, but even so, it is necessary to acknowledge that there are conflicting sources. It is quite plausible that the numbers given in the Yugoimport page are for acceleration on a concrete road or a dirt road instead of an asphalt road.

The exhaust port for this engine is characteristically long and narrow. It has very rudimentary sheet steel cooling fins on top. The fins are arranged so that as the tank drives forward, cool air rushes from one side of the fins to the other, drawing away some heat along the way.







The exhaust port connects to the exhaust manifold via a simple duct. The exhaust port is secured onto the duct via a pair of bolts and nuts on either side.






The V-46-4 is the variant which the T-72 Ural uses, while the V-46-6 is used in the T-72A. The only difference between the V-46-4 and the V-46-6 is a change in the placement of oil containersWith the V-46, both the T-72 Ural and T-72A can achieve a top speed of 60 km/h on asphalt and set an average speed of 35 to 40 km/h on dirt roads.


V-84-1 / V-84MS


The V-84 engine differs from its predecessor mainly by an increase in power and torque output, along with an insignificant weight gain. The additional power comes from the new centrifugal gear-driven supercharger, which provides better aspiration for cleaner combustion in the cylinders. The increased power offsets the added weight of the tanks that have it installed, which includes the T-72A obr. 1984 and all T-72B models, allowing it to remain as nimble as its predecessors. This engine is much less smoky than the V-46 because the higher oxygen levels in the combustion chamber allowed a greater portion of the fuel particles to be consumed for more efficient consumption of energy, producing more output. One side effect of the added power is the increased heat output. Since the cooling fan for the radiator draws power directly from the engine, the increased heat is mostly eliminated, but more heat escapes from the exhaust manifolds. The engine also wears out slightly faster because of the increased power.




Output at rated speed: 840 hp
Rated speed: 2,000 rpm
Idle speed: 800 rpm
Fuel Consumption: 247 g/kWh or 182 g/hph
Torque back up: 6% ... 18%
Weight: 1,020 kg

T-72B, T-72B1, T-72BA power to weight ratio: 18.87 hp/ton
T-72B3 power to weight ratio: 18.2 hp/ton


The dynamic characteristics of the V-84 is shown in the chart below, taken from a V-84 technical manual. The power output of the engine rises sharply from around 610 hp to 840 hp as the engine speed increases from 1,300 RPM to 2,000 RPM. At the same time, the relative fuel consumption rate drops to the lowest point of 170 g/hp.h at 1,600 RPM and rises to the highest point of 182 g/hp.h at the rated speed of 2,000 RPM.





The maximum torque output of the V-84-1 is 3,332 Nm at 1,300 to 1,400 RPM. This is much more than 1,922 Nm produced by the 5TDF of the T-64BV but much less than the 4,395 Nm produced by the GTD-1250 of the T-80U and the 5,170 Nm of the AGT-1500 of the M1 Abrams. The increased weight of the T-72B compared to the original T-72 and the T-72A was offset (with surplus) by the higher torque output and better overall dynamic running characteristics of the V-84 engine such that the acceleration characteristics probably only increased slightly. Based on the performance of the PT-91 and the T-72 Ural (T-72M), the time to accelerate to 32 km/h for the T-72B is likely to be the same as earlier T-72 models at 10.5 or 14 seconds on a paved road. When using TS-1, T-1 and T-2 jet fuel or A-72 gasoline, the maximum torque output of the V-84 engine is only 900 Nm at 1,300 to 1,400 RPM. As such, the tank accelerates very slowly and cannot climb steep slopes or overcome most natural obstacles, so it is not feasible to operate a T-72B (or any T-72) with non-diesel fuels during combat. As a rule, non-diesel fuels can only be used in emergencies when diesel is completely unavailable.

When running under normal conditions, however, the V-84 engine has excellent running characteristics. The graph on the left shows the torque curve against engine speed for the V-84, taken from a technical manual. The graph on the right shows the torque output curve against engine speed for the MB 873 Ka-501, taken from an MTU brochure. As you can see, the torque output of the V-84 is at the maximum of 3,332 Nm at 1,300 to 1,400 RPM and steadily drops to 2,940 Nm at 2,000 RPM. In other words, the torque generated by the engine is largely constant throughout a wide range of engine speeds. For the MB 873, the maximum torque output of 4,700 Nm is produced at an engine speed of 1,600 to 1,700 RPM and drops sharply to 3,950 Nm at 2,600 RPM.





The exhaust port for the V-84 type engine is identical to the V-46.





Like previous variants, the T-72B has a top speed of 60 km/h on asphalt and an average speed of 35 to 40 km/h on dirt roads. This remains mostly unchanged even with the burdensome Kontakt-5 installed. Most T-72B3s are equipped with this engine.



V-92S2F


The V-92S2F turbocharged engine boasts an impressive power density of 1.02 hp/kg combined with higher standards of reliability. The maximum torque output is 4,521 Nm which is a huge improvement over the V-84 engine and nominally exceeds the GTD-1250 gas turbine engine of late production T-80U tanks, and is close to the level of the MB 873 Ka-501. The increased torque output and torque backup greatly improves driving characteristics across rough terrain and the fuel efficiency has been substantially increased, boosting the T-72's already good fuel economy to a new high. The engine is virtually smokeless due to the high heat of combustion. The cylinders and pistons were updated and are more robust compared to previous engines to cope with the added power. The T-72B3 obr. 2016 has the V-92S2F installed along with a new automatic transmission and new dual-pin tracks with improved traction on broken terrain.



Output at rated speed: 1,130 hp
Rated speed: 2,000 rpm
Idle speed: 800 rpm
Fuel Consumption: 215 g/kWh or 158 g/hph
Torque backup: 25% ... 30%
Weight: 1,100 kg


T-72B3M / T-72B3 obr. 2016 power to weight ratio: 21.73 hp/ton

Variants of the T-72 outfitted with the V-92S2F can be identified by the heavily modified exhaust unit, now much narrower but fatter and with different fins. A new exhaust unit was needed due to the turbocharger. However, it appears that two variations of this exhaust unit exist. The T-72B3 obr. 2016 uses a different exhaust than other tanks using the same engine.








Without the cooling fins and muffler removed, the exhaust duct itself is just a simple metal tube.





The exhaust duct is fitted over the exhaust manifold on top of the engine, which is oval shaped.




The use of the V-92S2F on the T-72B3M and T-72B3 obr. 2016 coupled with the new automatic transmission boosts its top speed to a blistering 75 km/h on paved roads and allows it to cruise cross-country at a speed of up to 60 km/h on dirt roads. This elevates the tank's mobility to the level of the T-80BV in terms of speed, and gives it something close to parity when moving cross country thanks to the high torque backup.


The MS-1 cyclone air filter used with all of the V-series engines is adequate for most environments. It is a two-stage filter, and requires a filter change once every 300 km traveled under extremely dusty conditions. According to Sergey Suvorov, the filter requires maintenance every 1,000 km in winter, and every 500 km in the summer.


The T-72's engine deck is taken up by the engine access panel, the engine's air intake, radiator/air intake and the cooling system air outlet. All of them except the engine air intake have armoured covers to protect them from bullets and shrapnel coming from above.





Left and right sides. Engine access panel up front, radiator/air intakes behind it (with armoured covers), and cooling system air outlet behind that (again with armoured covers)

The engine can be removed with the use of a 1-ton crane, which can be found at even the most modest depots. In the field, engine replacements are done with the help of engineering vehicles. The two photos below show the two-layered engine deck opened up to expose the engine, ready to be serviced or removed.





However, the T-72's engine is not integrated into a powerpack like on the Leopard 1. A quick-replace powerpack is far more convenient to replace, although they usually require cranes with a higher load capacity. It usually takes several hours to replace both the engine and transmission of a T-72. This is not particularly long compared to the M60A1 which needed 4 hours to have its powerpack replaced, but it is exceptionally long compared to only about 35 minutes or less for more modern vehicles like the Leopard 2. Highly skilled teams can even replace the powerpack of a Leopard 2 in less than 20 minutes in ideal conditions.

The photo on the left below (credit to Alexey Khlopotov, also known as GurKhan) shows the air intake for T-72 models with a V-46 engine. The photo on the right below shows the air intake for T-72 models with a V-84 engine.





The engine deck is cool enough that people can ride on top of it.







COOLING SYSTEM





The engine is water-cooled. Water is pumped around the engine and pumped up to the dual radiator packs where it is cooled. Inside the dual-pass radiator packs, water flows in winding aluminium tubes with cooling fins and heat is removed by air sucked in by an engine-driven fan at the rear of the engine compartment. Internal turbulators increase the efficiency of heat loss by inducing turbulence in the flowing water. Coolant oil from the transmission is also cooled with two similar single-pass radiator packs installed above the water radiators. The unwanted hot air exiting the radiator packs is pulled into the radiator fan and ejected out of the radiator fan outlet at the rear of the hull in an upwards direction. The rotational speed of the fan is determined by the gearing system connecting the fan drive to the gearbox. As engine speed increases, the rotational speed of the fan increases as well. However, the lack of an automatic coolant temperature regulation system limits the efficiency of the cooling system, leads to quicker overheating, and shortens the lifespan of the engine.






The oil radiator pack is shown in the drawing below on the left, and the water radiator pack is shown on the right.





This cooling system was previously used in the same configuration on the T-54 and T-62 and was proven to be sound by over two decades of use, experimentation and refinement by the time the T-72 entered service. One drawback is that dust particles kicked up into the air from driving at high speed may be sucked up by the high velocity air stream from the cooling fan, creating a distinctive "rooster tail" dust cloud behind the tank. The radiator pack is shown in the photo below.






Reports indicate that this system may be somewhat limited in extreme hot weather and only sufficient for European summers. The cooling system is designed for maximum cooling efficiency at an ambient temperature of up to 25° C. At this ambient temperature, the engine will work with no loss in power but the engine will begin to experience marginal reductions in performance at higher temperatures. Overheating becomes a major issue in ambient temperatures of up to 50° C, which is sometimes recorded at the Thar desert in India. At temperatures of 45° C and above, the engine will experience a steep reduction in power (up to 33% loss). At such temperatures, the tank must be stopped every 25 kilometers to allow the engine to cool to prevent excessive fatigue. The simplest solution to defer the overheating of the engine in warm weather (as practiced by tank crews all over the world) is to remove the covers which helps to improve air intake volume through the radiators to increase the rate of cooling, but this is not sufficient on extremely hot days.

According to "Пути Снижения Затрат Мощности В Системах Танкового Диселя" ("Ways to Reduce The Power Costs in Tank Diesel Systems") by S.P Baranov and V.T Nikitin, the power consumption of the cooling system of the T-72 is 7.7% at an ambient temperature higher than the typical operating range of 4
°C to 30°C. However, when the system is running within the operating temperature range, the power consumption is only 4.9% which is less than the ejection-type cooling system of the T-64A. Even when operating above optimal temperatures, the cooling system of the T-72 is more efficient than the fan-type cooling systems of foreign tanks like the M60A1, Leopard 1 and Leopard 2 which consume 14.4%, 14.7% and 14.5% of engine power respectively.

In total, the net engine power of the T-72 is 11.5% lower than the gross engine power after adding up the costs of the air intake heater and the air cleaning system together with the cooling system, and 14.3% lower in ambient temperatures higher than the operating range due to the reduced efficiency of the cooling system. This is only slightly better than the M60A1, Leopard 1 and Leopard 2 which only have power deducted through the cooling system. Thus, the net engine power of the T-72 Ural and T-72A is 682 hp, and the net engine power of the T-72B is 712 hp. This is only slightly more than the 642 hp of the M60A1, 630 hp of the M48A3, and only slightly less than the 710 hp of the Leopard 1 but much less than the 1260 hp of the Leopard 2. However, the modest engine power compared to tanks like the Leopard 2 is counterbalanced by the lower weight of the T-72, which is lower than both the M60A1 and Leopard 2 for all T-72 variants. Astonishingly, the weight of a combat loaded T-72 Ural (41 tons) is even slightly lower than a combat loaded Leopard 1A1 (41.5). Of course, these power deductions are only for the engine related subsystems. The deductions from the electrical systems of the tank are not yet considered. For example, the ST-10-1S generator on the T-72 generates 10 kW, and this power comes from the engine. The electrical systems of foreign tanks are typically more power-hungry which is often reflected in better performance in certain aspects (quicker turret rotation speed, more powerful infrared spotlights), but also results in slightly lower net power. Transmission losses may also reduce the power available to drive the tracks. A manual transmission like the type installed in the T-72 has lower parasitic power loss compared to automatic transmissions at the cost of requiring more driver training.

Apparently, the V-92 engine series and its accompanying modifications have partially solved the overheating issue at very high ambient temperatures. Specific details are not known to the author, but it could only either be an increase in the power of the centrifugal fan, or a simple modification of the water flow channels in the radiator, as Indian T-72s and T-90Ss apparently have.

The photos below show the radiator covers opened and closed, exposing the protective louvers within.





The photo below shows the engine compartment with cooling pack and engine access panel removed.





Note the crossbar to hinge both of the aforementioned accessories. Also note the centrifugal fan at the bottom left corner. It is a simple riveted aluminium fan with a diameter of 655mm and a width of 205mm, with twenty evenly spaced vanes. It is powered by a driveshaft connected to the gearbox so that it increases or decreases its power in accordance with the engine's mechanical output, thus adjusting for the engine's heat output as well. It is strong enough to throw water out of the engine compartment like a blowhole even while the engine is idling.





The use of a centrifugal cooling fan is one of the many conservative design features of the T-72, and in fact, the entire cooling system is fundamentally the same as the design used in the T-54. However, that does not mean that it was no longer viable by the 70's, as the design could still meet the cooling requirements of the V-46 engine in most weather conditions while remaining relatively compact, easy to maintain, and reasonably protected from top attack, although there are still a few flaws. By placing the radiator on the engine deck and exposing a large surface area, it becomes vulnerable to napalm attacks or molotov cocktails, as the cooling fan creates a suction force that can suck in burning gels and liquids through the radiator louvers, but this is compensated by the optional sheet steel covers. Closing these watertight covers prevents the ingress of burning liquids at the cost of accelerating the overheating of the engine. The cooling fan itself is well protected, since it is too small to be hit by aerial weapons and it can eject any burning liquid thrown inside it. By contrast, the cooling system of the Leopard 1 may offer better protection against incendiary attack as only the cooling fan is exposed on the engine deck whereas the radiators are not, but the radiators are on the sides of the hull, making them more vulnerable to heavy machine gun fire and artillery shell splinters. The cooling fan itself is barely protected from ballistic attack, but does not need to be, since there is no coolant to leak and it can still function with a few missing blades.

In the event of damage from an air attack, maintaining or replacing the radiator is quite simple, since the entire unit can be hinged open. The radiator can be disconnected from the coolant pump quite easily, as the two components are only connected by two hoses.




The louvers that protect the radiator inlet, cooling fan outlet and engine air intake can all be shut or opened with the press of a button from the driver's station. Closing these louvers provide additional protection from aerial attack. With the louvers closed, the engine deck can have a very high resistance to hits from air-delivered cannon fire from low angles of attack. Examples include 20x110mm AP-I rounds from A-1 Skyraiders, the USAF's main ground attack plane in the early-mid stages of the Cold War, or 20x102mm AP-I rounds fired from AH-1 Cobras and in many fixed wing aircraft such as the F-4 Phantom and F-16, which may be used in the close air support role.





The photo above shows the engine access panel and armoured cover hinged open. Note the spaced armour arrangement. Since ground attack aircraft and attack helicopters almost never fly at high altitudes to deliver cannon attacks due to the risk of being seen and shot down, the armour is more than enough to deflect hits from all manner of cannon fire. A-10 pilots are trained to approach targets at an angle of attack of around 3 degrees from treetop level. Reducing the obliquity by a few more degrees will not change the fact that the engine deck is too thickly armoured to be affected even by shelling from 30mm DU rounds.




TRANSMISSION




The T-72 uses a hydraulically assisted manual transmission with dual planetary gearboxes and dual planetary final drives, a type of transmission that is known as a dual transmission system. The two drive sprockets at the rear corners of the hull have a transmission unit each, shown in the two photos above. This type of transmission is principally the same as one from the T-54, but improved. It is highly compact, rock solid, extremely reliable (practically unbreakable), and also quite precise, meaning that the driver can direct the tank between obstacles more easilyThere are seven forward gears and one reverse gear. The weight of the transmission including the crankcase, the power takeoff mechanism for the radiator fan, pumps, and the ST-10-1S starter-generator is 1,635 kg. The total weight of the transmission assembly is 1,870 kg. The total volume occupied by the transmission is 0.43 cubic meters and the volume occupied by the gearbox alone is 0.09 cubic meters. According to technical reports from Sverdlovsk and Nizhny Tagil published in 1973-1974, the manufacture of the transmission of the T-72 requires 721 man-hours.

The gear shifting mechanism is designed to prevent the driver from shifting gears until the engine speed is in the correct range which maximizes the efficiency of torque transmission and makes it easier for novice drivers to handle the tank. Due to the use of a manual transmission, the net power at the drive sprockets of the T-72 is actually slightly higher than the Leopard 1, and the higher torque output of the V-46 engine allows the tank to accelerate very quickly.


According to the manuals for the T-72A and T-72B and the book "Main Battle Tank" (Основные Боевые Танки) published by Arsenal Press in 1993, the gear speeds (at 2,000 RPM) and gear ratios are as follows:


Gear speeds (km/h) Gear ratios
1st: 7.32
2nd:13:59
3rd: 17.16
4th: 21.47
5th: 29.51
6th: 40.81
7th: 60
R: 4.18
1st: 8.173
2nd: 4.40
3rd: 3.485
4th: 2.787
5th: 2.027
6th: 1.467
7th: 1.0
R: 14.3


The gear ratios of the T-72 gear box are identical to the T-64, although the transmission is different. When driving the tank, the second gear tends to be the starting gear and the first gear is used for low speed maneuvering, cornering, climbing obstacles, escaping boggy terrain and parking only. Results of the tests of Object 172 tanks in the Turkestan Military District in 1968 showed that the average speed of the tanks on a paved road was 43.4 to 48.7 km/h, and the maximum speed recorded was 65 km/h, presumably achieved by driving down a perfectly straight stretch of highway. The official top speed is 60 km/h, but this was increased to 75 km/h in later models of the T-72B3 by the installation of a new engine. A T-72B3 reached a speed of 77 km/h on a straight dirt road track during the 2018 Tank Biathlon held in Alabino proving grounds outside of Moscow.

The gear shift is the same one used in the T-64 and is much more linear than the one in the T-54.





Here is a GIF of the gear shift of a T-64 being operated.






A new electronically controlled automatic transmission was installed in the T-72B3 obr. 2016. Very little information is available on the new transmission other than that it has seven forward gears and one reverse gear.

In all T-72 variants, the brakes are of a disc type, hydraulically operated. The T-72 is not capable of neutral steering. The tank can only pivot by locking one of the two tracks in place while the other drives the tank around it. This method of steering is mechanically simple, but inferior to a true neutral steering system where both of the tracks receive power and one of the tracks is run at the desired speed while the other is run in the opposite direction. Besides being slower, pivot steering generates a huge amount of friction and pushes soil between the tracks and the road wheels which places more strain on the inactive track, creating tension that may cause the track to be dislocated from the suspension.








The steering tillers (or levers) are hydraulically assisted, so that steering the T-72 is relatively light and easy even for an inexperienced driver. The synchromesh gearing system enables the driver to steer the tank smoother than on a T-54 when he pulls on either one of the tillers, as the changing of gear ratios in the gearbox is smoother with a synchromesh system than with a typical constant mesh system. The synchromesh system is also less harsh on the gears, thus increasing the lifespan on the gearboxes. Driving the T-72 is a very pleasant experience - at least compared to a T-54 - according to people with firsthand experience. One of the reasons besides the steering system is the low center of gravity of the tank itself. By having a low height and a low center of gravity, oscillations are less pronounced and the handling is easier. The tank is also more stable when moving at high speeds, on broken terrain, and when maneuvering. The aerodynamics of the tank are also better than an equivalent tank with a higher profile, although this is generally not a major consideration. Nevertheless, the tiller system is inherently less ergonomic than a steering bar or wheel. The only advantage of the tiller system over the more complex steering bar system is that it is much easier and cheaper to manufacture, and also more durable.


A little-known fact is that with the mud guards on, it is true that the T-72 can only climb vertical obstacles measuring around 0.85 m in height. When they are removed, however, the T-72 can scale obstacles at least as tall as 1.2 m (already taller than the tracks) or more.









SUSPENSION





The T-72 uses full-length torsion bar suspension. Each wheel has its own torsion bar, which runs across the hull floor and to the other end of the hull. The front two torsion bar-wheel hub interfaces have reinforced bolts, since the T-72 is slightly front heavy and so they will bear the brunt of the tank's weight during forward movement, especially across pot-holed ground. According to Vasily Chobitok in "Ходовая Часть
Танков" (The Running Gear of Tanks), the torsion bars of the T-72 have a length of 2,310 mm and have a diameter of 47mm, and are made from 45KhN2MFASh steel. The nominal minimum ground clearance of the T-72 Ural and T-72A is 470mm and was increased to 490mm on the T-72B chassis for improved mobility. The minimum ground clearance is measured from the driver's "tub".

There are six evenly-spaced 750mm roadwheels with three return rollers on each side of the hull. The roadwheels are die-cast aluminium alloy, with thick rubberized rims. The wheels weigh 180 kg each. The T-72 Ural used an 8-spoked wheel design, but all subsequent models used a 6-spoked wheel. These wheels are larger than the ones used by the T-64 (550mm diameter) and also heavier. The main advantage of larger diameter wheels is that rolling resistance is reduced, but due to the heavier powertrain and reduced traction from the RMSh track design, the advantage is small.






The maximum vertical range of travel of the first roadwheel is 315mm up to 43mm down, and the amount of vertical travel of each of the other roadwheels is variable. The range of travel is listed in the drawing above. The range of vertical travel is the same as the T-64 and double the range of the T-54/55 and T-62 roadwheels. The smoothness of the ride in a T-72 is reduced compared to a T-64A due to the larger and stiffer torsion bars, but the upside is that the torsion bars of the T-72 are much more durable and rarely fail. The higher driving smoothness of the T-64 series of tanks contributes to a slightly higher level of firing accuracy at long range compared to the T-72 due to the higher dampening effect of the softer torsion bar suspension.

In terms of ease of accessibility such as routine maintenance (such as lubrication, as shown below) or the replacement of damaged wheels, the design of the roadwheels of the T-72 is not different than any other type.








The first, second and last roadwheel on both sides are augmented with hydraulic shock absorbers. The front two shock absorbers are highly beneficial as the tank crosses rough terrain, while the rearmost shock absorber is intended to assist recovery when driving through dips and bumps. The shock absorbers are of a rotary type, and are very similar to the ones installed in the T-54. A bump stop is affixed to the side of the hull to prevent the roadwheel arm from overextending.





A cross section of the shock absorber is illustrated below. The device is extremely compact.





However, the similarities are only cosmetic. The shock absorbers of the T-72 have a much greater range of travel so that the roadwheel is braked over a longer distance and thus, over a longer time. This greatly softens the oscillation of the hull, making it a much smoother ride compared to the T-54 or T-62 which were known for being somewhat jerky. The larger range of travel is depicted in the drawing below by the dotted lines. Drawing taken from "Kampfpanzer: Die Entwicklungen der Nachkriegszeit" by Rolf Hilmes.





The photos below give a good view of the wheels. As you can see, there are two types: one with six spokes and one with eight spokes.











The T-72 first came with single-pin RMSh tracks measuring 580mm in width. These tracks have rubber bushings that help reduce vibrations and thus, reduce wear and tear as well as noise levels (though still relatively high). The ground contact length is 4,270mm, as opposed to 4,242mm of the T-64 tracks. A full set of 97 links weighs just over 1,723 kg for one side, and 3,446 kg for a pair of two tracks. These tracks were simpler than the dual-pin tracks of the T-64A and had better traction on rocky and sandy terrain, but had worse traction in mud and other types of terrain and were not as durable. The RMSh tracks compare unfavourably to the T142 tracks of the M60A1. These tracks are also heavier than the T-64A tracks which weighed just 1,450 kg.





Old drive sprocket

Newer UMSh dual-pin tracks are available, also measuring 580mm in width. UMSh tracks were specially developed for the T-80 as a necessity because of the uniquely high stresses on the suspension from the high torque from its gas turbine engine and also because of the tank's high average speed across rough terrain. As such, these tracks were the smoothest and most durable of the three types used by the Soviet Union's three main battle tanks. Installation of the newer tracks requires modified drive sprockets, so only the newer modifications of the T-72 have this installed, including some late production T-72B variants. The interior surface of the track pads are rubber-lined so that the rubber rims of the roadwheels roll on a rubber surface rather than a metal one. This prolongs the life of the roadwheels and also helps to reduce the vibrations transmitted to the tank from driving over rough ground. The reduction in vibrations increases the comfort of the crew and improves the accuracy of the weapons while firing on the move. Another benefit of of this track is its ability to be fitted with asphalt-friendly rubber pads. An entire set of tracks weighs 1,760 kg and the combined weight of a pair of tracks is just under 3,520 kg. There are 80 track links per side.





The ground contact length with the UMSh tracks is very slightly longer than on the RMSh tracks - 4,290mm instead of 4,270mm.The photo below shows a T-72B3 with UMSh tracks and rubber track pads installed for driving on paved roads. Photo courtesy of Vitaly Kuzmin.






There is a simple mud scraper bolted on to the side of the hull in every T-72, just above the drive sprocket. The scraper helps to prevent loss of traction from excess soil on the tracks, especially sticky mud like clay.






The T-72 continued to use the same sheet metal mudguard design until the T-72B variant, when it was replaced by a T-80-style rubber mudguard design. The two mudguard types are interchangeable between all T-72 variants, and indeed, many examples had the new mudguards retrofitted during regular scheduled overhauls. The photo below on the left shows the original sheet metal mudguards on a T-72 Ural and the photo below on the right shows the new mudguard on a modernized T-72 Ural.






The reason for the switch is not entirely clear, but it is likely that the main impetus was the greater durability of a rubber mudguard. It is likely that unlike sheet metal, the rubber flap of the new design could flex and deform elastically under adverse conditions while still maintaining enough rigidity to perform its primary function as a mudguard. The T-90 and T-90A continue to use the new rubberized mudguards to this day.

Removing rubber pads on T-90
Throughout the T-72's evolution, it has "fattened up" somewhat, and the largest weight gain was during the T-72B upgrade. While the T-72 Ural and T-72A weighed 41 and 41.5 tons respectively, the T-72B tipped the scales at 44.5 tons with Kontakt-1 and 43 tons without Kontakt-1, and the T-72B obr. 1989 weighed approximately the same at 44.5 tons due to the installation of Kontakt-5. Early T-72B3 models with a modernized V-84 engine weigh approximately the same as a T-72B obr. 1989, but the T-72B3 obr. 2016 with additional "Relikt" side skirts, 4S24 explosive reactive armour on the sides of the turret and over the side skirts, and slat armour on the rear of the hull and turret weighs 46.5 tons. A combat-loaded tank would have an additional weight of 2%.

The T-72 Ural and T-72A exert 0.83 kg/sq.cm of ground pressure, while the T-72B, being heavier due to its thicker armour and incorporation of ERA, put in 0.898 kg/sq.cm of ground pressure. Compared to its immediate foreign counterparts, the T-72 had little to no advantage in soft terrain, despite being a great deal lighter than all of its adversaries. Against the Chieftain, Leopard 1 and M60A1, the T-72 Ural and T-72A fared slightly better in this respect, but the T-72B was neither better nor worse than its more modern rivals like the Leopard 2, Challenger 1, M60A3 and the M1 Abrams. The weight discrepancy doesn't manifest in this regard, but it becomes much more apparent when we consider the infrastructure of Eastern Europe at the time, especially the bridges - both permanent and temporary ones - which had stricter weight restrictions. Another advantage of the light weight of the T-72 is that it is light enough to be transported on existing rail platforms (the maximum cargo load limit was 55 tons), and also light enough to be compatible with the weight limit of the old MTU-55 bridge layers and TMM truck-based bridge layers, both of which were and still are present in large numbers in the Russian Army Engineers.

In total, the suspension, powertrain, and all the associated systems have a combined weight of 8.57 tons.

If the T-72 were trapped in swamps, bogs or in extremely deep snow, it may escape with the help of the eponymous log.






By tying the log to track pins on both right and left tracks as illustrated below, the tracks will drag the log along and under them, thus forcing that section of the track to rise above the mud while simultaneously giving the track something more solid to drive over. This allows the tank to get out of the hairiest situations.





The unditching log was demonstrated in Sweden by an ex-GDR T-72M1 in 1991 as part of a series of tests. Colour photo available on the ointres.se website.





Here is a video (link) demonstrating a tank unditching itself using the log.



WATER OBSTACLES





The T-72 is equipped with the OPVT fording system which includes a snorkel. The system allows the T-72 to cross deep water obstacles in the same manner as the T-64, which also uses the OPVT system. It is possible for the tank to ford streams with a depth of 1.2 meters without any preparations, but crossing water obstacles with a depth of 1.8 m or more requires additional preparation: the fighting compartment ventilation system must be turned off, the driver's hatch must be closed, the blower valves in the ventilation system must be checked, the water drainage port plug in the belly of the tank must be removed, an outlet valve must be installed in the drainage port, the air pressure valve for the driver's periscope cleaning system must be closed, the engine exhaust outlet must be replaced with a special outlet with valves (shown below on the right), and the engine air intake lid must be installed. Fording a 1.8 meter-deep river can be done with the turret hatches open, although water may splash into the turret as the tank is only 2.23 meters tall. The engine draws in air through the fighting compartment, so if the turret hatches are closed, the circular port in the gunner's hatch (shown below on the left) must be opened to ensure that the engine is sufficiently aspirated and to prevent the asphyxiation of the crew.






The commander directs the driver when crossing such obstacles as the driver has no way of seeing out of the tank when the hull is completely submerged.

When the OPVT system is fully activated and the snorkel is mounted, fording up to a depth of 5 meters is possible, but thorough preparations are necessary in order to do so. The same preparations for crossing an 1.8 meter-deep stream must be followed, and the additional preparations include sealing the edges of all hatches and various openings and periscopes with a thick resinous waterproofing paste, as the water pressure at such depths is simply too much for rubber seals to handle.




The driver must then turn on the bilge pump and remove the bilge pump plug. The pump is located to his left side. The bilge pump expels water from the tank through drainage ports in the belly of the hull at a rate of 100 liters per minute.

Crew members are each given a closed-circuit IP-5 rebreather and a life jacket. The crew must put on the life jacket before beginning the snorkeling operation as a precautionary measure, but the IP-5 may or may not need to be worn prior to entering water. In most cases, the rebreather is worn inside the tank when the commander gives the order to bail out of the tank while the tank is already underwater.





It comprises a watertight, form fitting gas mask, a chemical respirator chamber containing potassium superoxide (KO2), and a flotation collar. The rebreather uses the chemical reaction between potassium superoxide and carbon dioxide, activated by water from the user's breath reduce the former two to oxygen and potassium carbonate. The freshly produced oxygen gas is mixed into the previously exhaled breath to replenish its oxygen content for rebreathing.



IP-5


The long snorkel provides ventilation for all three occupants as well as the engine. Air is sucked into the fighting compartment of the tank and into the engine via an air intake fan duct which draws air from the crew compartment.





The normal NBC-capable ventilation system is inoperable while snorkeling, but this does not mean that the crew is vulnerable to such dangers while snorkeling as the crew must don a closed cycle rebreather system before entering water. This means that the crew never has to breathe contaminated air, although the interior of the tank will be unavoidably contaminated. The snorkel is installed on the circular porthole in the gunner's hatch mentioned earlier.

Because the hatch can be simply swung open, installing the snorkel is not difficult. The snorkel is fitted with two floating markers during training exercises to indicate the tank's position underwater to help rescue teams locate the tank if it has stopped underwater.


The two photos below shows the snorkel being installed during a river crossing exercise.





Also, the exhaust port must be replaced with a special outlet with valves to prevent water from entering into the exhaust manifolds.

T-72s equipped with the V-92S2 or V-92SF engines must use different valve units. All T-72 variants are capable of snorkeling using the OPVT system.







Only crews that have passed a water obstacle crossing training programme and have taken part in exercises are allowed to undertake such maneuvers. If radio communication between the tank crew and ground units is interrupted while the tank is snorkeling, it is possible to communicate by passing an antenna up the snorkel. Depending on the situation, the crew may have to bail out of the tank while it is underwater. To do this, the TKN-3 periscope and the TNPO-168V periscope are both pulled out of their respective ports to allow water to flood the tank. Flooding the tank this way takes 1.5 minutes, and after the tank is completely flooded, each members exit the tank through their own hatches. Prior to this, the crew must perform a few safety tasks, like switching on the emergency lighting in the tank, switching off the battery system, releasing the parking brake, or disconnecting their communications devices from the intercom system and taking off their helmets (if IP-5 is not already worn prior to entering the water).




FUEL TANKS





All T-72 variants have a total internal fuel capacity of 705 liters spread across several fuel tanks. Two fuel tanks are located on the two front corners of the hull (flanking the driver). The port side fuel tank extends from the nose of the glacis up to the turret ring and the starboard side fuel tank extends from the nose of the glacis up to the driver's station. Behind the starboard side fuel tank is another fuel tank. It also doubles as ammunition racks, and so does the crescent-shaped conformal fuel tank directly behind the autoloader carousel which holds 12 propellant charges. The two front hull fuel tanks have cutouts for various equipment including the driver's instrument panel, the firefighting system control boxes, detection and control boxes for the NBC protection system, and a power supply unit.




Another 495 liters of fuel is stored in conformal fuel tanks located externally on the starboard side fenders above the tracks. These fuel tanks are made from stamped sheet steel with a bakelite coating and have internal partitions. As you can see in the diagram above, the external and internal fuel systems are not interconnected. They each have their own separate fuel lines, but both connect to the same fuel pump. However, the internal and external fuel tanks are individually interconnected. The fuel hose between two external fuel tanks can be seen in the photo below:




The total fuel capacity of the tank is 1,200 liters. Due to the radiation absorbing properties of fuel, it was found that the frontal fuel tanks gave the driver additional protection from gamma radiation. As such, the front fuel tanks are designed to be drained last. This also has the added bonus of providing additional protection from spall and secondary fragments, although the fuel tanks are limited in this capacity due to the thin sheet steel skin of the container and the lack of a self-sealing system. The fuel tanks are made from stamped sheet steel with a bakelite coating.


Being entirely separated from each other, the driver-mechanic is able to shut off and isolate the internal and external fuel tanks from his station. Isolated fuel tanks will be disconnected from both the fuel pump and the fuel return lines, so the fuel within the tank will be left to sit. This can be beneficial in some circumstances, such as when there is an imminent threat of an internal fire spreading. By shutting off all of the internal fuel tanks, the fuel will not leak out as energetically as it is no longer being drawn by the fuel pump or maybe even stop leaking entirely, depending on the specific location of the damage to the tanks. It is also possible for the driver to shut off all internal fuel tanks, and rely on external fuel only if the situation allows it. This keeps the internal fuel tanks full and prevents the tanks from being filled with air (and oxygen), so that the chances of an internal fire are minimized. This also creates the possibility of filling the internal fuel tanks with water,and since the majority of the volatile propellant charges are stowed in conformal fuel tanks, they can become ad hoc wet stowage racks for increased safety. This was probably never done in practice, but based on how the fuel system works, it is certainly possible, although not recommended due to the hassle of draining the tanks.

The video below shows a T-72B in Grozny retreating with some of its external sponson fuel cells alight. As you can see, the tank is not disabled by the fire and is perfectly capable of moving under its own power to a safe location where the crew can put out the fire with the fire extinguishers carried inside the tank.





Two externally mounted auxiliary fuel drums can be carried on special mounts at the rear of the tank. The auxiliary fuel tank holders are hinged, and may be folded flush to the hull rear when not in use. Each drum has a 200-liter capacity, thus increasing the maximum fuel capacity of the T-72 to a total of 1,600 liters.







The drums connect directly to the fuel system, and both can be disconnected by the driver at the same time by the push of a button.





The T-72 Ural can travel 480 km on internal fuel alone or 700 km with external fuel drums. Thanks to improvements in fuel efficiency on the T-72B3, it can travel 550 km on internal fuel alone or 800 km with external fuel drums despite having the same fuel capacity as older models. As with all automobiles, fuel efficiency decreases significantly while driving cross-country because the amount of engine power needed to overcome dynamic resistance increases as the harshness of the terrain increases, and so does fuel consumption.

Because of the T-72's relatively large fuel capacity and high fuel efficiency, refueling the T-72 isn't even necessary for short continuous operations. This greatly eases the logistical burden on the frontlines.

44 comments:

  1. Turret roof is 45mm thick, rear of turret is 65mm.

    ReplyDelete
    Replies
    1. Hi bojan. I will be happy to correct that part of the article, but I need to know which part of the roof you are referring to. I also need some kind of source, if possible.

      Delete
    2. http://s017.radikal.ru/i424/1604/d1/3dbdaf0335e2.png
      That is Obj.432, but T-64/72/80/90 are same.

      Delete
    3. I don't know how closely the T-72 turrets follow the Obj.432, so I'll have to take your word for it pending further research. Thanks.

      Delete
    4. Like your T-72 tank article, I read it many times. China's 99 Tucker is very similar to the T-72. What is the height limit of the next T-72 tank pilot? What is the height limit for commanders and gunners?

      Delete
  2. I must say two things,

    One: that the new blogger layout is a welcome change from the one that was used previously. That one was ponderous to use and slow to load.

    Two: that spiting this article into two was a good move. Certainly easier on the navigation side of things.

    ReplyDelete
    Replies
    1. Thanks for the feedback. The upgrade was long overdue, really :) I'm spending some of my spare time to add hyperlinked indexes to existing articles to make it easier to navigate and easier to share on other sites. If you have suggestions on how to further improve the layout, don't hesitate to say so.

      Delete
    2. Like your T-72 tank article, I read it many times. I have a question I would like to ask, what is the height limit of the T-72 tank? I am a T-72 tank fan. I admire the article you wrote, very good! Would also like to ask the captain and the captain's height limit?

      Delete
  3. Like your T-72 tank article, I read it many times. China's 99 Tucker is very similar to the T-72. What is the height limit of the next T-72 tank pilot? What is the height limit for commanders and gunners?
    There is also a problem; the Russian tank's turntable loading opportunity will not limit the power of armor piercing it? For example, the US military tanks are self-contained ammunition. It is particularly hoped that bloggers can write an article of this kind. I still think that the turntable loading machine can save the size and weight of the tank.

    ReplyDelete
  4. Hi Iron Drapes,

    maybe you want to add to the engine section the motor V-92S2 with 1000hp, it was used in the T-72B2 Rogatka upgrade of 2006 and in the T-90A. Watch out with the designation: The V92S2 has 1000hp, but the V92S2F has 1130hp.

    Kinds regards

    ReplyDelete
    Replies
    1. I'm fairly positive that the T-72B2 was never ever actually fielded. As far as I know, it was just a tech demonstrator.

      Delete
    2. Yes, I think that too but there are sources of some T-72BA (Objekt 184A) and T-72BA1 (Objekt 184A1) becoming the new 1000hp motor during a overhaul starting in the period of 1999-2000.

      Either way it is definitely not a common engine for the T-72 but it is a fact that this engine is available for the T-72 if a customer wants it.

      It is your blog and you are the boss but I guess that for the sake of completeness maybe you should include it in your article. Just saying...

      Delete
    3. http://otvaga2004.ru/tanki/istoriya-sozdaniya/tank-t72ba/

      Delete
    4. Sure, but my articles focus on what the Soviet and Russian military operates, not what export customers operate. Dozens of countries operate Soviet/Russian hardware and the list of variations is endless, so not everything gets included.

      As far as I am aware, all or almost all T-72BA modernized tanks use the V-84MS. The V-84MS is listed together with the V-84-1 in this article.
